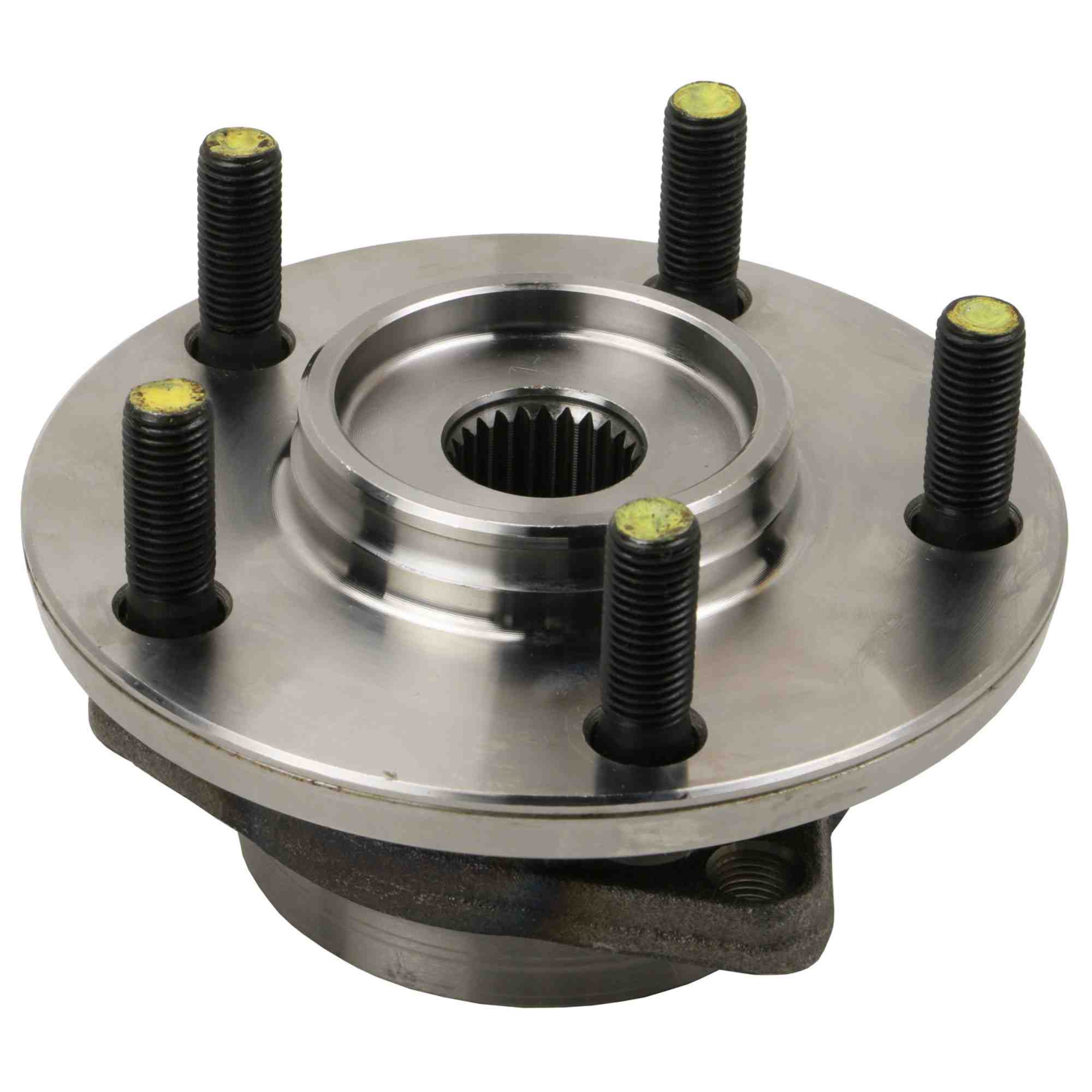

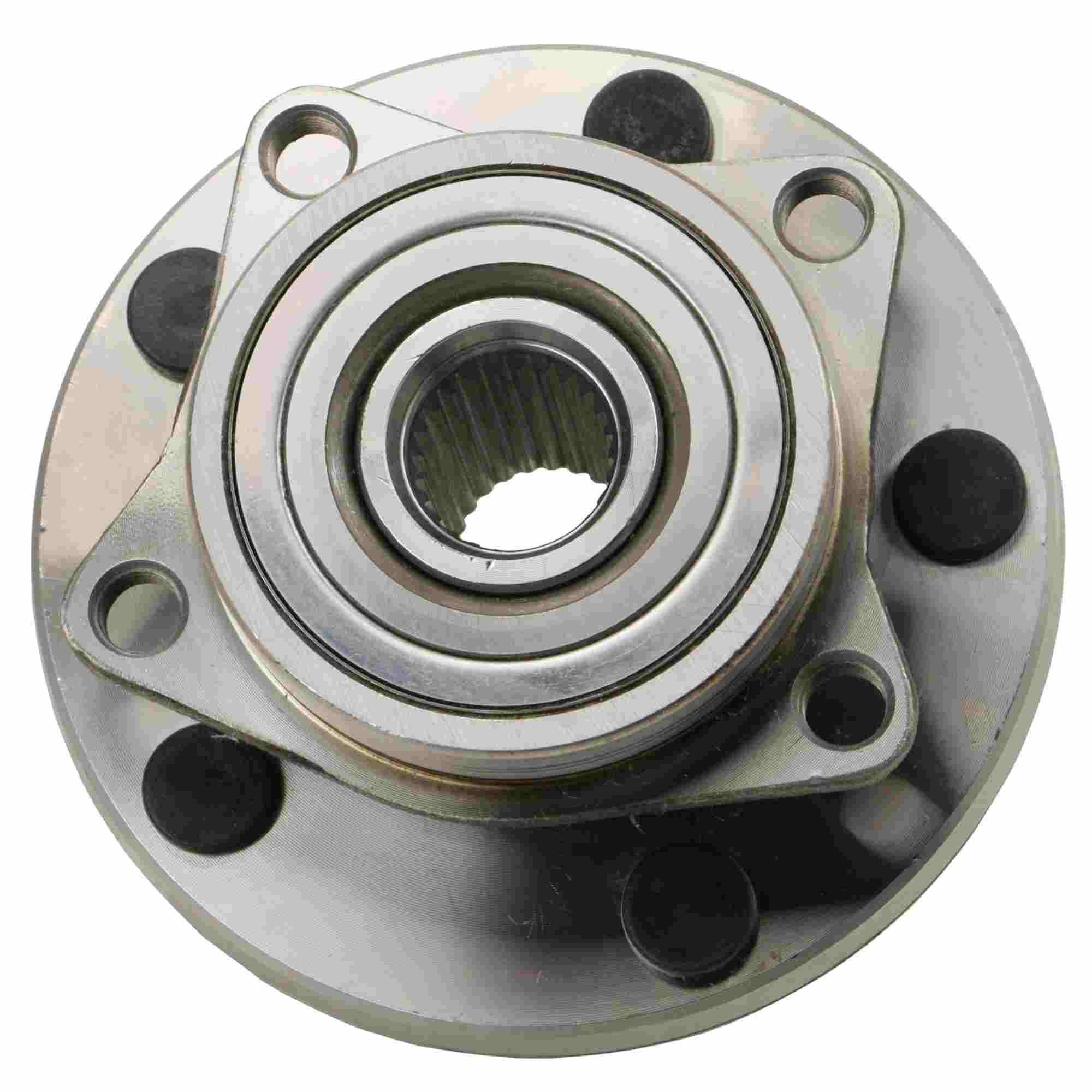

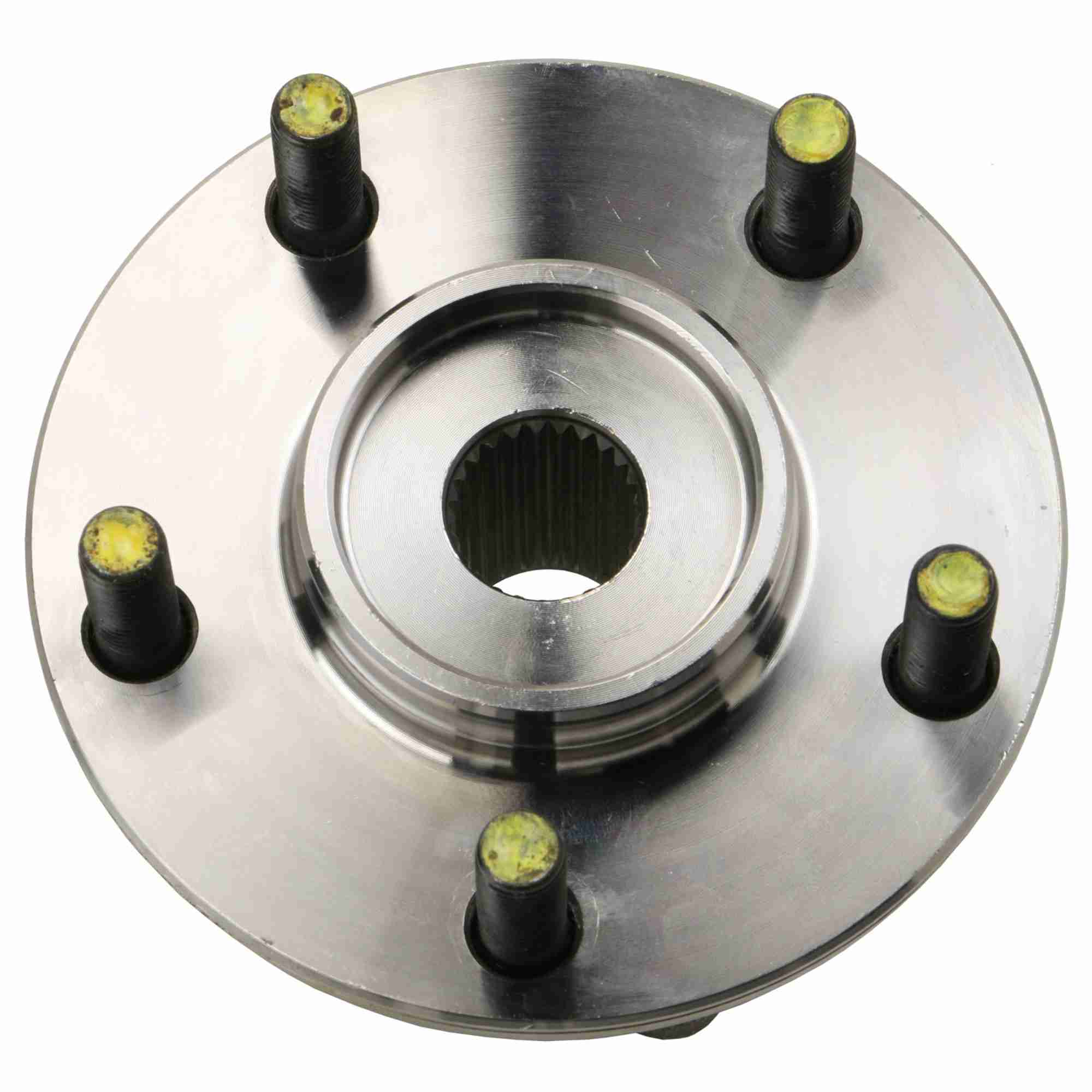

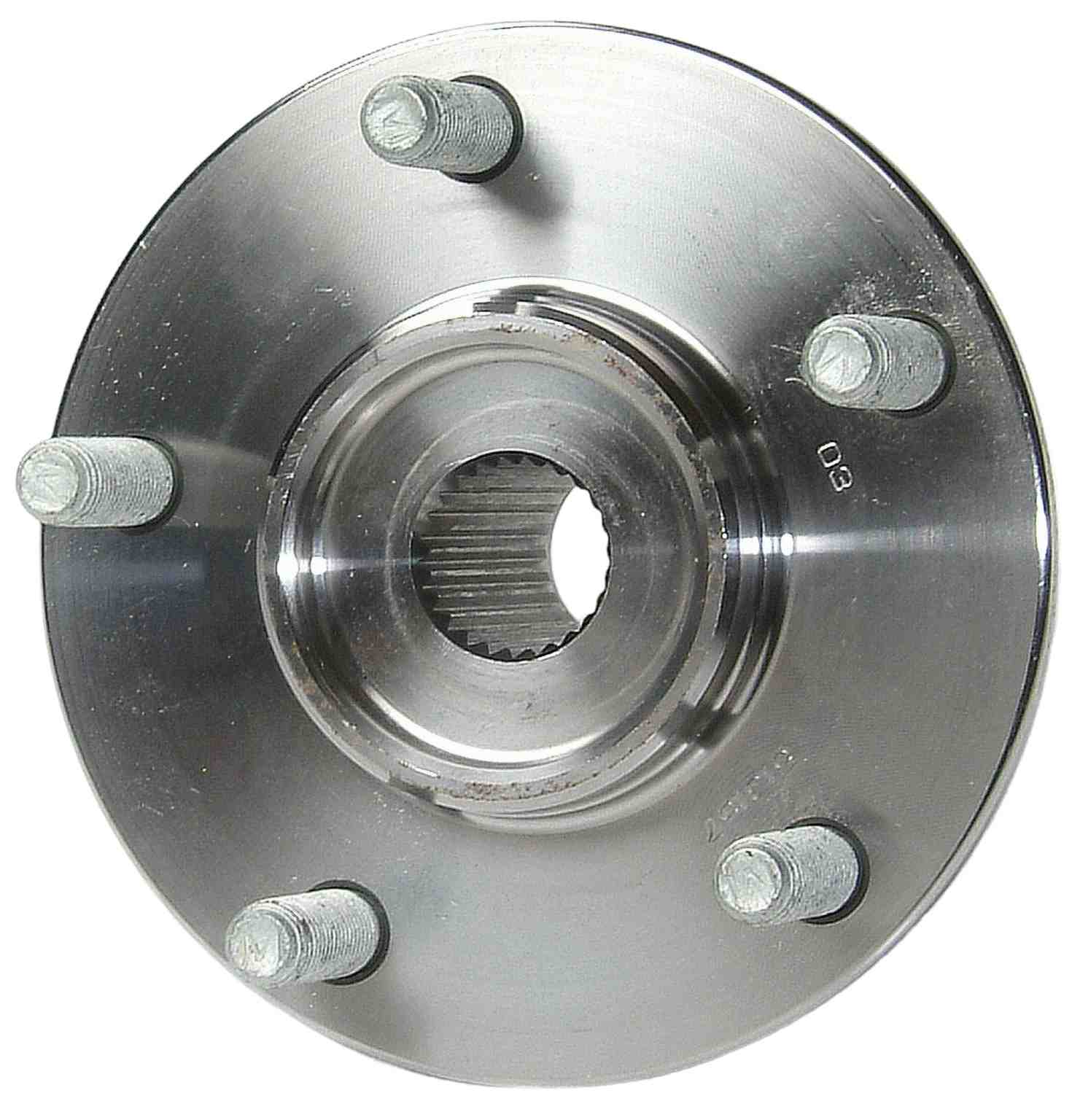

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Chrysler,Mitsubishi
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
Bolt Quantity: 4
Flange Diameter (A): 142.0
Bolt Circle Diameter (B): 4.500
Bolt Circle Diameter Metric (B): 114.3
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 67.0
Brake Pilot Diameter (E): 69.0
Flange Offset (F): 40.6
Hub Pilot Diameter (G): 84.0
Bolt Hole MET (I): M12X1.25
Bolt Hole Quantity: 5
Bolt Hole Quantity: 25
Flange Shape (K): OFFSET TRAPEZOID
ABS Sensor: No
Location: Front Wheel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002 - 2005 | Chrysler | Sebring | GTC, Limited |
| 1996 - 2000 | Chrysler | Sebring | JX, JXi |
| 2001 | Chrysler | Sebring | LXi Limited |
| 1995 - 2004 | Chrysler | Sebring | LXi, LX |
| 2004 - 2005 | Chrysler | Sebring | Touring, Base |
| 2005 | Chrysler | Sebring | TSi |
| 1995 - 2000 | Dodge | Avenger | ES, Base |
| 2001 - 2004 | Dodge | Stratus | ES |
| 2001 - 2005 | Dodge | Stratus | R/T, SE |
| 2002 | Dodge | Stratus | SE Plus |
| 2003 - 2005 | Dodge | Stratus | SXT |
| 1996 - 1998 | Eagle | Talon | Base |
| 1995 - 1998 | Eagle | Talon | ESi, TSi |
| 1996 - 1997 | Mitsubishi | Eclipse | Base |
| 1995 - 2005 | Mitsubishi | Eclipse | GS |
| 1995 - 1999 | Mitsubishi | Eclipse | GSX, GST |
| 2000 - 2005 | Mitsubishi | Eclipse | GT |
| 2003 - 2005 | Mitsubishi | Eclipse | GTS, Spyder GTS |
| 1995 - 2004 | Mitsubishi | Eclipse | RS |
| 1996 - 2005 | Mitsubishi | Eclipse | Spyder GS |
| 1996 - 1999 | Mitsubishi | Eclipse | Spyder GST |
| 2001 - 2005 | Mitsubishi | Eclipse | Spyder GT |
| 2004 - 2008 | Mitsubishi | Galant | ES Diamond |
| 1999 - 2008 | Mitsubishi | Galant | ES, DE |
| 2004 - 2007 | Mitsubishi | Galant | GTS |
| 1999 - 2003 | Mitsubishi | Galant | GTZ |
| 1999 - 2006 | Mitsubishi | Galant | LS |
| 2004 | Mitsubishi | Galant | LS Diamond |
| 2003 | Mitsubishi | Galant | LS V6 |
| 2007 - 2008 | Mitsubishi | Galant | Ralliart |
| 2005 - 2007 | Mitsubishi | Galant | SE |
Moog Hub Assembly:Wheel Hub and Bearing Assembly,Chrysler,Mitsubishi
Sale price$136.23 USD
