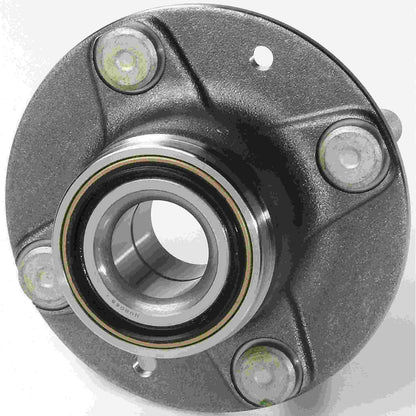

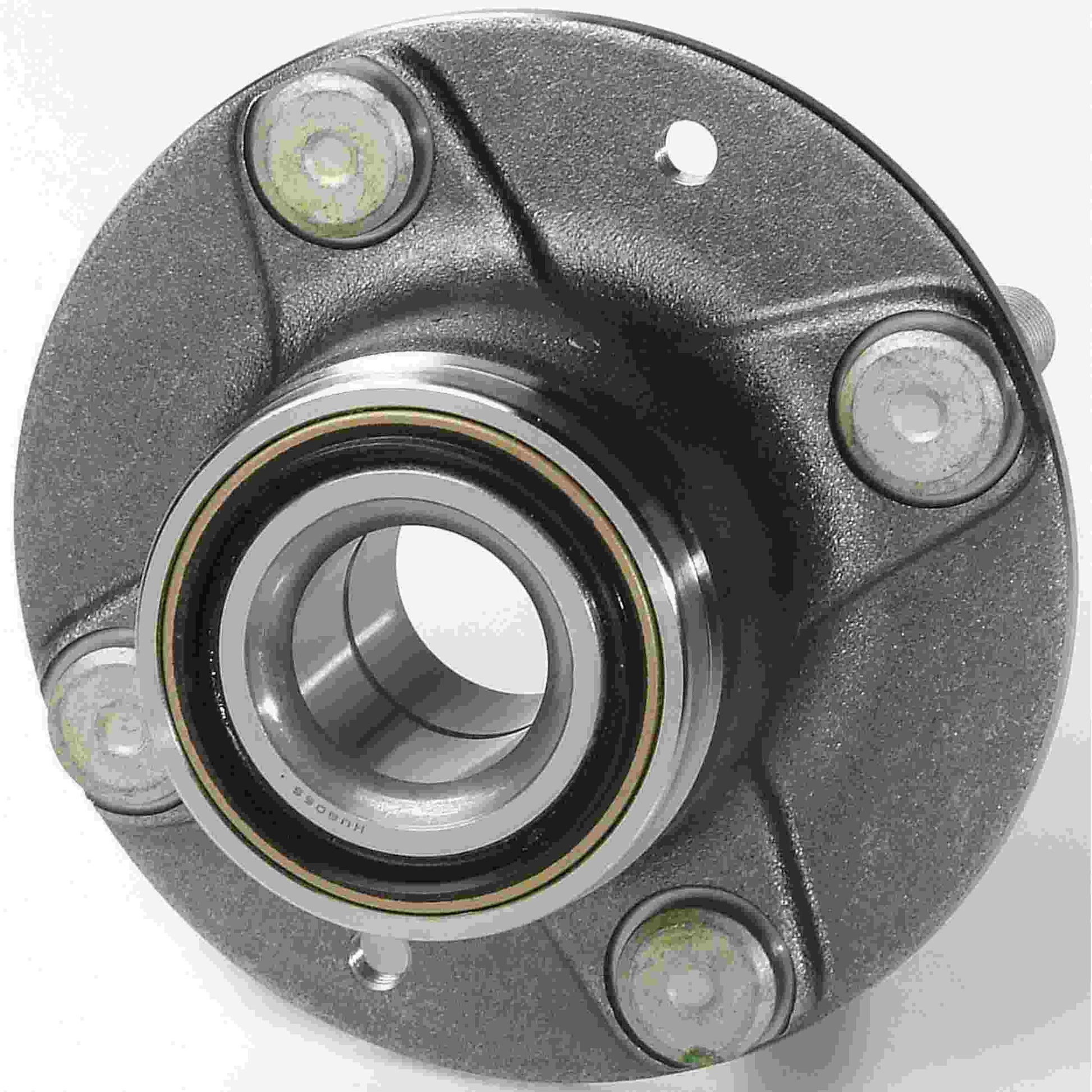

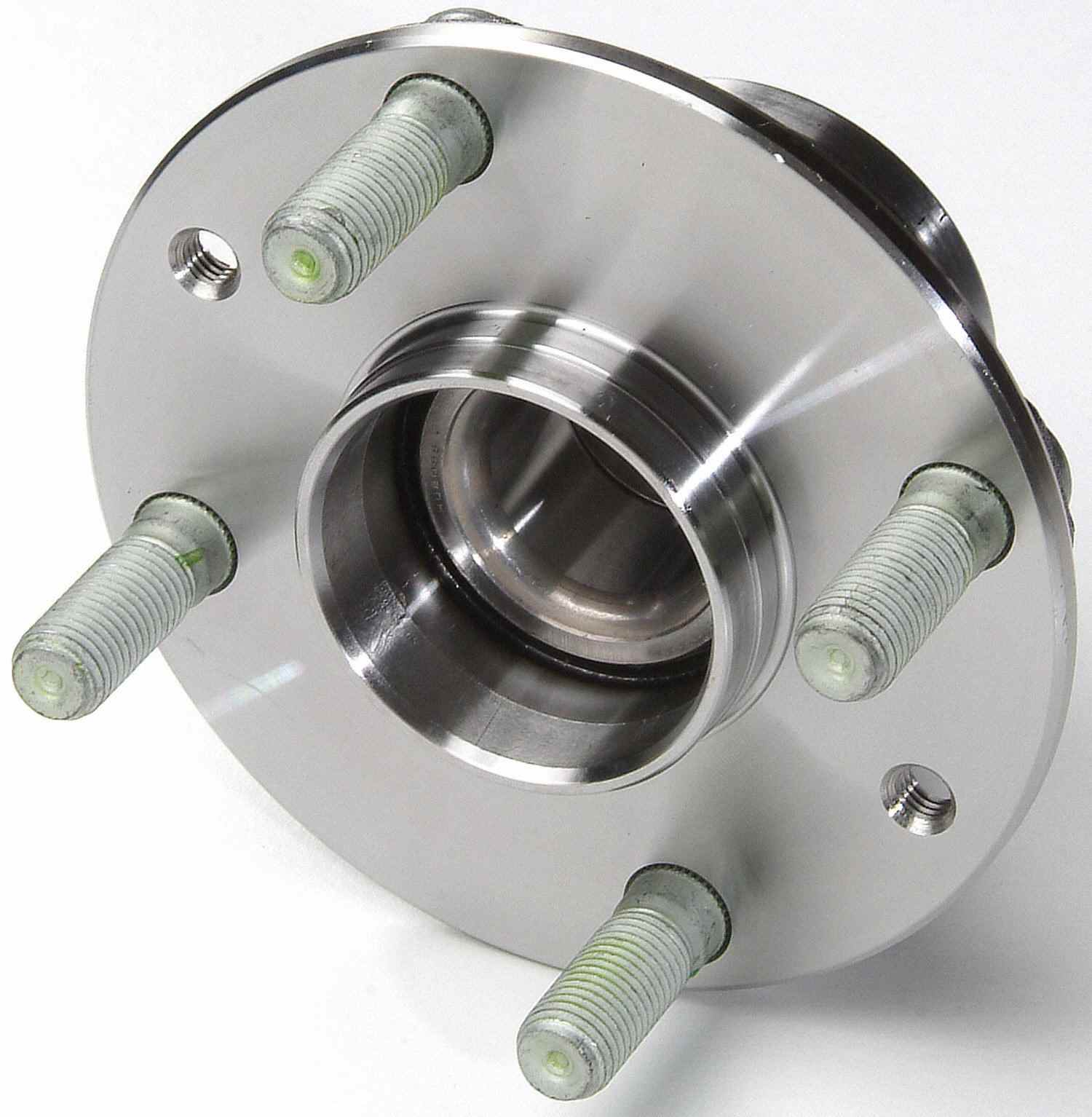

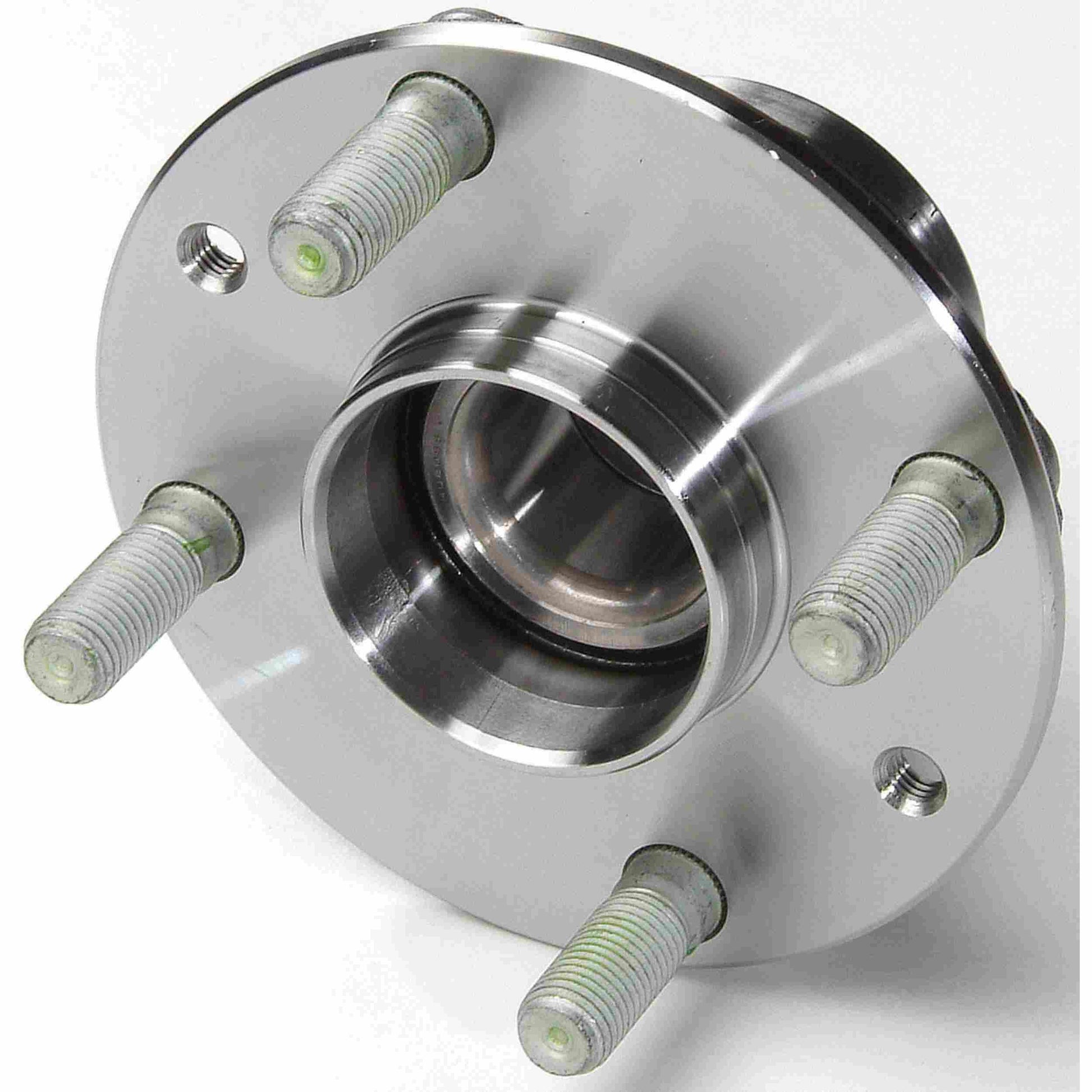

Moog Wheel Hub and Bearing Assembly:Front,Mazda,Miata,Each
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
- Application specific design
Specifications
Hub Assemblies
Flange Diameter (A): 122.0
Bolt Circle Diameter (B): 3.940
Bolt Circle Diameter Metric (B): 100.0
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 54.0
Brake Pilot Diameter (E): 55.0
Flange Offset (F): 54.0
Hub Pilot Diameter (G): 61.0
Bolt Hole MET (I): M12X1.75
Bolt Hole Quantity: 4
ABS Sensor: No
Location: Front Wheel
Bearing OD (Inch): 9.662
Bearing Width (Inch): 3.871
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 3.871
Outter Race OD (Inch): 4.831
Outter Race Width (Inch): 3.871
Bearing Bore (Inch): 1.890
Inner Race Bore (Inch): 1.890
Bearing OD (mm): 122.0
Bearing Width (mm): 96.7
Inner Race Radius (mm): 3.6
Inner Race Width (mm): 96.7
Outter Race OD (mm): 122.0
Outter Race Width (mm): 96.7
Bearing Bore (mm): 48.0
Inner Race Bore (mm): 48.0
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1999 | Mazda | Miata | 10th Anniversary |
| 1990 - 2005 | Mazda | Miata | Base |
| 1993 | Mazda | Miata | LE |
| 2000 - 2005 | Mazda | Miata | LS |
| 1994 - 1997 | Mazda | Miata | M Edition |
| 2004 - 2005 | Mazda | Miata | Mazdaspeed |
| 1991 - 2003 | Mazda | Miata | SE |
| 2003 | Mazda | Miata | Shinsen |
| 1997 | Mazda | Miata | STO |
Moog Wheel Hub and Bearing Assembly:Front,Mazda,Miata,Each
Sale price$202.49 USD
Regular price$302.26 USD
