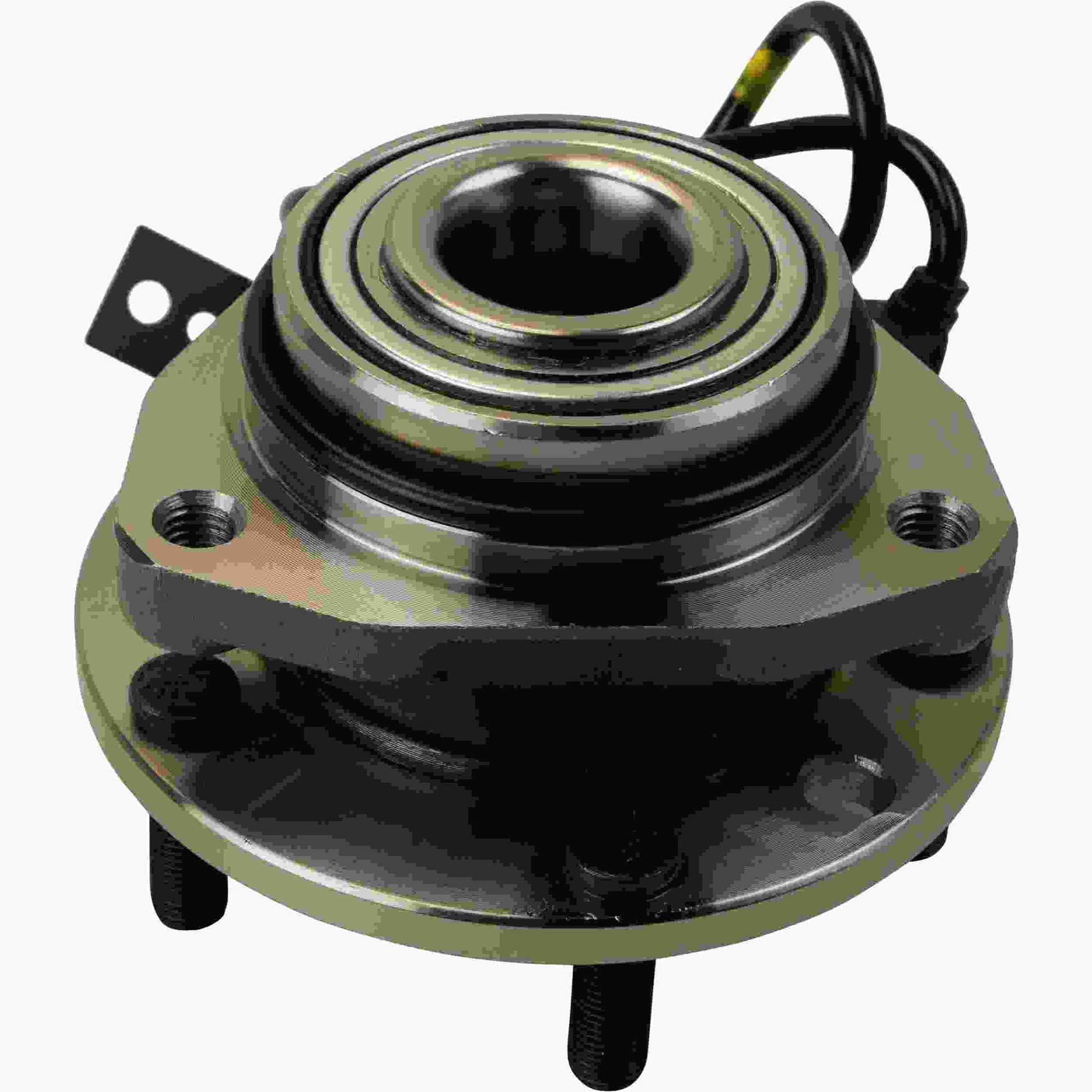

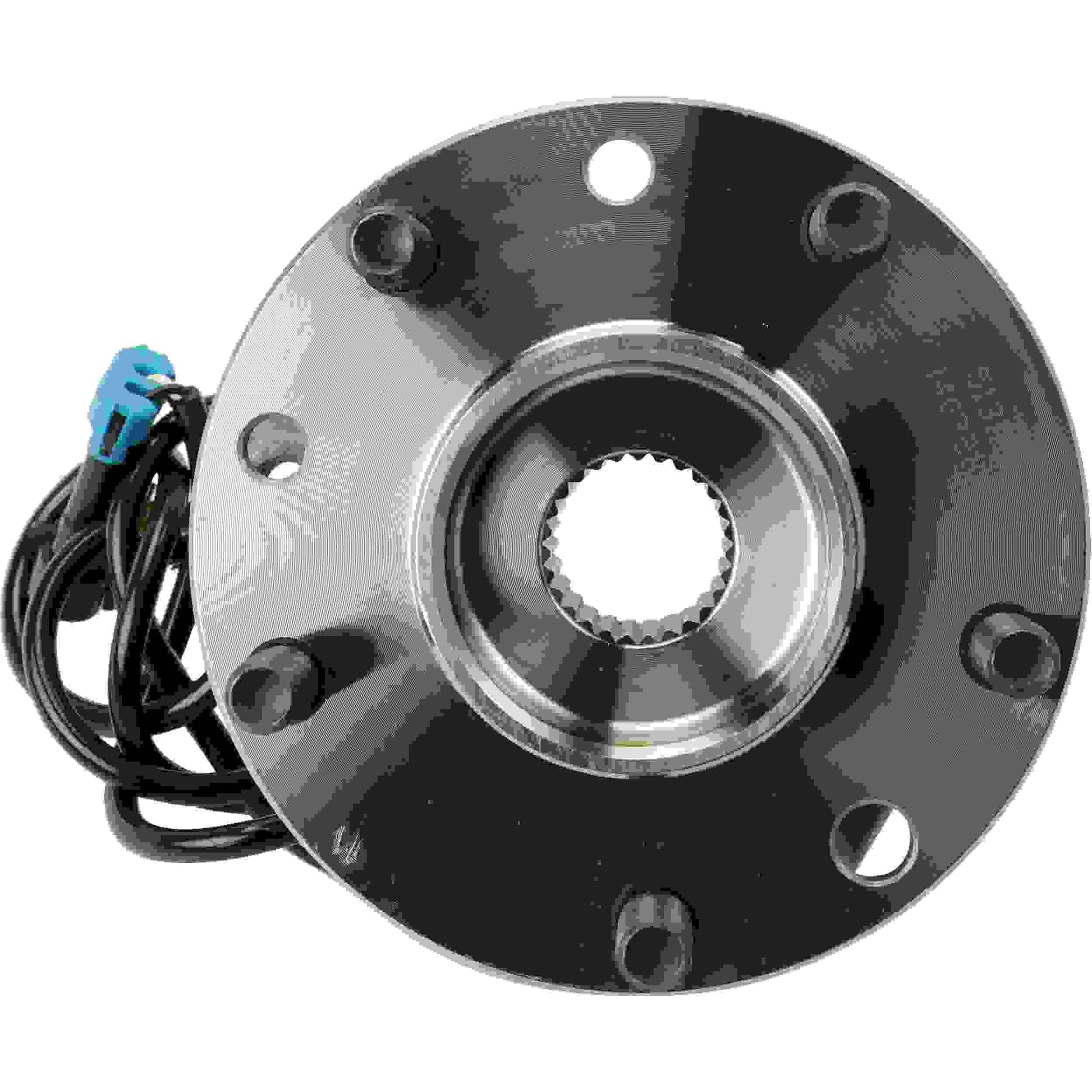

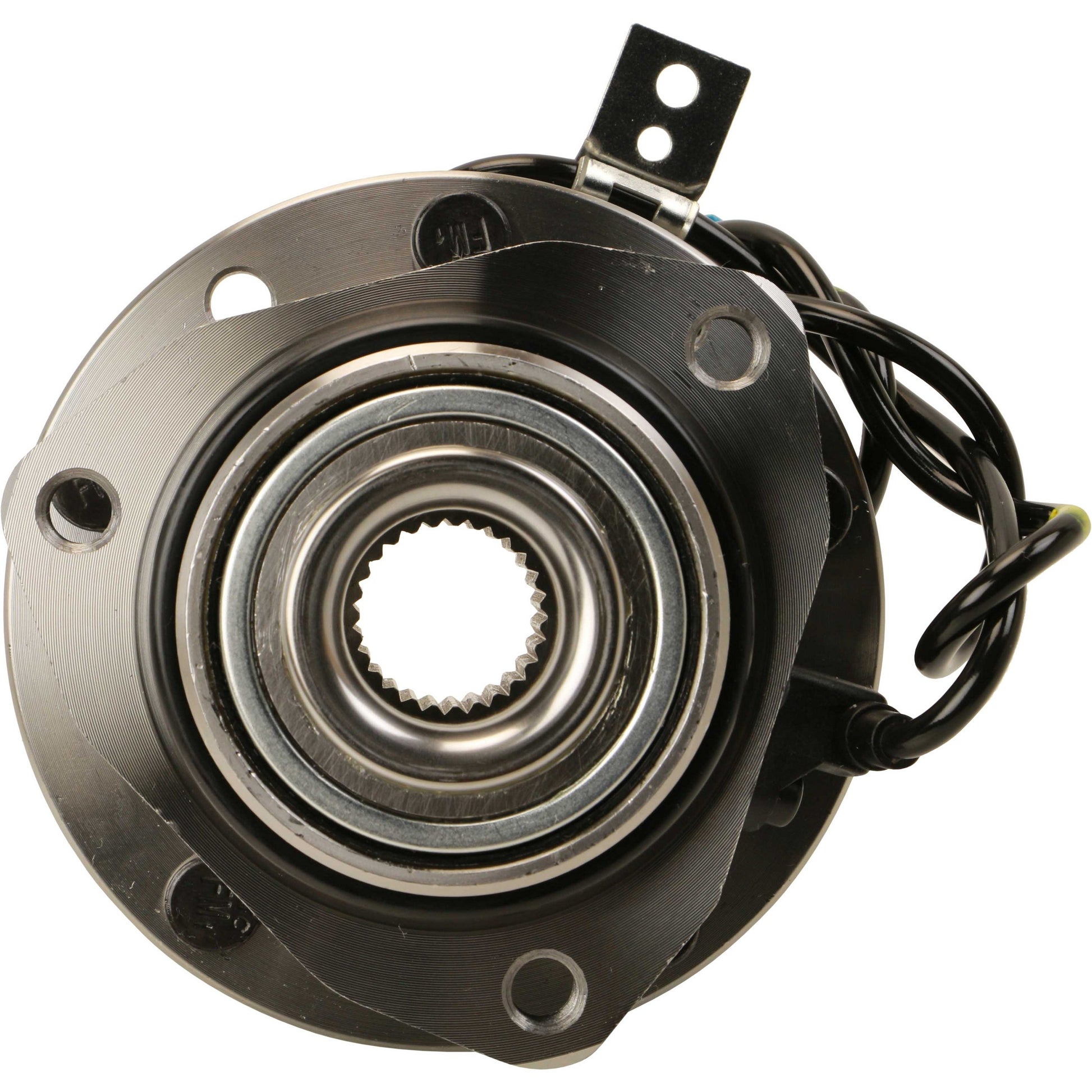

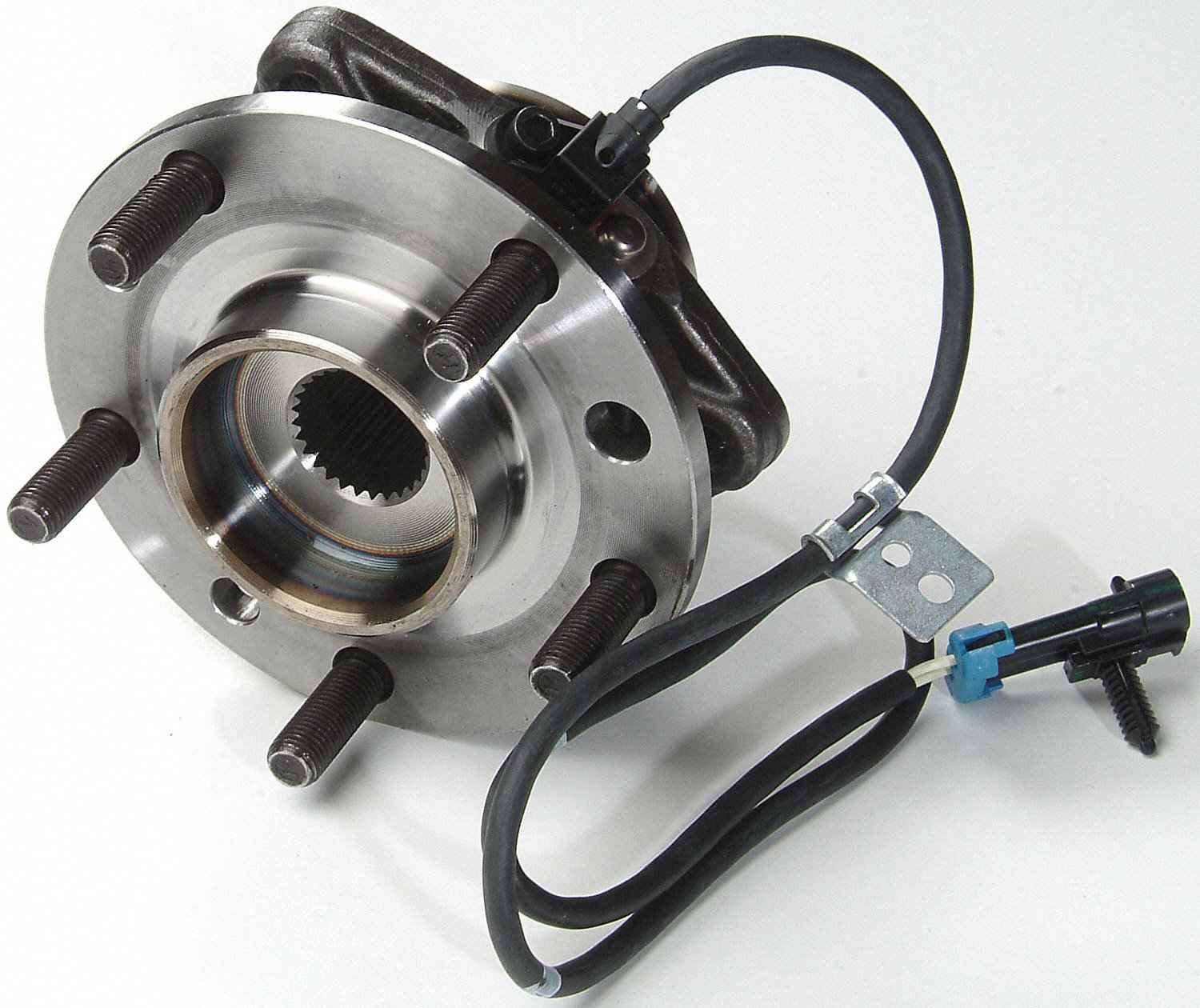

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Chevy,GMC,Isuzu
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
Specifications
Hub Assemblies
BoltQuantity: 3
Flange Diameter (A): 144.3
Bolt Circle Diameter (B): 4.757
Bolt Circle Diameter Metric (B): 120.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.4
Flange Offset (F): 47.3
Hub Pilot Diameter (G): 83.5
Bolt Hole MET (I): M12X1.75
Bolt Hole Quantity: 5
Number of Splines: 27
Flange Shape (K): MODIFIED TRIANGLE

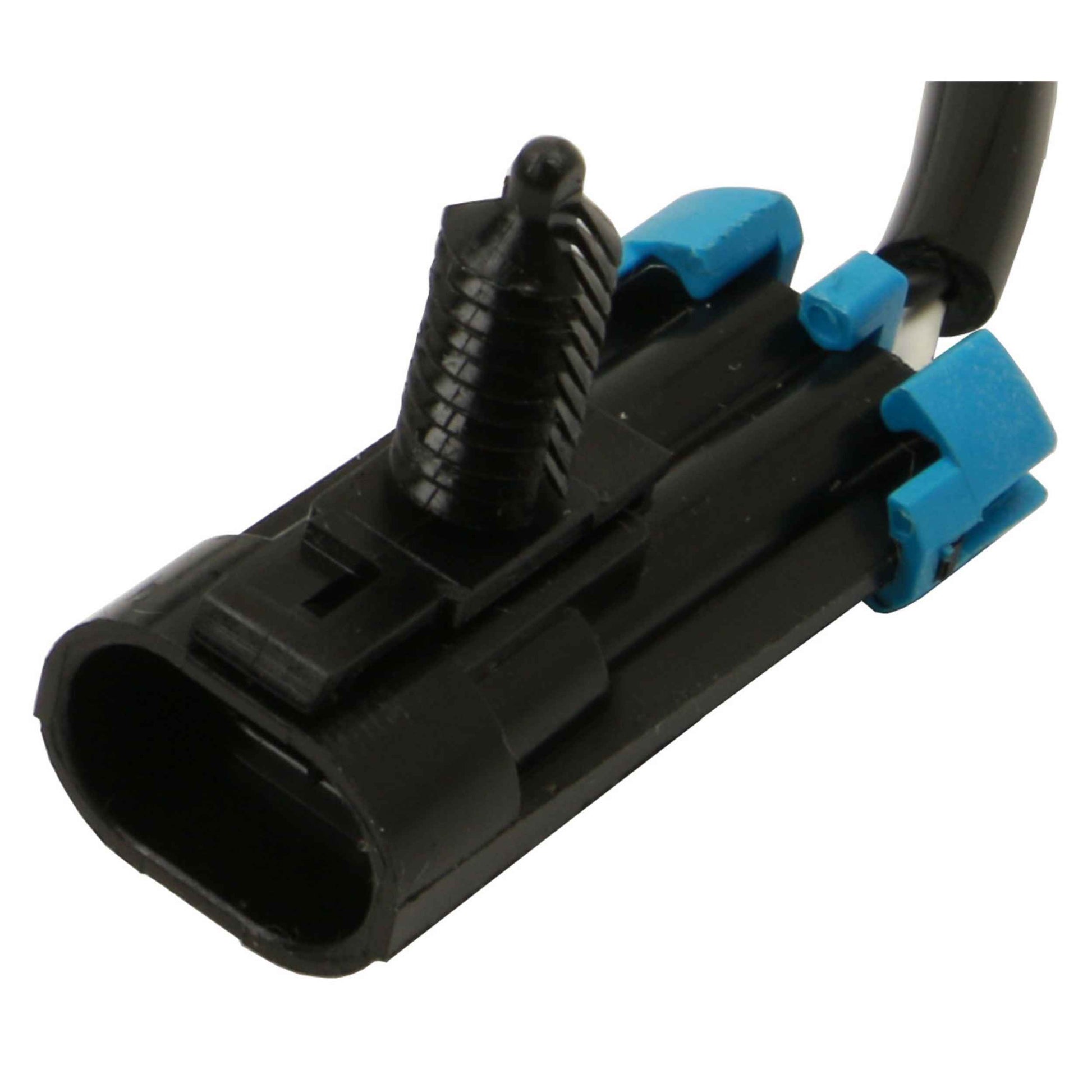

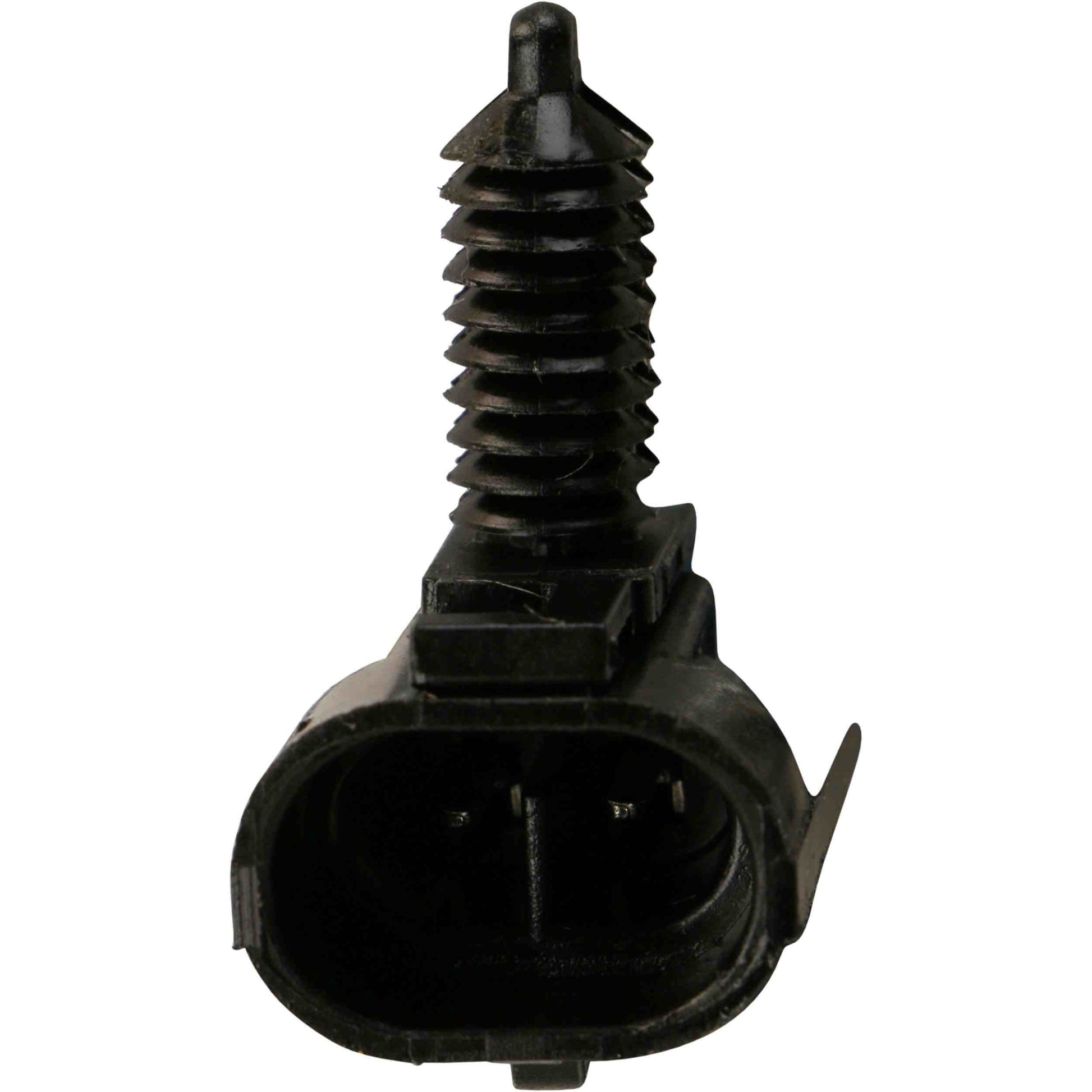

ABS Sensor: Cable
Location: Front Wheel
Bearing OD (Inch): 11.378
Bearing Width (Inch): 4.247
Bearing OD (mm): 144.5
Bearing Width (mm): 106.8
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2005 | Chevrolet | Blazer | Base |
| 1997 | Chevrolet | Blazer | Deluxe |
| 1997 - 2004 | Chevrolet | Blazer | LS |
| 1997 - 2002 | Chevrolet | Blazer | LT |
| 2002 | Chevrolet | Blazer | LTZ |
| 1999 - 2001 | Chevrolet | Blazer | Trailblazer |
| 2001 - 2005 | Chevrolet | Blazer | Xtreme |
| 2003 - 2005 | Chevrolet | Blazer | ZR2 |
| 1997 - 2003 | Chevrolet | S10 | Base, ZR2 |
| 1997 - 2004 | Chevrolet | S10 | LS |
| 1997 - 1998 | Chevrolet | S10 | SS |
| 1999 - 2003 | Chevrolet | S10 | Xtreme |
| 2002 - 2004 | Chevrolet | S10 | ZR5 |
| 2005 | GMC | Jimmy | Base |
| 2000 - 2001 | GMC | Jimmy | Diamond Edition |
| 1998 - 2000 | GMC | Jimmy | Envoy |
| 1997 - 2001 | GMC | Jimmy | SL, SLE, SLT |
| 1997 - 2005 | GMC | Jimmy | SLS |
| 1997 - 2004 | GMC | Sonoma | SL, SLS |
| 1997 - 2001 | GMC | Sonoma | SLE |
| 1998 - 2000 | Isuzu | Hombre | XS, S |
| 1997 - 2001 | Oldsmobile | Bravada | Base |
Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Chevy,GMC,Isuzu
Sale price$161.11 USD
