Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.

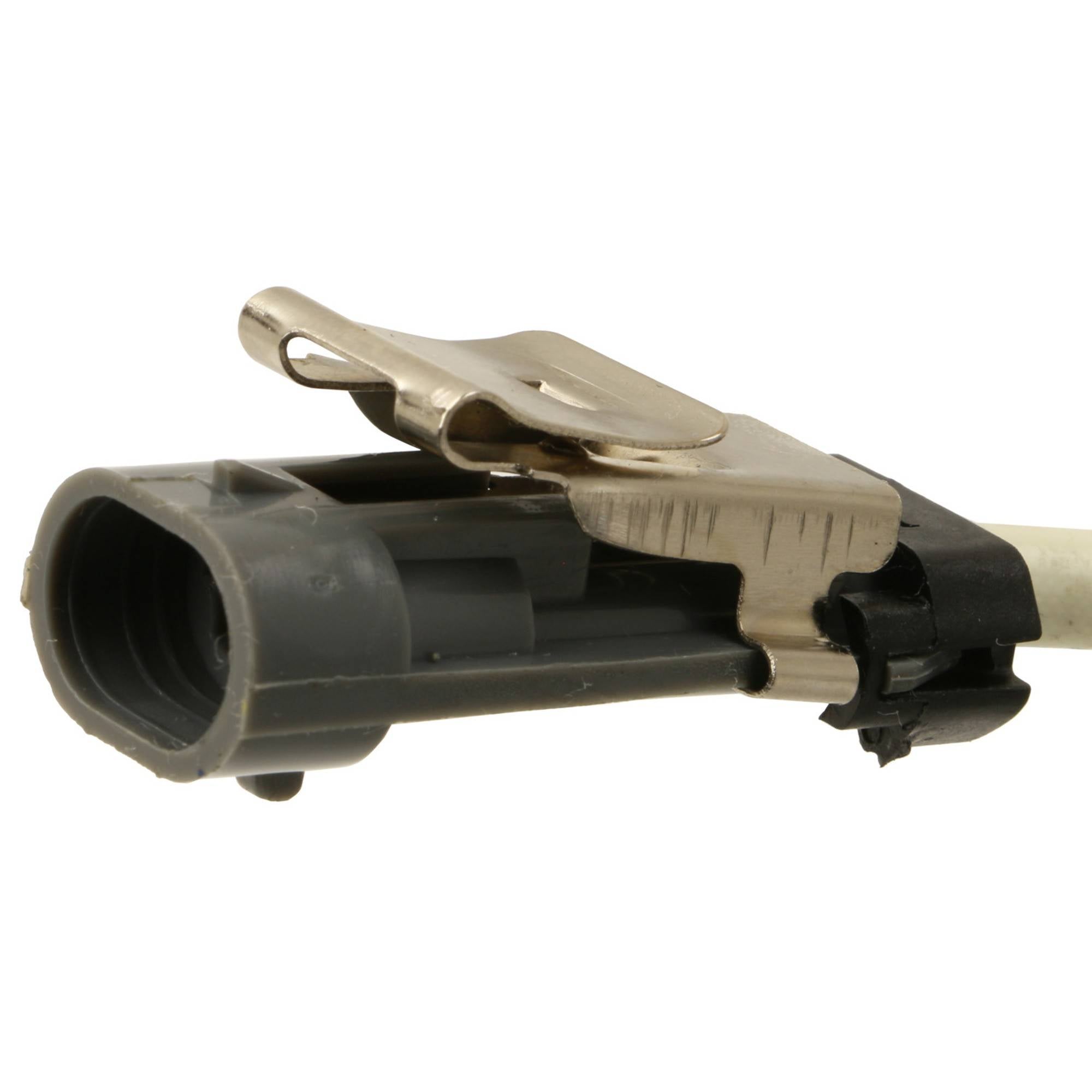

- MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 145.5
Bolt Circle Diameter (B): 4.527
Bolt Circle Diameter Metric (B): 115.0
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 42.0
Hub Pilot Diameter (G): 91.4
Bolt Hole MET (I): M12x1.75
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): Modified Triangle
ABS Sensor: Cable
Location: Front/Rear Wheel
Bearing OD(Inch): 11.457
Bearing Width(Inch): 3.524
Bearing OD(mm): 145.5
Bearing Width(mm: 89.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2001 | Buick | Century | Limited, Custom |
| 2000 - 2001 | Buick | LeSabre | Custom, Limited |
| 1997 - 2001 | Buick | Park Avenue | Base, Ultra |
| 1998 | Buick | Regal | 25th Anniversary Edition |
| 1997 - 2001 | Buick | Regal | GS, LS |
| 2000 | Buick | Regal | LSE, GSE |
| 2002 - 2005 | Buick | Rendezvous | CX Plus, CXL Plus |
| 2002 - 2006 | Buick | Rendezvous | CX, CXL |
| 2004 - 2005 | Buick | Rendezvous | Ultra |
| 1997 - 1999 | Buick | Riviera | Base |
| 1997 - 2001 | Cadillac | DeVille | Base |
| 1997 - 1999 | Cadillac | DeVille | Concours, d'Elegance |
| 2000 - 2001 | Cadillac | DeVille | DHS, DTS |
| 2001 | Cadillac | DeVille | STS |
| 1997 | Cadillac | Eldorado | Base |
| 1998 - 2001 | Cadillac | Eldorado | ESC |
| 1997 - 2001 | Cadillac | Eldorado | ETC |
| 1997 - 2001 | Cadillac | Seville | STS, SLS |
| 2000 - 2001 | Chevrolet | Impala | Base, LS |
| 2000 - 2001 | Chevrolet | Monte Carlo | LS, SS |
| 1997 - 2004 | Chevrolet | Venture | LS, Base |
| 2000 - 2004 | Chevrolet | Venture | LT, Plus |
| 2000 - 2003 | Chevrolet | Venture | Warner Bros., Value |
| 1997 - 1999 | Oldsmobile | Aurora | Base |
| 1998 | Oldsmobile | Intrigue | Base |
| 1998 - 2001 | Oldsmobile | Intrigue | GL, GLS |
| 1999 - 2001 | Oldsmobile | Intrigue | GX |
| 1997 | Oldsmobile | Silhouette | Base |
| 1997 - 2004 | Oldsmobile | Silhouette | GL, GLS |
| 1998 - 1999 | Oldsmobile | Silhouette | GS |
| 1998 - 2004 | Oldsmobile | Silhouette | Premiere |
| 2001 - 2005 | Pontiac | Aztek | Base |
| 2001 | Pontiac | Aztek | GT |
| 2004 - 2005 | Pontiac | Aztek | Rally |
| 2002 - 2003 | Pontiac | Aztek | V |
| 2000 - 2001 | Pontiac | Bonneville | SLE, SE, SSEi |
| 1997 - 2001 | Pontiac | Grand Prix | GT, SE, GTP |
| 1999 - 2004 | Pontiac | Montana | Base |
| 1997 - 1999 | Pontiac | Trans Sport | Base |
| 1998 | Pontiac | Trans Sport | Montana |
