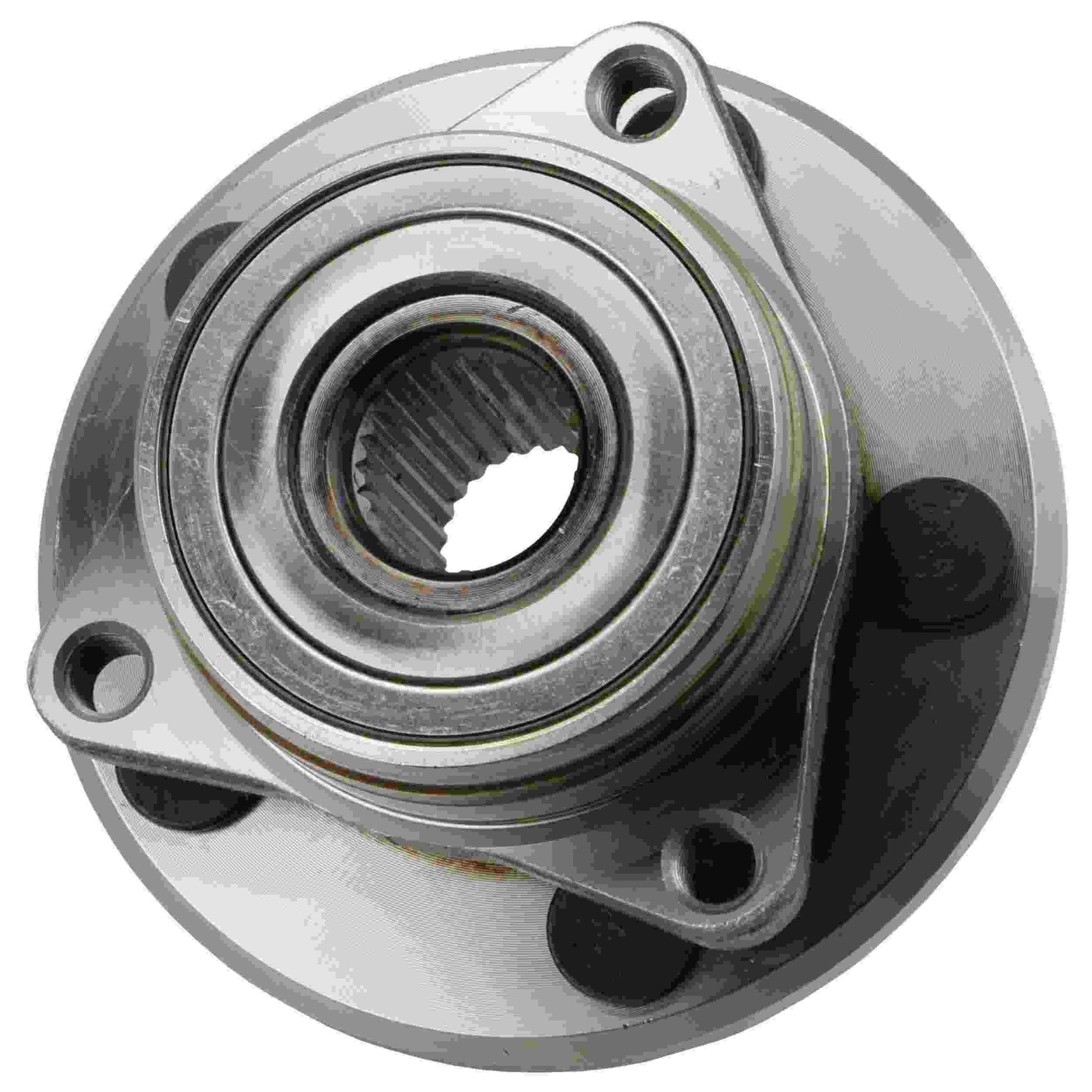

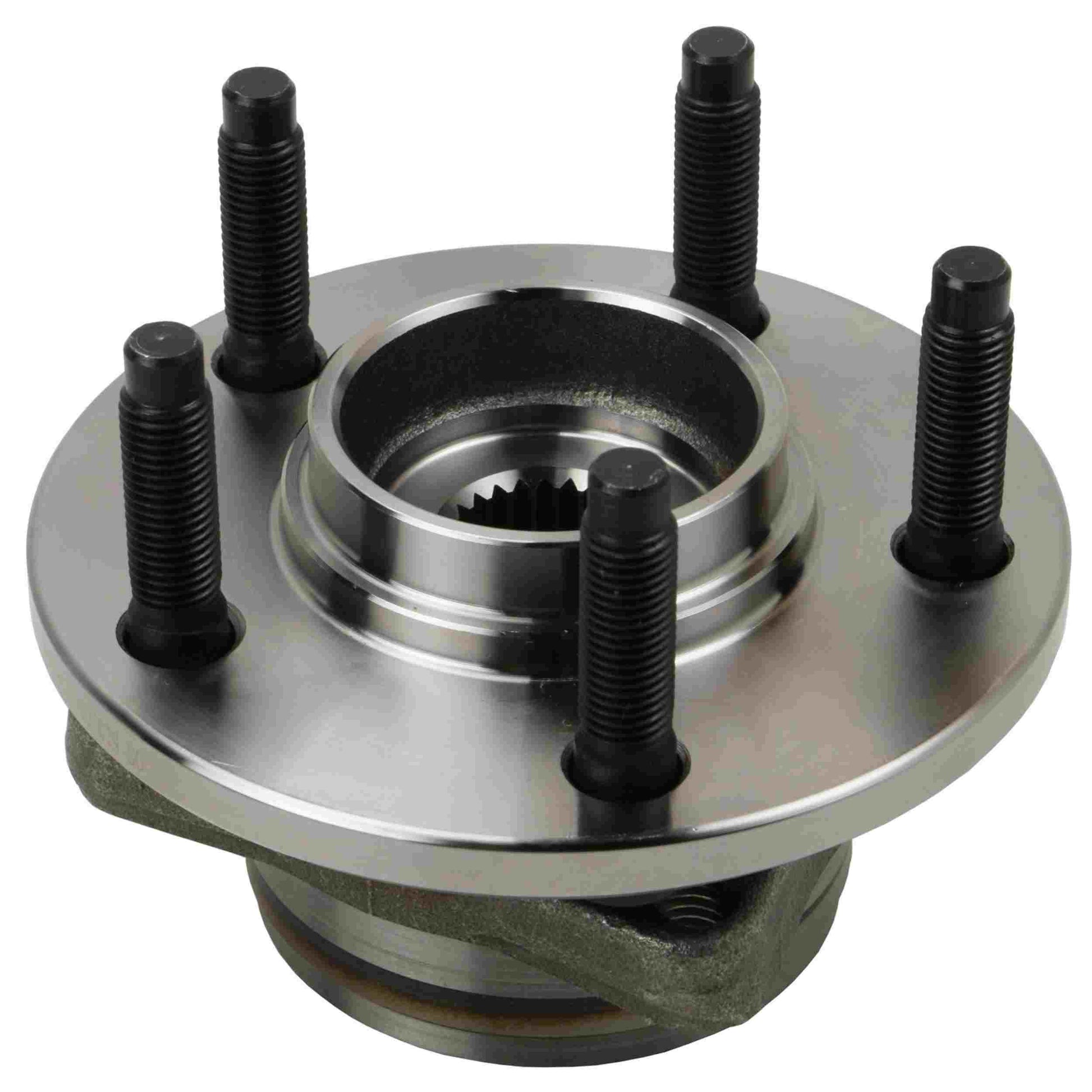

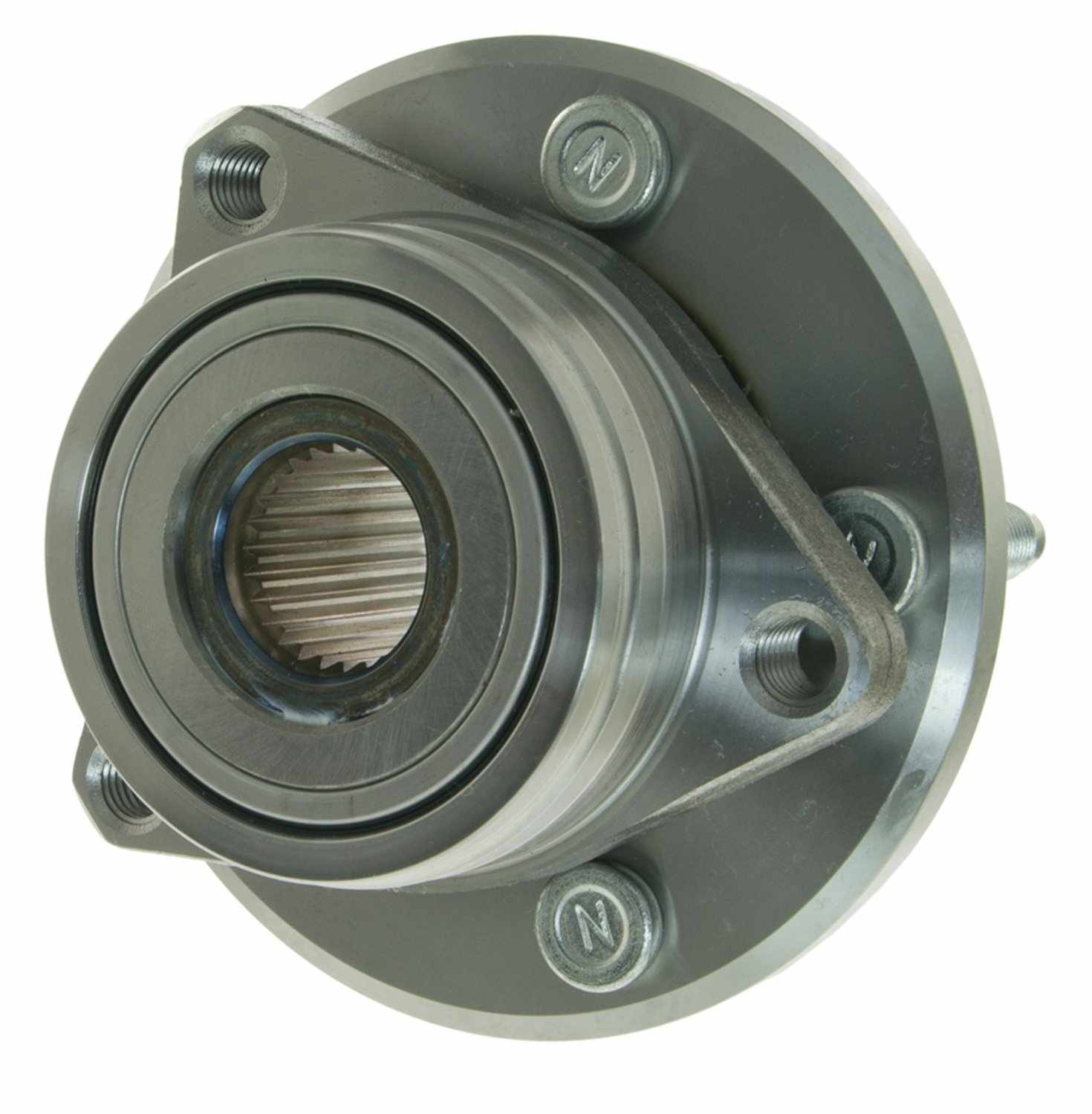

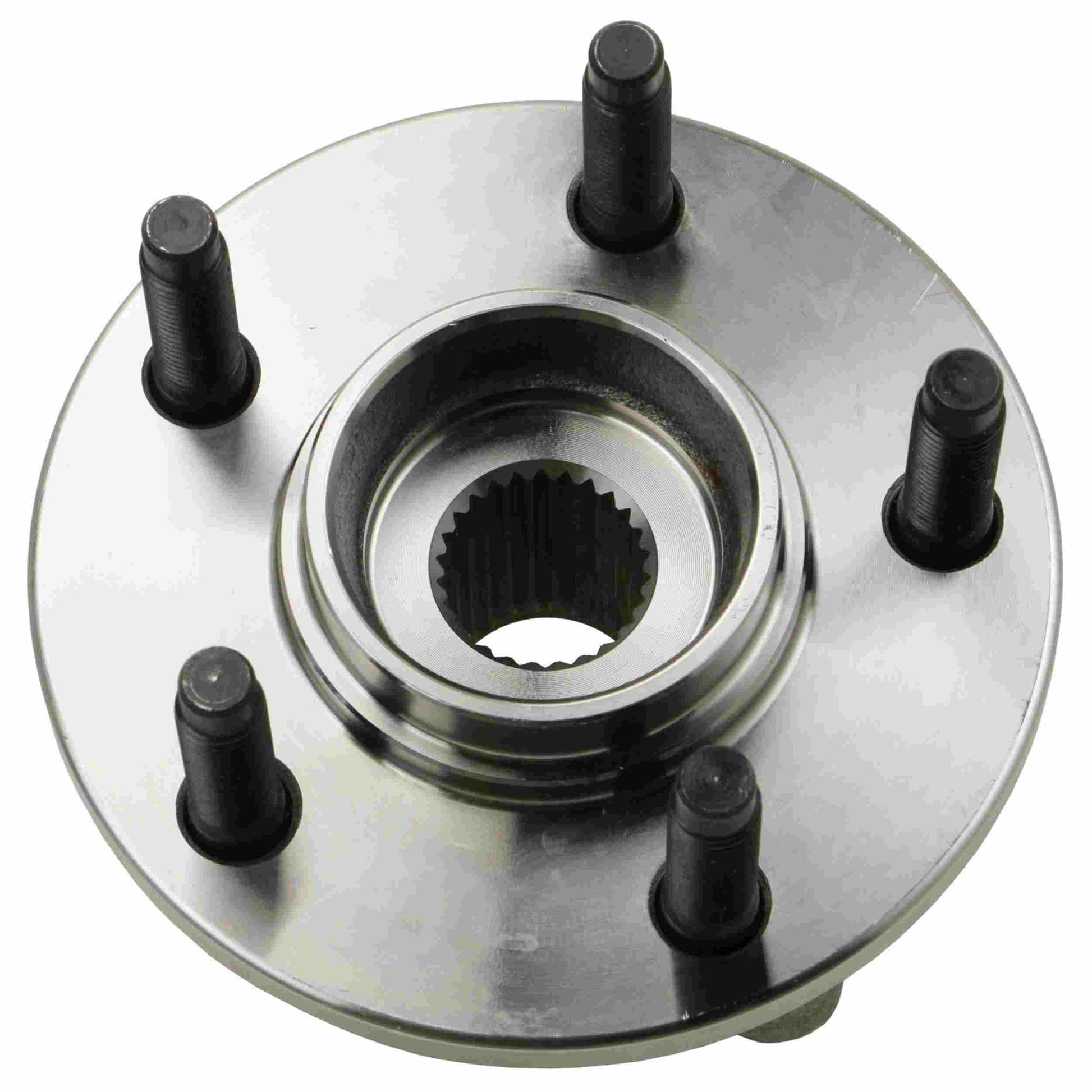

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Ford,Mercury
Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Ford,Mercury
sku: 14NFH | mpn: 513100
Regular price
$85.24
Regular price
$94.70
Sale price
$85.24
Shipping calculated at checkout.
Low stock: 1 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 139.0
Bolt Circle Diameter (B): 4.250
Bolt Circle Diameter Metric (B): 108.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 63.2
Brake Pilot Diameter (E): 71.0
Flange Offset (F): 36.1
Hub Pilot Diameter (G): 82.5
Bolt Hole MET (I): M12X1.75
Bolt Hole Quantity: 5
Number of Splines: 26
Flange Shape (K): MODIFIED TRIANGLE
ABS Sensor: No
Location: Front Wheel
Bearing OD (Inch): 10.945
Bearing Width (Inch): 3.143
Bearing OD (mm): 139.0
Bearing Width (mm): 79.8
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 1997 | Ford | Taurus | G, GL |
| 1996 - 2004 | Ford | Taurus | LX |
| 1998 - 2007 | Ford | Taurus | SE |
| 1998 - 2003 | Ford | Taurus | SE Comfort |
| 2000 - 2007 | Ford | Taurus | SEL |
| 2000 - 2004 | Ford | Taurus | SES |
| 1996 - 1999 | Ford | Taurus | SHO |
| 2000 | Ford | Taurus | SVG |
| 1996 | Lincoln | Continental | Anniversary |
| 1997 - 2002 | Lincoln | Continental | Base |
| 1995 | Lincoln | Continental | Diamond Anniversary, Signature |
| 1995 - 1997 | Lincoln | Continental | Spinnaker Edition |
| 1996 | Mercury | Sable | G |
| 1996 - 2005 | Mercury | Sable | GS, LS |
| 1998 - 2004 | Mercury | Sable | LS Premium |
| 2005 | Mercury | Sable | Platinum Edition |
