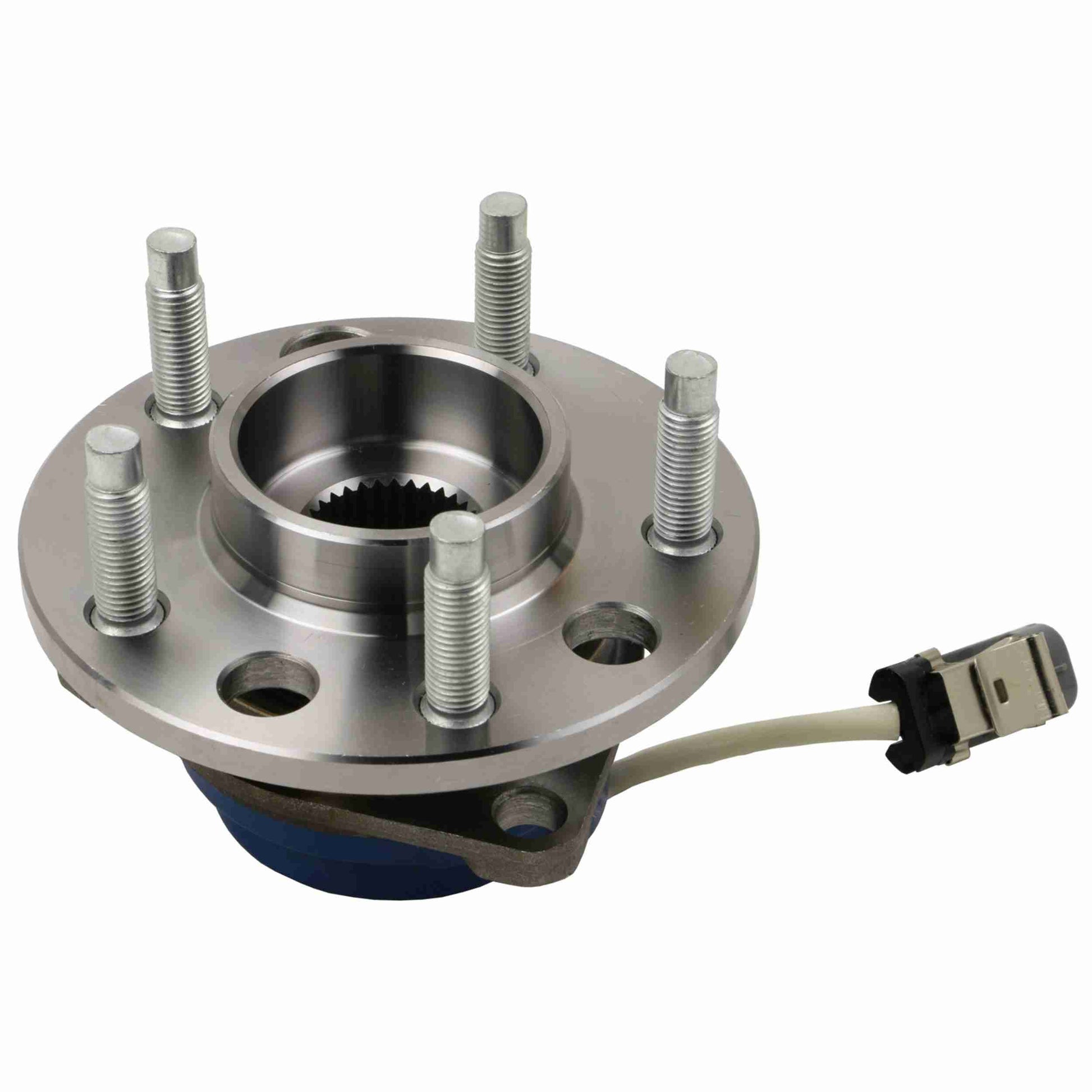

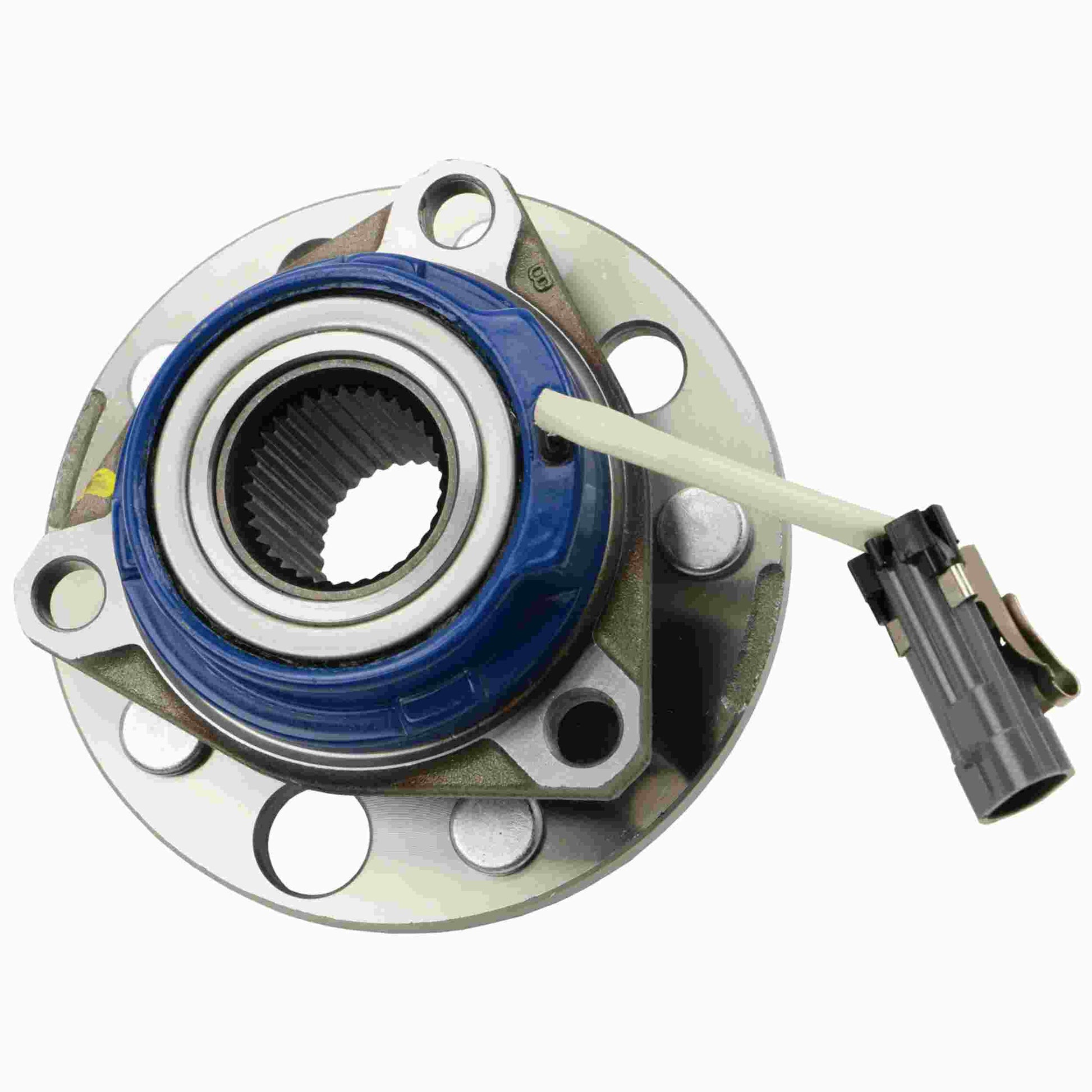

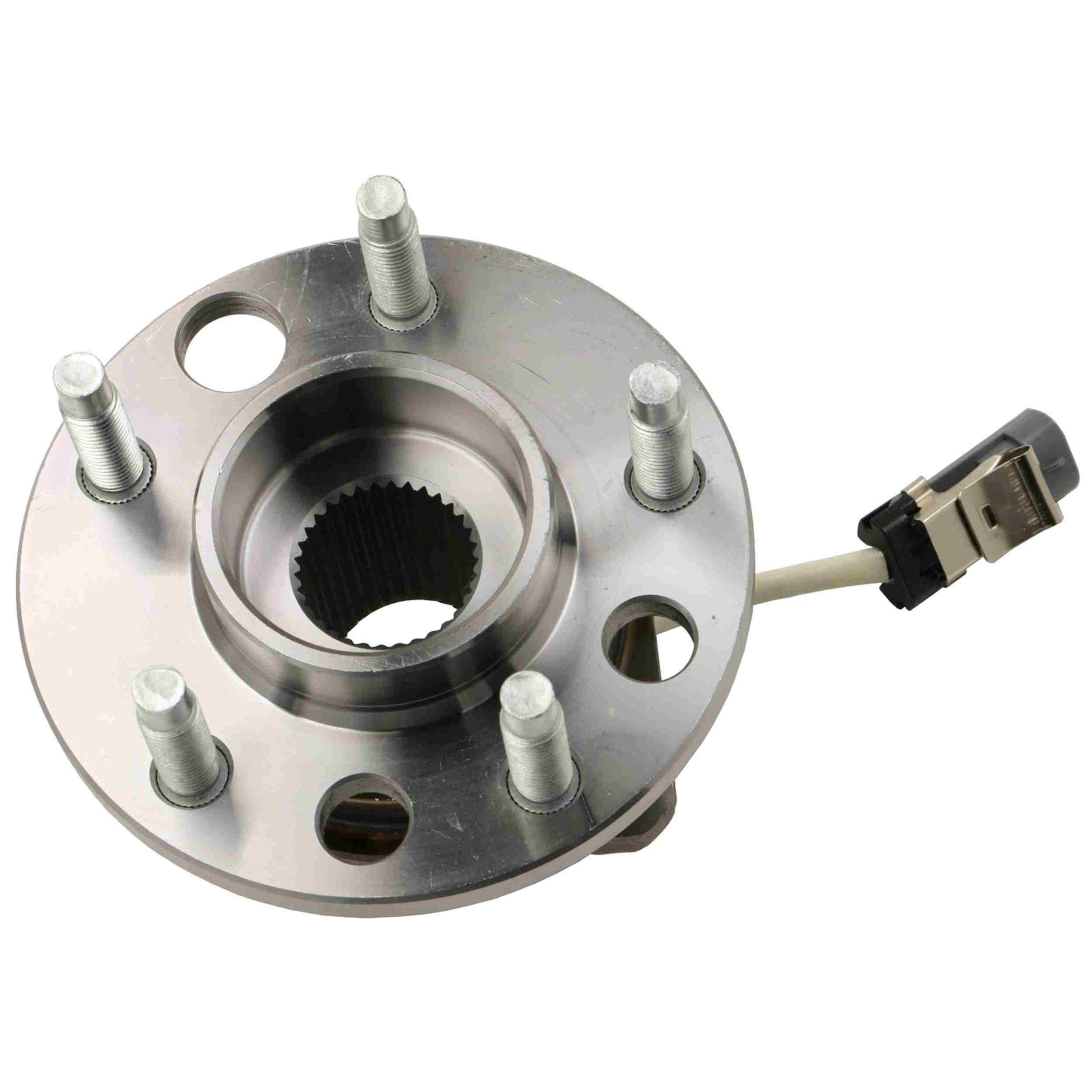

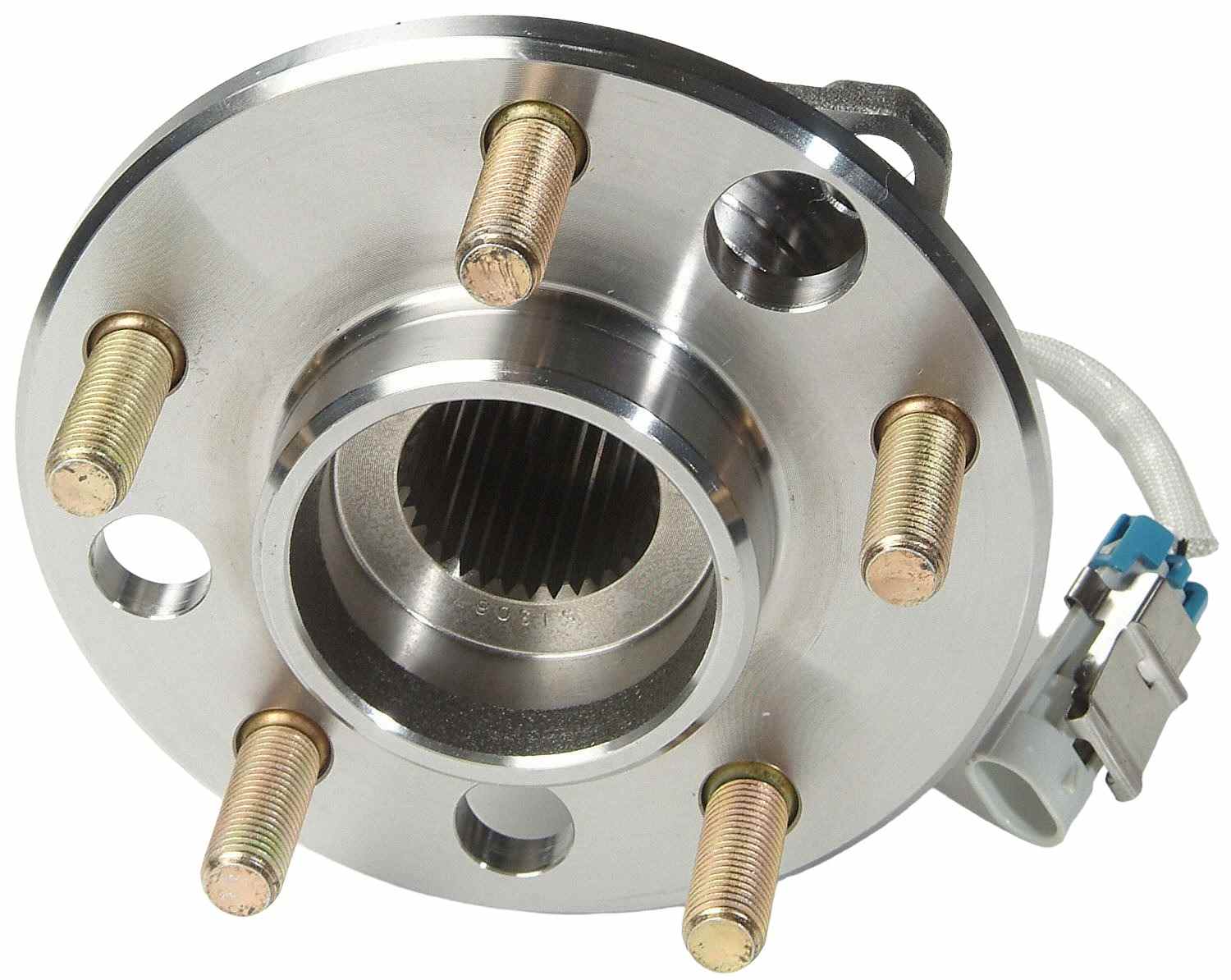

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Buick,Cadillac,Chevy

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Buick,Cadillac,Chevy

Regular price $82.50
Regular price Sale price $82.50
Sale Sold out

Out of stock

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Wheel Bearing and Hub Assembly
Category
Wheel Bearings & Hubs
Item condition
New
Shipping weight
7.8 lb
Barcode
00724956230297

Billable shipping weight; may include dimensional weight.

Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

  • Innovative roll form design ensures consistent and optimal preload.
  • Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.

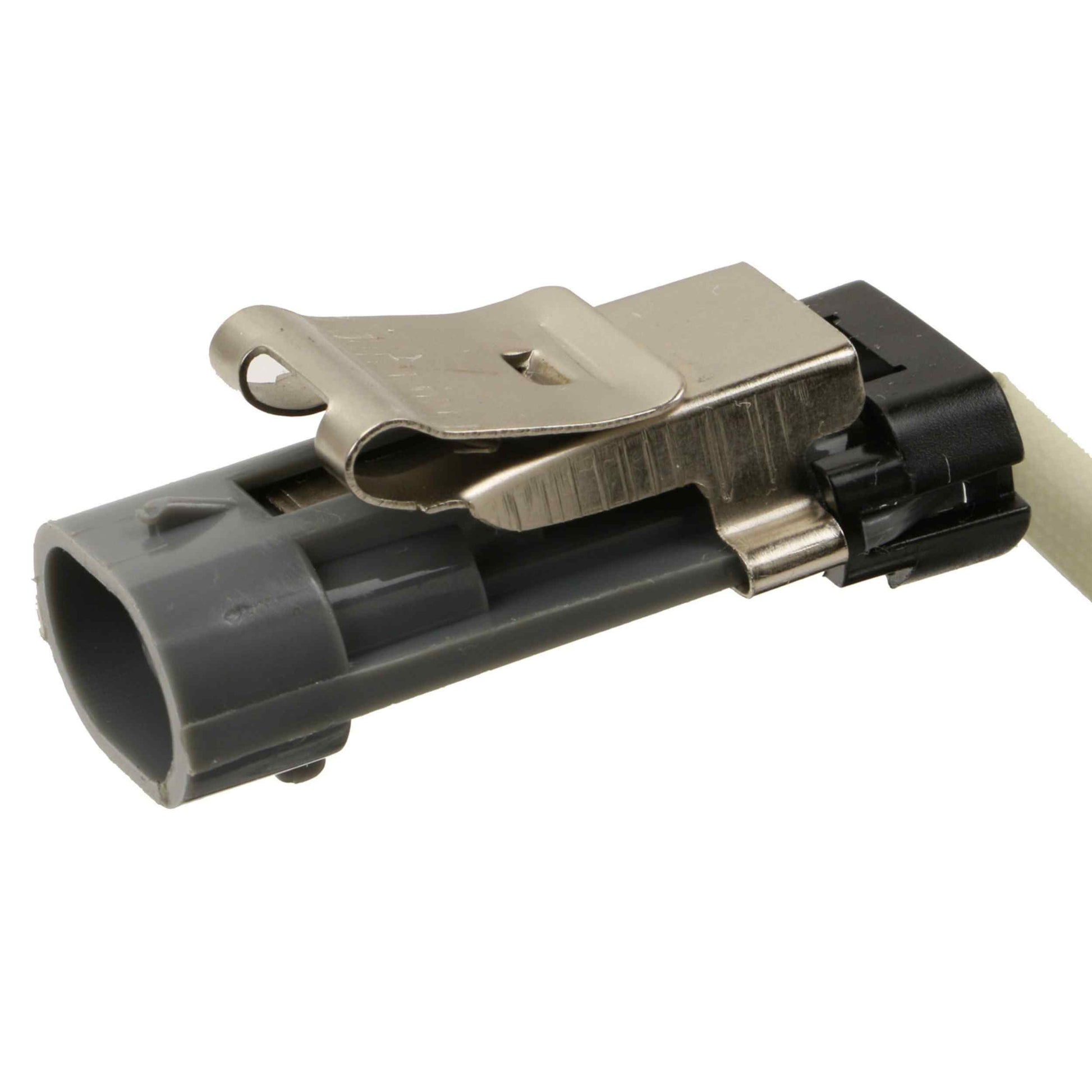

  • MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
  • Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
  • Engineered to overcome problems and deliver smooth, reliable performance.

Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 145.5
Bolt Circle Diameter (B): 4.530
Bolt Circle Diameter Metric (B): 115.0
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 42.1
Hub Pilot Diameter (G): 59.8
Bolt Hole MET (I): 12.7
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): Triangular
ABS Sensor: Cable
Location: Front Wheel
Bearing OD(Inch): 11.574
Bearing Width(Inch): 4.162
Inner Race Width (Inch): 4.162
Outter Race OD (Inch): 5.787
Bearing Bore (Inch): 1.779
Inner Race Bore (Inch): 1.779
Bearing OD(mm): 145.0
Bearing Width(mm: 105.7
Inner Race Width (mm): 105.7
Outter Race OD (mm): 145.0
Outter Race Width (mm): 105.7
Bearing Bore (mm): 43.4
Inner Race Bore (mm): 43.4


Vehicle Fitments:

Year Make Model Submodel
1994 - 1996 Buick Century Custom, Special, Base
1996 Buick Century Limited
1991 Buick LeSabre Base
1991 - 1999 Buick LeSabre Limited, Custom
1991 - 1996 Buick Park Avenue Ultra, Base
1995 - 1996 Buick Riviera Base
1992 - 1993 Buick Riviera Luxury
1993 Cadillac 60 Special Base
1993 Cadillac Allante Indianapolis 500 Pace Car, Base, Value Leader
1992 - 1993 Cadillac Commercial Chassis Brougham, Base
1992 - 1996 Cadillac DeVille Base
1994 - 1996 Cadillac DeVille Concours
1996 Cadillac DeVille d'Elegance
1992 - 1993 Cadillac DeVille Touring
1992 - 1996 Cadillac Eldorado Base
1995 - 1996 Cadillac Eldorado ETC
1993 Cadillac Eldorado Sport
1992 - 1994 Cadillac Eldorado Touring
1992 Cadillac Fleetwood d'Elegance, 60 Special, Base
1992 - 1994 Cadillac Seville Base
1994 - 1996 Cadillac Seville SLS
1992 - 1996 Cadillac Seville STS
1992 - 1996 Chevrolet Lumina APV Base
1992 Chevrolet Lumina APV CL
1993 - 1996 Chevrolet Lumina APV LS
1999 Oldsmobile 88 50th Anniversary Edition
1992 - 1999 Oldsmobile 88 Royale LS, Royale
1995 Oldsmobile 88 Royale LSS
1992 - 1994 Oldsmobile 98 Regency
1992 - 1996 Oldsmobile 98 Regency Elite
1992 - 1993 Oldsmobile 98 Touring
1995 - 1996 Oldsmobile Aurora Base
1994 - 1996 Oldsmobile Cutlass Ciera Base
1994 Oldsmobile Cutlass Ciera SL, S
1994 Oldsmobile Cutlass Cruiser S, Special Edition, Base
1996 - 1999 Oldsmobile LSS Base
1997 - 1998 Oldsmobile Regency Base
1992 - 1996 Oldsmobile Silhouette Base
1992 Oldsmobile Toronado Base, Trofeo
1992 - 1999 Pontiac Bonneville SE, SSE, SSEi
1992 - 1996 Pontiac Trans Sport Base
