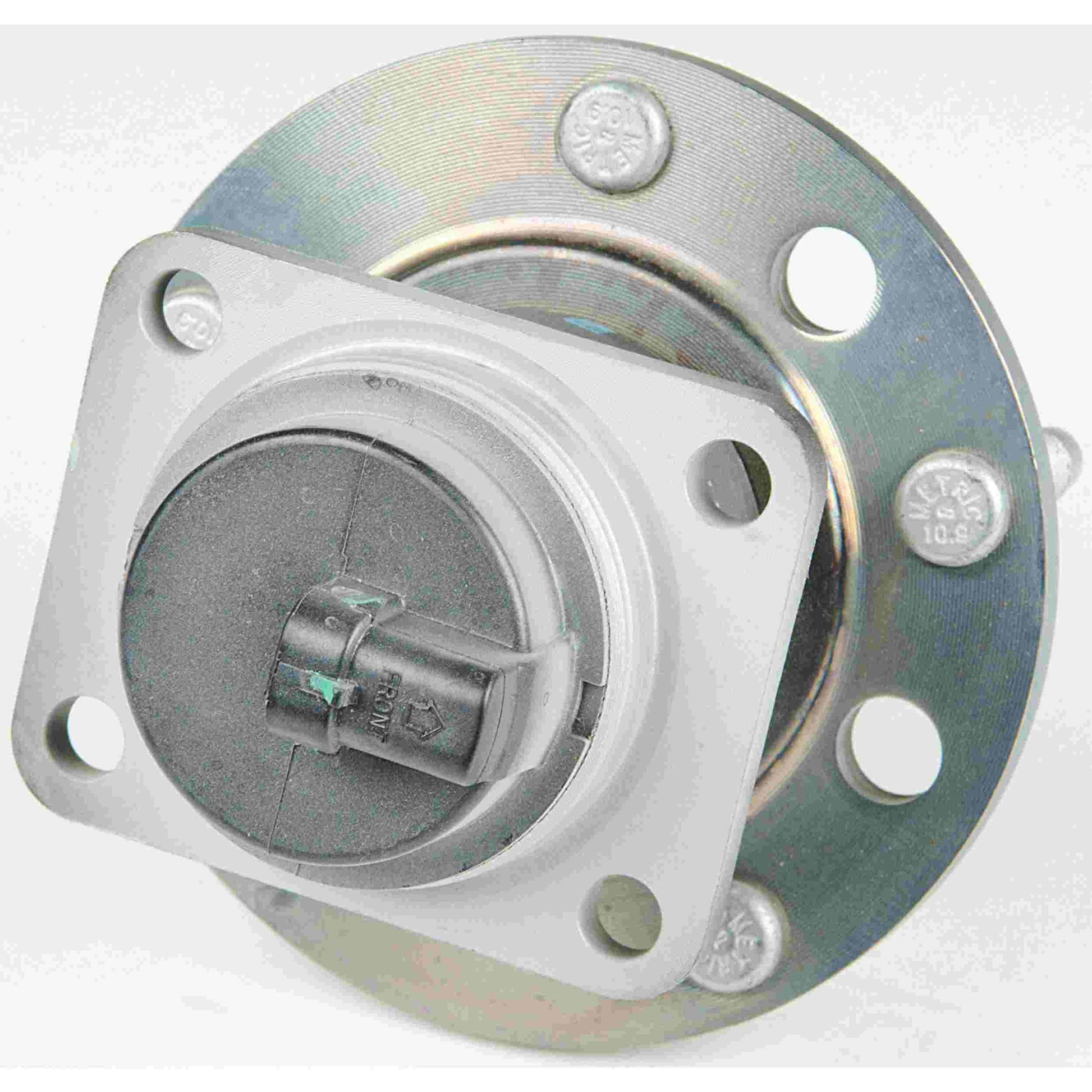

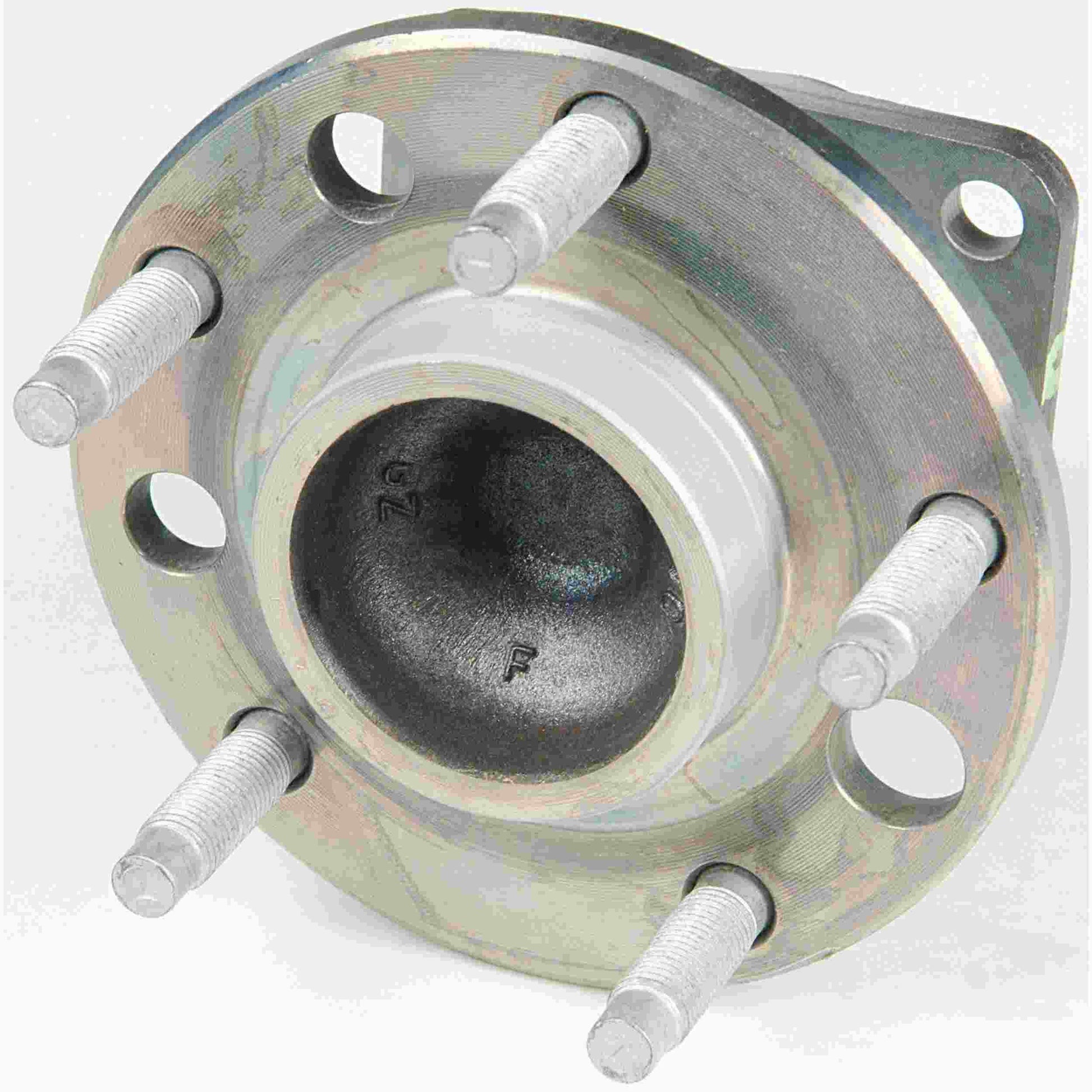

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
" Innovative roll form design ensures consistent and optimal preload.
" Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
" Engineered to overcome problems and deliver smooth, reliable performance.
" MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications:
- Flange Bolt Hole Quantity:4
- Flange Diameter (A):147.0
- Bolt Circle Diameter (B):4.750
- Bolt Circle Diameter Metric (B):120.7
- Bolt Size (C):M12X1.5
- Wheel Pilot Diameter (D):70.1
- Brake Pilot Diameter (E):70.6
- Flange Offset (F):69.2
- Hub Pilot Diameter (G):71.8
- Bolt Hole MET (I):11.695
- Wheel Stud Quantity:5
- Flange Shape (K):RECTANGULAR
- ABS Sensor:Sensor
- Location:Front Wheel
- Bearing OD (Inch):11.575
- Bearing Width (Inch):6.933
- Inner Race Radius (Inch):0.140
- Inner Race Width (Inch):6.933
- Outter Race OD (Inch):5.787
- Outter Race Width (Inch):6.933
- Bearing OD (mm):147.0
- Bearing Width (mm):176.1
- Inner Race Radius (mm):3.6
- Inner Race Width (mm):176.1
- Outter Race OD (mm):147.0
- Outter Race Width (mm):176.1
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1993 | Chevrolet | Corvette | 40th Anniversary Edition |
1991 - 1996 | Chevrolet | Corvette | Base |
1996 | Chevrolet | Corvette | Grand Sport, Collector's Edition |
1995 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
1991 - 1995 | Chevrolet | Corvette | ZR-1 |
