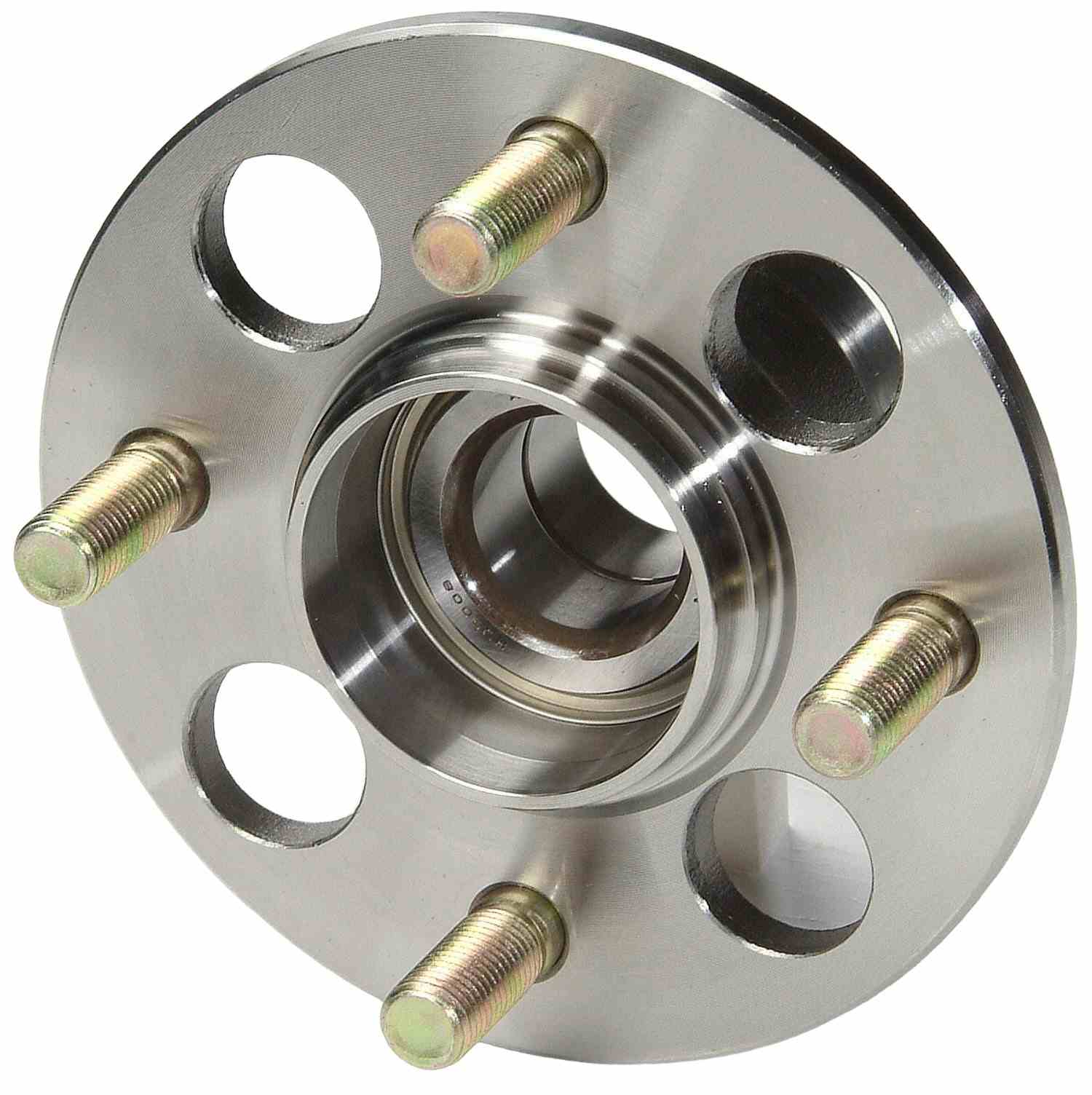

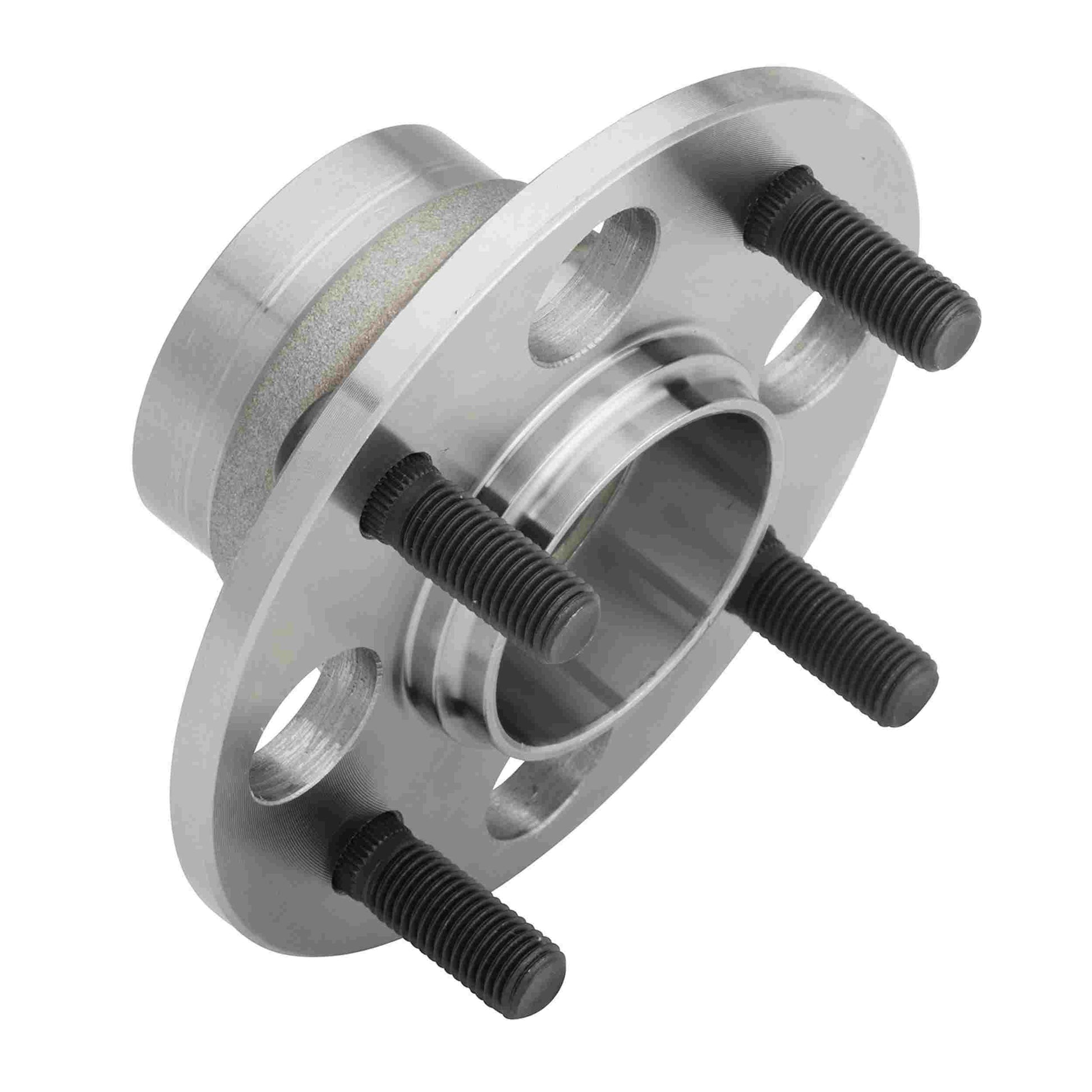

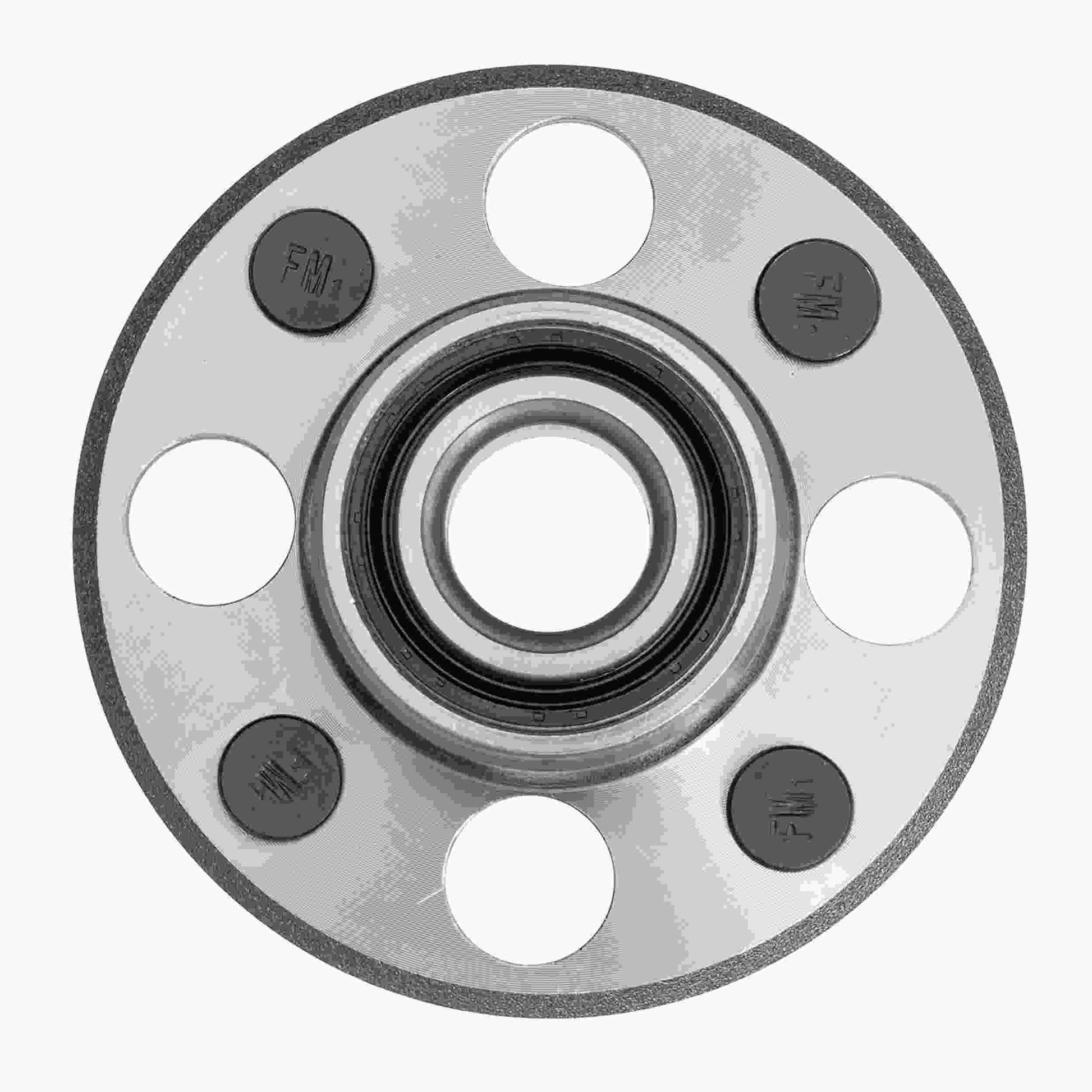

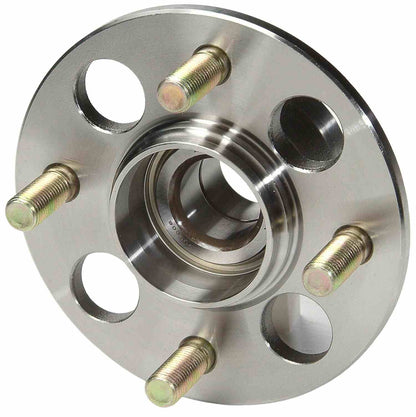

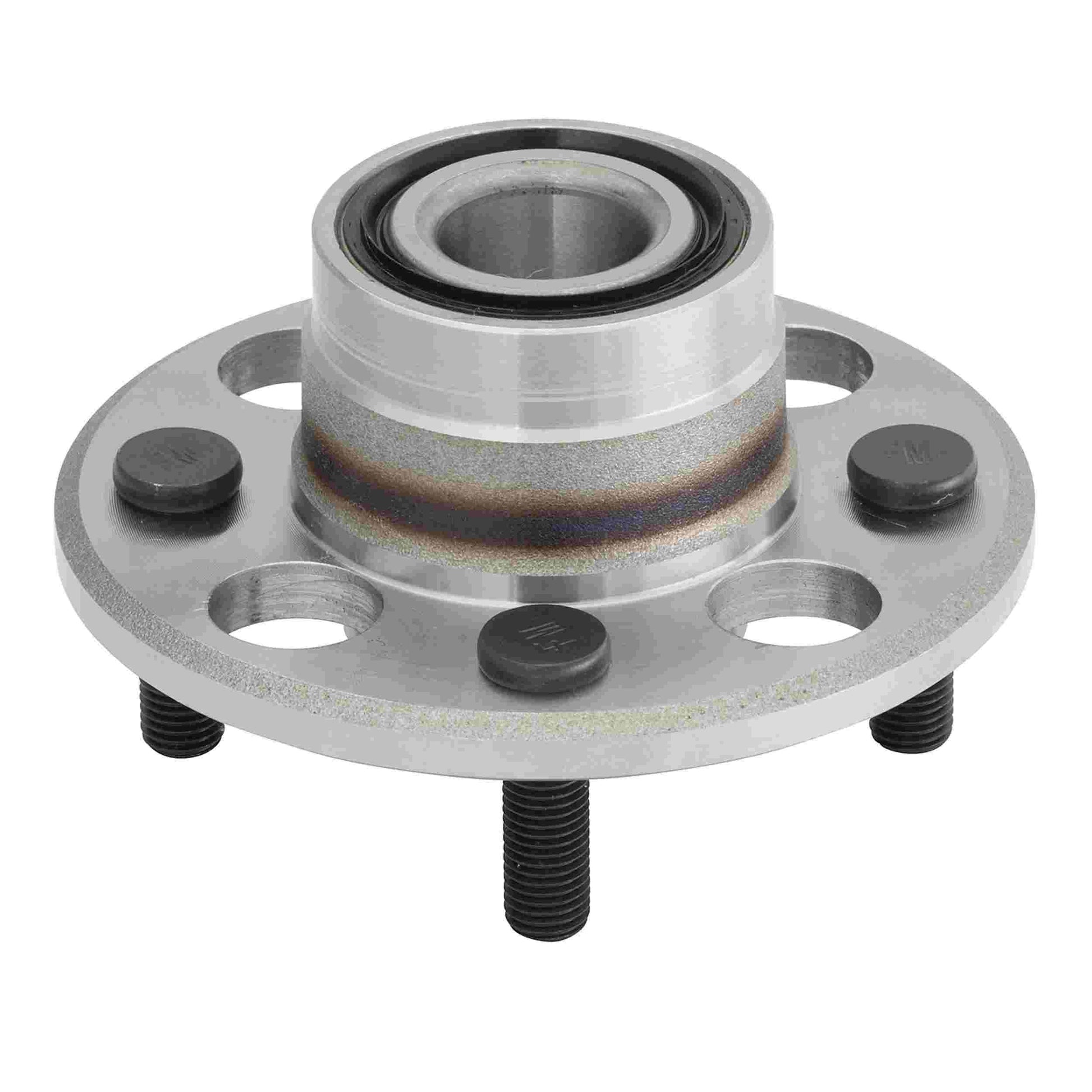

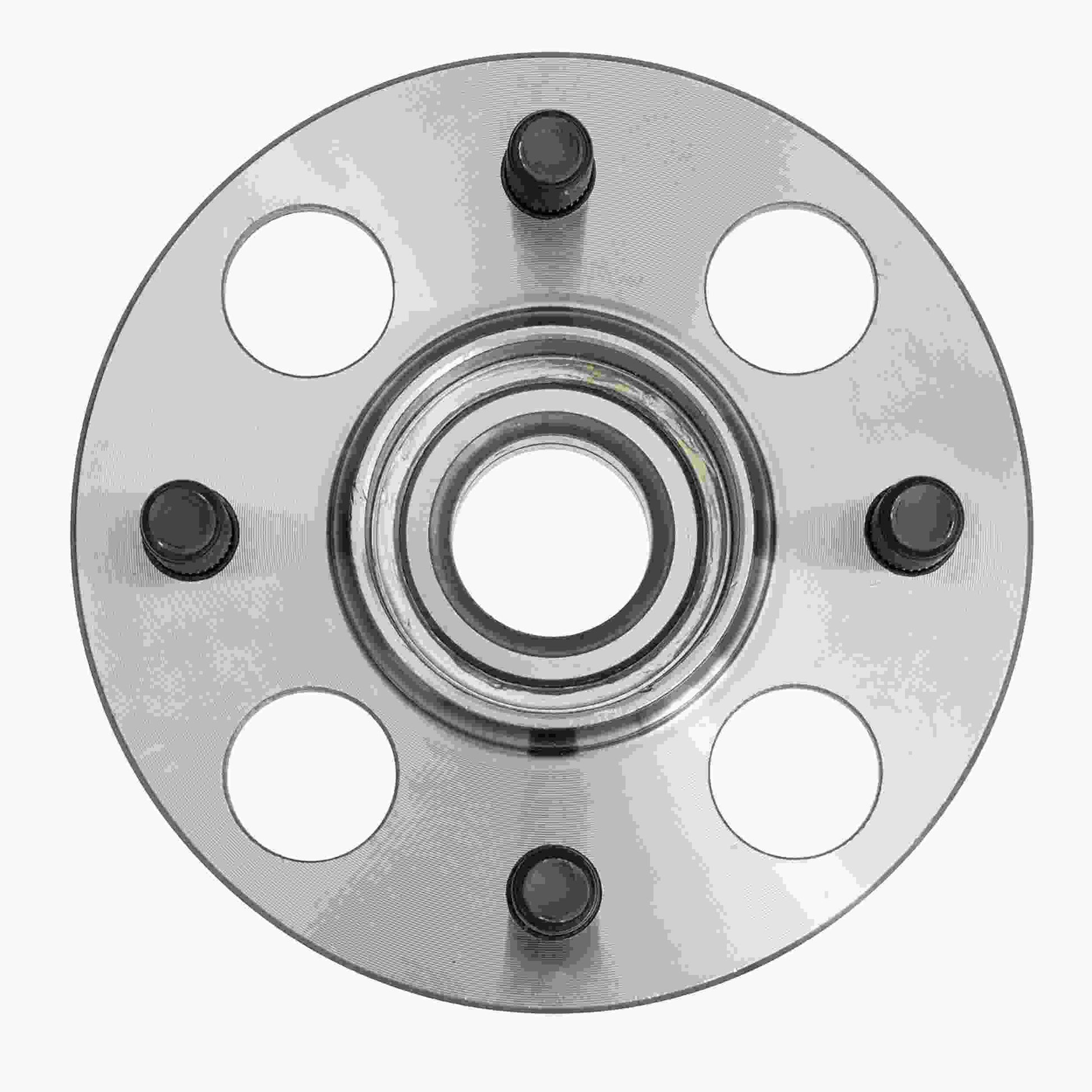

Moog Wheel Hub and Bearing Assembly, Rear, for use on Honda , Each
Moog Wheel Hub and Bearing Assembly, Rear, for use on Honda , Each
sku: 14P4E | mpn: 513035
Regular price
$73.15
Regular price
$95.49
Sale price
$73.15
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
Flange Diameter (A): 134.0
Bolt Circle Diameter (B): 3.937
Bolt Circle Diameter Metric (B): 100.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 56.0
Brake Pilot Diameter (E): 61.0
Hub Pilot Diameter (G): 62.5
Wheel Stud Quantity: 4
ABS Sensor: No
Location: Rear Wheel
Bearing OD (Inch): 10.552
Bearing Width (Inch): 3.110
Inner Race Width (Inch): 3.110
Outter Race OD (Inch): 5.276
Outter Race Width (Inch): 3.110
Bearing Bore (Inch): 1.124
Inner Race Bore (Inch): 1.124
Bearing OD (mm): 134.0
Bearing Width (mm): 79.0
Inner Race Width (mm): 79.0
Outter Race OD (mm): 134.0
Outter Race Width (mm): 79.0
Bearing Bore (mm): 28.0
Inner Race Bore (mm): 28.0
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2000 | Acura | EL | Base |
| 1985 - 1987 | Honda | Civic | 1500 S, CRX, CRX Si, CRX HF |
| 1985 - 1991 | Honda | Civic | Base |
| 1989 - 2000 | Honda | Civic | CX |
| 1985 - 2000 | Honda | Civic | DX |
| 1990 - 2000 | Honda | Civic | EX |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1988 - 2000 | Honda | Civic | LX |
| 1988 - 1991 | Honda | Civic | RT 4WD |
| 1988 | Honda | Civic | SE |
| 1986 - 2000 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1993 - 1997 | Honda | Civic del Sol | Si, S |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | HF, Si |
| 1986 - 1987 | Honda | Wagovan | DX |
