MOOG Hub Assemblies

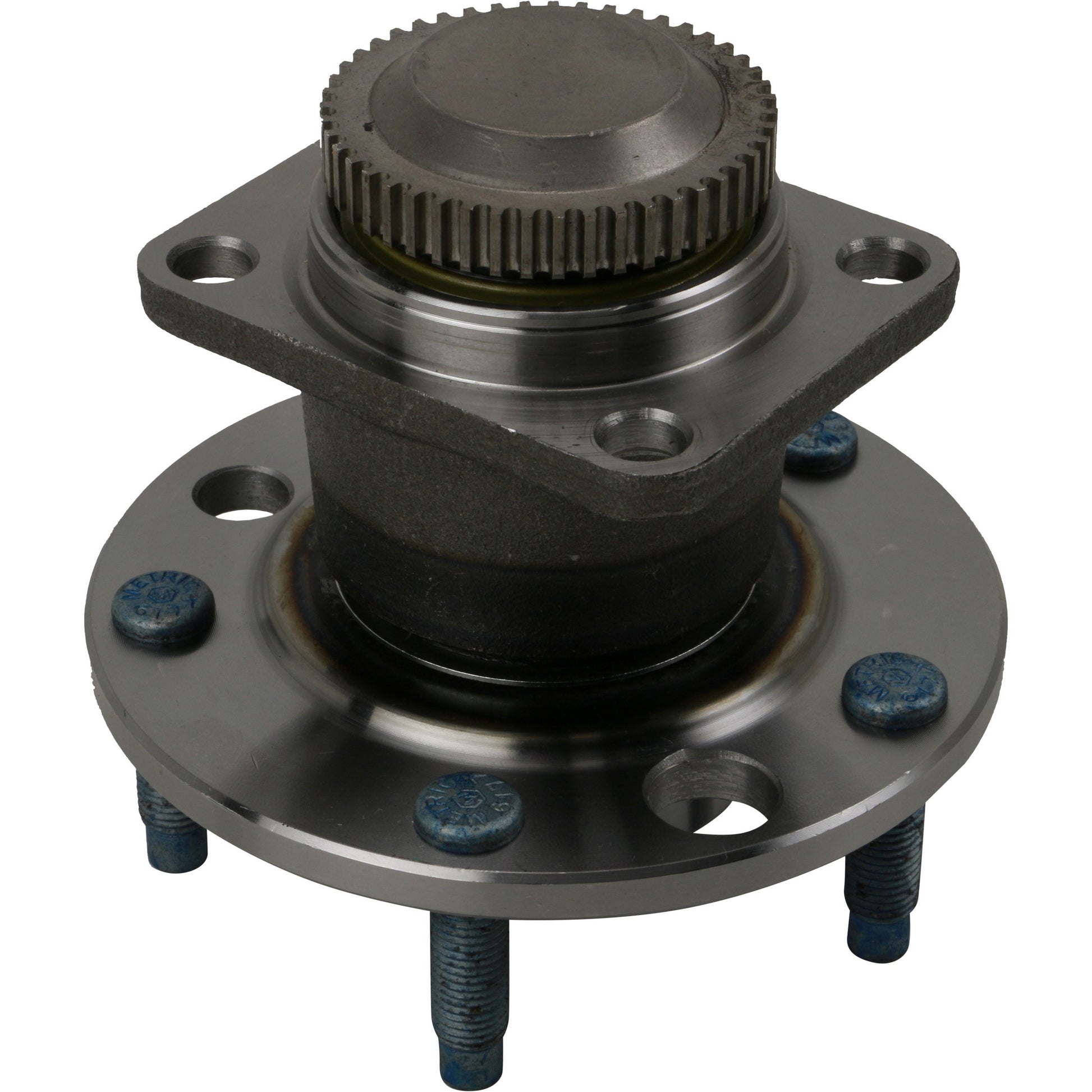

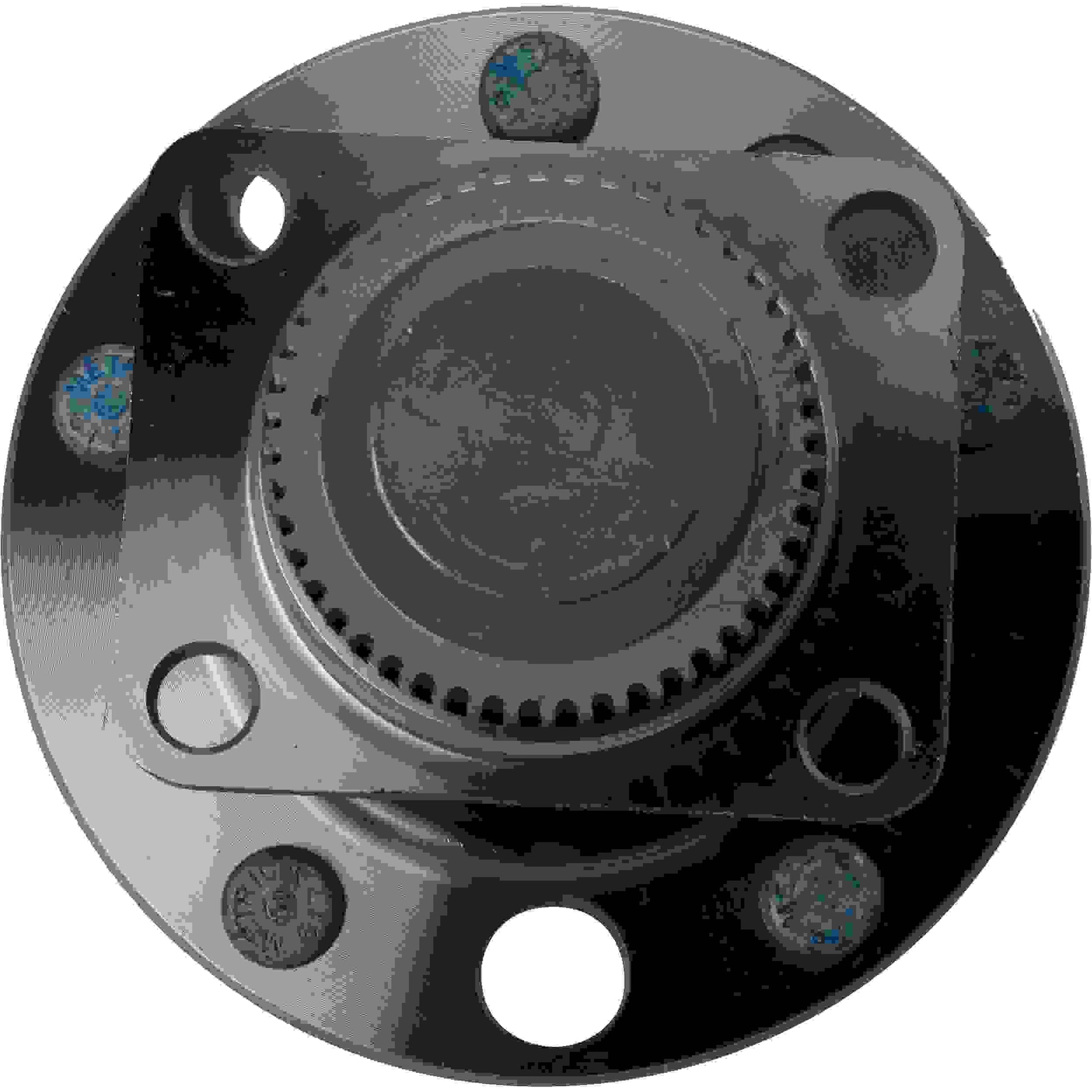

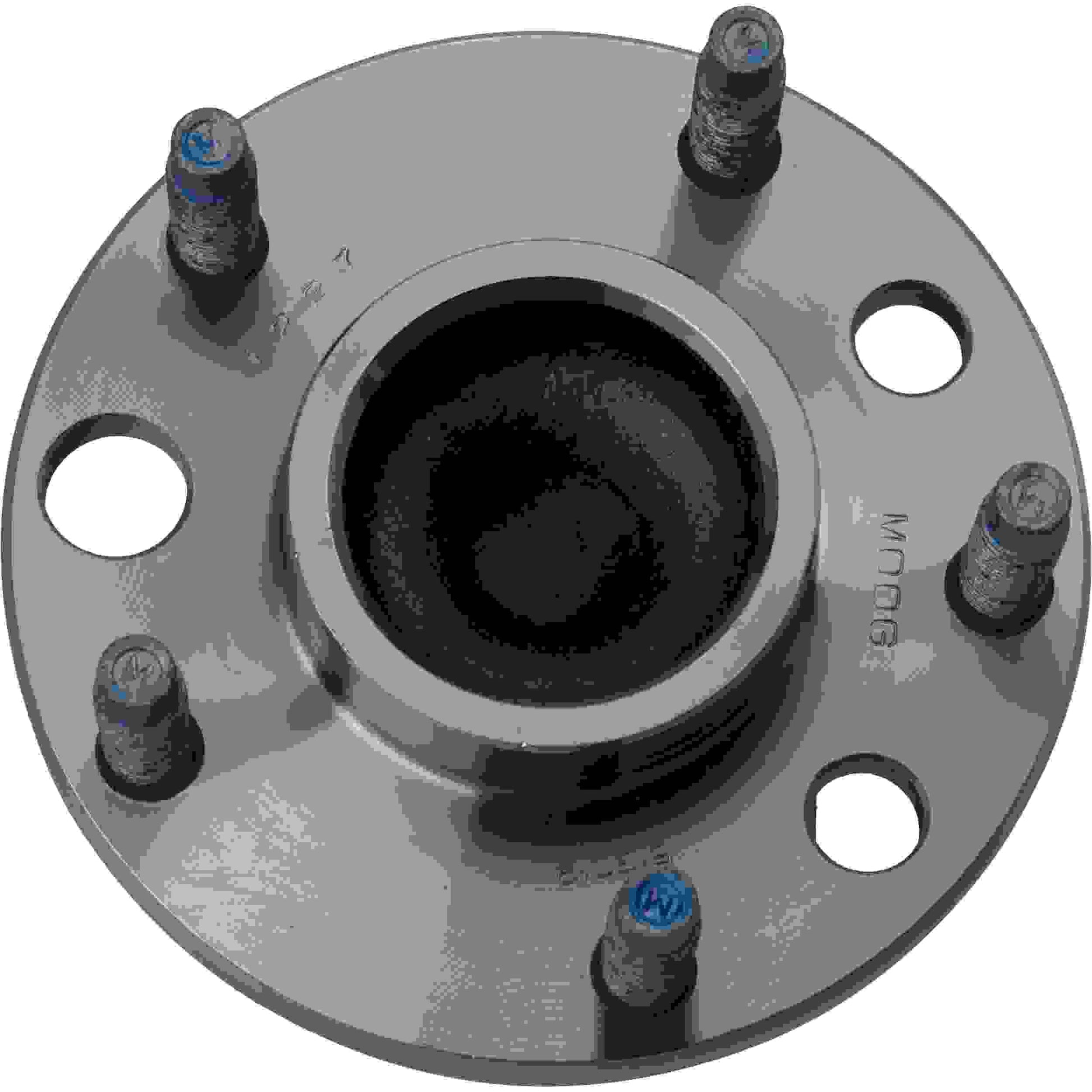

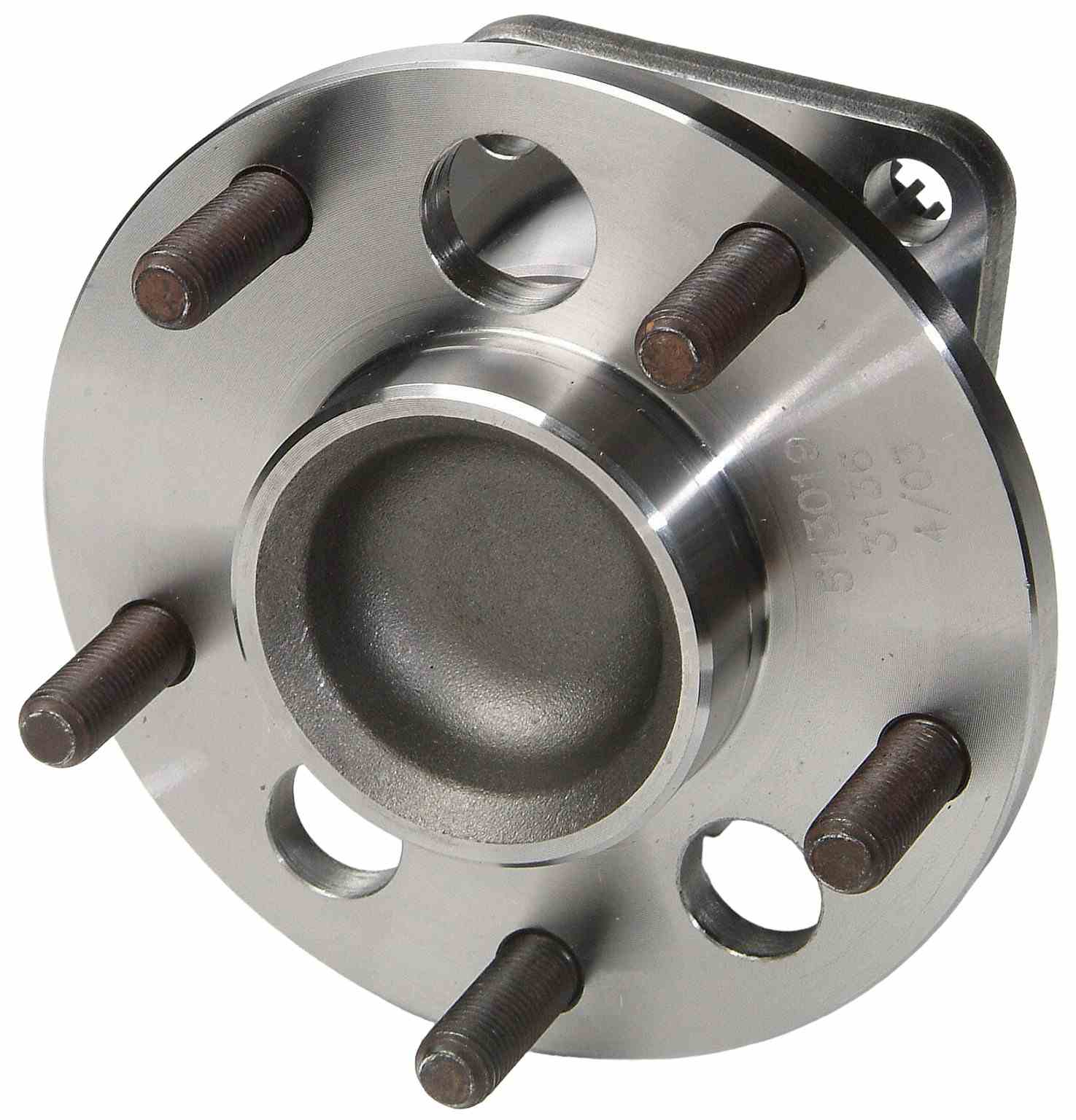

Moog Wheel Hub and Bearing Assembly:Front,Chevy,Excalibur

Moog Wheel Hub and Bearing Assembly:Front,Chevy,Excalibur

sku: 14N69 | mpn: 513019
$205.10
$271.86 $205.10
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

  • Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
  • Engineered to overcome problems and deliver smooth, reliable performance.
  • MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
  • Application specific design

Specifications
Hub Assemblies
Bolt Quantity: 4
Flange Diameter (A): 147.0
Bolt Circle Diameter (B): 4.750
Bolt Circle Diameter Metric (B): 120.7
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 69.0
Hub Pilot Diameter (G): 71.8
Bolt Hole MET (I): 11.9
Bolt Hole Quantity: 5
Flange Shape (K): RECTANGULAR
ABS Sensor: Encoder
Location: Front Wheel
Bearing OD (Inch): 11.559
Bearing Width (Inch): 5.413
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 5.413
Outter Race OD (Inch): 5.779
Outter Race Width (Inch): 5.413
Bearing OD (mm): 146.8
Bearing Width (mm): 137.5
Inner Race Width (mm): 137.5
Outter Race OD (mm): 146.8
Outter Race Width (mm): 137.5


Vehicle Fitments:

Year Make Model Submodel
1988 Chevrolet Corvette 35th Anniversary Edition
1984 - 1990 Chevrolet Corvette Base
1986 Chevrolet Corvette Indianapolis 500 Pace Car
1990 Chevrolet Corvette ZR-1
View full details
