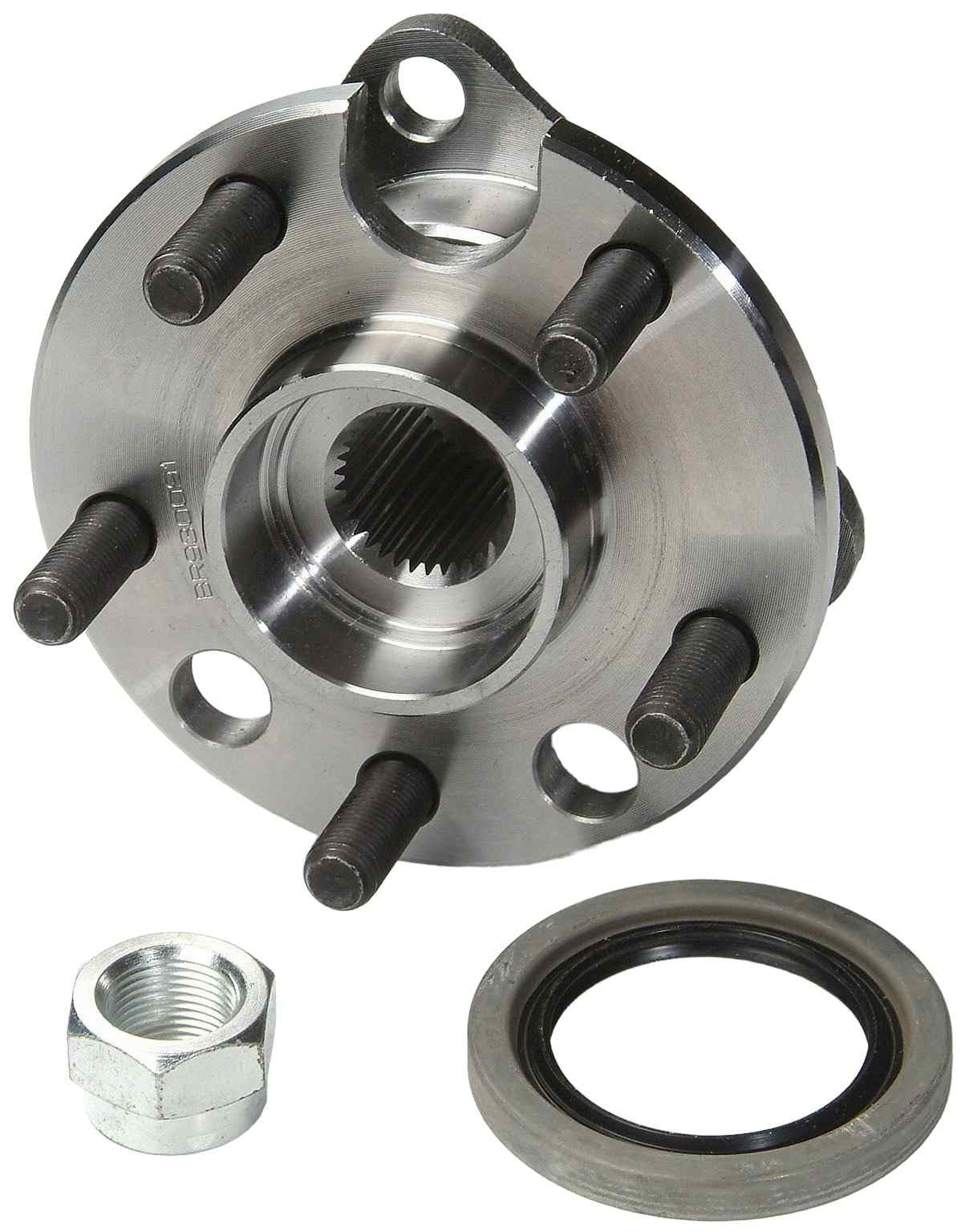

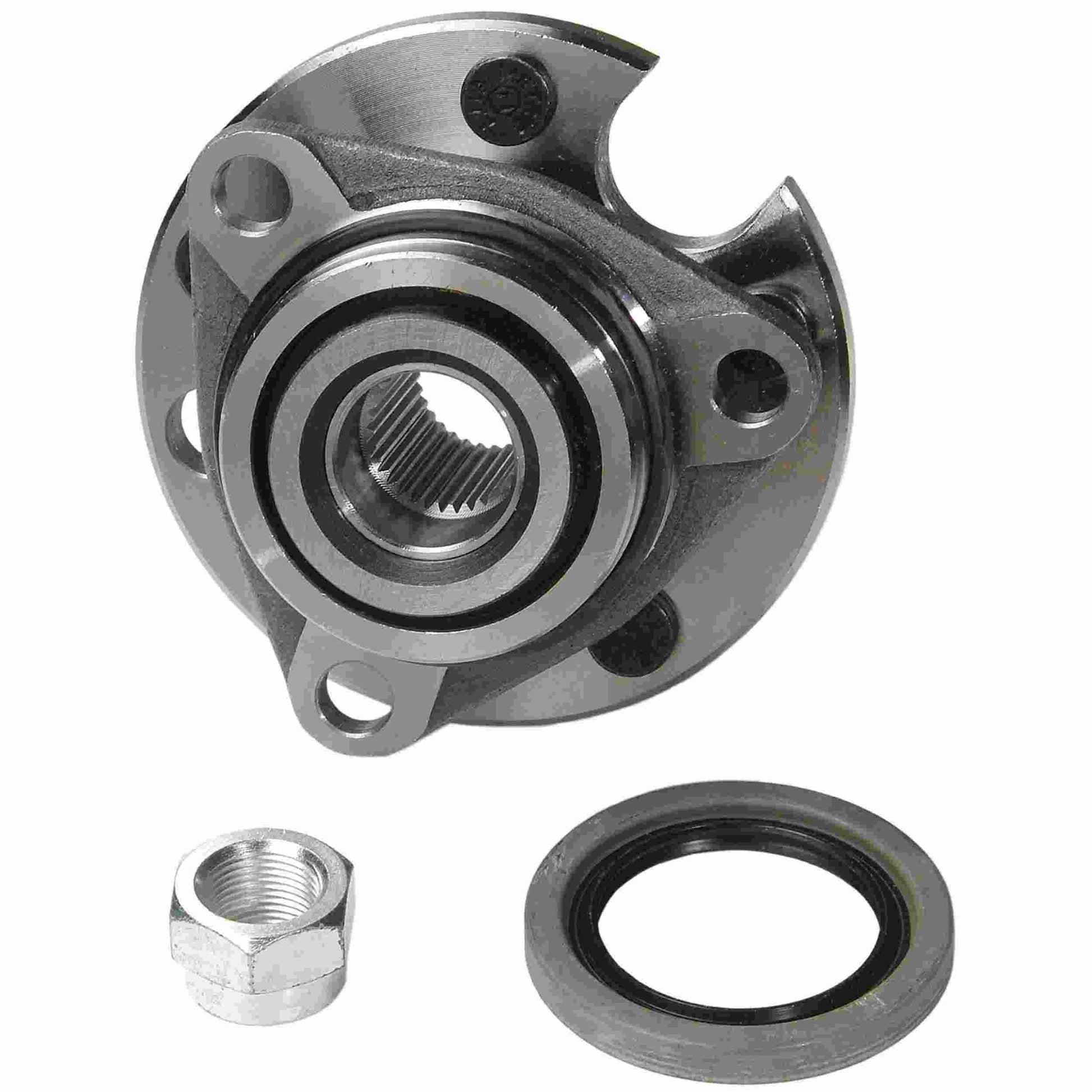

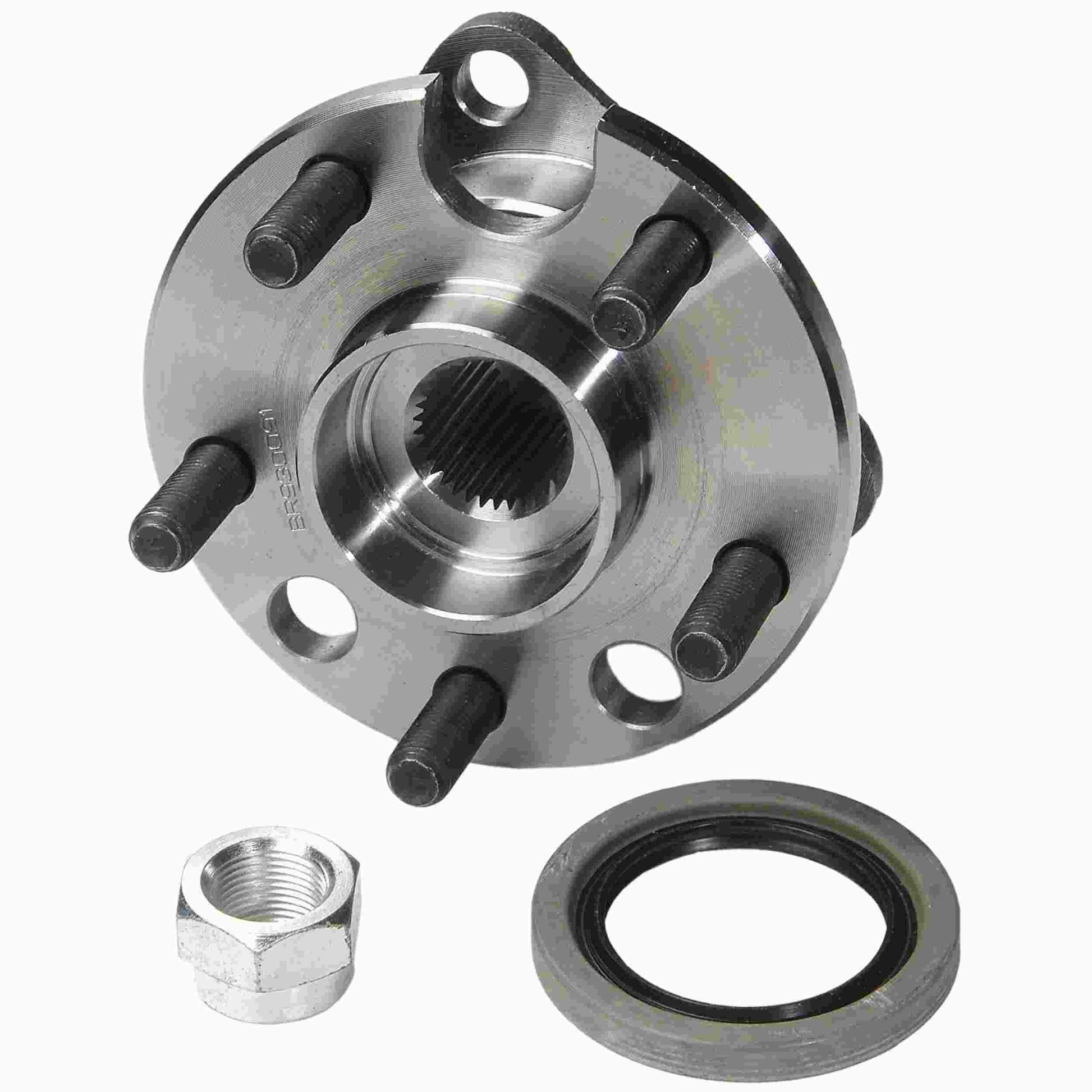

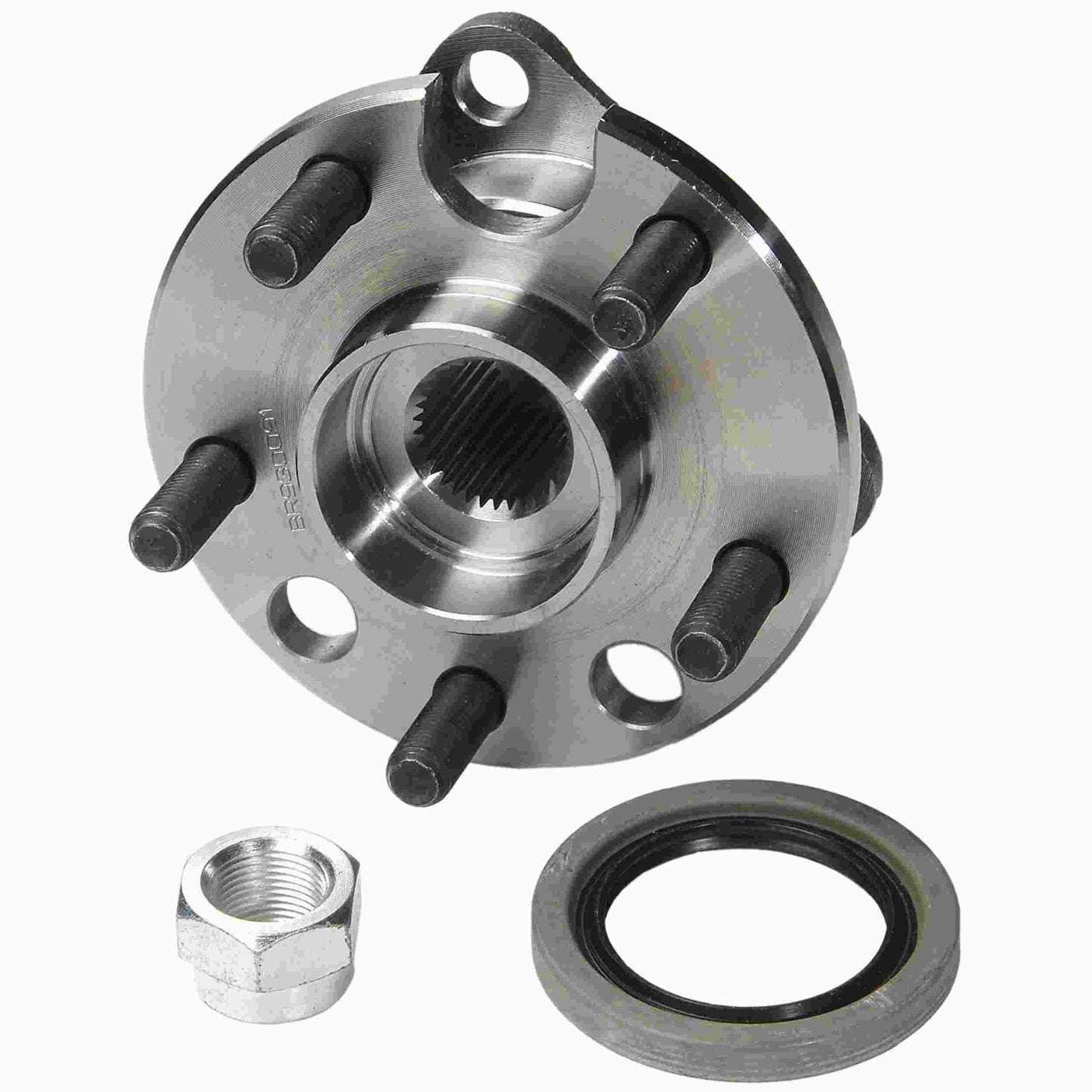

Moog Wheel Hub and Bearing Assembly:Front,Buick,Chevy,Oldsmobile
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Innovative roll form design ensures consistent and optimal preload.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 125.4
Bolt Circle Diameter (B): 3.937
Bolt Circle Diameter Metric (B): 100.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 57.0
Brake Pilot Diameter (E): 57.8
Flange Offset (F): 42.0
Hub Pilot Diameter (G): 70.0
Bolt Hole MET (I): 12.7
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): MODIFIED TRIANGLE
ABS Sensor: No
Location: Front/Rear Wheel
Bearing OD (Inch): 9.842
Bearing Width (Inch): 4.523
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 4.523
Outter Race OD (Inch): 4.921
Outter Race Width (Inch): 4.523
Bearing Bore (Inch): 1.152
Inner Race Bore (Inch): 1.152
Bearing OD (mm): 125.0
Bearing Width (mm): 102.9
Inner Race Radius (mm): 3.6
Inner Race Width (mm): 102.9
Outter Race OD (mm): 125.0
Outter Race Width (mm): 102.9
Bearing Bore (mm): 29.3
Inner Race Bore (mm): 29.3
Moog Wheel Hub and Bearing Assembly:Front,Buick,Chevy,Oldsmobile
Sale price$76.23 USD
