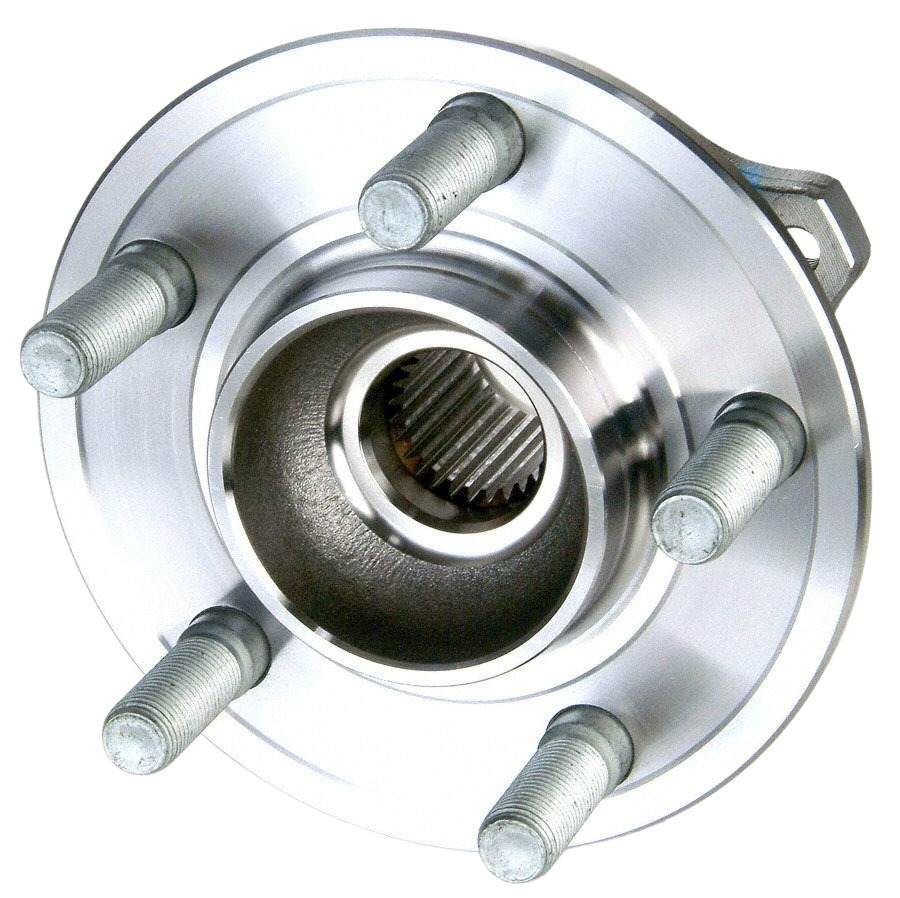

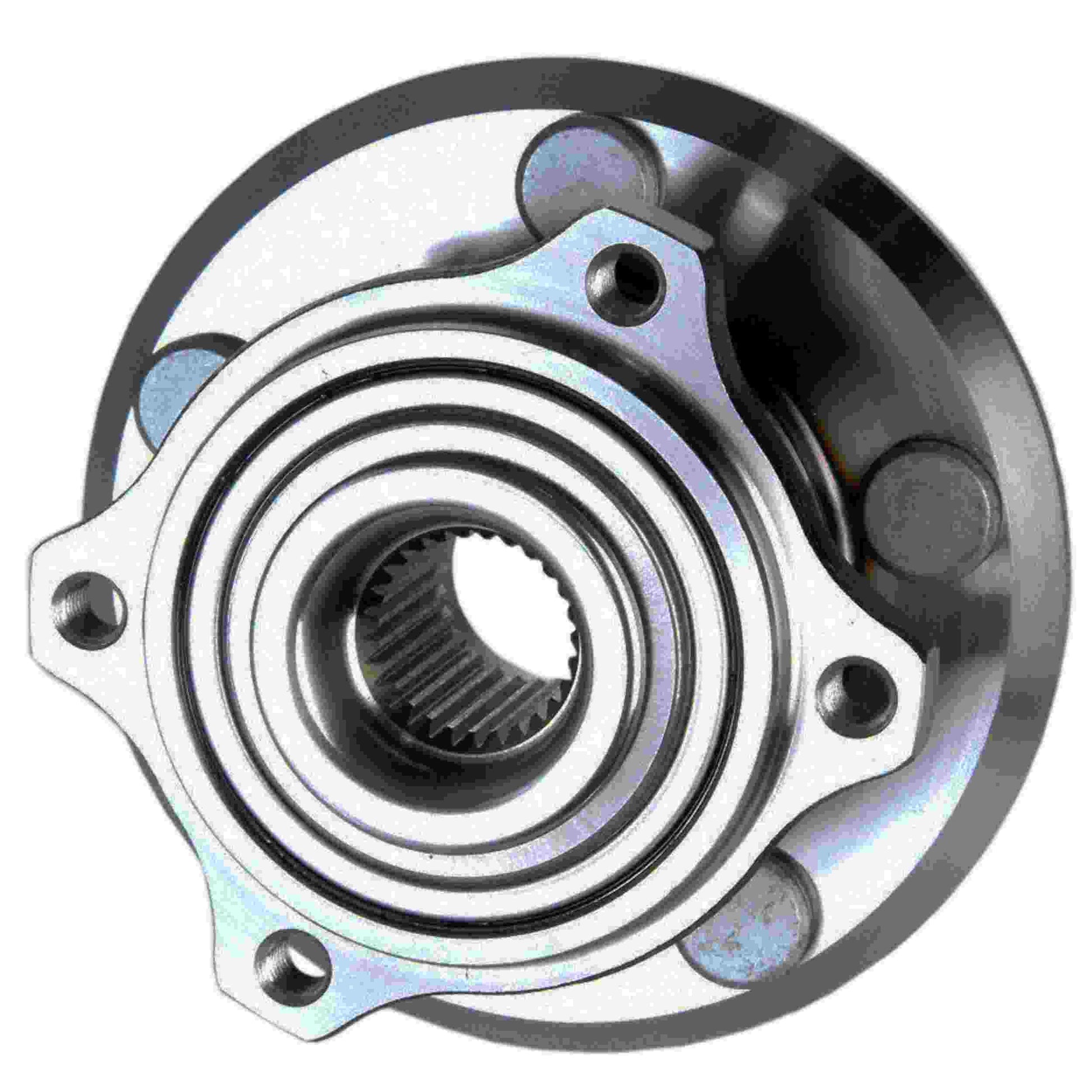

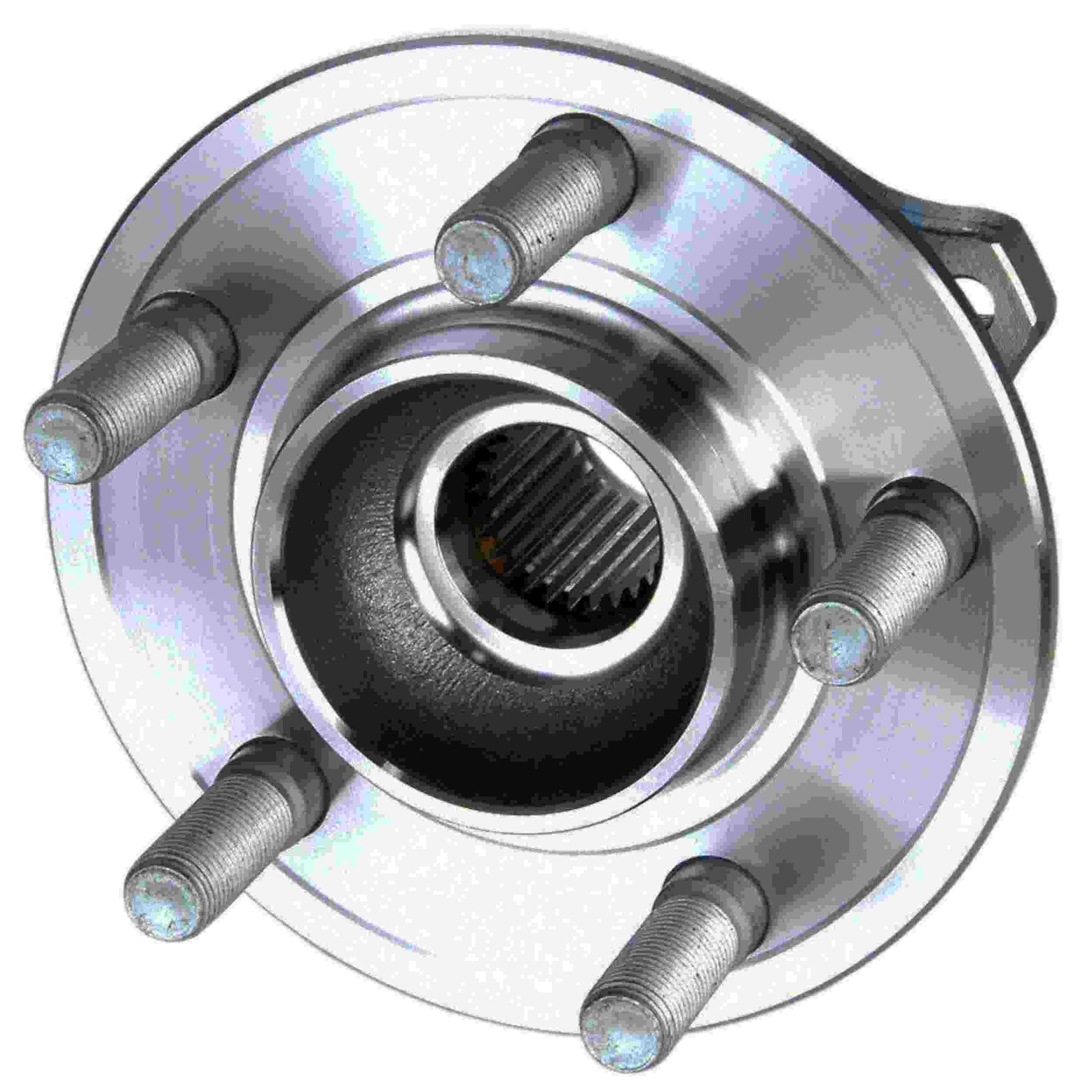

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

 FEATURES:

• Innovative roll form design ensures consistent and optimal preload.
• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

SPECIFICATION

• Flange Bolt Hole Quantity:4
• Flange Diameter (A):150.0
• Bolt Circle Diameter Metric (B):115.0
• Bolt Size (C):M14x1.5
• Wheel Pilot Diameter (D):71.4
• Brake Pilot Diameter (E):72.5
• Flange Offset (F):60.3
• Hub Pilot Diameter (G):90.4
• Bolt Hole MET (I):M10x1.5
• Wheel Stud Quantity:5
• Number of Splines:27
• ABS Sensor:No

Vehicle Fitments:
