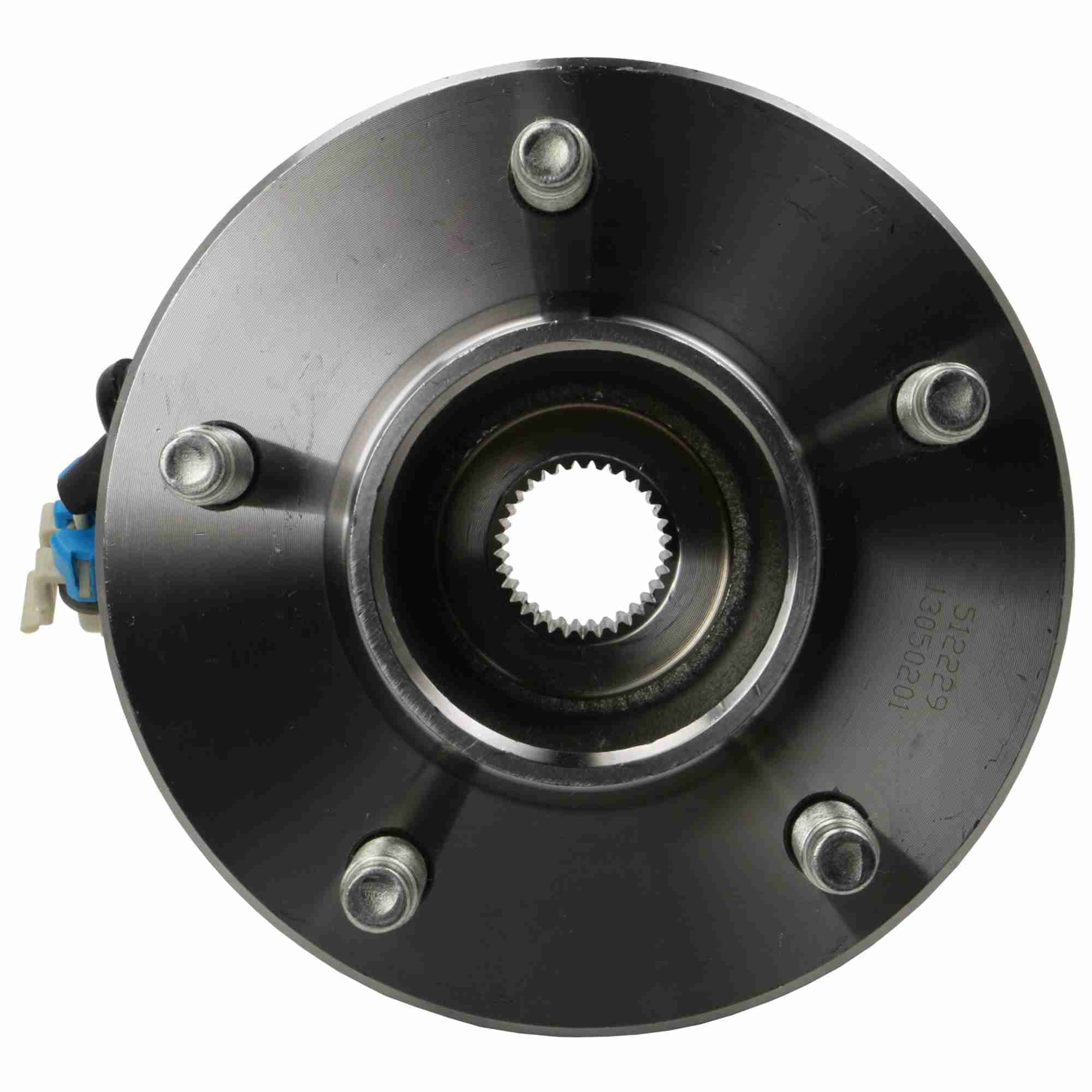

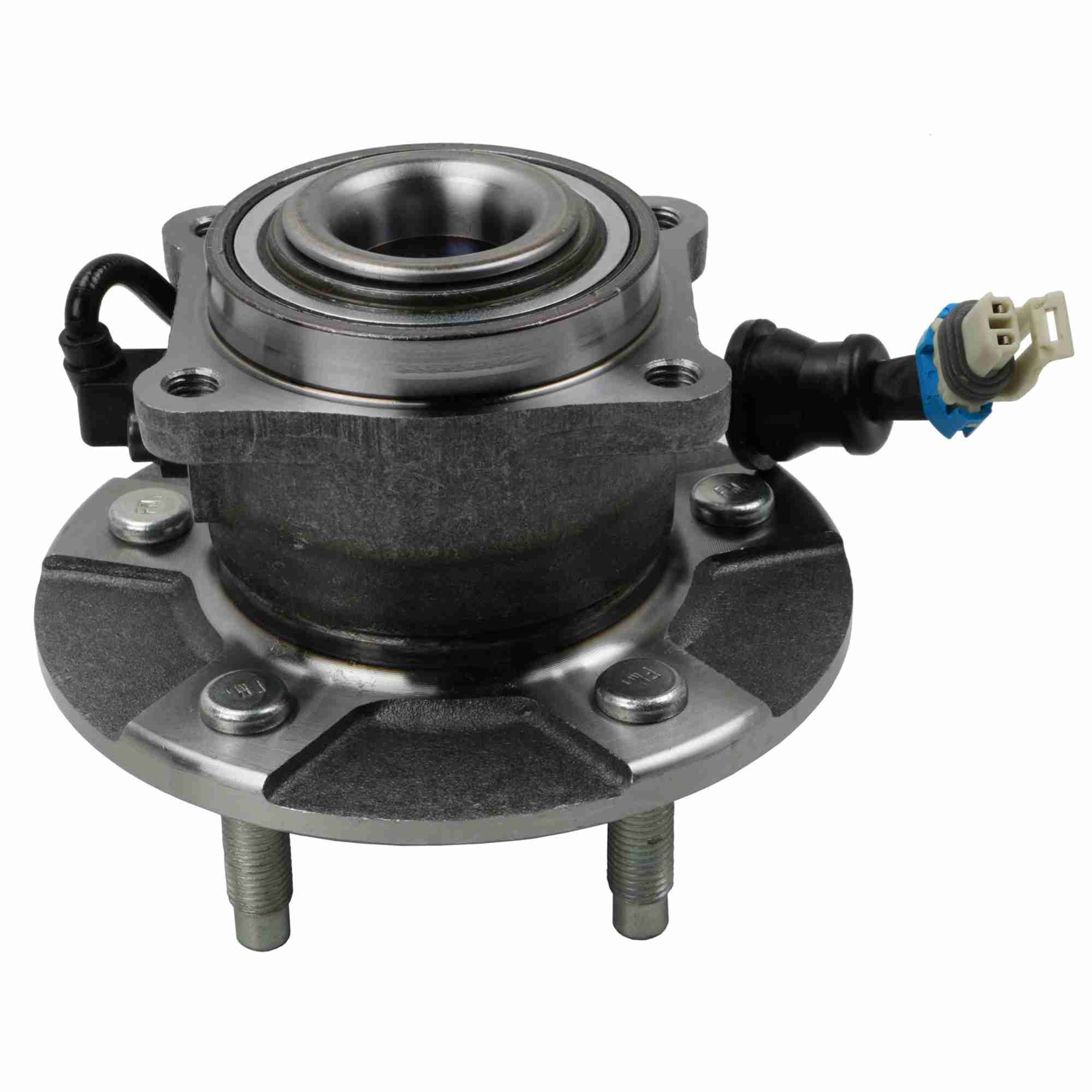

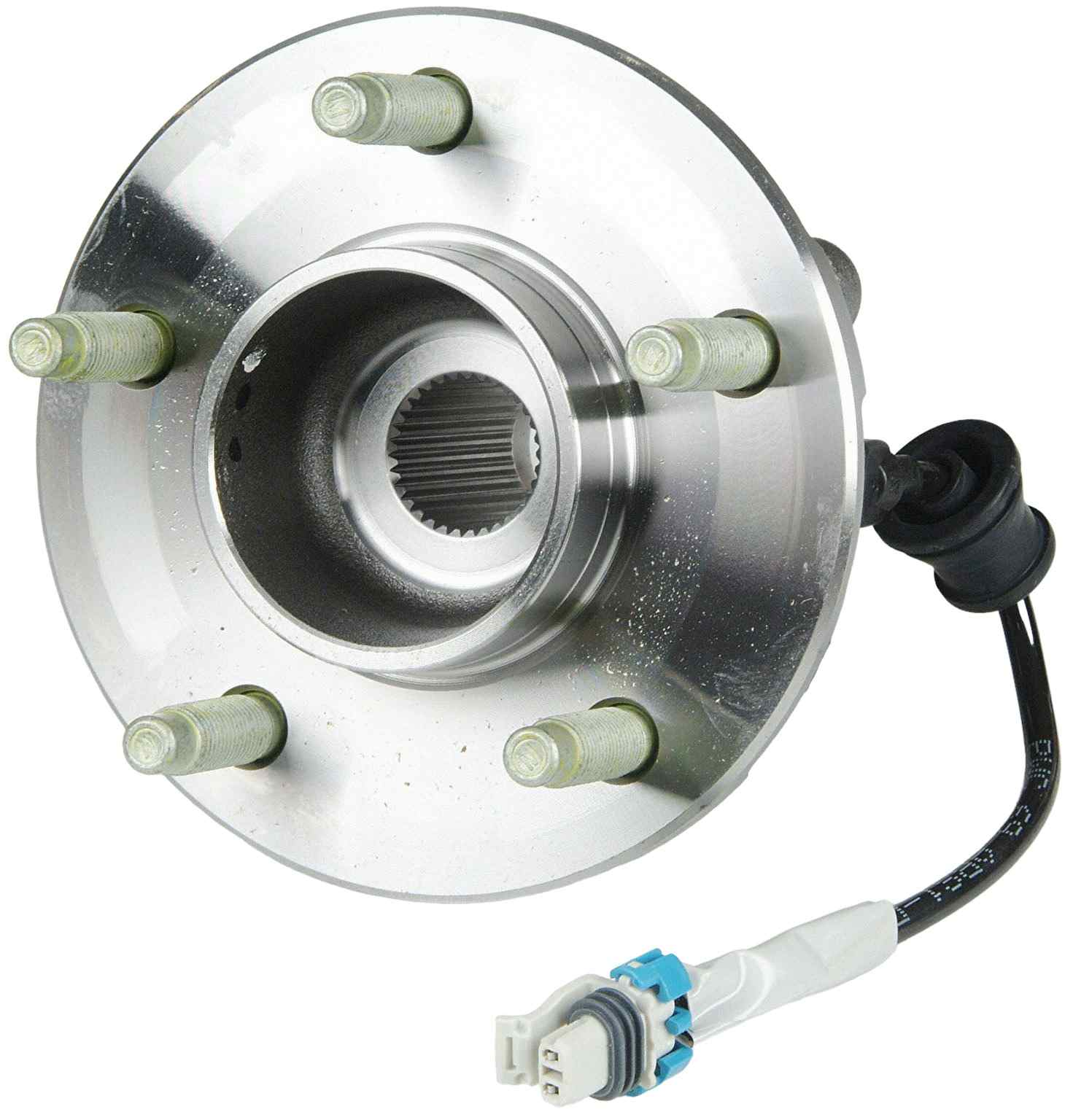

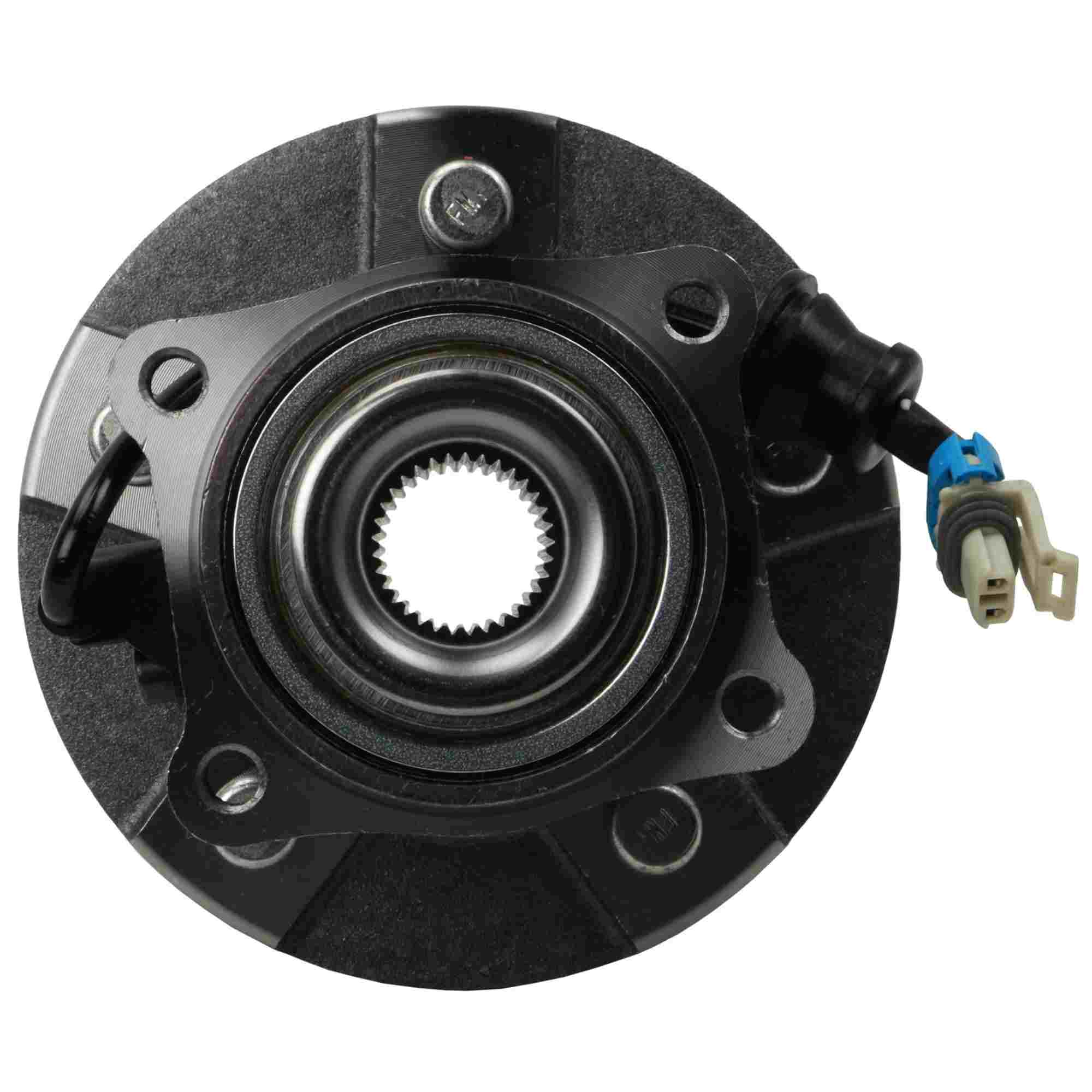

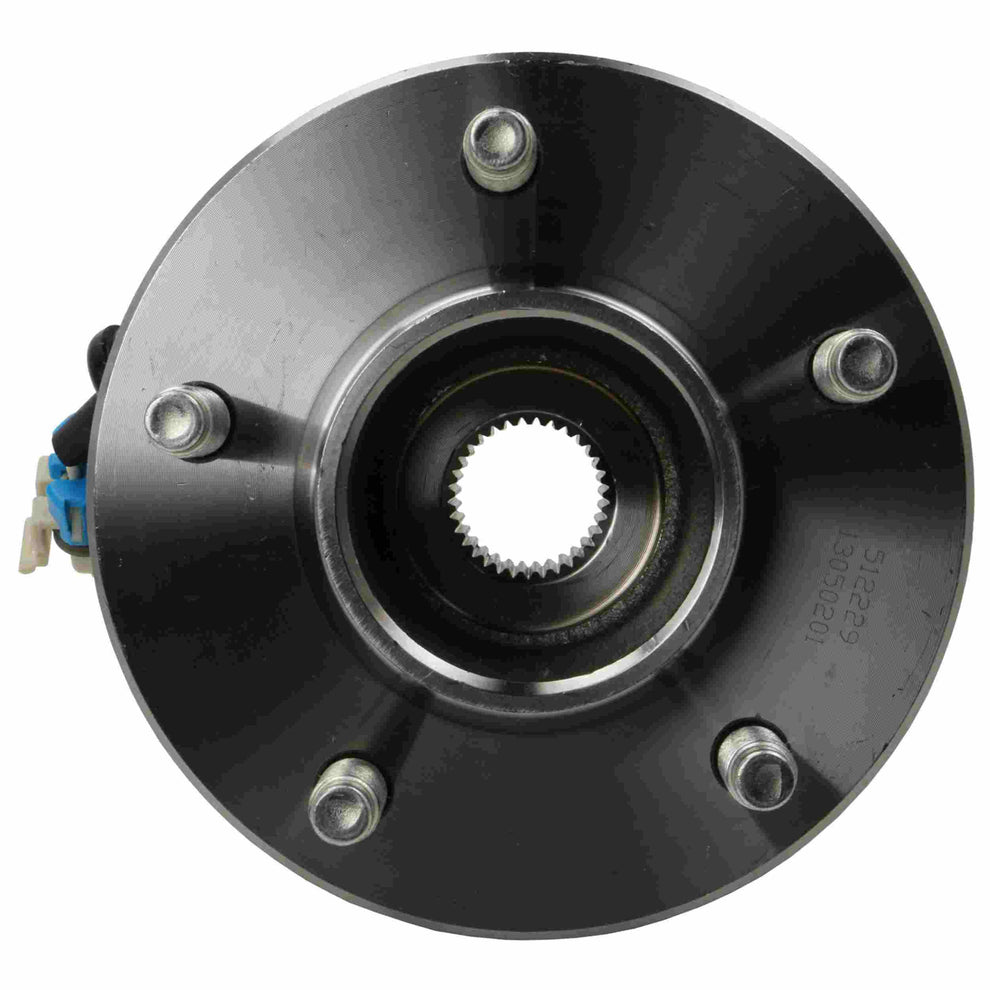

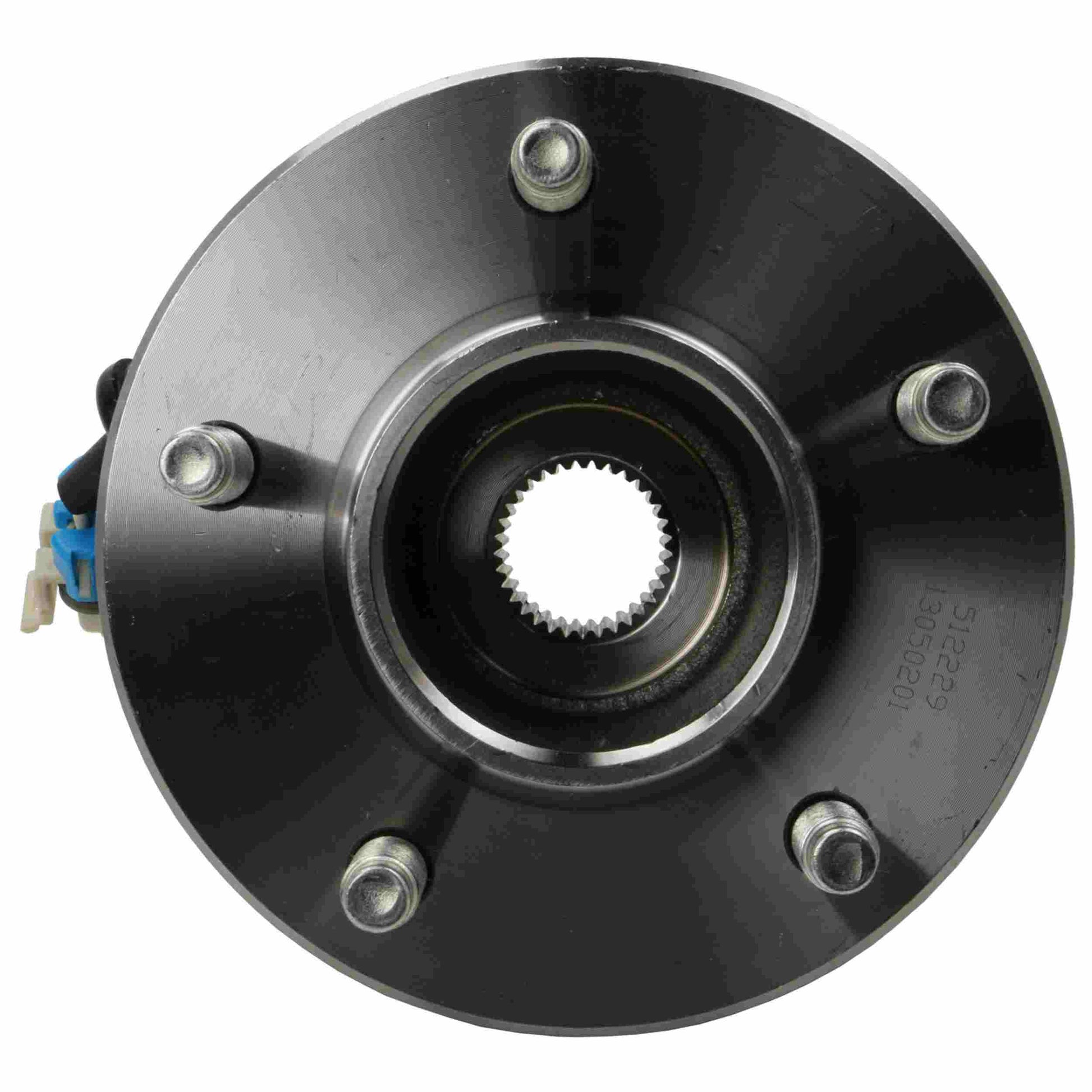

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Rear,Pontiac,Saturn

Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
BoltQuantity: 4
Flange Diameter (A): 150.0
Bolt Circle Diameter (B): 4.530
Bolt Circle Diameter Metric (B): 115.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 65.0
Hub Pilot Diameter (G): 79.0
Bolt Hole MET (I): M10X1.5
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): RECTANGULAR

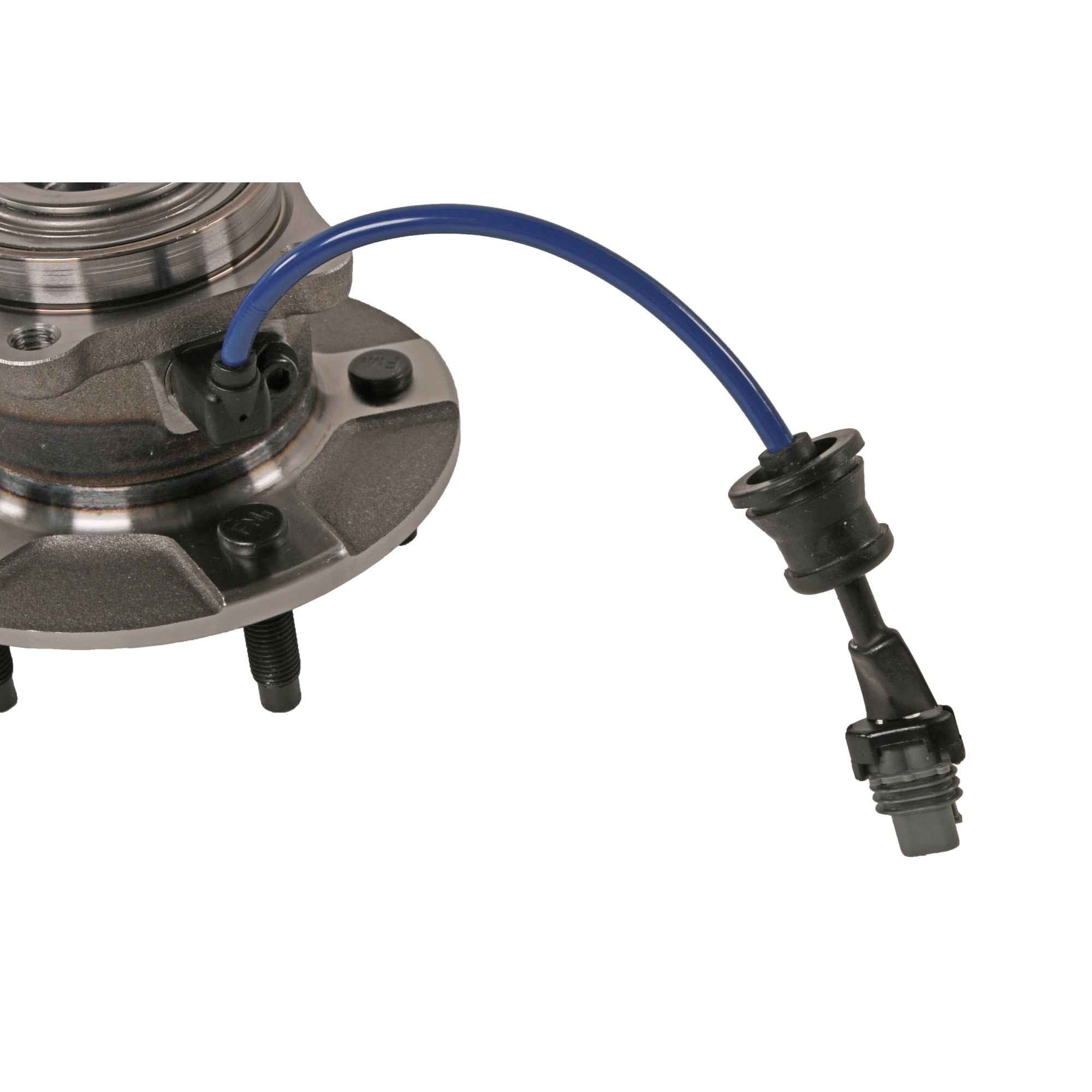

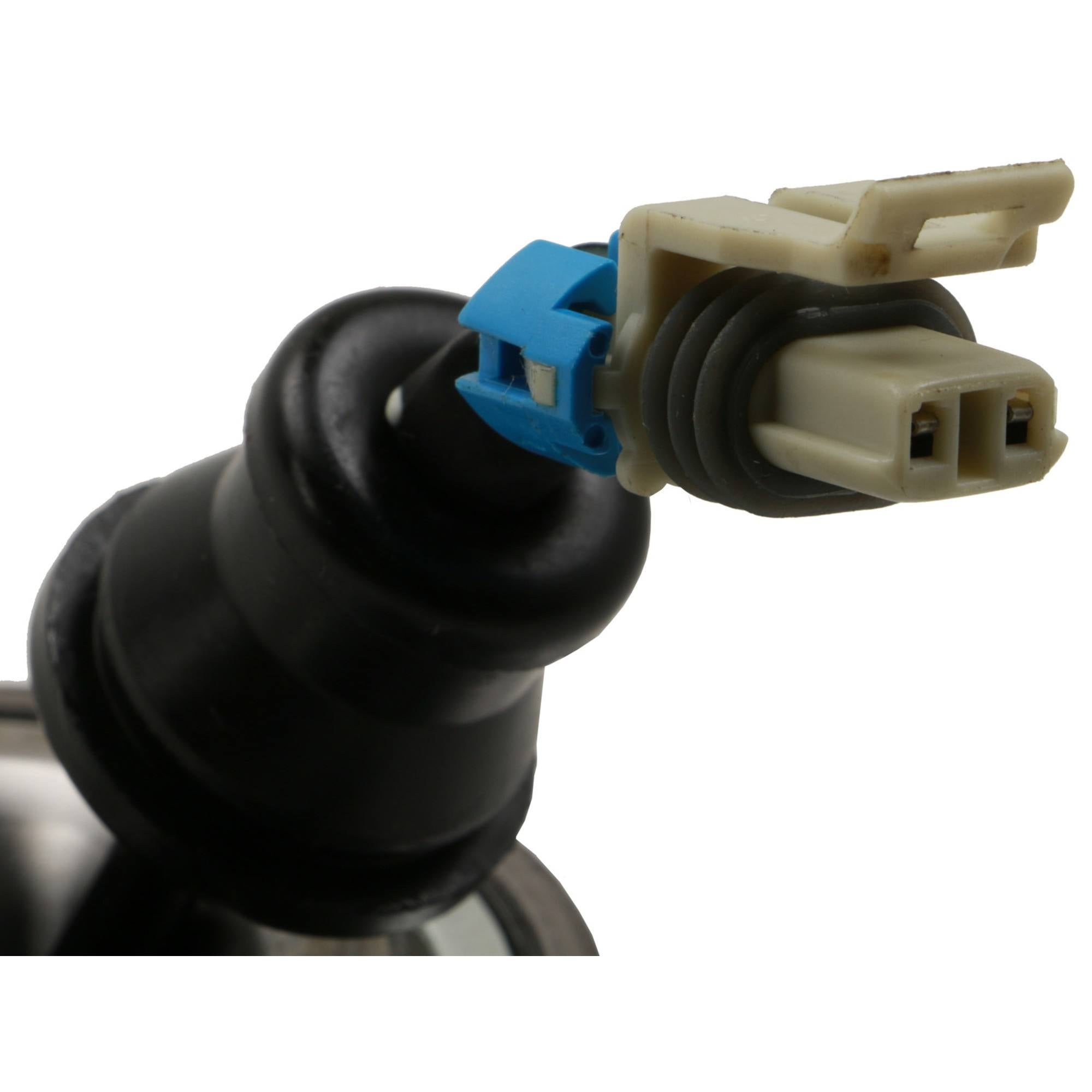

ABS Sensor: Cable
Location: Rear Wheel
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2005 - 2006 | Chevrolet | Equinox | LS, LT |
2006 | Pontiac | Torrent | LS, Base, LT |
2002 - 2007 | Saturn | Vue | Base |
2007 | Saturn | Vue | Green Line |
2004 - 2007 | Saturn | Vue | Red Line |
