MOOG Hub Assemblies

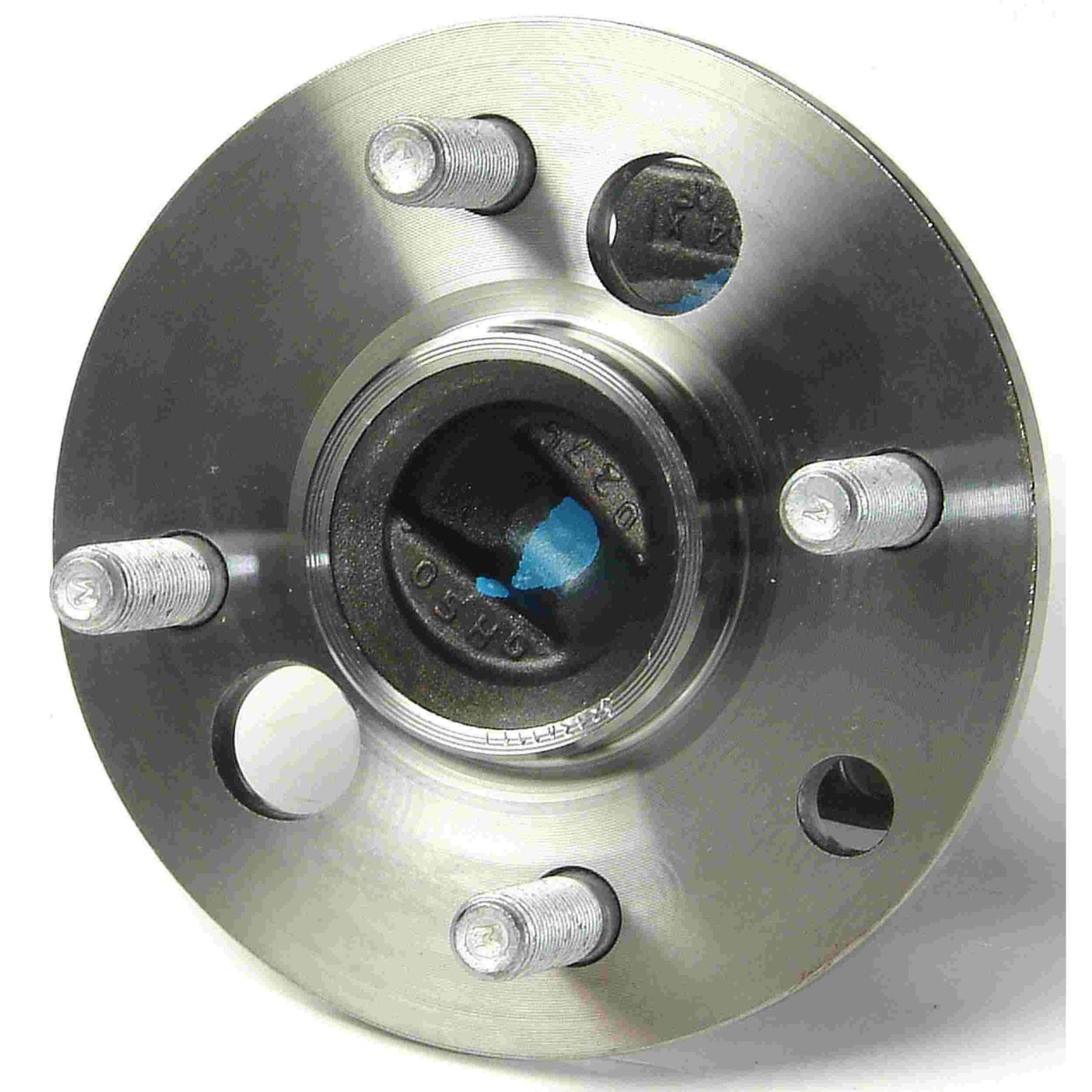

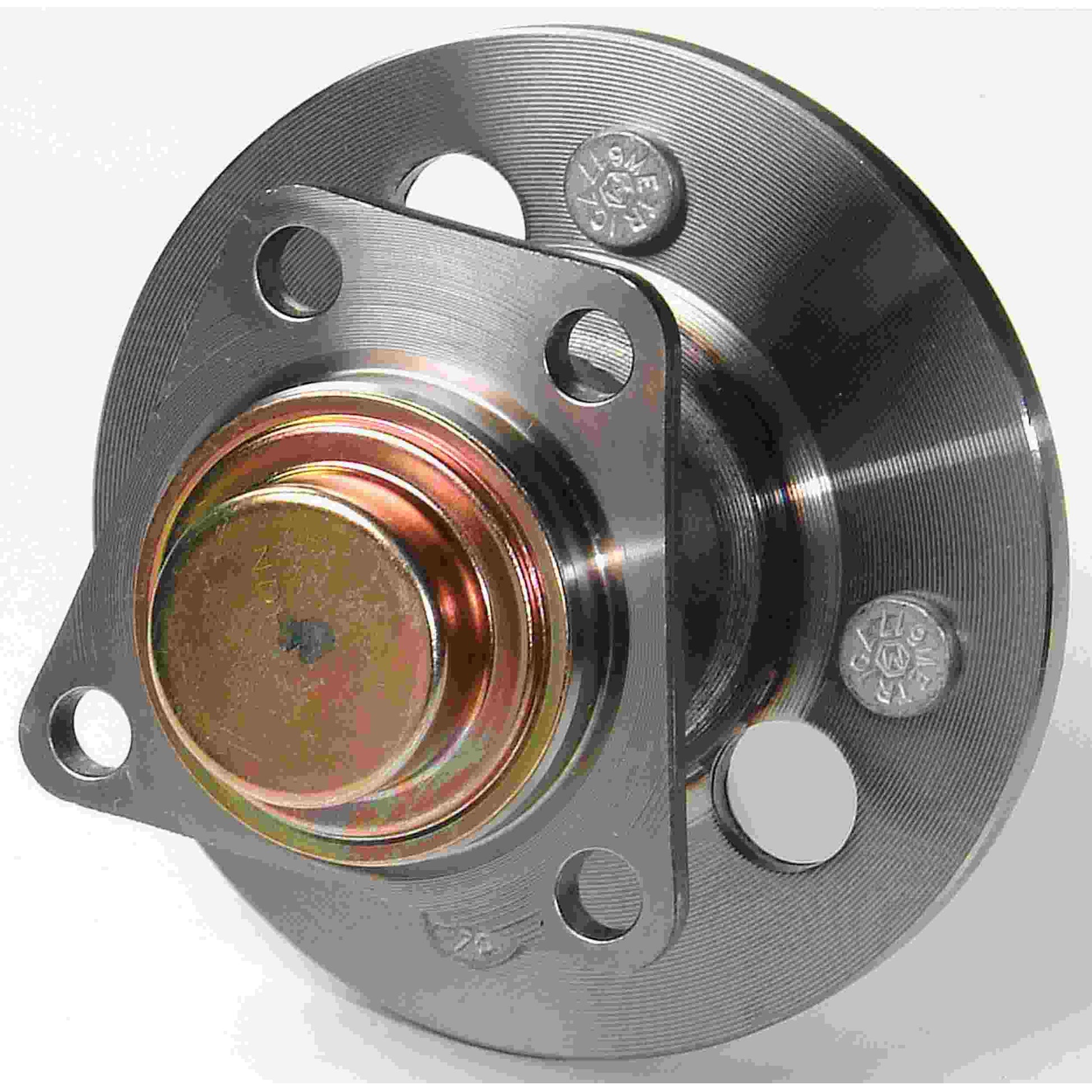

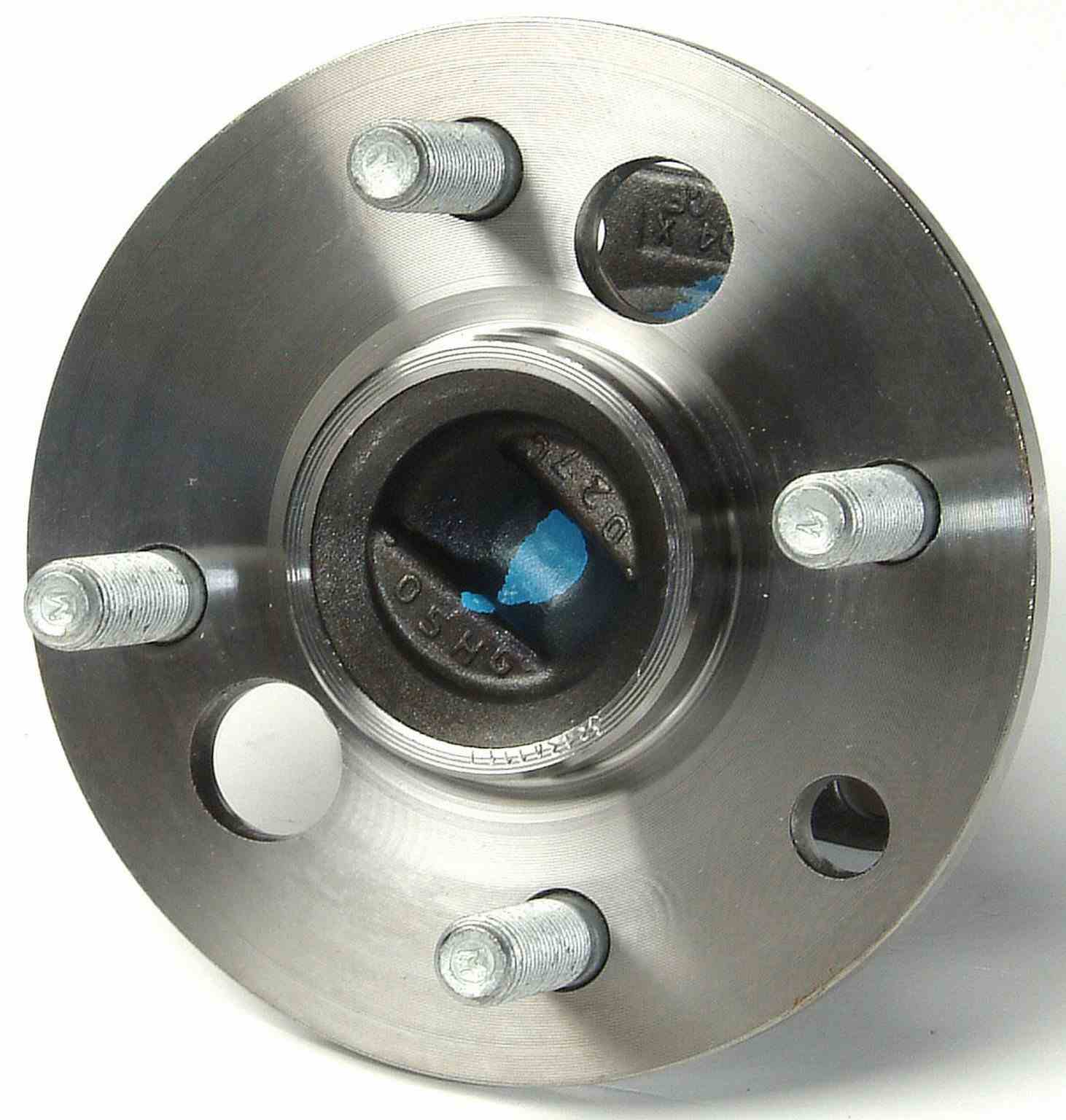

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Rear,Saturn

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Rear,Saturn

sku: 14NNU | mpn: 512000
$93.31
$93.31 $93.31
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

  • Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
  • Engineered to overcome problems and deliver smooth, reliable performance.
  • MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
  • Application specific design

Specifications
Hub Assemblies
Bolt Quantity: 4
Flange Diameter (A): 138.0
Bolt Circle Diameter (B): 3.940
Bolt Circle Diameter Metric (B): 100.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 57.0
Brake Pilot Diameter (E): 57.5
Flange Offset (F): 64.8
Hub Pilot Diameter (G): 60.9
Bolt Hole MET (I): 10
Bolt Hole Quantity: 5
Flange Shape (K): OFFSET TRAPEZOID
ABS Sensor: No
Location: Rear Wheel
Bearing OD (Inch): 10.866
Bearing Width (Inch): 5.457
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 5.457
Outter Race OD (Inch): 5.433
Outter Race Width (Inch): 5.457
Bearing OD (mm): 138.0
Bearing Width (mm): 128.2
Inner Race Radius (mm): 3.6
Inner Race Width (mm): 128.2
Outter Race OD (mm): 138.0
Outter Race Width (mm): 128.2


Vehicle Fitments:

Year Make Model Submodel
1991 - 1992 Saturn SC Base
1993 - 2002 Saturn SC1 Base
1993 - 2002 Saturn SC2 Base
1991 - 2002 Saturn SL Base
1991 - 2002 Saturn SL1 Base
1991 - 2002 Saturn SL2 Base
1993 - 1999 Saturn SW1 Base
1993 - 2001 Saturn SW2 Base
