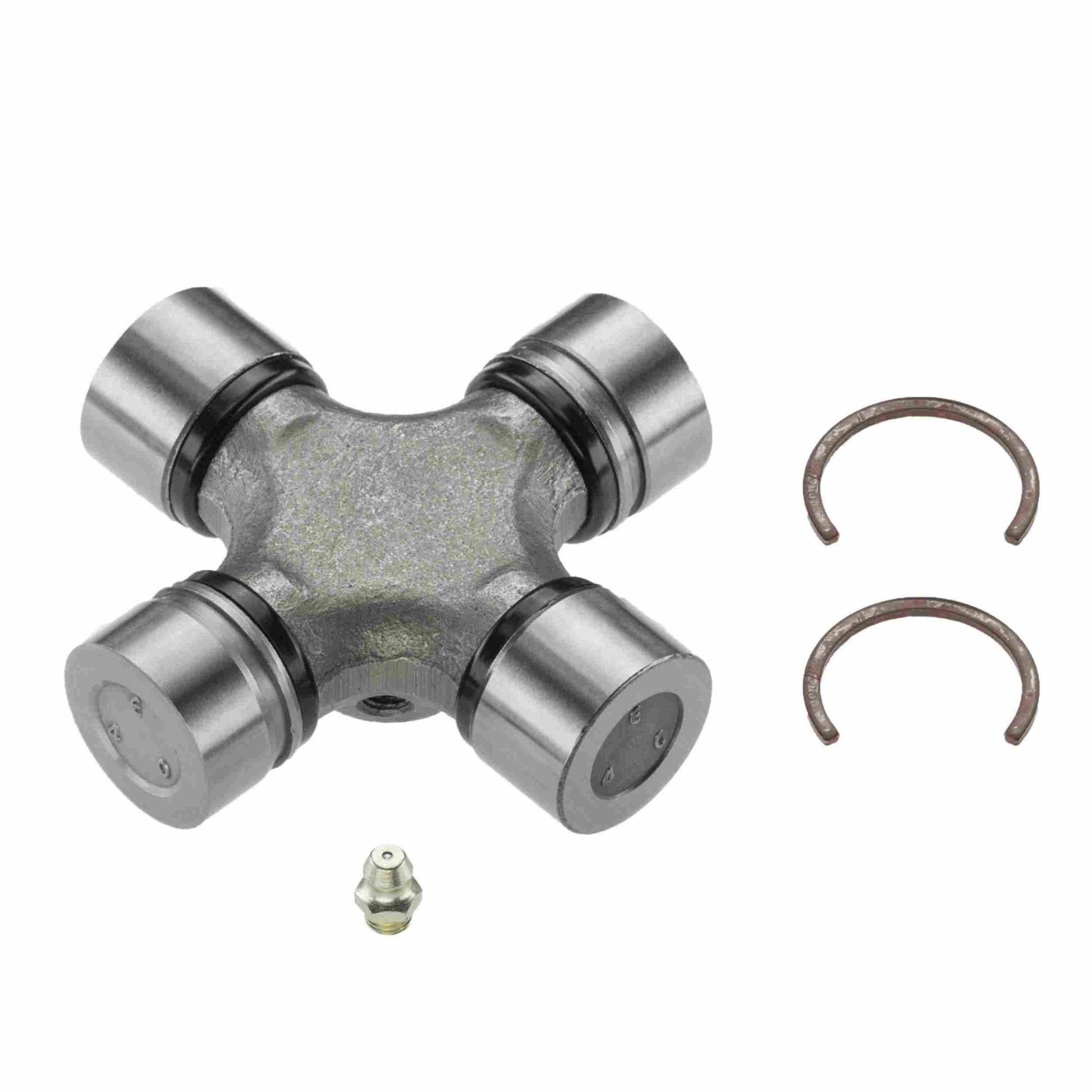

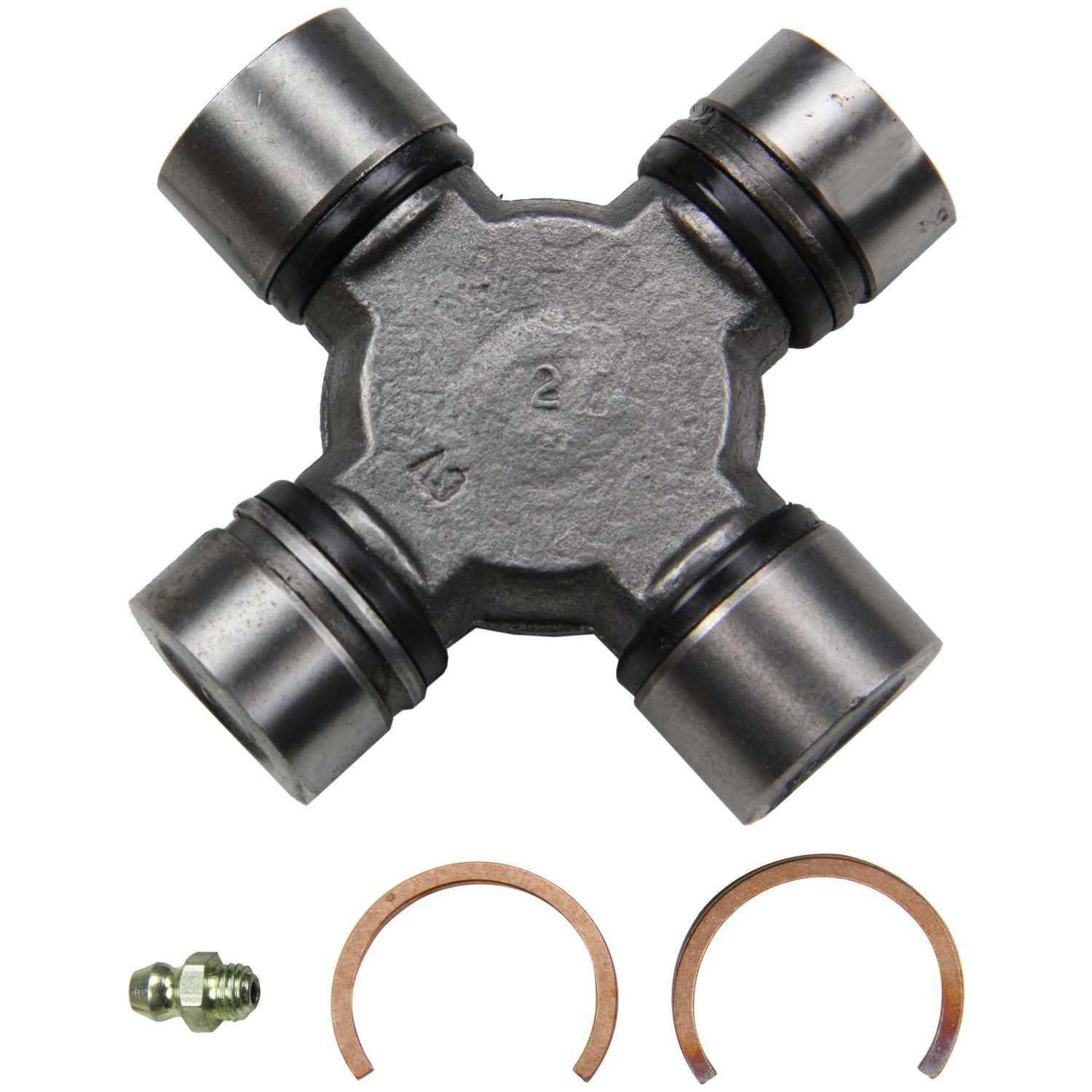

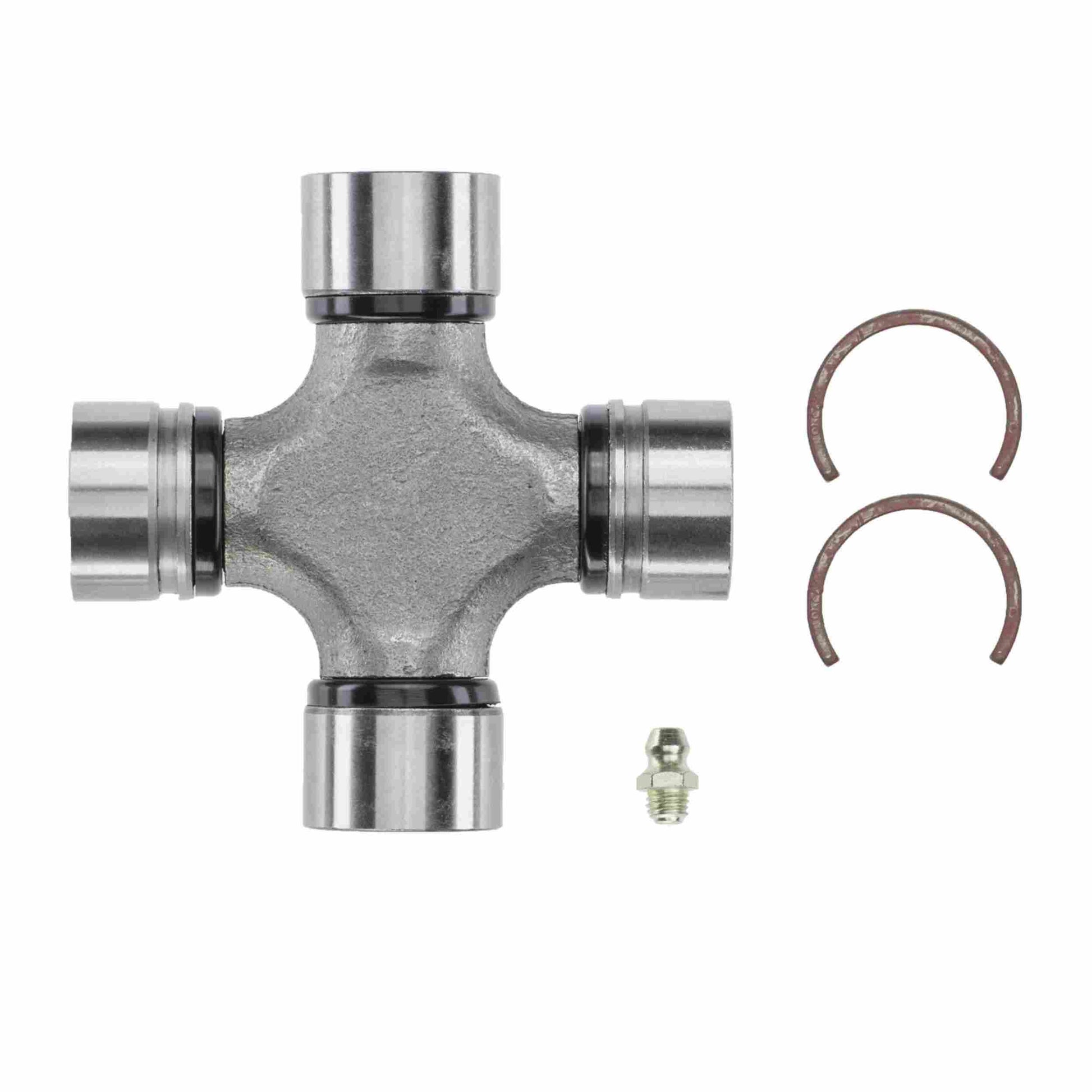

Moog Universal Joint:Mechanics 3/Saginaw 44/American Axle 1344/Ford 1330
U-joint
Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.
- Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear
- Needle bearings and snap rings from an original equipment supplier
- Nitrile rubber grease seals have compressed double lip design for protection from contaminants
- Consistent heat treatment achieves good bearing hardness for durable wear and strength
- Bearing cups ground and slightly oversized to fit in a used drive shaft
- Cross forging shape and flash provide easier installation and high strength
U-joint Specifications
U-Joint Identification: 2 Grooved and 2 Plain Round Bearings
Bearing Type A: Round Plain
Bearing Diameter A - Inch: 1.125
Bearing Diameter A - mm: 28.5
Length Measurement A: Outside of Bearing To Outside of Bearing
Length A - Inch: 3.622
Length A - mm: 92.0
Bearing Type B: Round Grooved
Bearing Diameter B - Inch: 1.125
Bearing Diameter B - mm: 28.6
Length Measurement B: Outside of Groove to Outside of Groove
Length B - Inch: 2.56
Length B - mm: 65.0
OE Series: Combination 434 x 534G
Lubricateable: Yes
Lube Fitting Location: Regular Lube Fitting in Cross
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1979 | Ford | LTD II | Landau, Base, S |
| 1979 | Ford | Thunderbird | Heritage, Base, Town Landau |
| 1979 | Mercury | Cougar | XR-7, Base |
Moog Universal Joint:Mechanics 3/Saginaw 44/American Axle 1344/Ford 1330
Sale price$29.51 USD
