Be Cool Radiator, LS Swap, Cooling Module, Show & Go, Crossflow, Aluminum

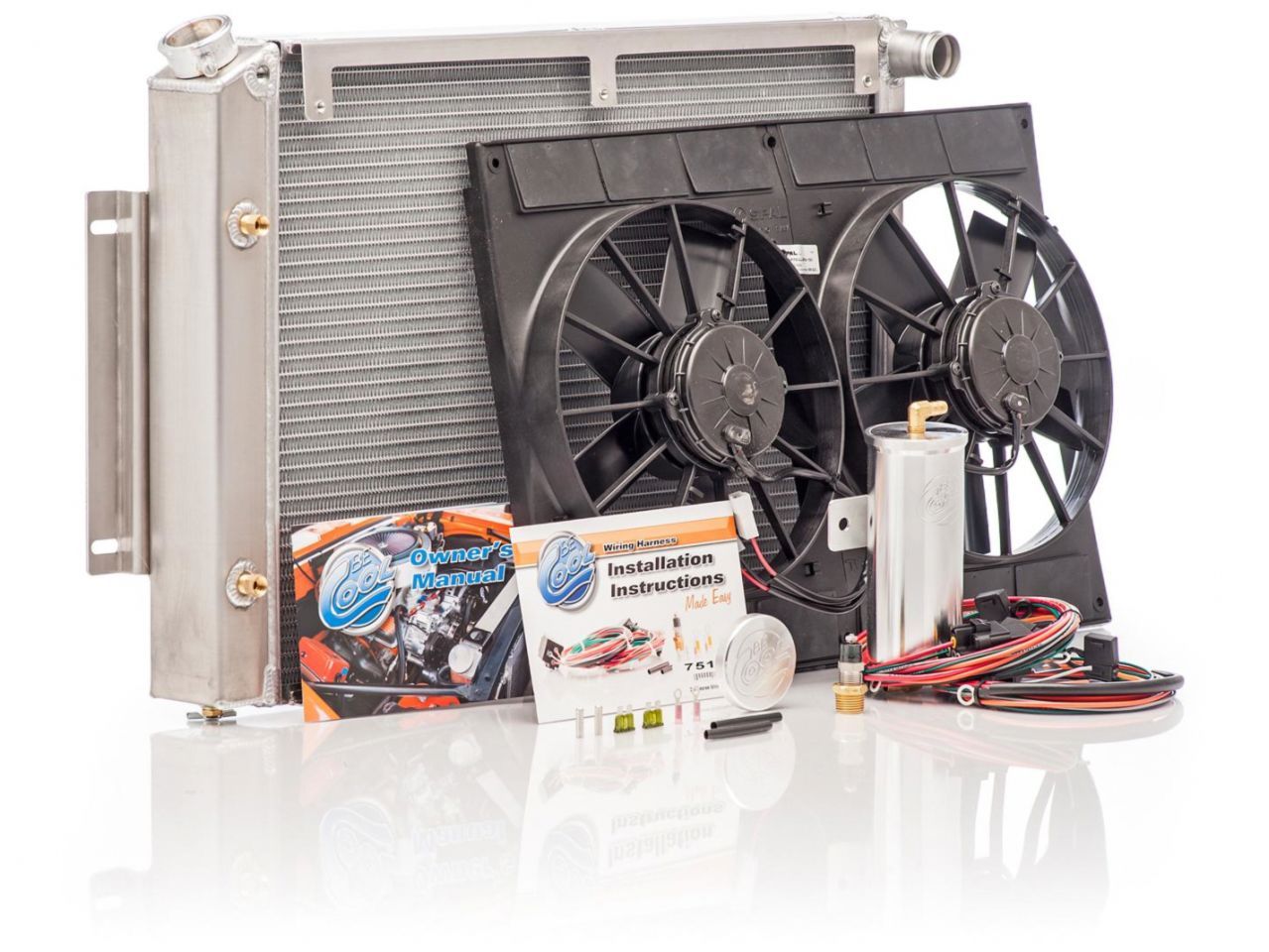

Be Cool direct-fit modules provide drop-in convenience, plus the capability of keeping engines up to 1,000 hp (depending on your application) running at the proper temperature! These modules feature Be Cool's direct-fit radiator that has two rows of 1 in. tubes to reduce coolant temperatures, a billet filler neck, a drain petcock, and .080 in. wall hand-fabricated aluminum tanks. You can choose either a natural finish or kick it up a notch with the polished finish and dress your engine compartment with shiny performance. Be Cool offers hundreds of models and options for fitment on a wide range of vehicles. Most module kits include a new aluminum radiator, electric fan(s) with mounting brackets, a Be Cool radiator cap, an overflow catch can, and a fan wiring kit.
- Radiator Style:Crossflow
- Overall Width (in):33.750 in.
- Overall Height (in):18.500 in.
- Overall Thickness (in):6.500 in.
- Inlet Location:Upper passenger side
- Outlet Location:Lower passenger side
- Radiator Material:Aluminum
- Radiator Finish:Natural
- Core Width (in):27.500 in.
- Core Height (in):18.500 in.
- Core Thickness (in):2.000 in.
- Row Quantity:2
- Transmission Cooler:Yes
- Trans Cooler Line Connection:1/4 in. NPT
- Trans Cooler Adapter Fittings Included:Yes
- Inlet Size:1 3/8 in.
- Outlet Size:1 1/2 in.
- Tube Size:1 in.
- Fan Included:Yes
- Fan Quantity:Dual
- Fan Diameter (in):13.000 in.
- Maximum Fan CFM:3,560 cfm
- Fan CFM Range:3,500-3,599
- Blade Material:Plastic
- Blade Color:Black
- Shroud Material:Steel
- Shroud Color:Black
- Radiator Cap Included:Yes
