Be Cool Radiator Fan Module, LS swap, Direct Fit, Aluminum, Natural, Dual Fan

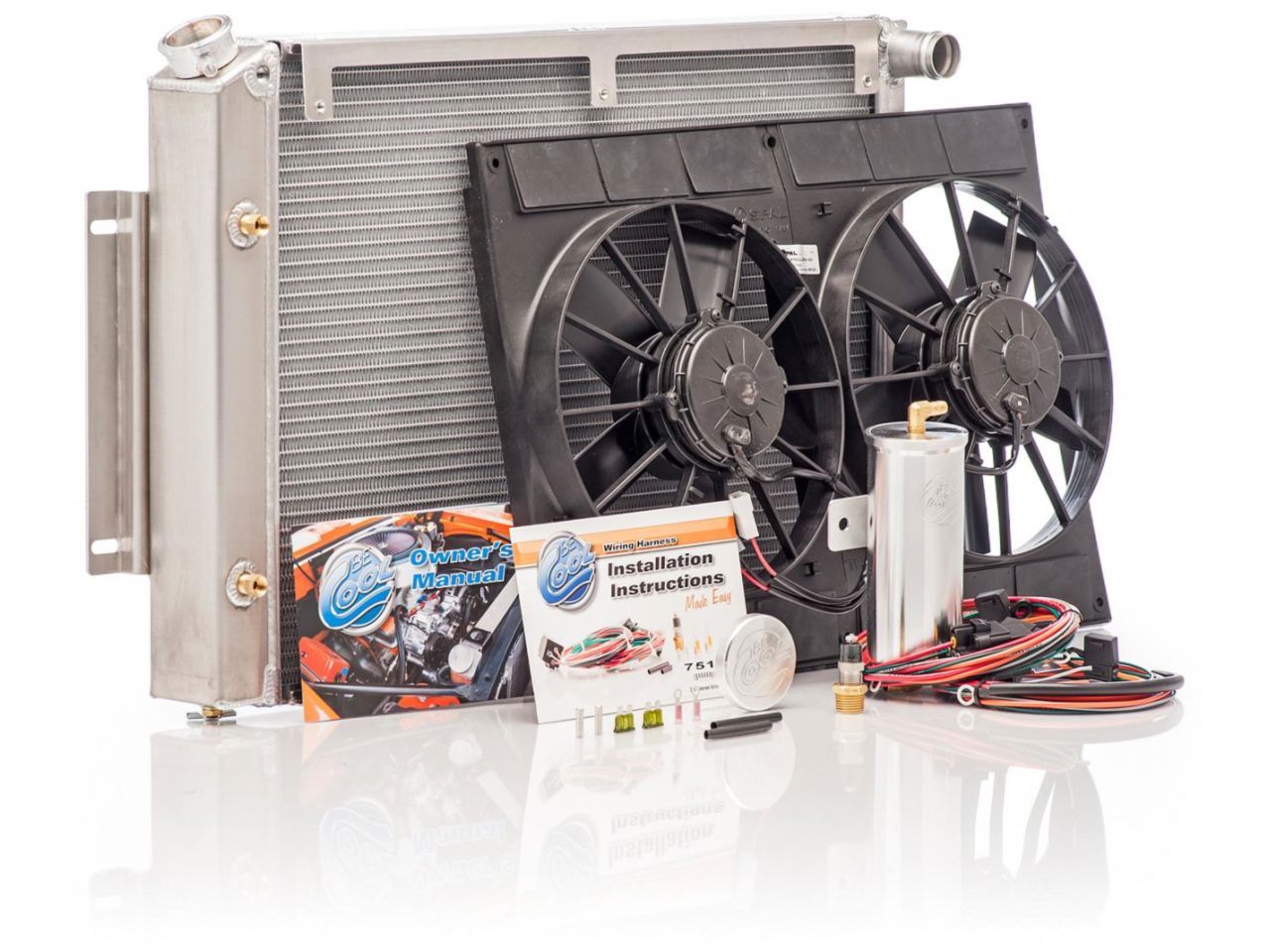

Be Cool direct-fit modules provide drop-in convenience, plus the capability of keeping engines up to 1,000 hp (depending on your application) running at the proper temperature! These modules feature Be Cool's direct-fit radiator that has two rows of 1 in. tubes to reduce coolant temperatures, a billet filler neck, a drain petcock, and .080 in. wall hand-fabricated aluminum tanks. You can choose either a natural finish or kick it up a notch with the polished finish and dress your engine compartment with shiny performance. Be Cool offers hundreds of models and options for fitment on a wide range of vehicles. Most module kits include a new aluminum radiator, electric fan(s) with mounting brackets, a Be Cool radiator cap, an overflow catch can, and a fan wiring kit.
- Radiator Style: Downflow
- Overall Width (in): 26.000 in.
- Overall Height (in): 21.000 in.
- Overall Thickness (in): 7.250 in.
- Inlet Location: Upper passenger side
- Outlet Location: Lower passenger side
- Radiator Material: Aluminum
- Radiator Finish: Natural
- Core Width (in): 23.000 in.
- Core Height (in): 16.500 in.
- Core Thickness (in): 2.000 in.
- Row Quantity: 2
- Transmission Cooler: Yes
- Trans Cooler Line Connection: 1/4 in. NPT
- Trans Cooler Adapter Fittings Included: Yes
- Inlet Size: 1 3/8 in.
- Outlet Size: 1 1/2 in.
- Tube Size: 1 in.
- Fan Included: Yes
- Fan Quantity: Dual
- Fan Diameter (in): 11.000 in.
- Maximum Fan CFM: 2,725 cfm
- Fan CFM Range: 2,700-2,799
- Blade Material: Plastic
- Blade Color: Black
- Shroud Material: Plastic
- Shroud Color: Black
- Radiator Cap Included: Yes
