Megan Racing Extended Wheel Studs M12xP1.25 - 20pcs Set for Subaru Impreza GC GD 93-07
Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.
Applications:
- Subaru Impreza GC/GD 1993-2007

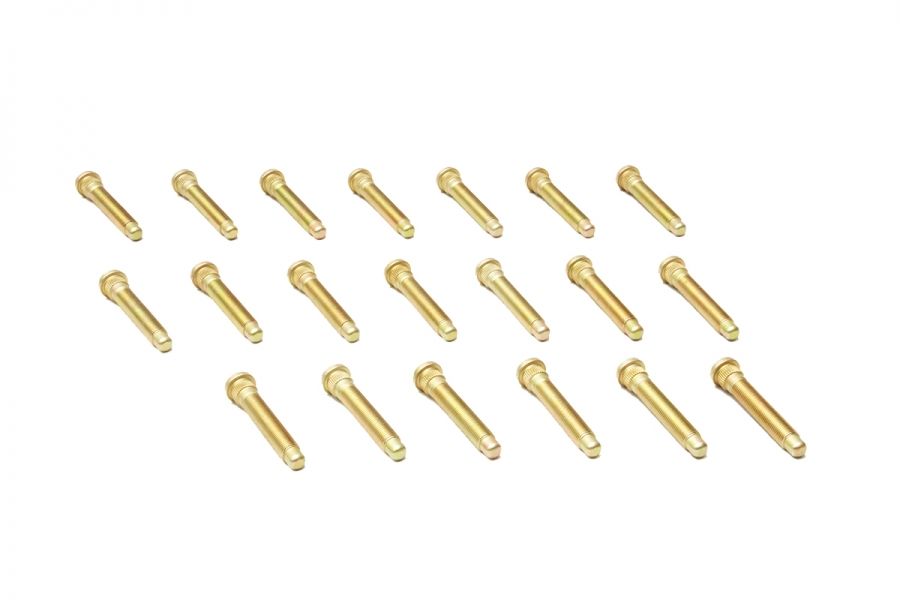

- Package of 20 Extended Wheel Studs
Thread Size: 12mm x 1.25RH
Knurl Size: 14.50mm
Thread Length: 52mm

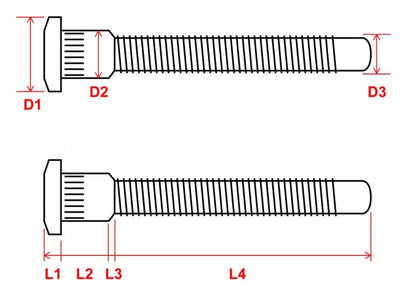

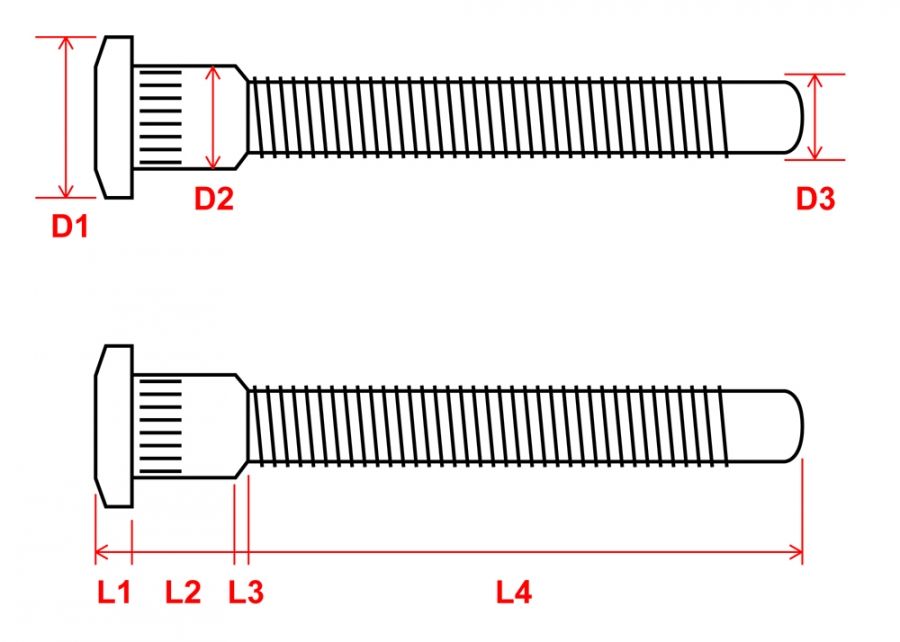

Overall dimension of stud (see diagram)
D1: 18.75mm
D2: 12.10mm
D3: 12mm
L1: 5.50mm
L2: 8.50mm
L3: 5.50mm
L4: 62mm
*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993 | Subaru | Impreza | 4x4 |
| 1993 - 1995 | Subaru | Impreza | Base |
| 1996 - 1997 | Subaru | Impreza | Brighton |
| 1993 - 1997 | Subaru | Impreza | L |
| 1995 | Subaru | Impreza | L 4x4 |
| 1993 - 1994 | Subaru | Impreza | LS |
| 1995 - 1996 | Subaru | Impreza | LX |
| 1995 - 1997 | Subaru | Impreza | Outback |
