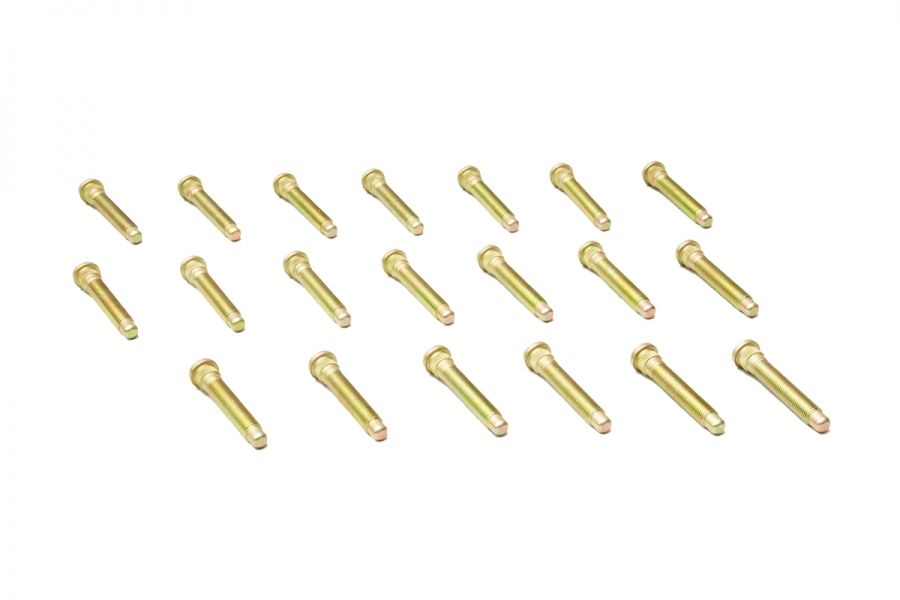

Megan Racing Extended Wheel Studs M12xP1.5 - 20pcs Set for Mitsubishi EVO 7-9 CT9A 2001-2006
Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.
Applications:
- Mitsubishi EVO8 or EVO9 2003-2007
- Package of 20 Extended Wheel Studs
Thread Size: 12mm x 1.5RH
Knurl Size: 14.50mm
Thread Length: 52mm

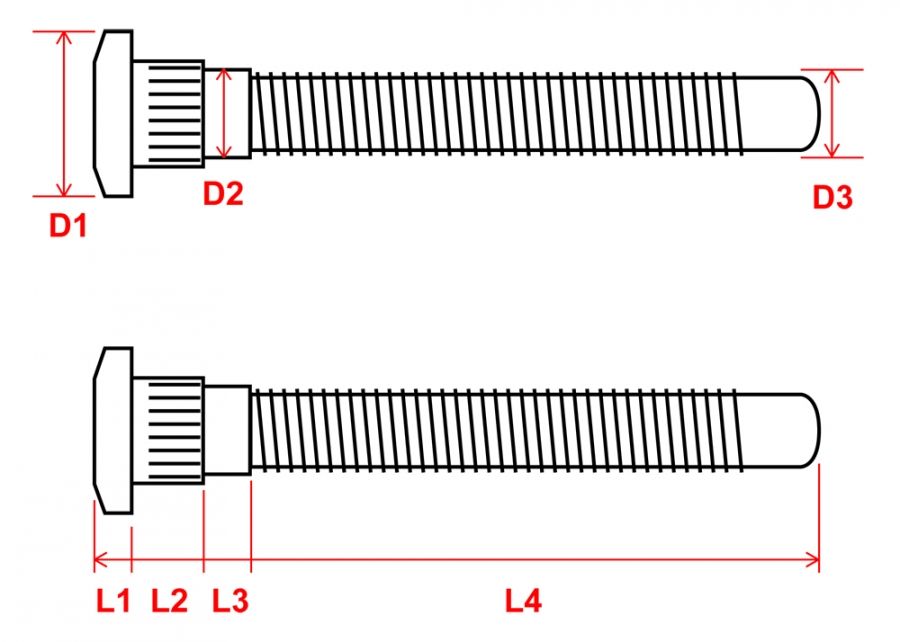

Overall dimension of stud (see diagram)
D1: 18.75mm
D2: 12.10mm
D3: 12mm
L1: 5.50mm
L2: 8.50mm
L3: 5.50mm
L4: 62mm
*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2006 | Mitsubishi | Lancer | DE, Ralliart |
| 2005 - 2006 | Mitsubishi | Lancer | Evolution MR, Evolution RS, LS Diamond |
| 2003 - 2006 | Mitsubishi | Lancer | OZ Rally, LS, ES, Evolution |
| 2006 | Mitsubishi | Lancer | SE, Evolution SE |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |
