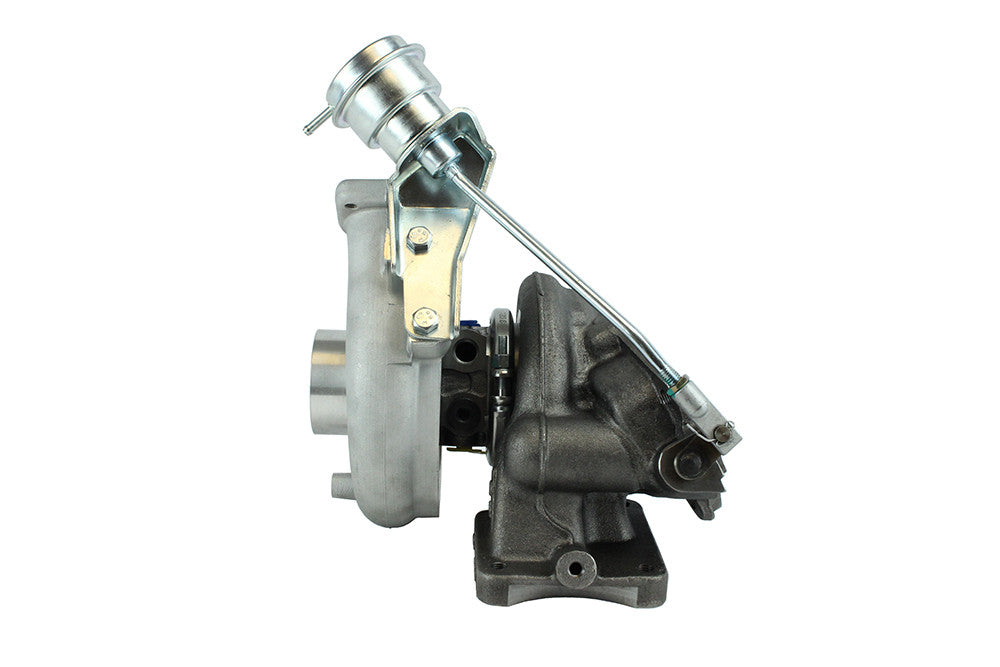

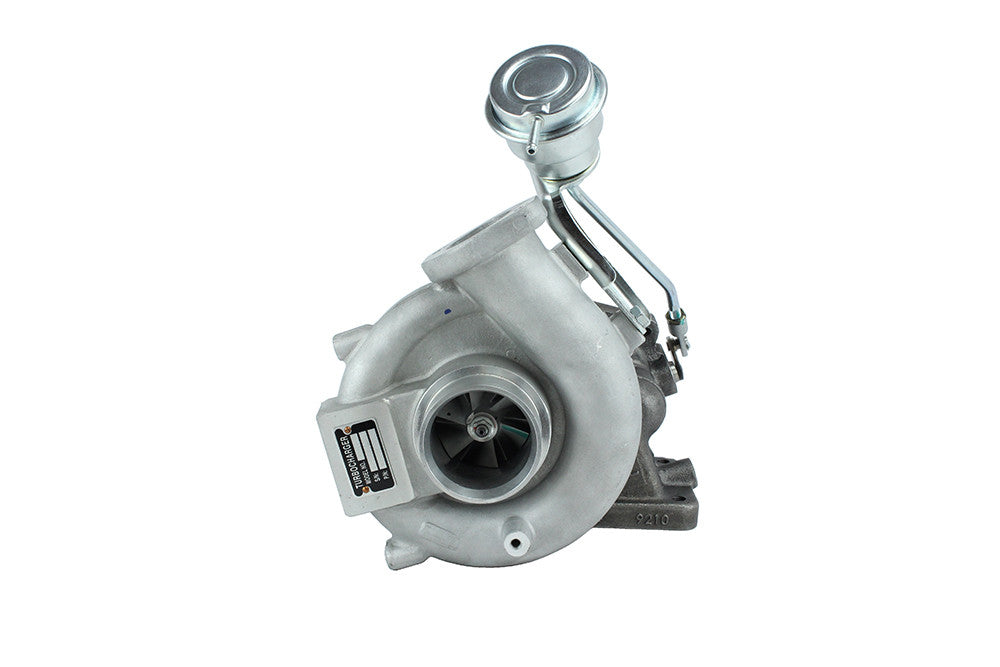

ISR Performance - RS TD05HR 20G Turbocharger for Genesis 2.0T upgrade

SKU: 1D1PJ | MPN:  IS-RSTD05HR
In stock
Sale price$655.00 USD Regular price$725.00 USD
Save $70.00

ISR Performance RS TD05HR 20G Turbocharger for Genesis 2.0T upgrade

Introducing the ISR RSTD05HR 20G turbo. Using an upgraded 20G compressor wheel and factory style turbine wheel the ISR TD05HR delivers a greatly increased power range while maintaining quick spool, all in the compact bolt on style Evo 9 compressor and turbine housings.

This is a great inexpensive upgraded turbo for your Genesis 2.0t when using the ISR EVO 8/9 Bolt-on Turbo Upgrade. No more using used stock Evo 9 16G turbos.

Using high quality component including step gap rings & performance thrust bearings, all ISR turbos are fully balanced and assembled in the USA.



** Requires the use of the ISR Performance EVO 8/9 Bolt-on Turbo Upgrade for the Genesis Coupe 2.0T THIS WILL NOT BOLT ON TO THE FACTORY Genesis 2.0t TURBO MANIFOLD **



  • Compressor wheel: 52.5 mm / 68 mm
  • Turbine Wheel: 56 mm / 49.2 mm
  • Turbine Housing 10.5cm A/R
  • Journal Bearing
  • Water cooled and Oil cooled
  • Actuator pressure 1.2 Bar / 18 psi
Legal only for use in competition vehicles which may never be registered, licensed, and/or used on public streets or highways; and also for use in other exempted vehicles.
