HPS Vehicle Parts AST-025 Item Image

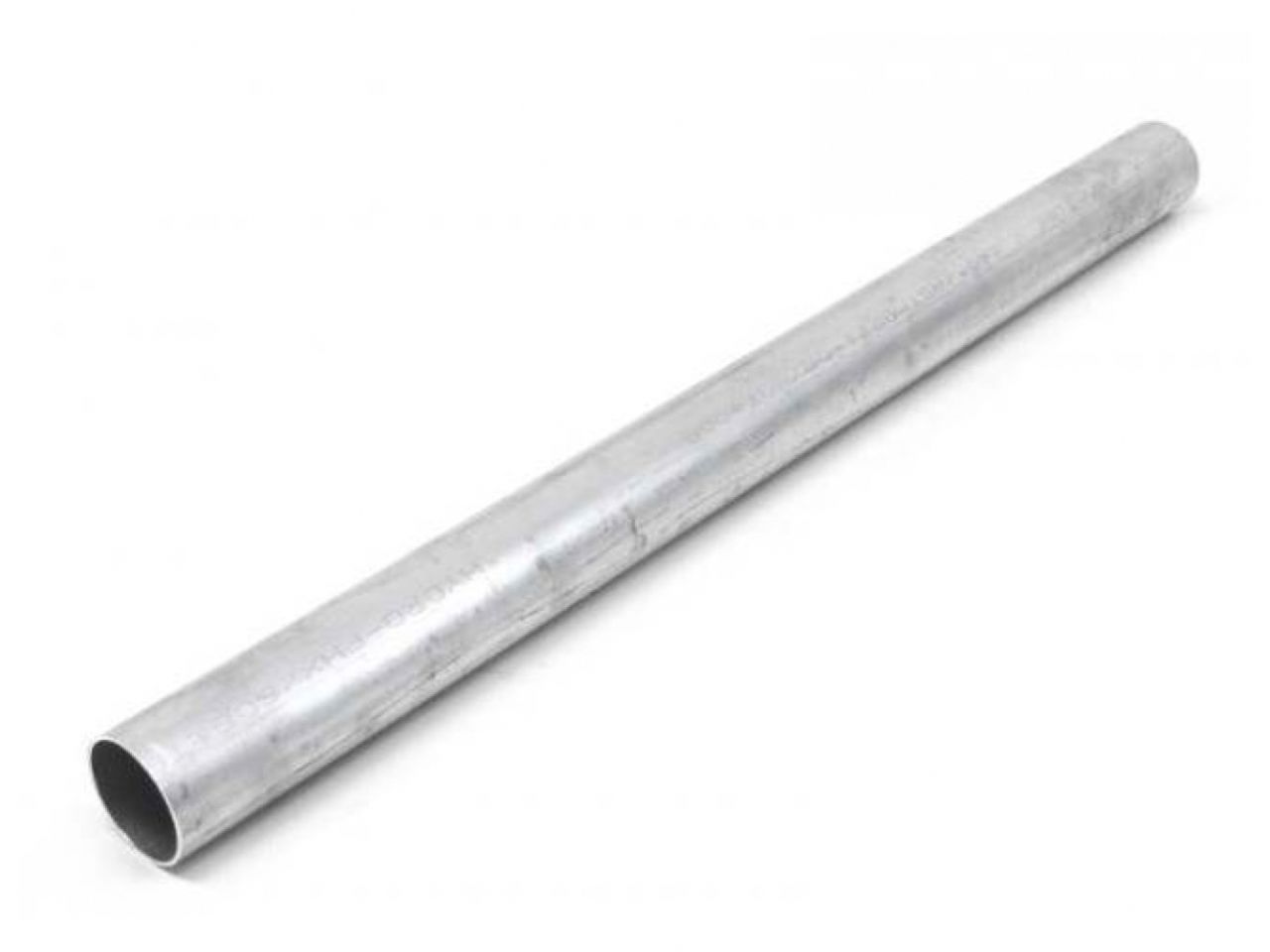

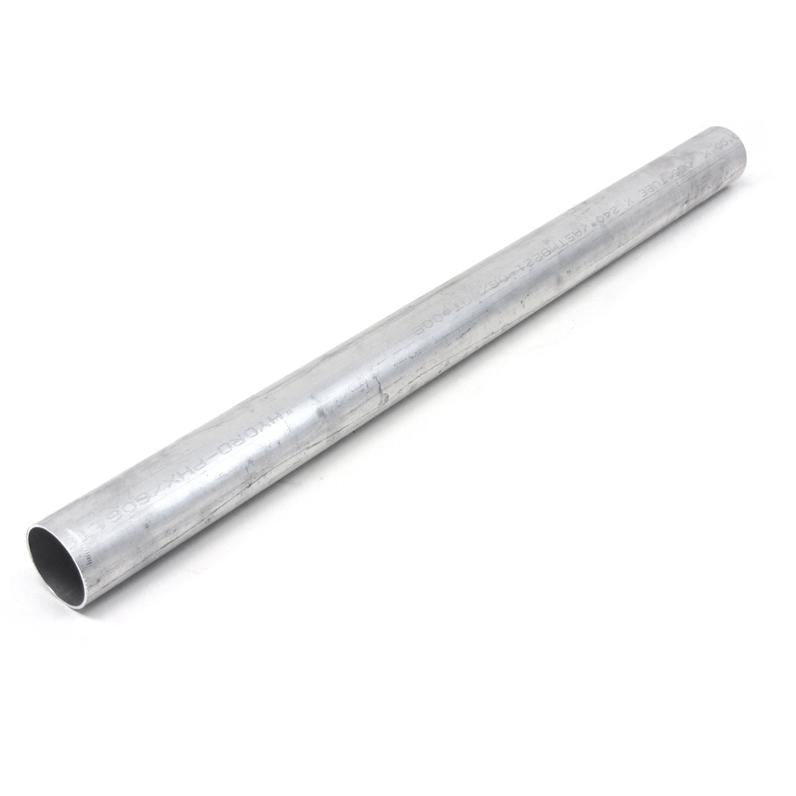

HPS 6061 T6 Aluminum Straight Pipe Tubing Seamless
HPS 6061 T6 Aluminum Straight Pipe Tubing Seamless
HPS

HPS 6061 T6 Aluminum Straight Pipe Tubing Seamless 1/4" (6.5mm) / 1 Feet

SKU: 1K7Z2 | MPN:  AST-025
In stock
Sale price$6.94 USD
Outside Diameter: 1/4" (6.5mm)

Outside Diameter
Length: 1 Feet

Length

  • HPS 6061 T6 Aluminum Straight Tube (Sold per feet, longest cut length 3 feet) is commonly used in industrial, automotive, marine and aerospace industry; Great for custom fabrication project such as DIY air intake, cooling systems, turbo intercooler piping setup because 6061 aluminum is the most popular and versatile alloy, and is the least expensive of the heat treatable aluminum alloys. HPS aluminum round tubing is sold in the T6 condition, ideal for sawing, machining, sanding, and polishing. The aluminum pipe can be polished, but due to the softness of the aluminum, care must be taken not to remove too much material, especially in the area near any welds.

    Technical Specification
    - Product Type: Aluminum Straight Tubing
    - Material: 6061-T6 Aluminum.
    - Length: Sold per feet (longest cut length is 3 feet long)

    Remark: HPS does NOT recommend 6061 Aluminum to be used for exhaust systems.

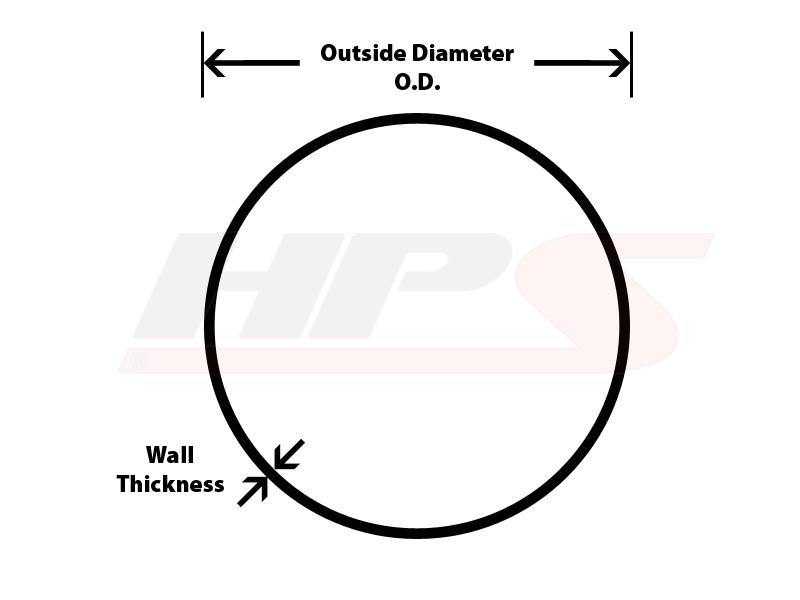

  • Outside Diameter Wall Thickness Part Number
    1/4" (6.5mm) 16 Gauge 1 Feet - AST-025
    2 Feet - AST-2F-025
    3 Feet - AST-3F-025
    3/8" (9.5mm) 16 Gauge 1 Feet - AST-038
    2 Feet - AST-2F-038
    3 Feet - AST-3F-038
    1/2" (13mm) 17 Gauge 1 Feet - AST-050
    2 Feet - AST-2F-050
    3 Feet - AST-3F-050
    5/8" (16mm) 17 Gauge 1 Feet - AST-062
    2 Feet - AST-2F-062
    3 Feet - AST-3F-062
    3/4" (19mm) 16 Gauge 1 Feet - AST-075
    2 Feet - AST-2F-075
    3 Feet - AST-3F-075
    1" (25mm) 16 Gauge 1 Feet - AST-100
    2 Feet - AST-2F-100
    3 Feet - AST-3F-100
    1-1/4" (32mm) 16 Gauge 1 Feet - AST-125
    2 Feet - AST-2F-125
    3 Feet - AST-3F-125
    1-3/8" (35mm) 16 Gauge 1 Feet - AST-138
    2 Feet - AST-2F-138
    3 Feet - AST-3F-138
    1-1/2" (38mm) 16 Gauge 1 Feet - AST-150
    2 Feet - AST-2F-150
    3 Feet - AST-3F-150
    1-5/8" (41mm) 16 Gauge 1 Feet - AST-162
    2 Feet - AST-2F-162
    3 Feet - AST-3F-162
    1-3/4" (45mm) 16 Gauge 1 Feet - AST-175
    2 Feet - AST-2F-175
    3 Feet - AST-3F-175
    1-7/8" (48mm) 16 Gauge 1 Feet - AST-187
    2 Feet - AST-2F-187
    3 Feet - AST-3F-187
    2" (51mm) 16 Gauge 1 Feet - AST-200
    2 Feet - AST-2F-200
    3 Feet - AST-3F-200
    2-1/8" (54mm) 16 Gauge 1 Feet - AST-212
    2 Feet - AST-2F-212
    3 Feet - AST-3F-212
    2-1/4" (57mm) 16 Gauge 1 Feet - AST-225
    2 Feet - AST-2F-225
    3 Feet - AST-3F-225
    2-3/8" (60mm) 16 Gauge 1 Feet - AST-238
    2 Feet - AST-2F-238
    3 Feet - AST-3F-238
    2-1/2" (63mm) 16 Gauge 1 Feet - AST-250
    2 Feet - AST-2F-250
    3 Feet - AST-3F-250
    2-3/4" (70mm) 16 Gauge 1 Feet - AST-275
    2 Feet - AST-2F-275
    3 Feet - AST-3F-275
    3" (76mm) 16 Gauge 1 Feet - AST-300
    2 Feet - AST-2F-300
    3 Feet - AST-3F-300
    3-1/8" (80mm) 16 Gauge 1 Feet - AST-312
    2 Feet - AST-2F-312
    3 Feet - AST-3F-312
    3-1/4" (83mm) 16 Gauge 1 Feet - AST-325
    2 Feet - AST-2F-325
    3 Feet - AST-3F-325
    3-1/2" (89mm) 16 Gauge 1 Feet - AST-350
    2 Feet - AST-2F-350
    3 Feet - AST-3F-350
    4" (102mm) 16 Gauge 1 Feet - AST-400
    2 Feet - AST-2F-400
    3 Feet - AST-3F-400
    4-1/2" (114mm) 14 Gauge 1 Feet - AST-450
    2 Feet - AST-2F-450
    3 Feet - AST-3F-450
    5" (127mm) 2.5mm 1 Feet - AST-500
    2 Feet - AST-2F-500
    3 Feet - AST-3F-500
