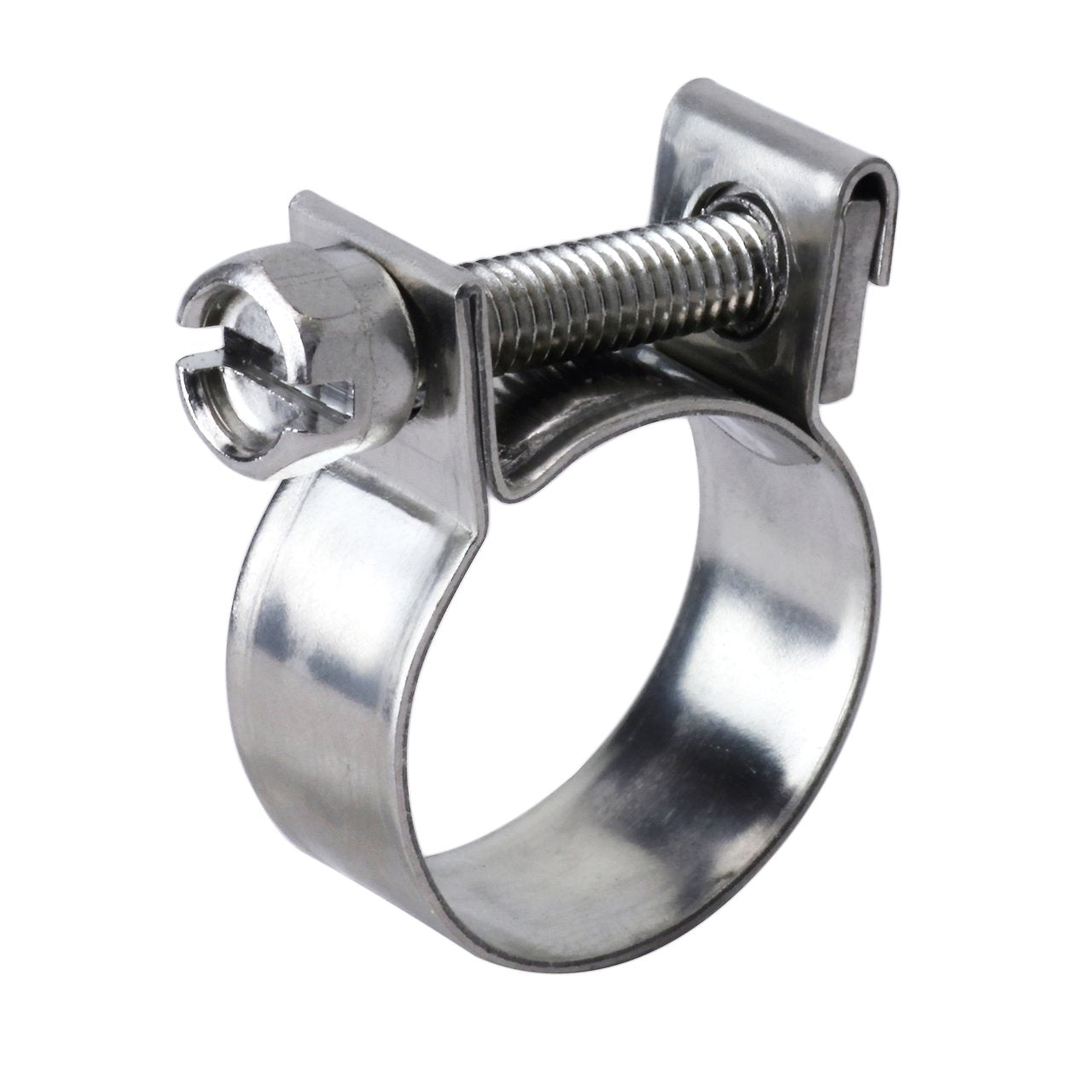

HPS 100% 304 Stainless Steel Fuel Injection Hose Clamps 1/4" - 5/16" (6mm-8mm), Size # 8 / Single
HPS 100% 304 Stainless Steel Fuel Injection Hose Clamps are perfect for fuel lines and small diameter hoses. Better corrosion resistance compared to the standard zinc plated clamps. Smooth interiors prevent the clamp cutting the hose. Ideal for industrial, automotive, heavy duty diesel truck, aerospace and marine industries.
Technical Specification
- 100% 304 Stainless Steel
- 9mm (3/8") band and 7mm slotted hex head.
- Better corrosion resistance compared to the standard zinc plated clamps.
- Smooth interiors prevent the clamp cutting the hose.
- Maximum Torque Spec: 13 in lbs.
- Available in single piece, 10pcs, 100pcs and 500pcs pack. Buy more and save more!
| Size # | Effective Size Range | Band Width | Part Number |
|---|---|---|---|
| 8 | 1/4" - 5/16" (6mm-8mm) | 9mm (3/8") | FIC-6 |
| 9 | 9/32" - 23/64" (7mm-9mm) | 9mm (3/8") | FIC-7 |
| 10 | 5/16" - 25/64" (8mm-10mm) | 9mm (3/8") | FIC-8 |
| 11 | 23/64" - 7/16" (9mm-11mm) | 9mm (3/8") | FIC-9 |
| 12 | 25/64" - 15/32" (10mm-12mm) | 9mm (3/8") | FIC-10 |
| 13 | 7/16" - 1/2" (11mm-13mm) | 9mm (3/8") | FIC-11 |
| 14 | 15/32" - 35/64" (12mm-14mm) | 9mm (3/8") | FIC-12 |
| 15 | 1/2" - 19/32" (13mm-15mm) | 9mm (3/8") | FIC-13 |
| 16 | 35/64" - 5/8" (14mm-16mm) | 9mm (3/8") | FIC-14 |
| 17 | 19/32" - 43/64" (15mm-17mm) | 9mm (3/8") | FIC-15 |
| - | 5/8" - 45/64" (16mm-18mm) | 9mm (3/8") | FIC-16 |
HPS 100% 304 Stainless Steel Fuel Injection Hose Clamps
Sale price$1.34 USD
