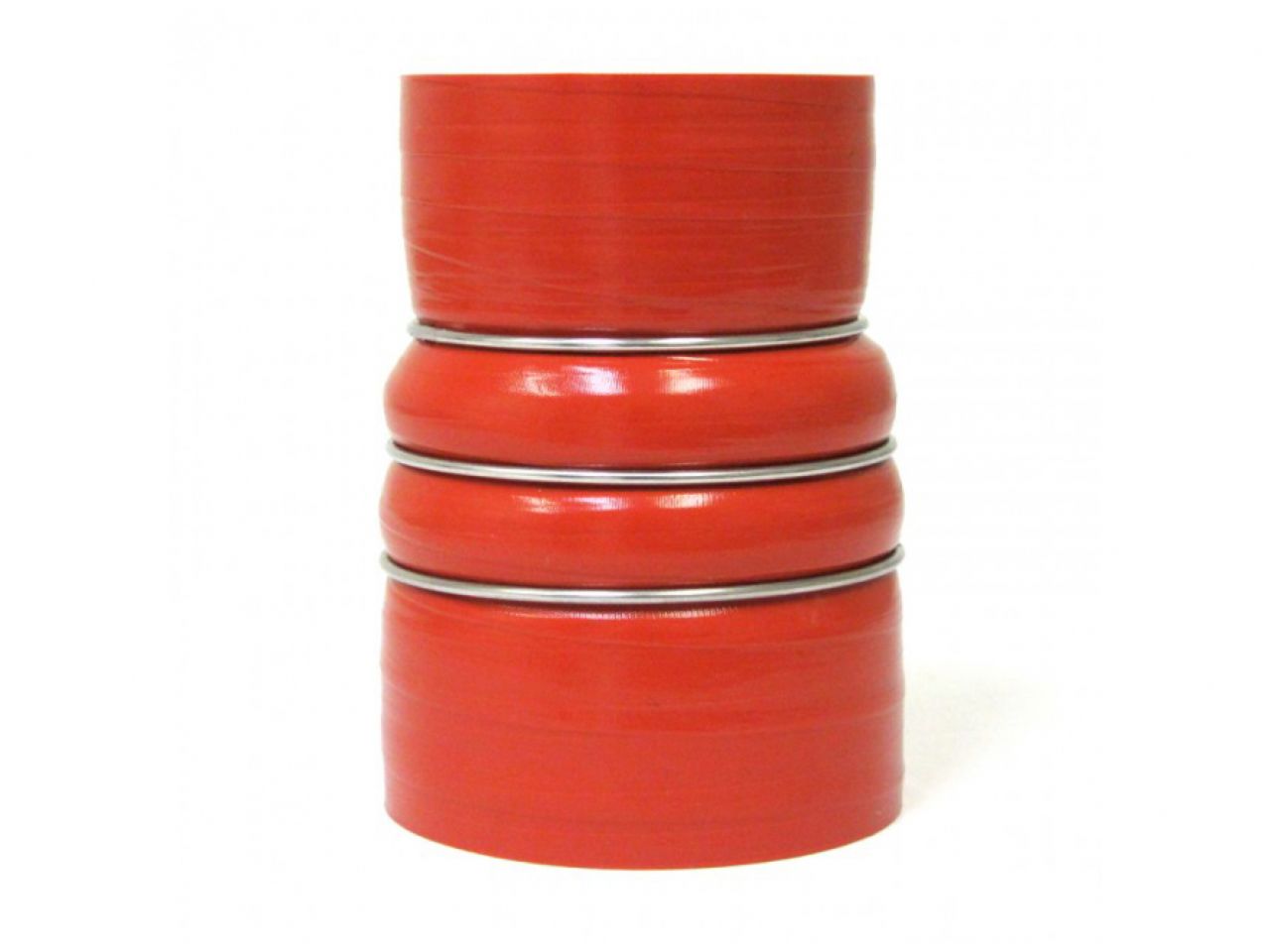

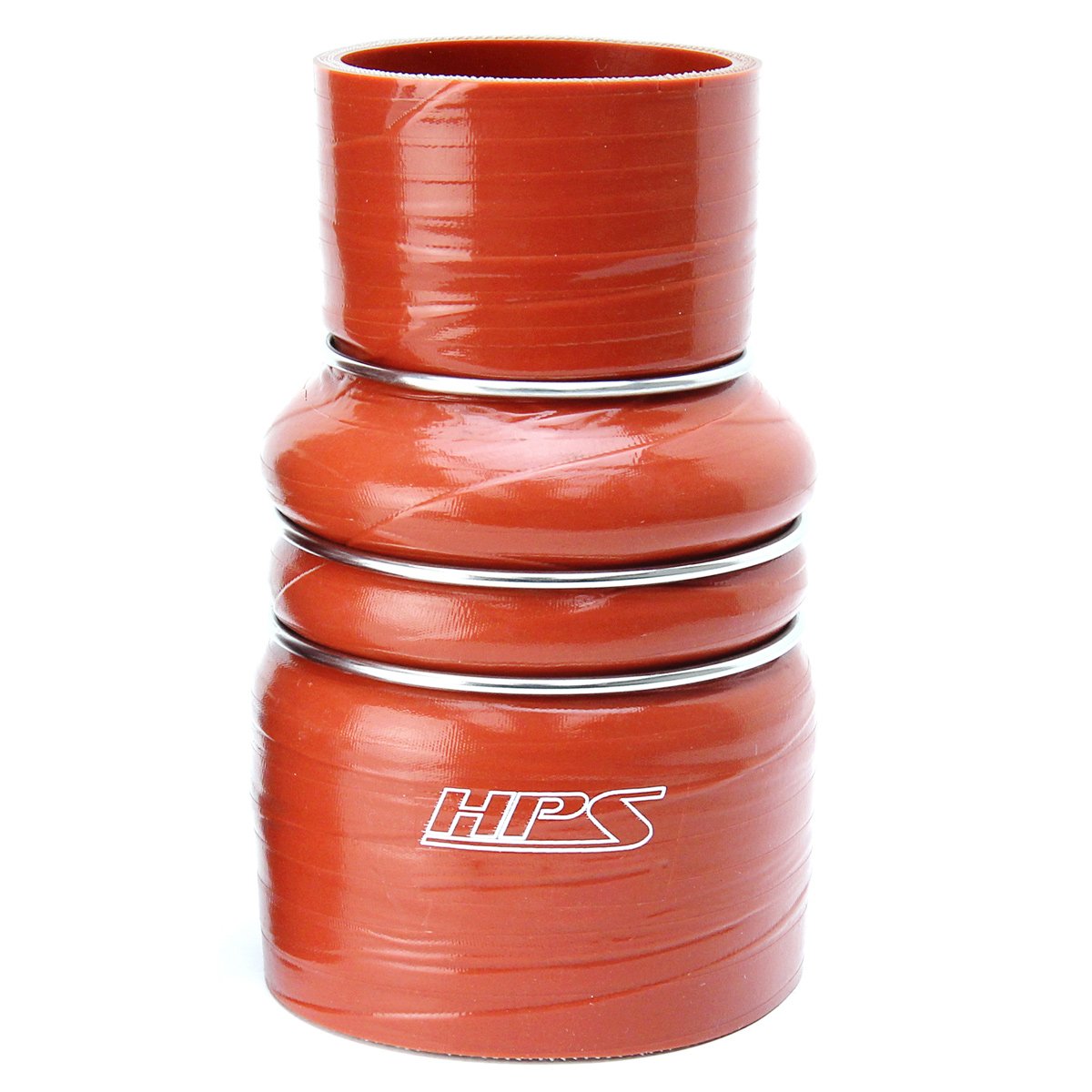

HPS 5" - 6" ID, 8" Length, Silicone Charge Air Cooler CAC Hose Double Hump Reducer Coupler Bellow Hot Side, Ultra High Temp 6-ply Aramid Reinforced, 127mm - 152mm ID

SKU: 159V0 | MPN:  P6CAC-500-600-L8-HOT
Only 5 units left
Sale price$162.45 USD

HPS 5" - 6" (127mm - 152mm) x 8" Long High Temp 6-ply Aramid Reinforced Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow meet and exceed SAEJ20 industry standards, designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends; great for marine and industrial use, custom turbo or intercooler piping fabrication.

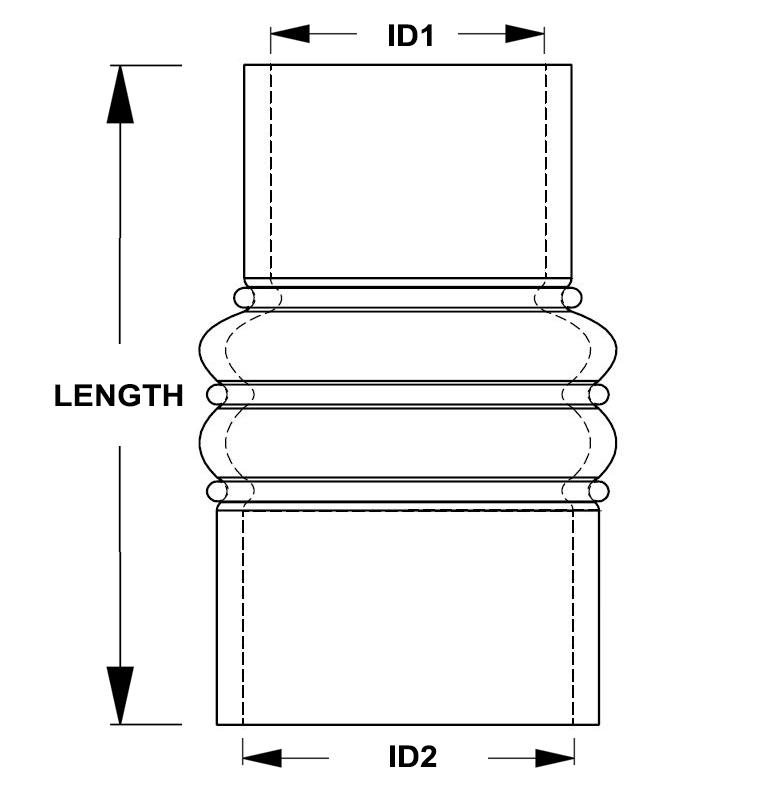

Technical Specification
Product Type: Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow
Temperature Range:- 65 deg. F to + 500 deg. F (260 deg. C)
Reinforced Layer: 6-ply Aramid
Hose Inside Diameter: 5" - 6" (127mm - 152mm)
Hose Outside Diameter: 5.43" - 6.42" (138mm - 163mm)
Hose Length: 8"
Number of Rings: 3
Wall Thickness: 5.5mm
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
