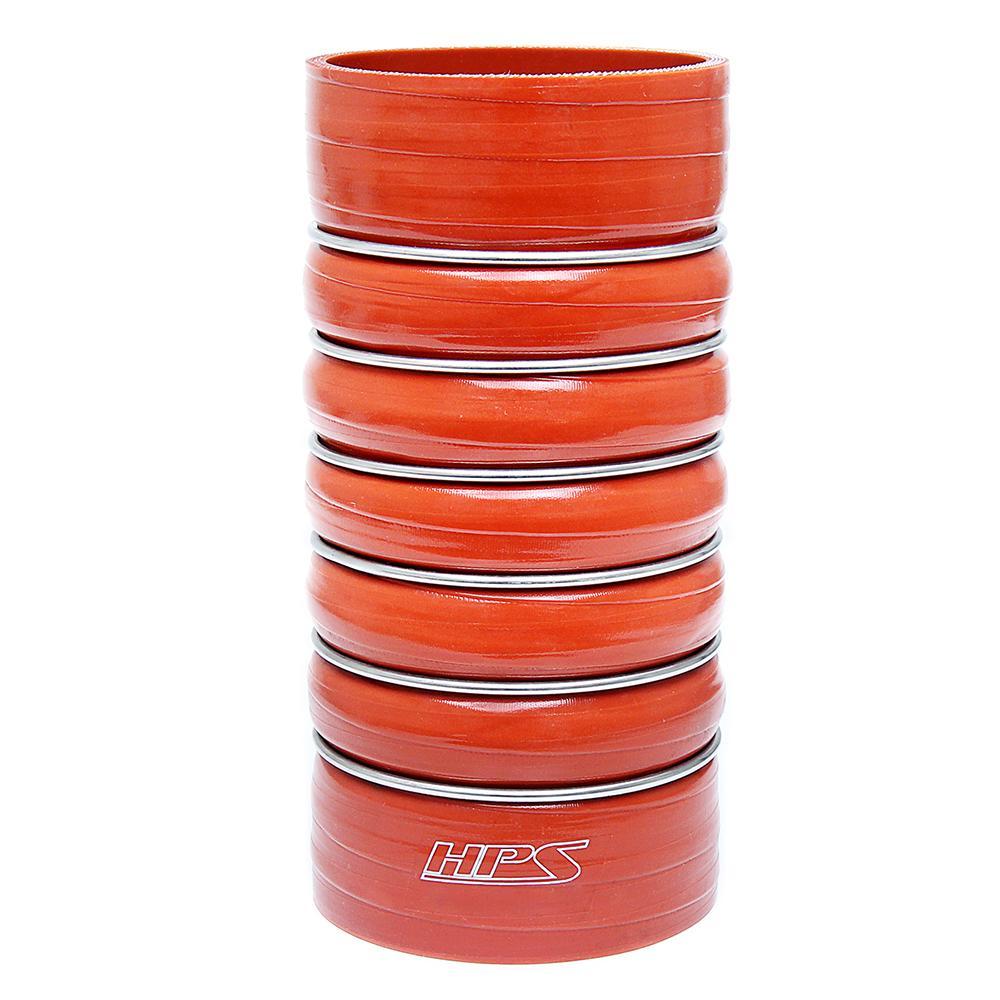

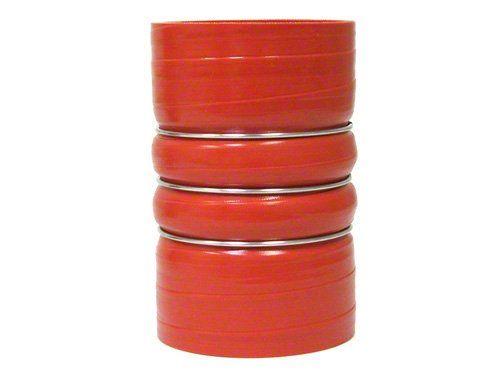

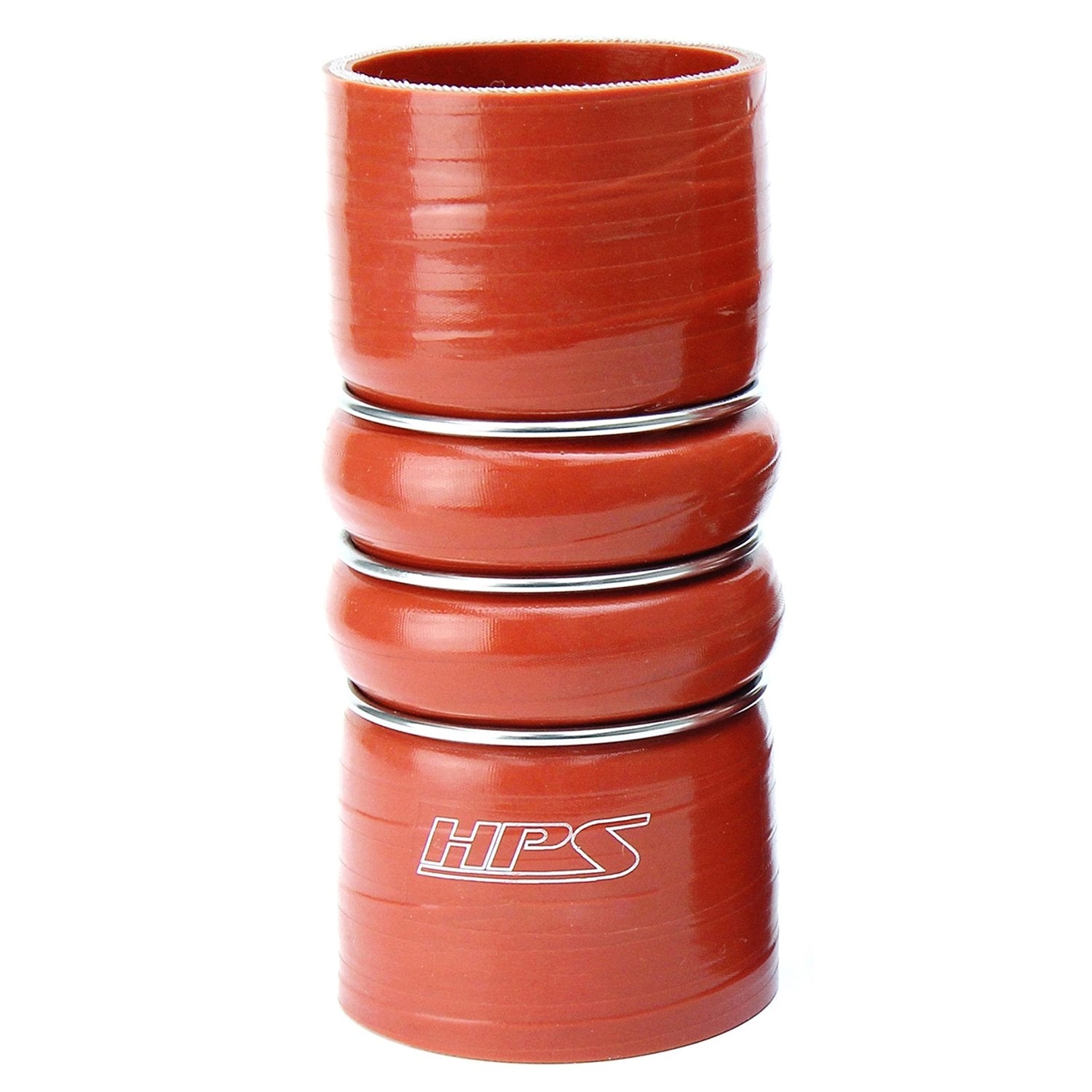

HPS 4" ID Silicone Charge Air Cooler CAC Hose Double Hump Coupler Bellow Hot Side, Ultra High Temp 4-ply Aramid Reinforced 6"

SKU: 0C23H | MPN:  CAC-400-HOT
Only 36 units left
Sale price$81.99 USD
Length: 6"

Length


HPS 4" (102mm) Ultra High Temp 4-ply Aramid Reinforced Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow meet and exceed SAEJ20 industry standards, designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends; great for marine and industrial use, custom turbo or intercooler piping fabrication.

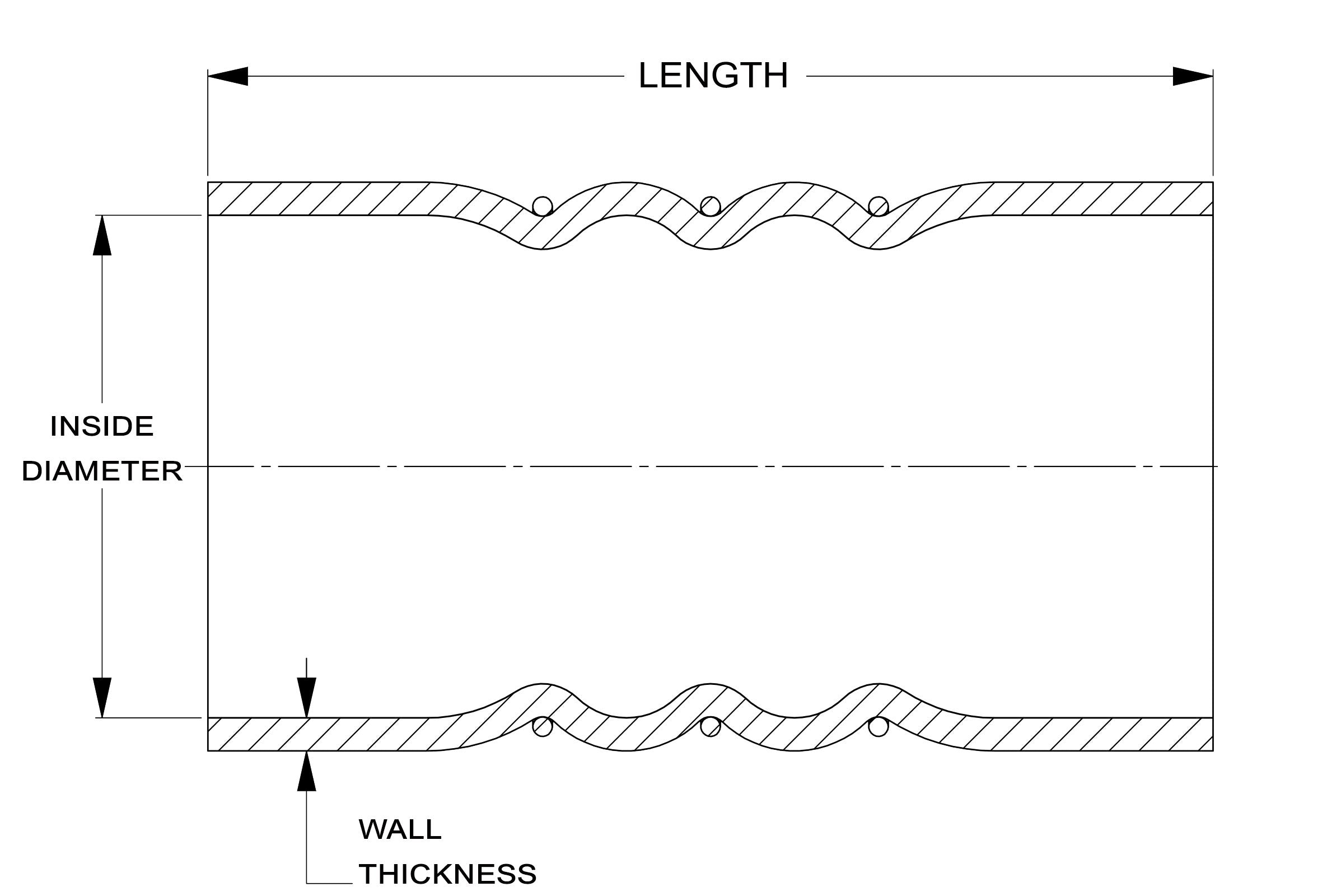

Technical Specification
Product Type: Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow
Temperature Range:- 65 deg. F to + 500 deg. F (260 deg. C)
Reinforced Layer: 4-ply Aramid
Hose Inside Diameter: 4" (102mm)
Hose Outside Diameter: 4.41" (112mm)
Hose Length: 6", 7", 7-1/2", 8", 10" and 12"
Wall Thickness: 5mm +/- 0.5mm
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or ethylene glycol based coolant.
