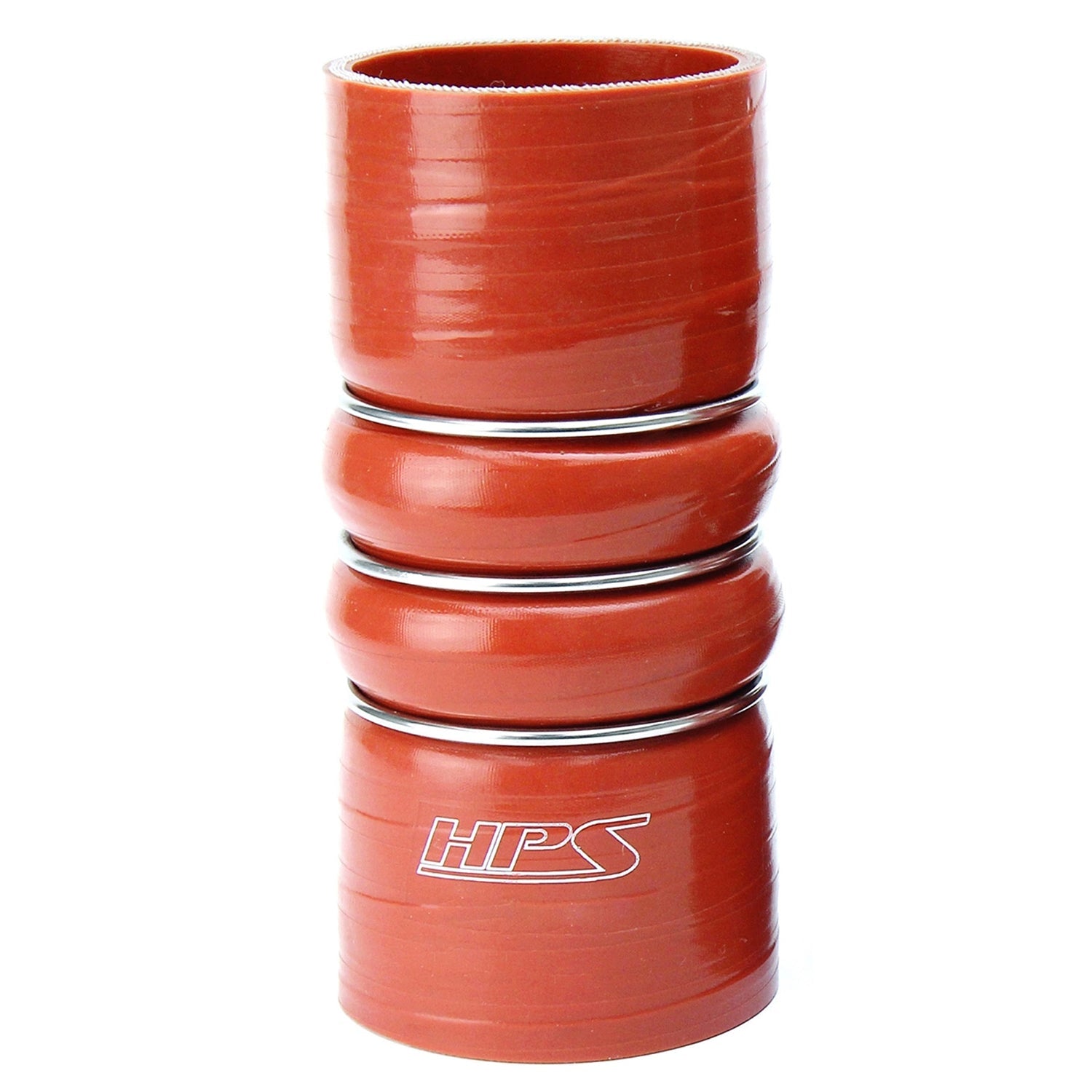

HPS 4-1/2" ID, Silicone Charge Air Cooler CAC Hose Double Hump Coupler Bellow Hot Side, Ultra High Temp 4-ply Aramid Reinforced 6"

SKU: 0C23N | MPN:  CAC-450-HOT
Only 38 units left
Sale price$86.99 USD
Length: 6"

Length


HPS 4-1/2" (114mm) High Temp 4-ply Aramid Reinforced Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow meet and exceed SAEJ20 industry standards, designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends; great for marine and industrial use, custom turbo or intercooler piping fabrication.

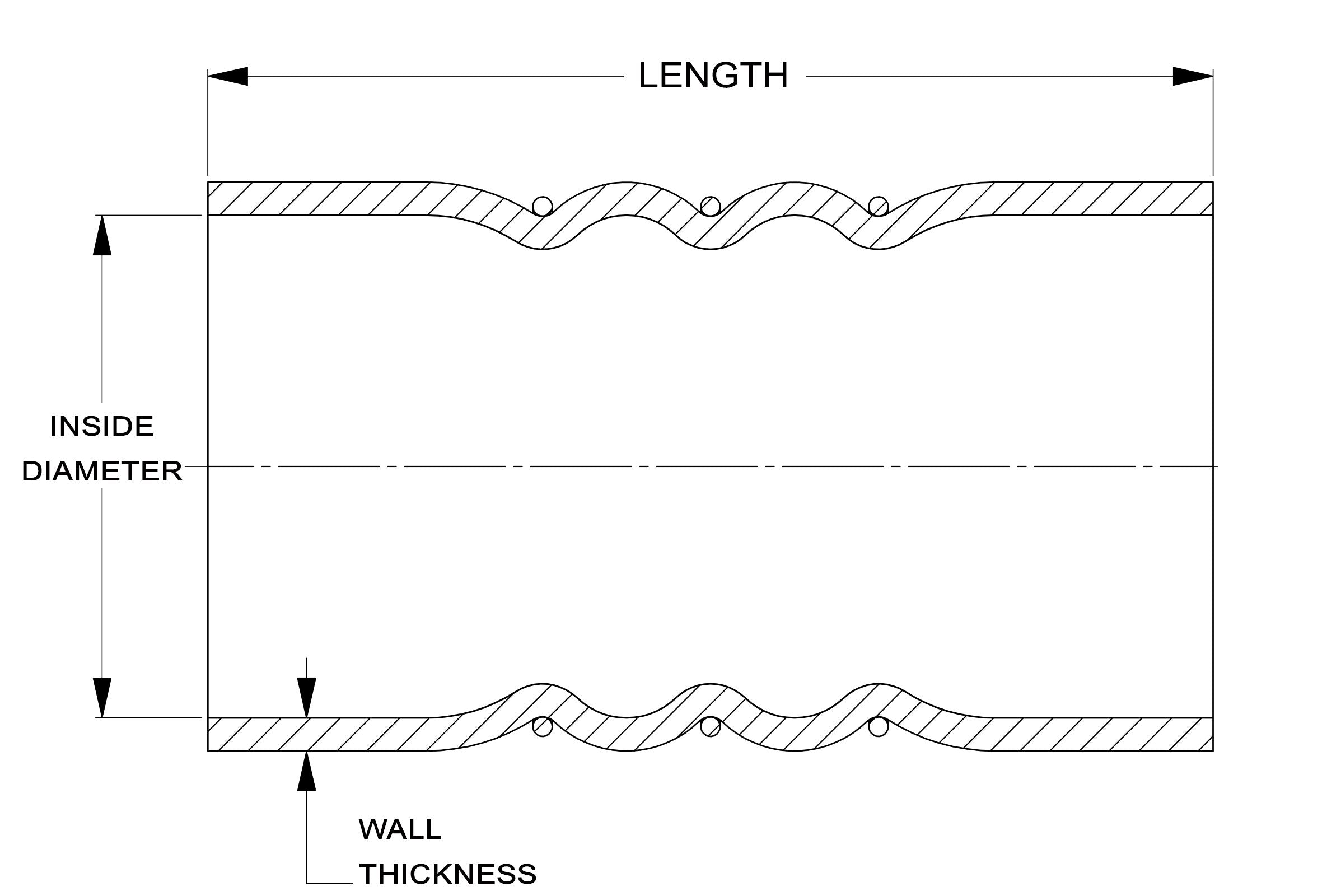

Technical Specification
Product Type: Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow
Temperature Range:- 65 deg. F to + 500 deg. F (260 deg. C)
Reinforced Layer: 4-ply Aramid
Hose Inside Diameter: 4.5" (114mm)
Hose Outside Diameter: 4.88" (124mm)
Hose Length: 6" and 7-1/2"
Number of Rings: 3
Wall Thickness: 5mm +/- 0.5mm
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
