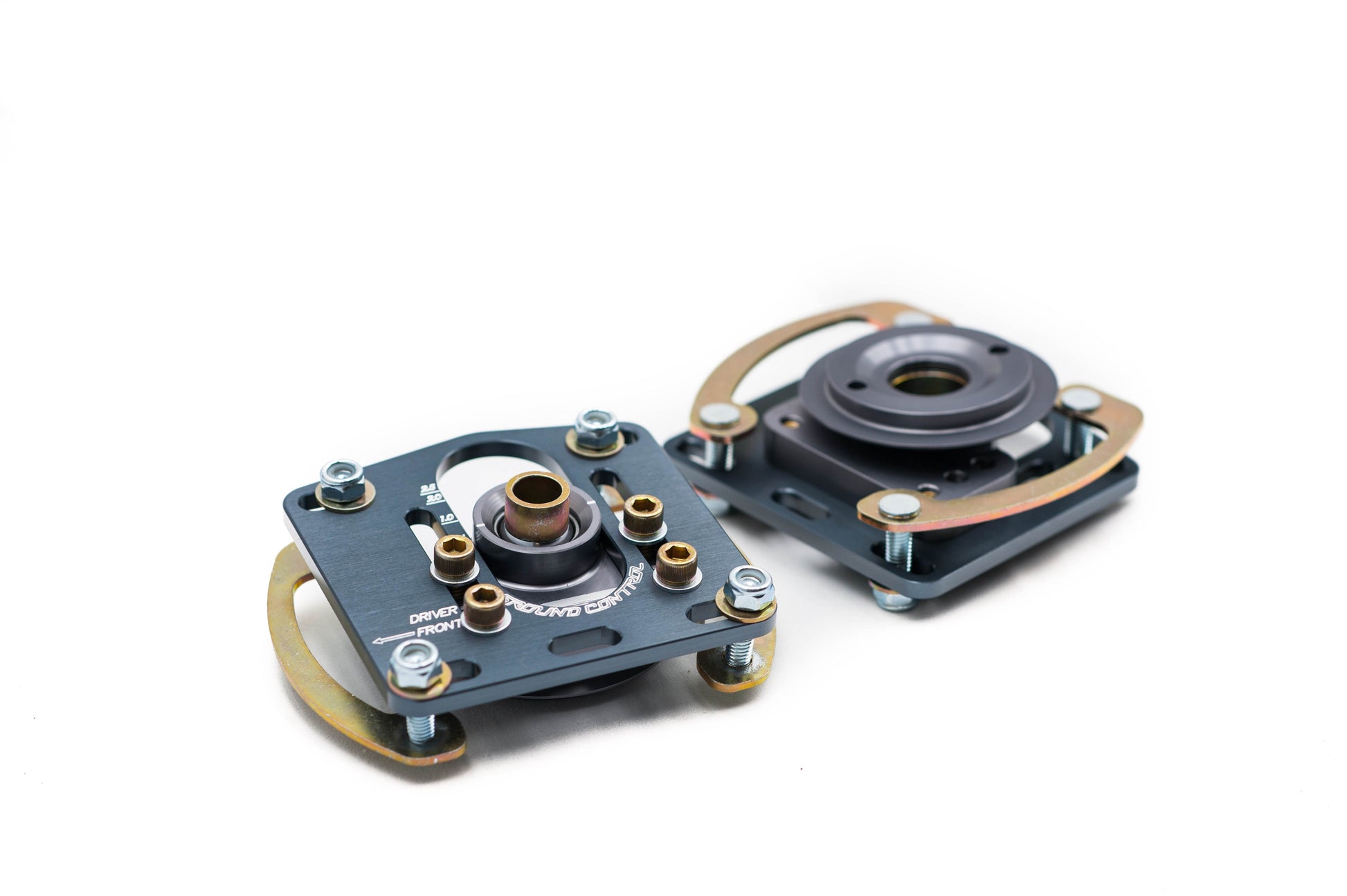

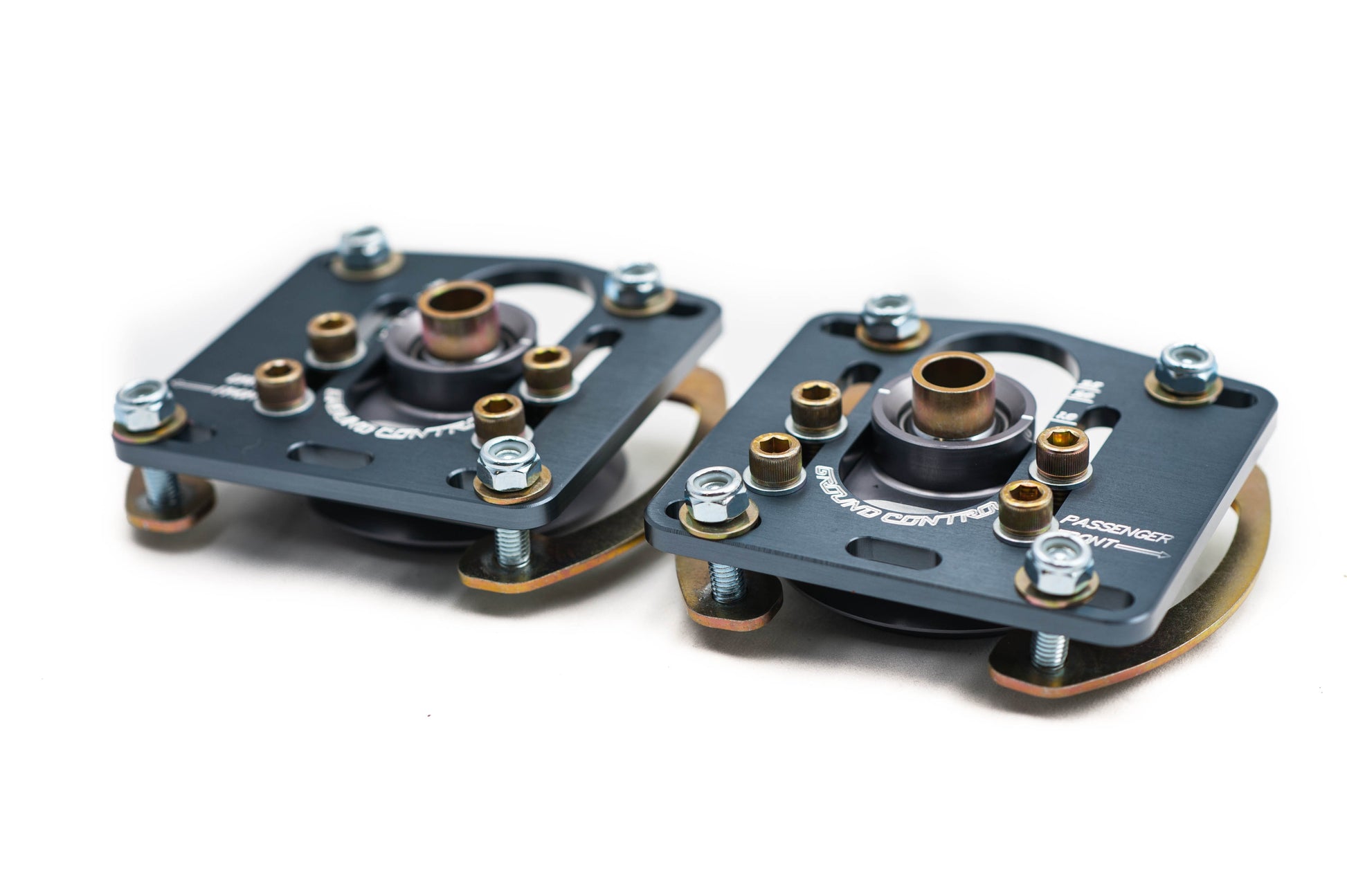

Ground Control Camber/Caster Plate-RACE-Ford Mustang (2010-14) (Pair)
Ground Control Camber/Caster Plate-RACE-Ford Mustang (2010-14) (Pair)
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyGround Control Racing Camber / Caster Plates
Full race plate for all 2010-2014 S197 Mustangs. Requires cutting/modification of strut towers for installation.
More camber adjustment than stock, caster adjustment, aircraft bearings, engraved with calibrated degrees, with stainless steel reinforcement.
Every component is anodized or plated, including fasteners. The Ground Control design adds extra travel to avoid excessive bottoming out, this is a very well engineered product.
The GC exclusive stainless steel reinforcement prevents electrolysis between the steel fender and the aluminum camber plate. (replaces stock reinforcement)
Camber and caster are separately adjustable by sliding the mounts, without removing any components from the car. The priority of this design is to allow fast, repeatable alignment changes at the track.
The Ground Control camber plates feature two sets of bearings, a proprietary bearing, made to our specs by Aurora in the USA, which allows for articulation of the shock shaft. This spherical bearing is very understressed, as the Ground Control design does NOT support the weight of the car on the spherical bearing. Instead, the weight of the car is supported by a completely separate articulating needle bearing, which is also manufactured for Ground Control in the USA
TECHNICAL SPECIFICATIONS:
Camber range: 16mm positive, 32mm negative, 48mm total range.
Caster range: 14mm positive.
