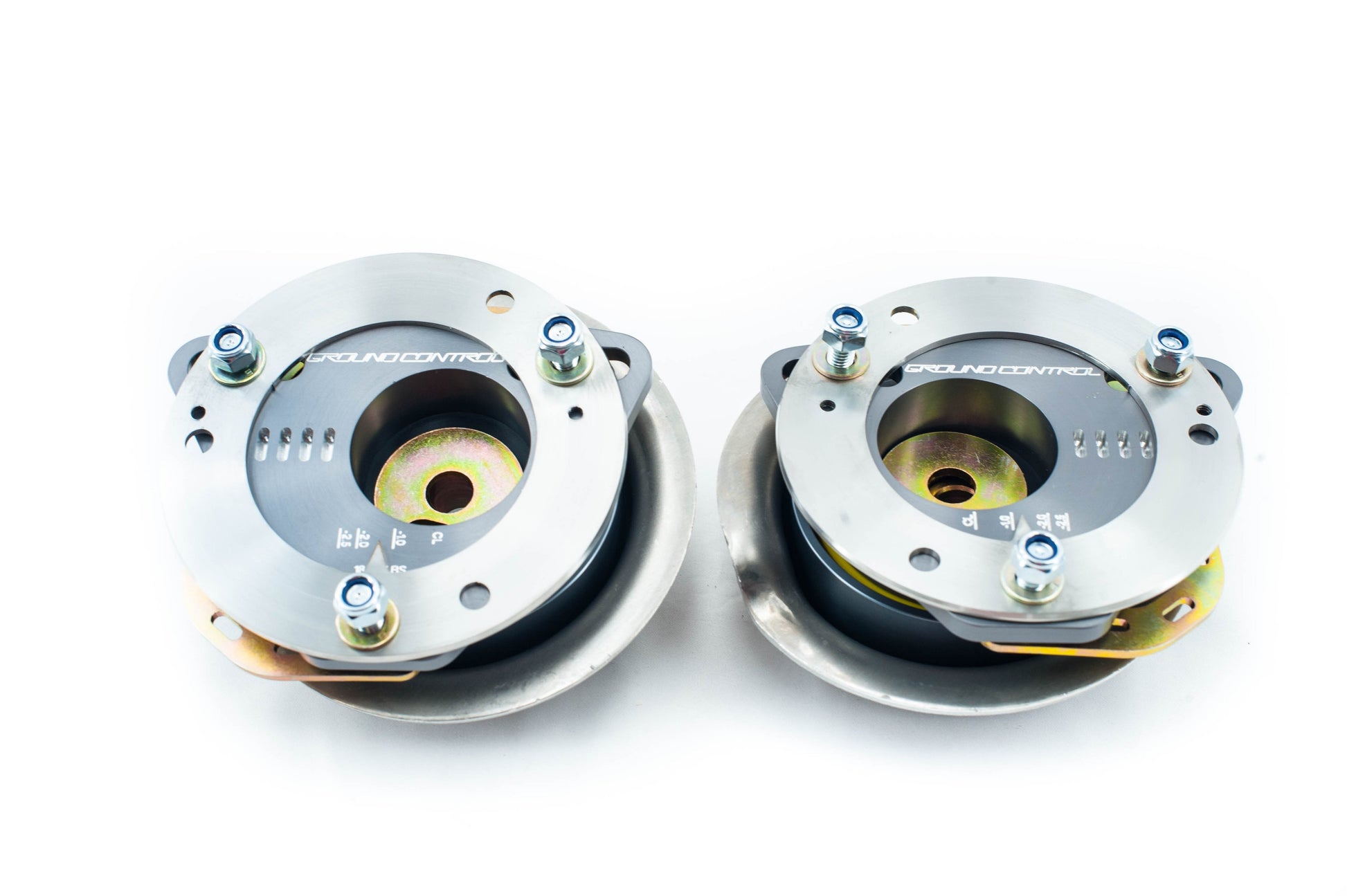

These plates feature over 26mm of total camber adjustment (16mm negative/7.5mm positive), with the ability to make corrective caster changes to equalize side-to-side caster in the stock position.

Other features include replaceable waterproof German axial load bearings, and urethane bushings for long life, less deflection, and a smooth silent ride on either stock, 60mm, 2.25", or 2.5" racing springs.

All components are anodized or zinc plated for corrosion resistance.

We also offer our lifetime guaranty! (Bearings not included)

• A clean sheet design for street cars, not an adapted spherical race plate.
• Waterproof, German-made, axial load steering bearings.
• Allows for up to 26mm total camber adjustment.
• Unique slot design allows for caster correction.
• Urethane center mounts reduce NVH, yet do not flex.
• All components plated or anodized for corrosion resistance.
• Zinc plated mounting bracket for ease of install and adjustment.
• Available for stock diameter, 60mm, 2.25", or 2.5 inch springs

Torque camber plate mounting nuts to 18ft/lbs using properly calibrated torque wrench. DO NOT USE PNEUMATIC TOOLS

?INSTRUCTIONS
