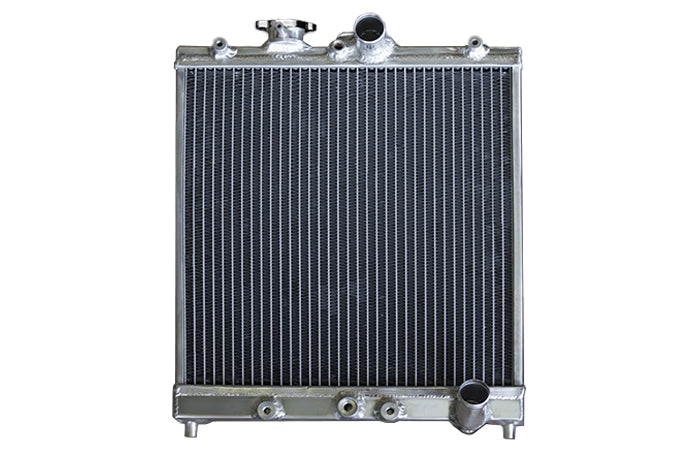

GReddy EK Honda Civic GReddy Aluminum radiator TW-R

In-stock

JDM-spec. GReddy Aluminum radiator TW-R EK4 / EK9 / EG6

Product features:

By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
Radiator Inlet / Outlet 32mm Dia.
(Core thickness: 40 mm)

* Includes 1.3K GReddy Radiator Cap

・Valve opening pressure 1.3KPa radiator cap included
・Aluminum machined drain bolt included
・With 1/8PT sensor boss
*Shroud cannot be installed

[Compatible model] JDM Honda Civic
Model: EK4 / EK9 / EG6
Year: EK4 / EK9 95.09 ~ 00.08
　　　 EG6 91.09 ~ 95.08

--- --- ---

JDM GReddy Aluminum radiator TW-R

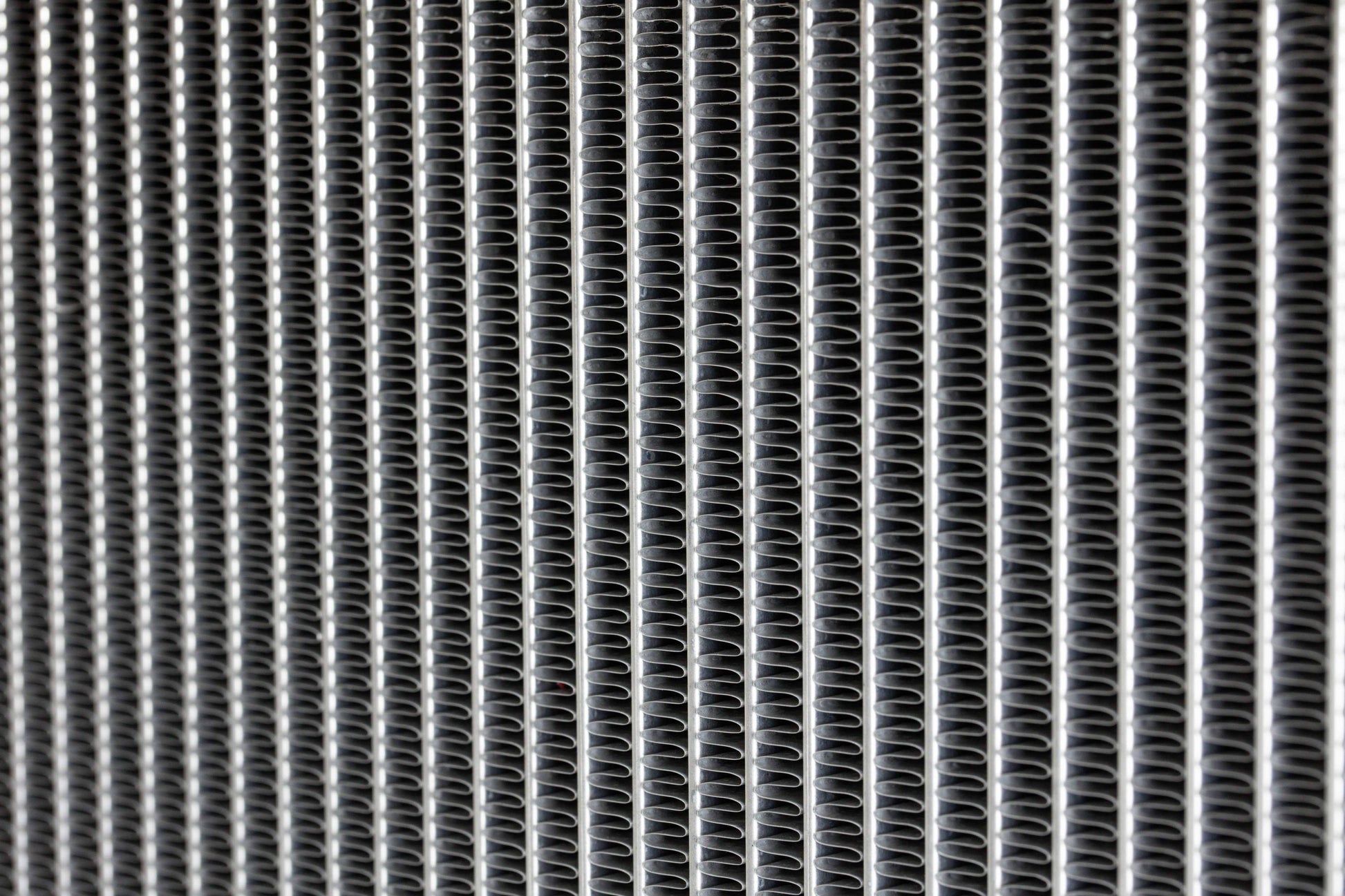

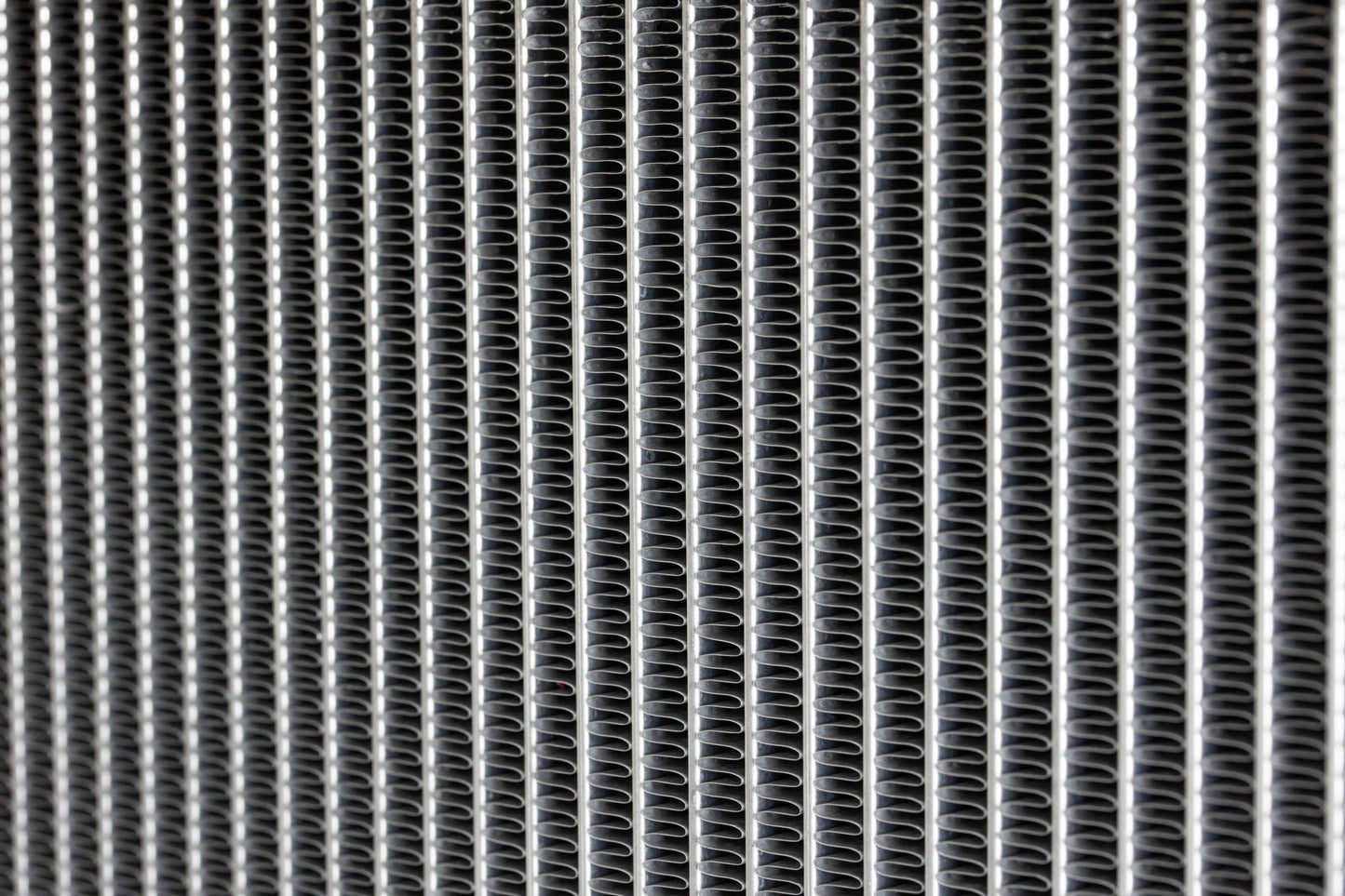

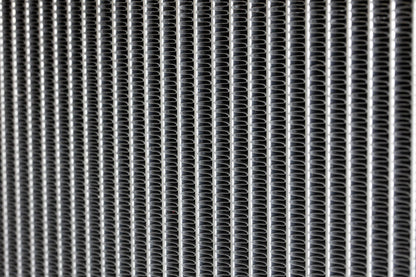

Sports radiator with 2-layer wide tube core made of all aluminum

• By adopting a 2-layer wide tube, a capacity equivalent to many similar 3-layer structures.

• Achieves more than double the cooling water capacity of the genuine product with reduces pressure loss.

• In addition, by adopting all aluminum products, it reduces the weight increase and supports from street to circuit.

All models utilize our TYPE-S size radiator cap. Some applications will also include our high pressure GReddy Radiator Cap with a valve opening pressure of 127 kPa (1.3 kg/cm2).

Made of polished aluminum

The use of aluminum improves strength and corrosion resistance. The the end-tanks are polished to dress up the engine bay.
