Brian Crower TPR050 - Polaris XP1000/XPTurbo Linebore, Shuffle Pin, King Bearings, ARP Main Studs

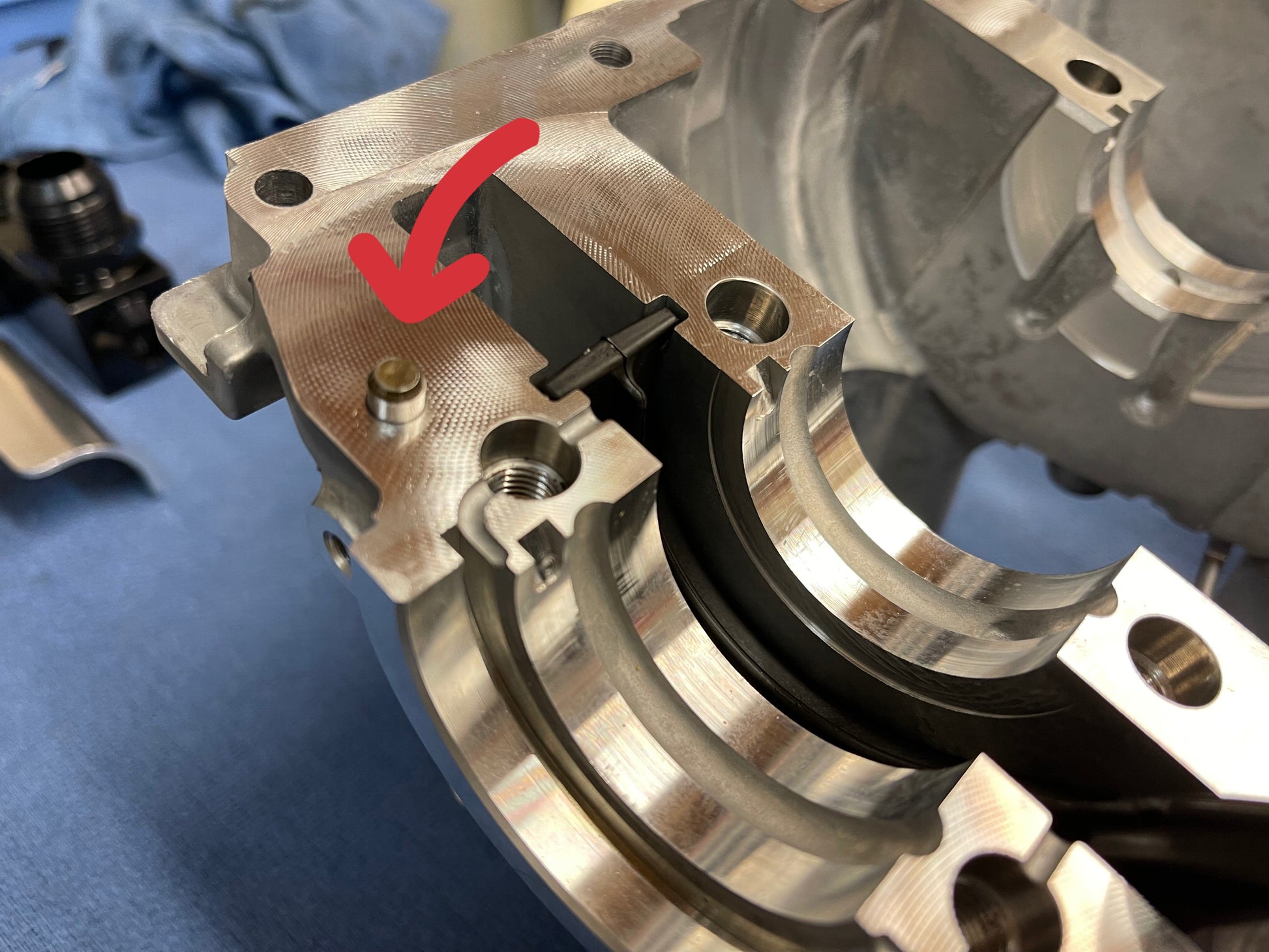

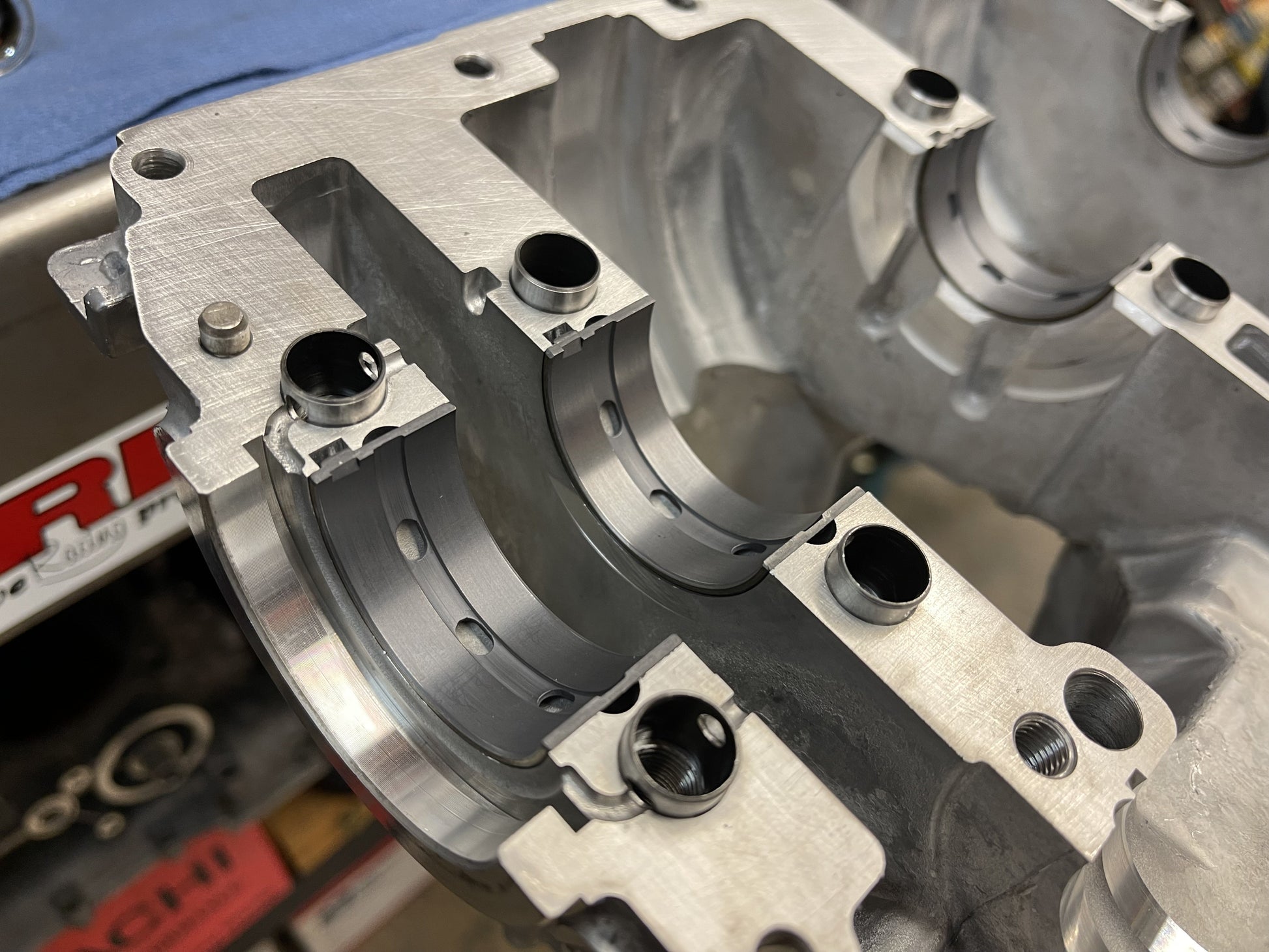

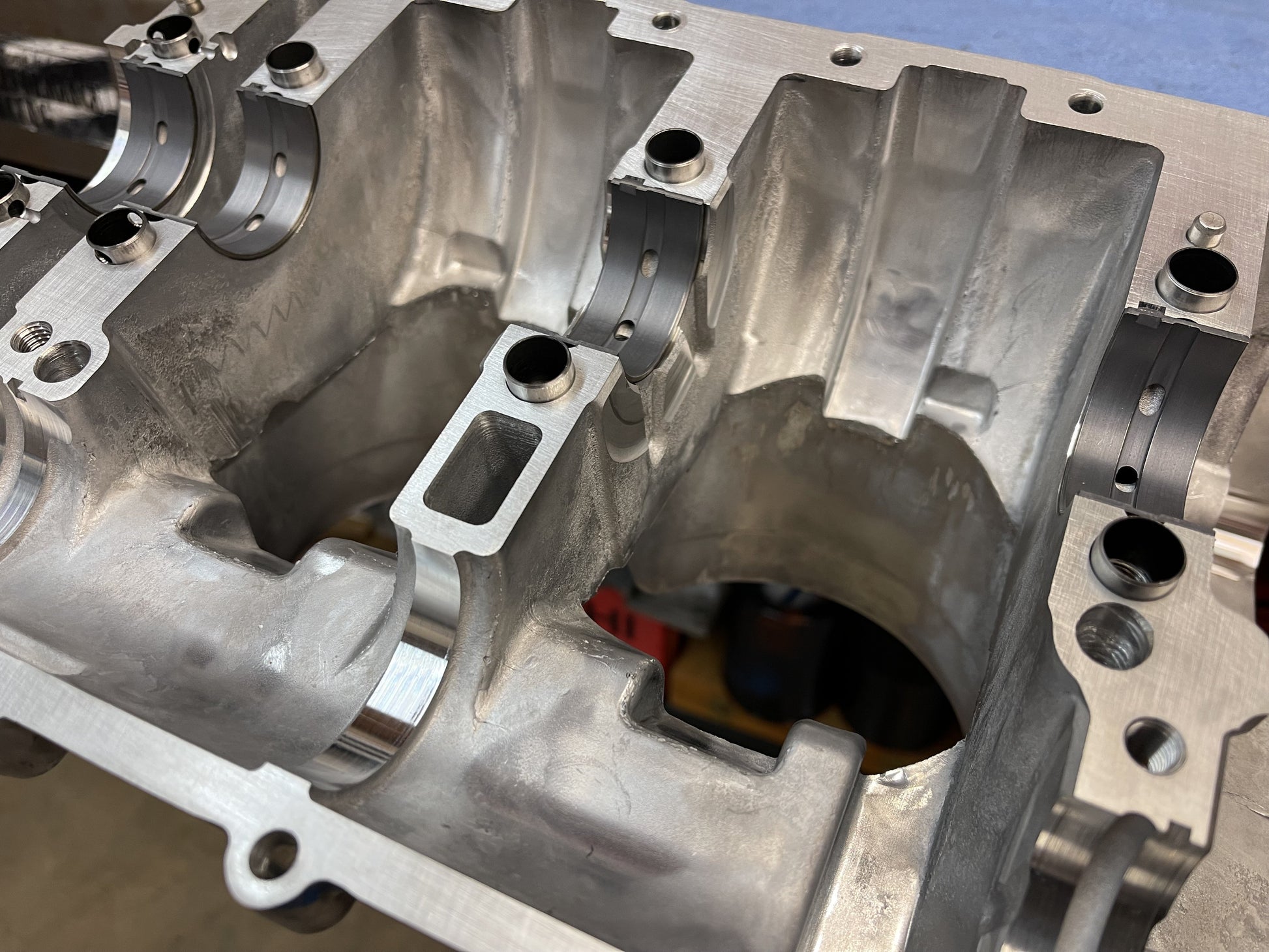

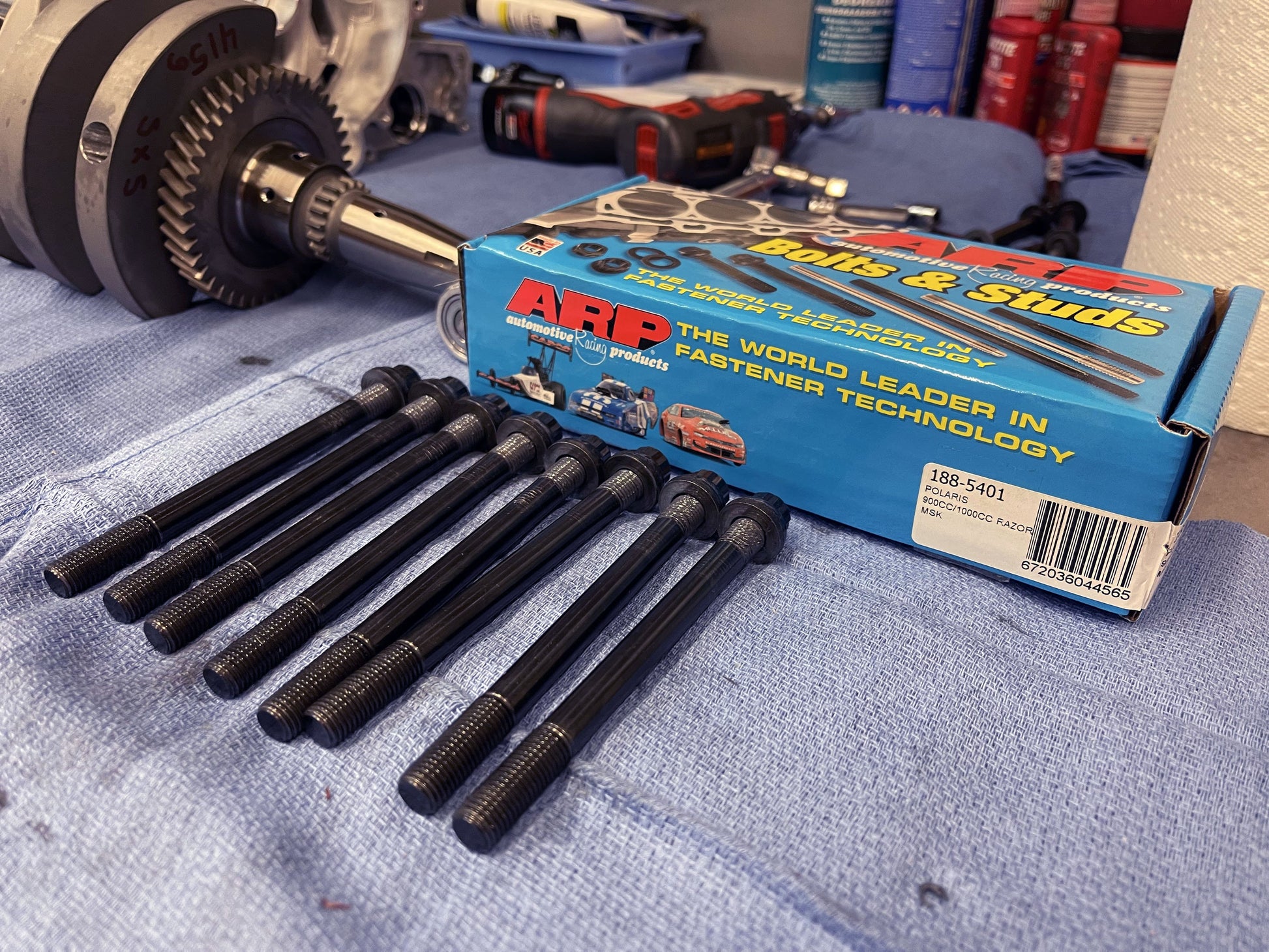

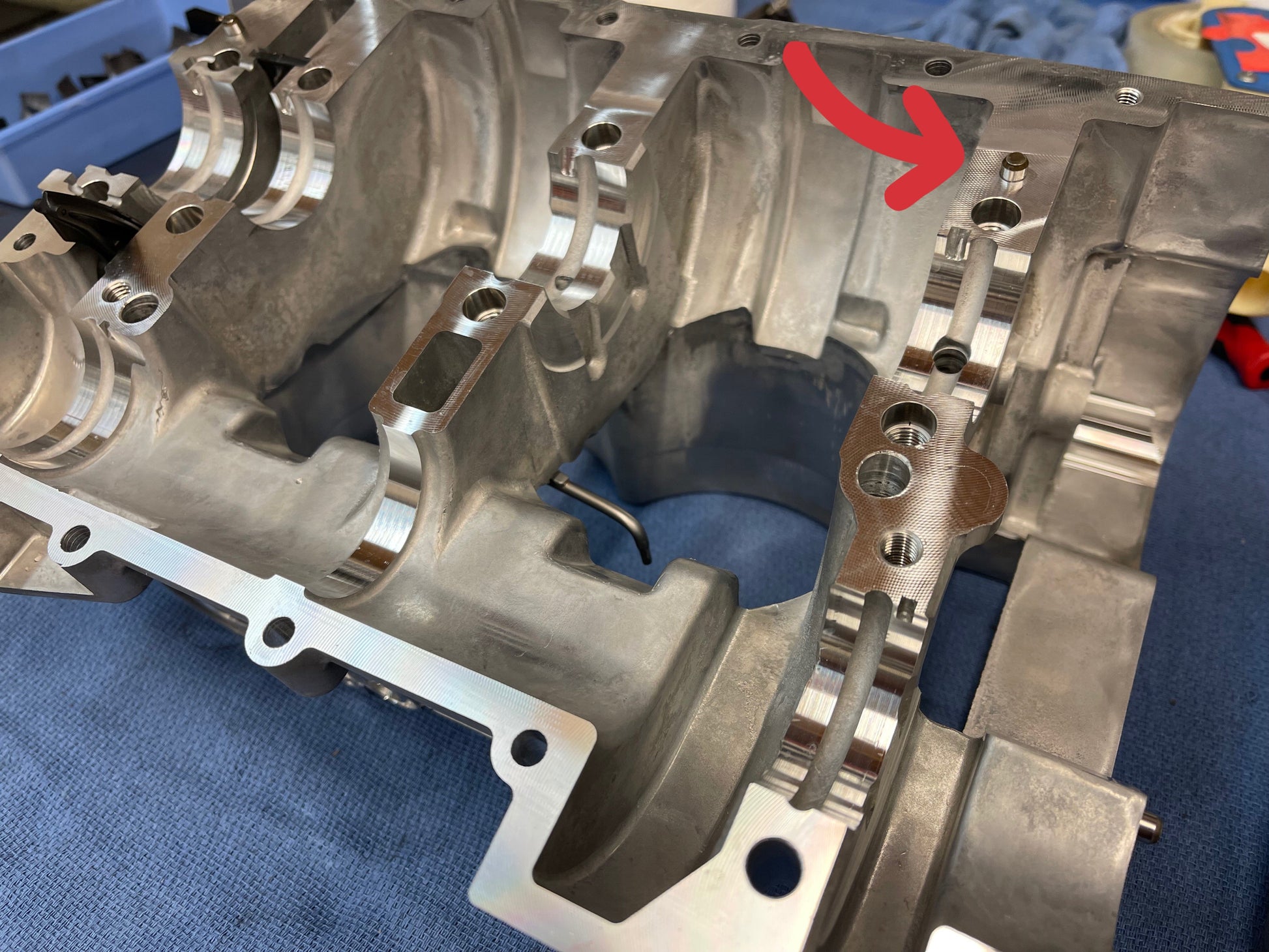

Exclusive King oversize main bearings for the Polaris RZR platform combined with lineboring and shuffle pinning the case results in a bulletproof short block. The BC 4340 billet XP crankshafts are an improvement to the rod bearing failures but they aren’t the cure for the oiling issues. These exclusive BC/TPR mains from King Bearing however do provide the proper oiling from the mains to the rods with some qualified machining. King XP line bearings are a hardened coated race bearing vs the OE soft Babbitt bearing. To thoroughly “bulletproof” the case, we designed an oversize O.D. (1.750”) main bearing in 3 grades (Standard, +.0003” and -.0003”) that are designed to accommodate an over bored case. Lineboring assures that the case halve main journals are true, round and aligned. The TPR shuffle pinning procedure utilizes eight hollow dowels positioned around each main stud that keeps the case halves properly aligned during the torque sequence, allowing the use of the ARP main studs. Great for turbo, endurance or anyone who’s experienced the agony of a burned up Mag side #2 rod.

Send your case in to BC for lineboring and shuffle pinning. Blueprinting also available for an added charge. Cases must be sent in hot tank clean, with all silicone removed or there will be a $300 cleaning charge.
