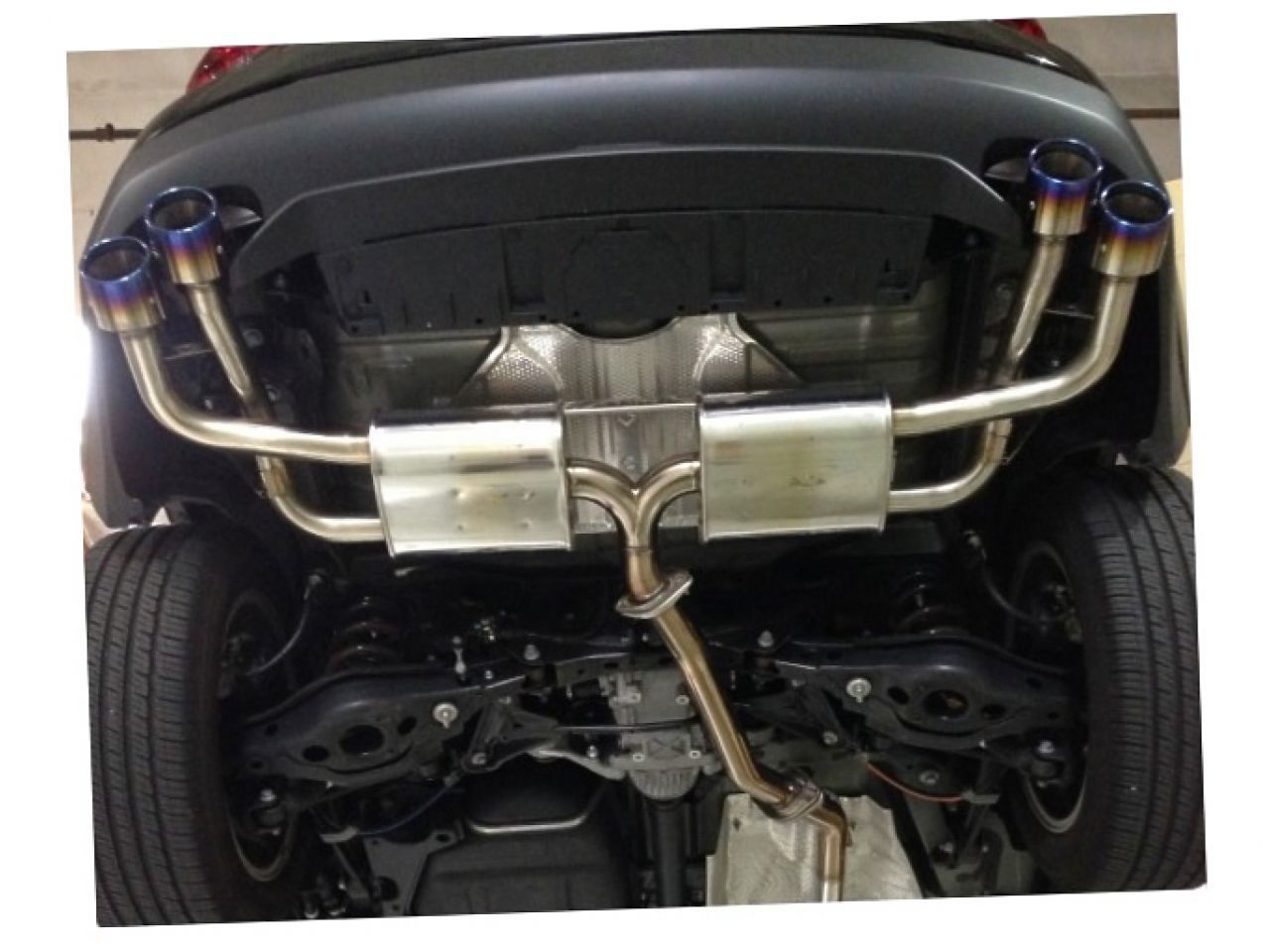

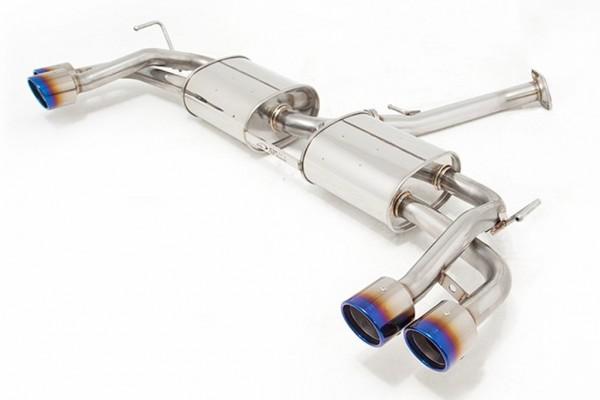

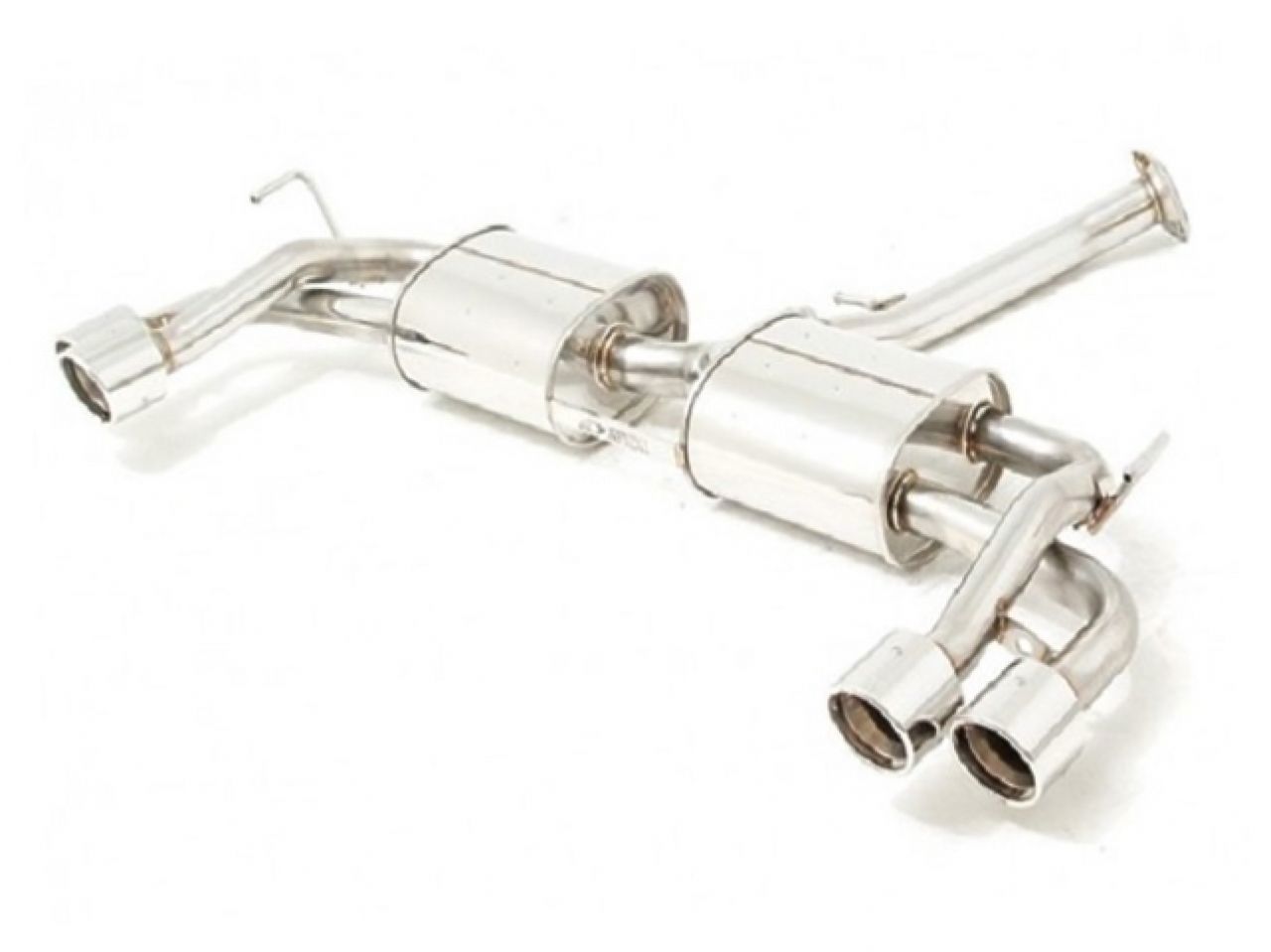

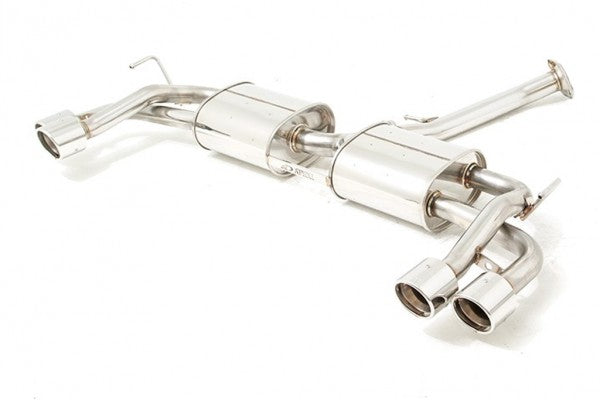

Apexi N1-X Evolution Extreme Axleback Exhaust - 2015~2017 Lexus NX200t Stainless

N1-X Evolution Extreme Muffler Axleback Exhaust
2015-2017 Lexus NX200t FWD/AWD

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results

Bolt-On	Yes
Part Number	- Stainless Steel: 164AKT06 - Titanium: 164-KT06
Year	2015, 2016, 2017
Make	Lexus
Model	NX200t
Body Style	5-Door SUV
Engine	8AR-FTS
Chassis	AGZ10, AGZ15
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	65mm. - 50mm. x 4
Tip Diameter	93mm. x 4
Pieces	2
Exhaust Tip Style	Oval-Dual wall rolled, Angle cut
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	- SUS304 Stainless Steel - Titanium
System Weight	33.85 lbs. (Includes Rear Section of Exhaust System, gaskets and hardware pack) (Stock- 36.85 lbs.) 3 lbs. lighter than stock.
Special Notes	Sound Level: 89.7 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components
