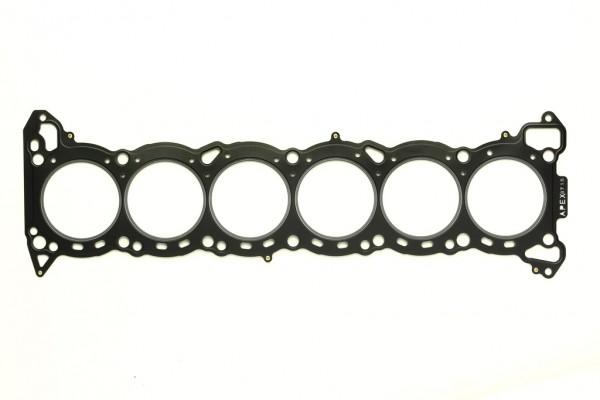

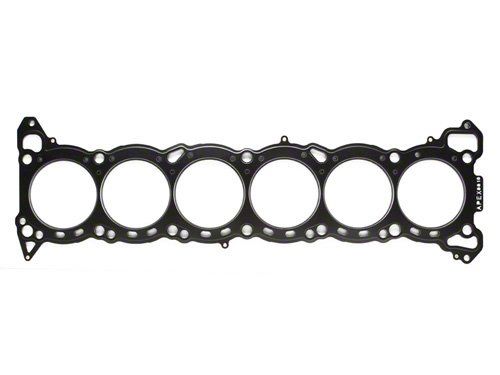

Apexi APEXi Engine Metal Head Gasket Nissan RB25DET, 86mm T-1.1
The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.
| Bolt-On | Yes |
|---|---|
| Part Number |
814-N205 : T-1.1 814-N206 : T-1.5 814-N207 : T-1.8 814-N208 : T-2.1 |
| Engine | RB25DET |
| Gasket Bore | 87mm |
| Engine Bore Size (mm) | 86mm (factory) |
| Gasket Thickness (mm) |
T=1.1mm T=1.5mm T=1.8mm T=2.1mm |
| Compression (Factory Head Gasket) | 9 |
| Compression (A'PEXi Head Gasket) |
814-N205 : 9 814-N206 : 8.6 814-N207 : 8.4 814-N208 : 8.2 |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1998 | Nissan | 240SX | SE, Base |
| 1989 - 1990 | Nissan | 240SX | XE |
| 1997 - 1998 | Nissan | Skyline | 2.8 Nismo 400R |
| 2001 - 2002 | Nissan | Skyline | 250GTe, 300GT, M-Spec, 250GT Four, 250GT |
| 1992 - 1993 | Nissan | Skyline | Autech Version |
| 1989 - 2002 | Nissan | Skyline | GT-R |
| 1998 - 2001 | Nissan | Skyline | GT-SE, 25GT-X Four, 25GT-X Turbo, 25GT-V, GT, 25GT Four, 25GT Turbo, 25GT-X, 25GT |
| 1991 - 1993 | Nissan | Skyline | GTE Type-X, GXI Type-X, GTS25 Type-XG, GTS Type-J |
| 1995 | Nissan | Skyline | GTS Urban Runner S, GTS25t Type-G, GTS25t Type-M AERO, GTS25 Type-G SE, GTS Urban Runner, GTS-4 Type-G, GTS25, GTS Type-G |
| 1989 - 1998 | Nissan | Skyline | GTS, GTS Type-S, GTS-4 |
| 1993 - 1994 | Nissan | Skyline | GTS-25 |
| 1996 - 1998 | Nissan | Skyline | GTS-4 Type-X, GTS25t Type-M Spec-II, GTS Type-X, GTS25 Type-SS, GTS25t Type-M Spec-I |
| 1989 - 1993 | Nissan | Skyline | GTS-t Type-M |
| 1989 - 1991 | Nissan | Skyline | GTS-t, GTE, GXi |
| 1991 - 1998 | Nissan | Skyline | GTS25 Type-X, GTS25 Type-S |
| 1993 - 1998 | Nissan | Skyline | GTS25t Type-M ACTIVE LSD |
| 1993 - 1995 | Nissan | Skyline | GTS25t Type-M, GTS25 Type-G |
| 2002 | Nissan | Skyline | Nur Spec II, 250GTm, 350GT-8, Nur Spec |
| 1993 - 2002 | Nissan | Skyline | V-Spec |
| 1994 | Nissan | Skyline | V-Spec II |
| 1999 - 2002 | Nissan | Skyline | V-Spec II N1 |
