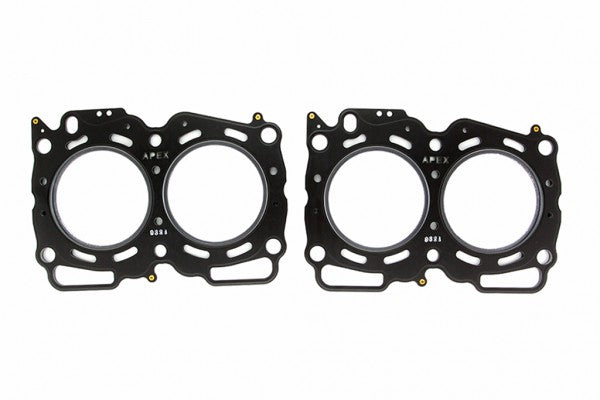

Apexi APEXi Engine Metal Head Gasket Subaru EJ20, 93.5mm T-0.8
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.
Bolt-On | Yes |
---|---|
Part Number |
814-F001 : T=0.8 814-F002 : T=1.5 814-F003 : T=2.1
|
Engine | EJ207, EJ20G, EJ20K |
Gasket Type | Grommet Type |
Gasket Bore | 93.5mm |
Engine Bore Size (mm) | 92mm (factory) |
Gasket Thickness (mm) | T=0.8mm |
Compression (Factory Head Gasket) | EJ20G=9.0, EJ20K/7=8.0 |
Compression (A'PEXi Head Gasket) |
814-F001 : EJ20G= 9.7, EJ20K= 8.5, EJ207= 7.9 814-F002 : EJ20G= 9.0, EJ20K= 8.0, EJ207= 7.4 814-F003 : EJ20G= 7.9, EJ20K= 7.4, EJ207= 7.1 |
Special Notes | Sold as a set of 2 gaskets |
![]() |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2005 | Saab | 9-2X | Linear, Aero |
2005 | Subaru | Impreza | Outback Sport |
2002 - 2004 | Subaru | Impreza | Outback, TS |
2004 - 2005 | Subaru | Impreza | WRX STI |
2002 - 2005 | Subaru | Impreza | WRX, RS |
![APEXi Head Gasket 814-F001 Item Image](http://frsport.com/cdn/shop/products/36543_Apexi_Head_20Gasket_202-Cyl_MG01-01.jpg?v=1620243477&width=500)
Apexi APEXi Engine Metal Head Gasket Subaru EJ20, 93.5mm
Sale price$265.05 USD
Regular price$279.00 USD
