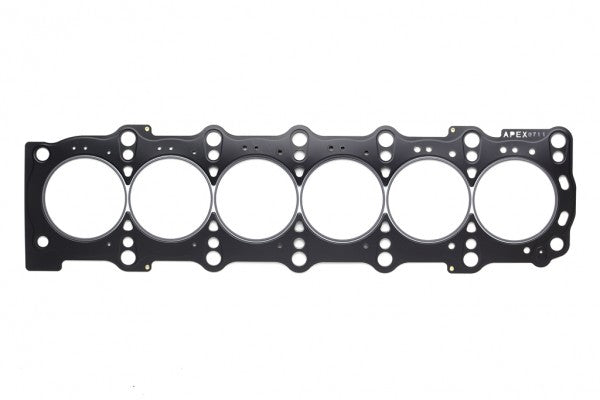

Apexi APEXi Engine Metal Head Gasket Toyota 1JZGTE (JZX90, JZX100, JZX110), 87mm T-1.1

The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

Bolt-On	Yes
Part Number	814-T001 : T=1.1 814-T002 : T=1.5 814-T003 : T=1.8 814-T004 : T=2.1
Engine	1JZ-GTE
Chassis	JZX100, JZX110, JZX90
Gasket Type	Stopper Type
Gasket Bore	87mm
Engine Bore Size (mm)	86mm (factory)
Gasket Thickness (mm)	T=1.1mm T=1.5mm T=1.8mm T=2.1mm
Compression (Factory Head Gasket)	9
Compression (A'PEXi Head Gasket)	814-T001 : 8.9 814-T002 : 8.5 814-T003 : 8.3 814-T004 ; 8.1
