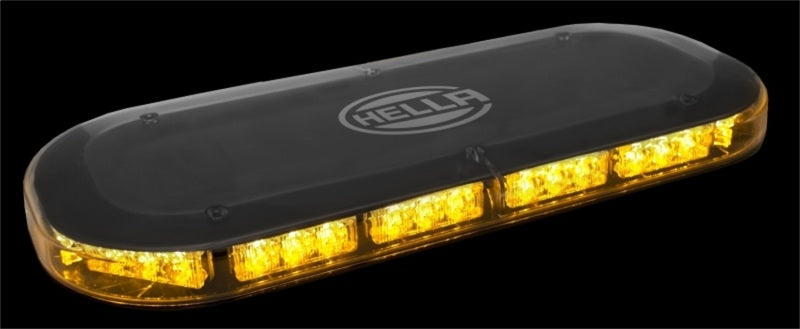

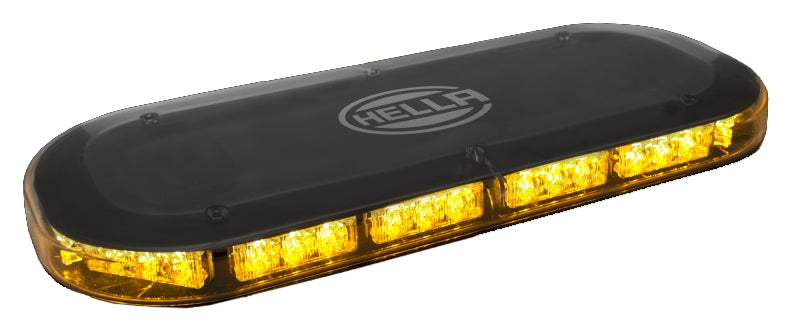

Hella MLB 200 Fixed Mini Amber LED Light Bar 12-24V

MLB 200 Fixed Mini Amber LED Light Bar 12-24V

features a non-volatile memory that recalls last flash pattern used at power up.

PRODUCT FEATURES:

• Multi-voltage input 12 - 24 VDC

• 24 user selectable flash patterns including rotating

• Multiple units can be synchronized

• Reverse polarity protection

• Weatherproof and vibration resistant design for external use

PRODUCT SPECIFICATIONS:

• Color: Amber

• Light Source: 42 LEDs

• Warning Patterns: 24 Flash Patterns

• Operating Voltage: 10 - 30 VDC

• Max Power: 74 W

• Approvals: SAE J845 Class 1, California Title 13, ECE R65, ECE R10

• Connection Fixed: 10’ (3 m) wire leads

• Multi-Unit Sync: Over 15 units

• Operating Temperature: -30°C to +65°C

• IP Rating: IPX5

• Dimensions: See image #2

Flash Pattern:

• Random
• Rotating (slow)
• Rotating (fast)
• Single (split)
• Double (split)
• Quad (split)
• Quint (split)
• Mega (split)
• Ultra (split)
• Single-Quad (split)
• Single H/L (split)
• Single (all)
• Double (all)
• Quad (all)
• Quint (all)
• Mega (all)
• Ultra (all)
• Single-Quad (all)
• Single H/L (all)
• Steady (half)
• Single (2 Hz)
• Double (R65)
• Triple (2 Hz)
• Quad (2 Hz)
