Mishimoto Transmission Cooler Kit - Black 2007-2011 Jeep Wrangler JK

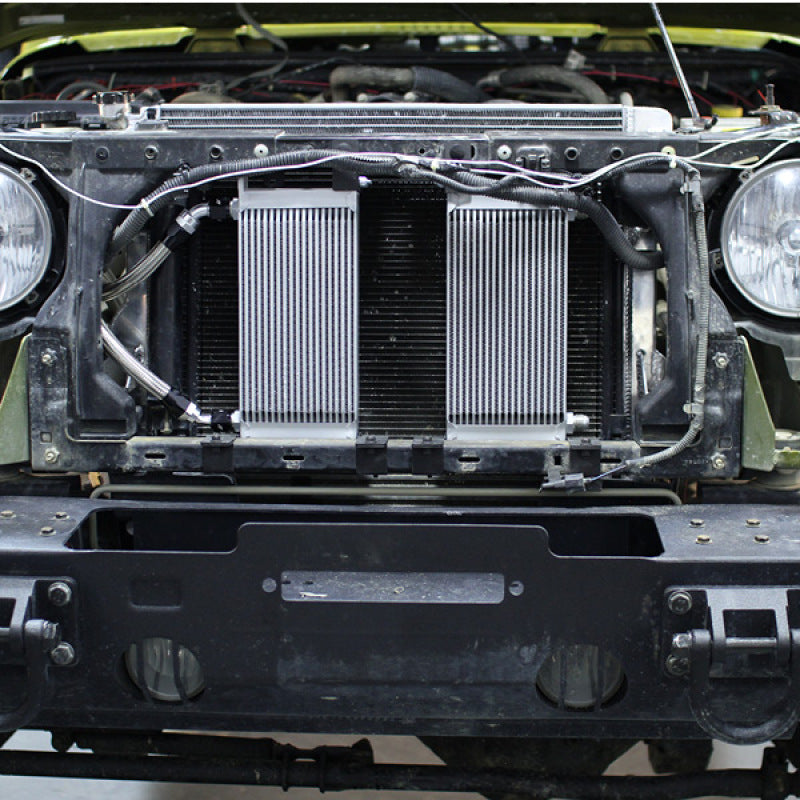

Performance Jeeps deserve Jeep performance parts. The Jeep JK is known to experience high transmission fluid temperatures, especially when off-roading or driving in hot climates. Mishimoto has developed an ideal upgrade for reducing temperatures with our direct-fit transmission cooler kit, engineered specifically for the JK chassis. This kit uses precision-engineered brackets to mount a large 19-row cooler in the front grille area, thus maximizing airflow and providing significant increases in cooling efficiency. This kit significantly reduces transmission fluid temperatures, resulting in decreased transmission wear and improved vehicle safety. The Mishimoto Jeep JK Transmission Cooler Kit includes all lines and hardware necessary for an easy installation. This kit is a perfect complement to the Mishimoto Jeep JK oil cooler kit and the Mishimoto all-aluminum radiator for the ultimate cooling solution for your Jeep JK.
Features- Provides dramatic temperature reductions
- Minimal pressure loss
- Black or silver cooler options available
- Direct fit for the Jeep JK
- Lifetime Warranty
- 0.65 Quarts (0.613L) Increase in transmission fluid capacity
- EGH (3.8L)
- JK

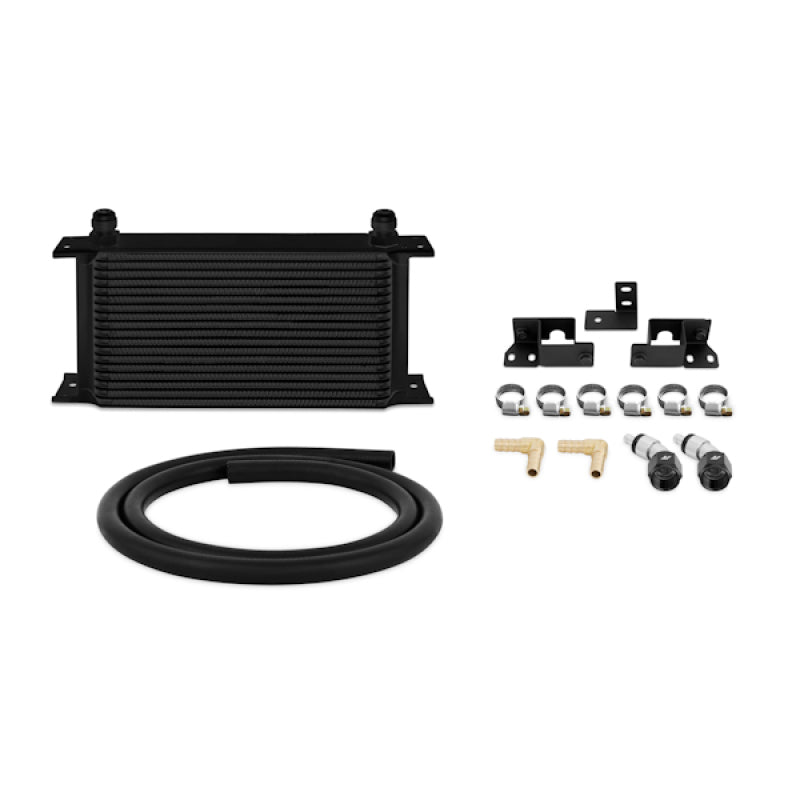

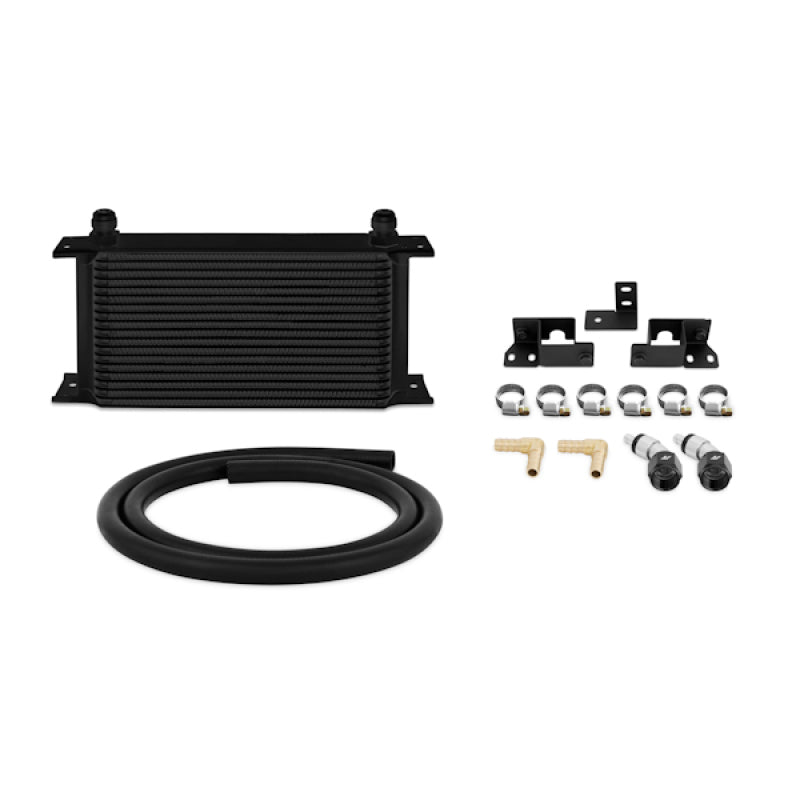

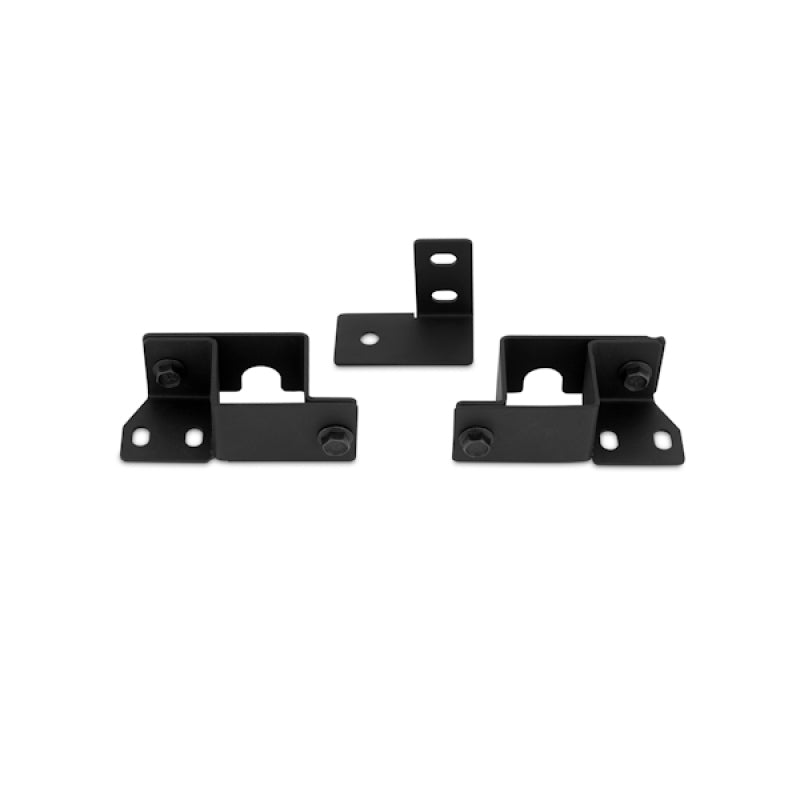

- (3) - Application Specific Mounting Brackets

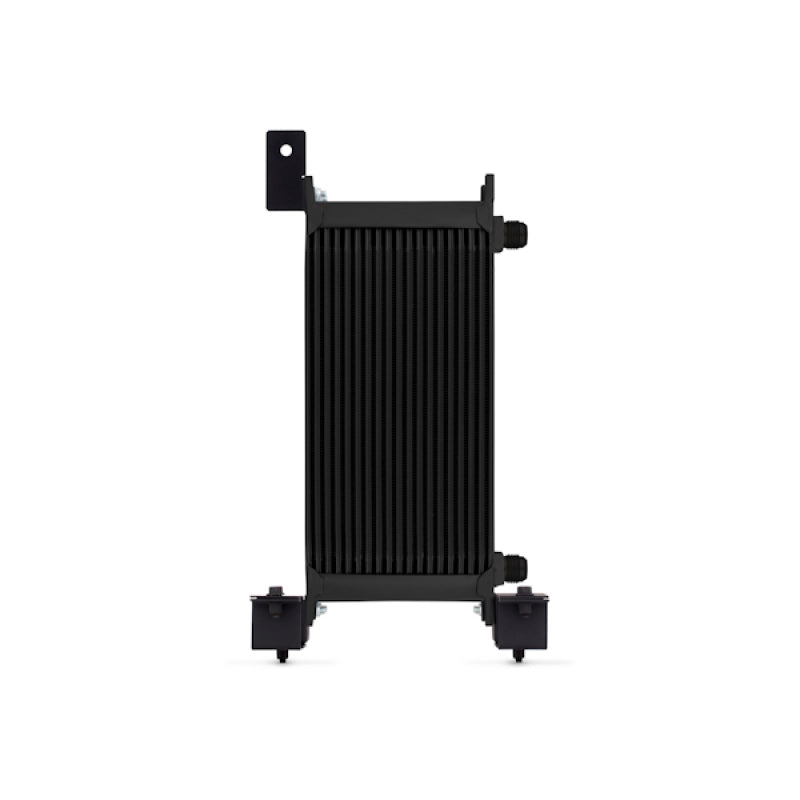

- (1) - 19 Row Oil Cooler
- (1) - 6ft Black Rubber 3/8" Transmission

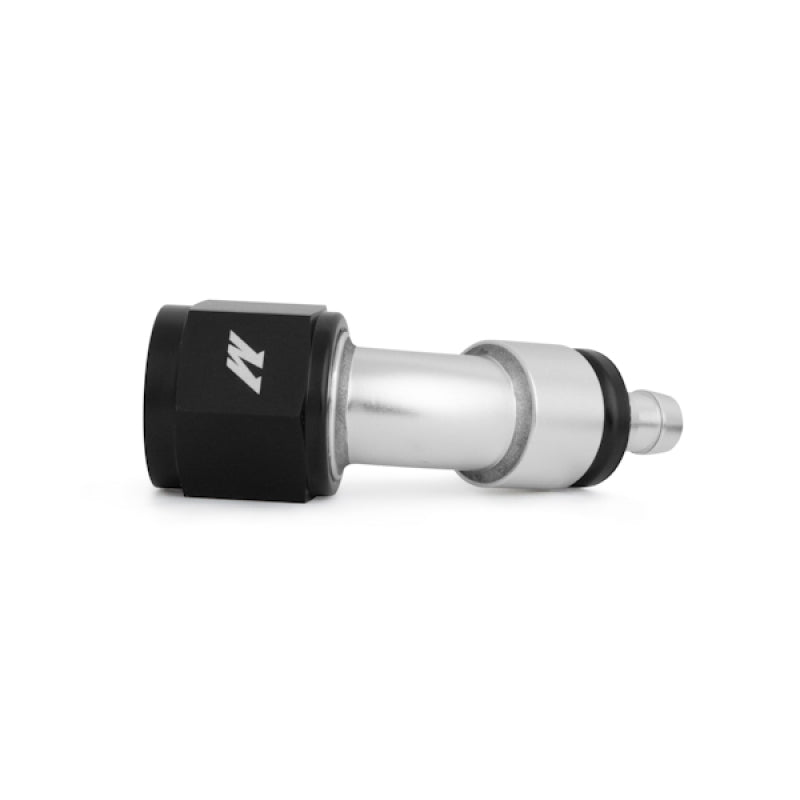

- (2) - 45° -10AN to 3/8" Barbed Push-On Fittings

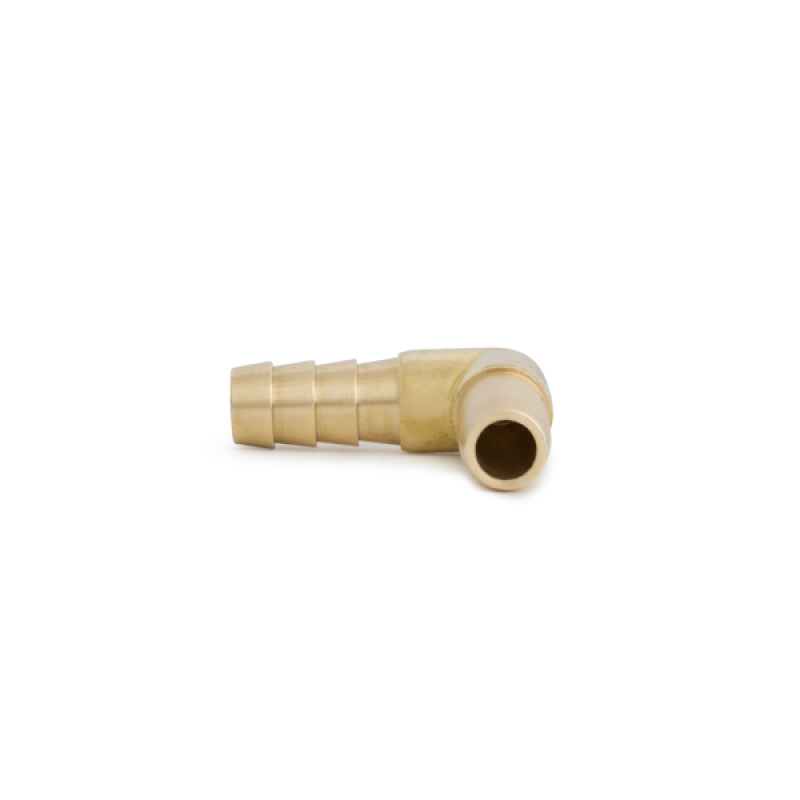

- (2) - Brass 90° Barbed Push-On Fittings
- (6) - Worm-Gear Clamps
- (1) - Mounting Hardware Set
- 2007-2011 Jeep Wrangler
- 2007-2011 Jeep Wrangler Unlimited
22 in-lbs (2.5N*M) recommended for all worm-gear clamps.These clamps have an operating range of 18-27 in-lbs 2-3N*M.Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2011 | Jeep | Wrangler | Sahara, X, Rubicon, Unlimited Sahara, Unlimited Rubicon, Unlimited X |
| 2010 - 2011 | Jeep | Wrangler | Sport, Unlimited Sport |
| 2011 | Jeep | Wrangler | Unlimited 70th Anniversary, 70th Anniversary |
| 2010 | Jeep | Wrangler | Unlimited Mountain, Islander |
| 2009 | Jeep | Wrangler | X-S |
