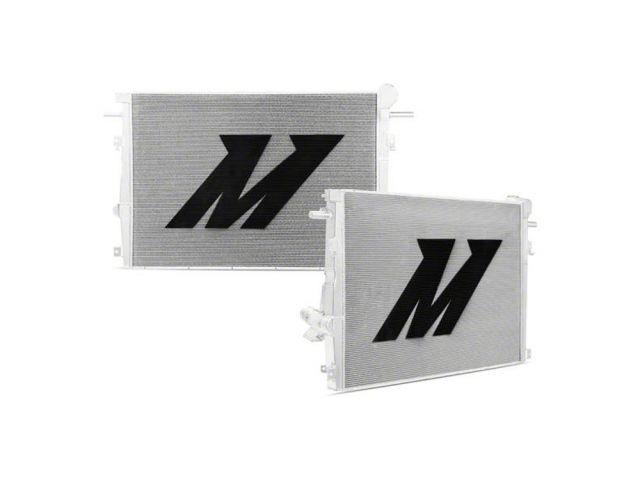

Mishimoto Aluminum Primary Radiator - 2011+ Ford 6.7L Powerstroke

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Radiator to put an end to puddles of coolant under your truck. This 6.7 Powerstroke radiator is constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core. Our 6.7 Powerstroke aluminum radiator Features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment for an easy installation process and includes a Mishimoto M12 x 1.5 Magnetic Oil Drain Plug to catch any debris in your cooling system.

Features

• Direct fit for the 6.7L Powerstroke
• 37% increase in coolant capacity
• 20% increase in fin area
• 10% thicker core than factory
• 100% brazed aluminum core
• CNC-machined, factory-style, quick-disconnect inlet and outlet
• TIG-welded to perfection
• Includes magnetic oil drain plug

Specifications

• U.S. Patent Number: D717,218 S
• Overall Size: 48.9" x 30.2" x 8.0"
• Core Size:38.39" x 27.76"
• 2 Rows
• Inlet: Factory-Style Quick-Disconnect
• Outlet: Factory-Style Quick-Disconnect
• Core Thickness: 1.89"
• Tank Wall Thickness: .08"
• Drain Plug Thread Size: M12 x 1.5

Fits

• 11+ Ford F-250 w/ 6.7L Powerstroke
• 11+ Ford F-350 w/ 6.7L Powerstroke
• 11+ Ford F-450 w/ 6.7L Powerstroke
• 11+ Ford F-550 w/ 6.7L Powerstroke

Purchase Includes

• Mishimoto Radiator
• Magnetic Drain Plug w/ Dowty Oil Seal
• (4) M6 x 1.0 x 16mm Bolts
• (12) Black Plastic Tree Clips
