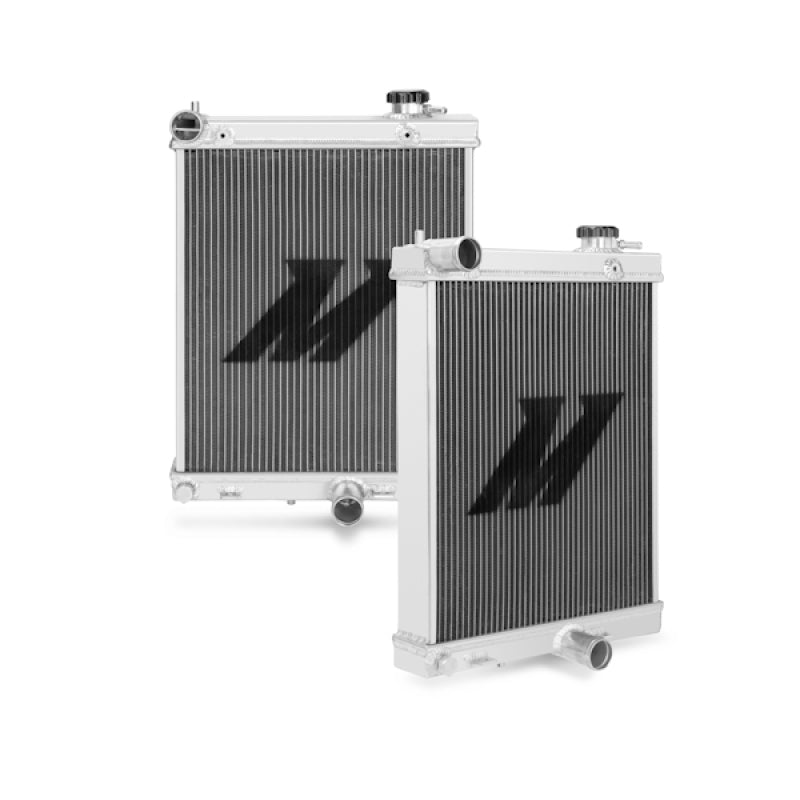

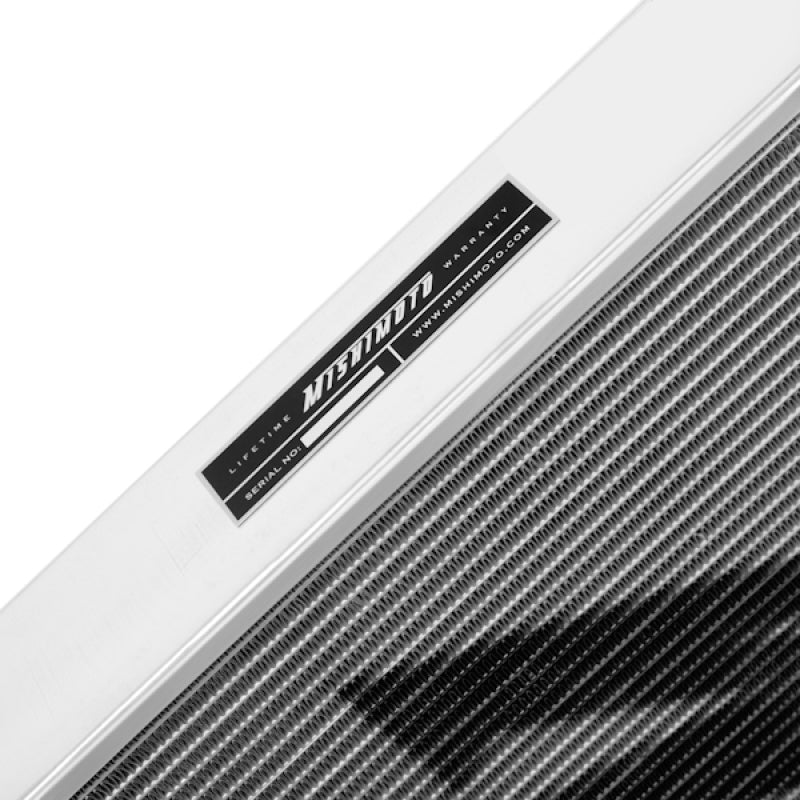

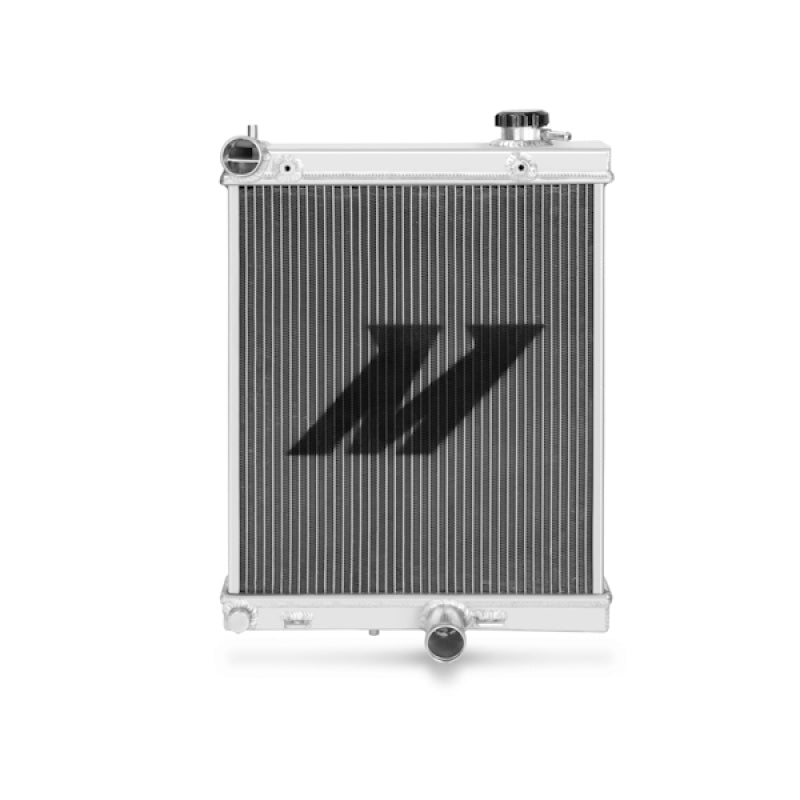

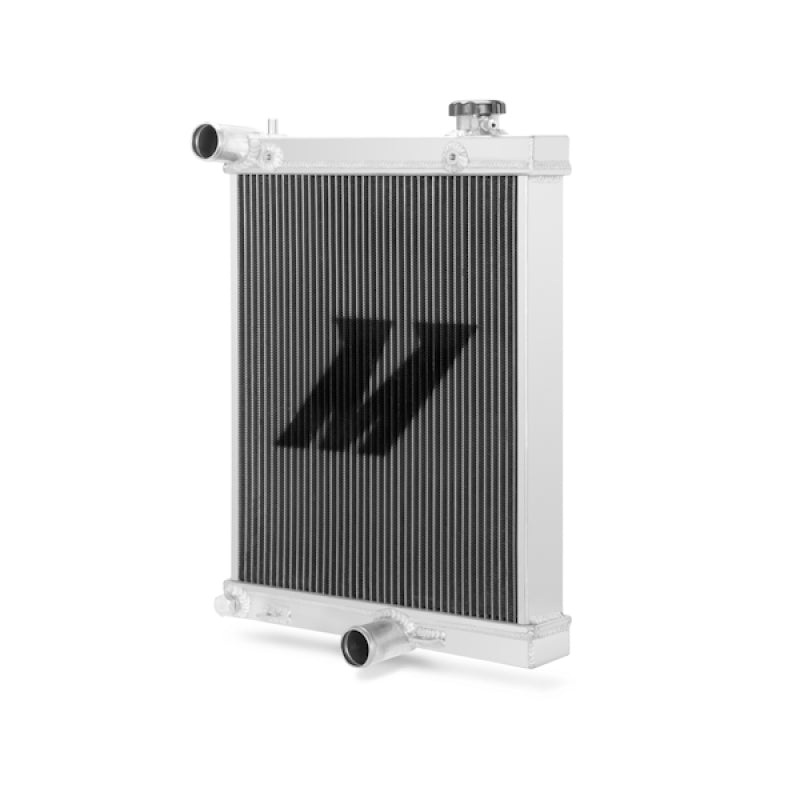

Mishimoto Half-Size Performance Al Radiator 01-07 Mitsubishi Lancer Evo. 7/8/9

SKU: 0GXKC | MPN:  MMRAD-EVO-01H
In stock
Sale price$372.45 USD Regular price$407.00 USD
Save $34.55

Freeing up engine bay space for a front-facing or large turbocharger can be hard in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05" thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto Silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance.

Features
  • Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
  • Half-Size design provides clearance for large twin-scroll and forward-facing turbocharger setups

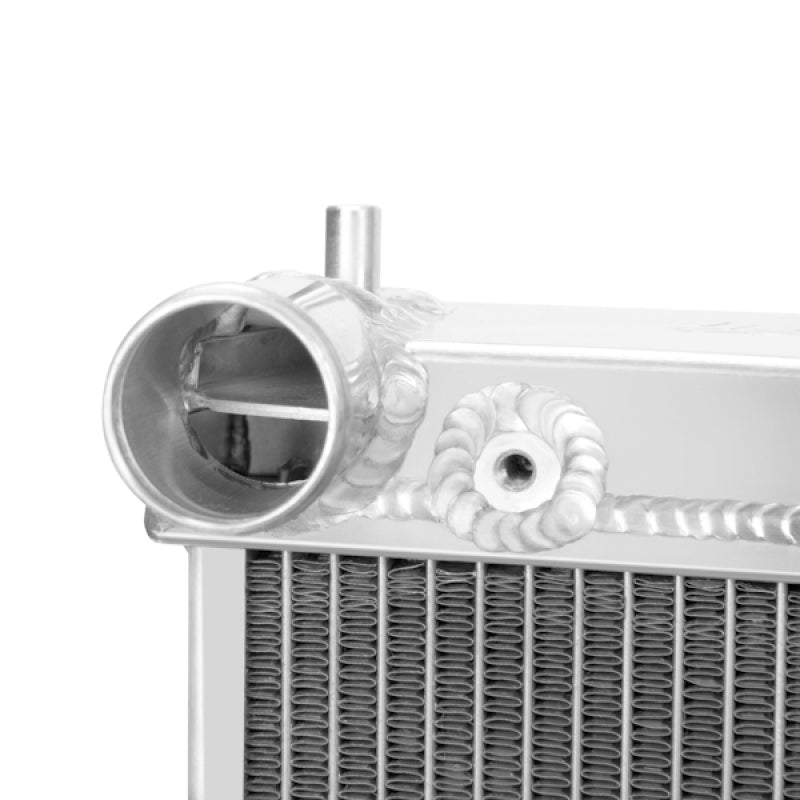

  • All-aluminum construction with TIG-welded end tanks
  • 2.05" thick brazed aluminum core provides optimal cooling and superior durability
  • Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
  • Applicable for use with stock or Mishimoto silicone radiator hoses
  • Includes mounting points for stock fan shroud
  • Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminum stay
Specifications
  • 14.0" x 19.5" x 4.38" Overall Size
  • 13.38" x 15.2" Core Size
  • 2.05" (52mm) Core Thickness
  • Rows 3
  • 1.38" (35mm) Inlet
  • 1.38" (35mm) Outlet
  • 2.0mm Tank Wall Thickness
  • M12 Drain Plug Thread Size
  • 1.5mm Drain Plug Thread Size Length
  • 1.50" Fill Neck
Purchase Includes
  • Mishimoto Radiator

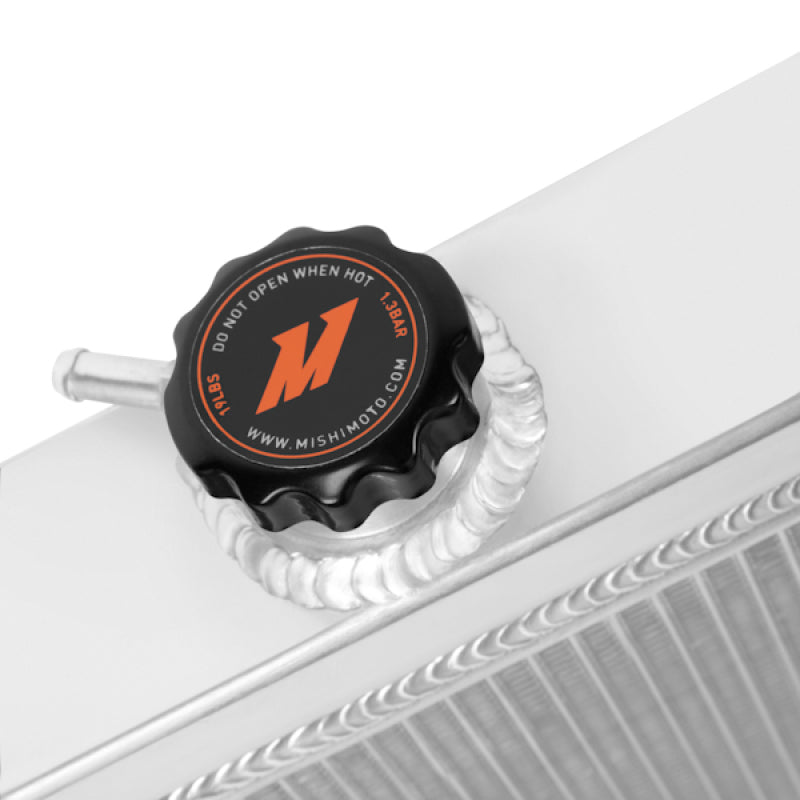

  • Mishimoto Radiator Cap
  • Magnetic Drain Plug

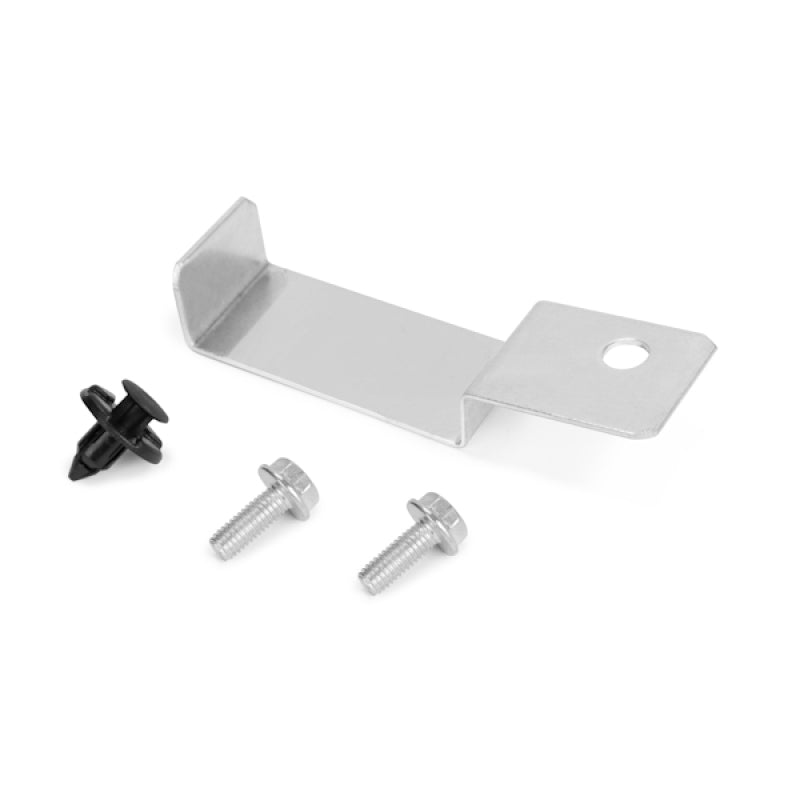

  • Upper Radiator Aluminum Stay
Engine Codes
  • 4G63
Chassis Codes
  • CT9-A


Vehicle Fitments:

Year Make Model Submodel
2004 - 2016 Mitsubishi Lancer DE
2003 - 2017 Mitsubishi Lancer ES
2011 - 2014 Mitsubishi Lancer ES Sportback
2003 - 2014 Mitsubishi Lancer Evolution
2015 Mitsubishi Lancer Evolution Final Edition, SE Limited Edition Sportback
2008 - 2015 Mitsubishi Lancer Evolution GSR
2005 - 2015 Mitsubishi Lancer Evolution MR
2005 - 2009 Mitsubishi Lancer Evolution RS
2006 - 2010 Mitsubishi Lancer Evolution SE
2011 - 2016 Mitsubishi Lancer GT
2008 - 2017 Mitsubishi Lancer GTS
2010 - 2011 Mitsubishi Lancer GTS Sportback, Ralliart Sportback, Evolution MR Touring
2014 Mitsubishi Lancer Limited Edition
2003 - 2007 Mitsubishi Lancer LS
2005 - 2007 Mitsubishi Lancer LS Diamond
2003 - 2006 Mitsubishi Lancer OZ Rally
2004 - 2015 Mitsubishi Lancer Ralliart
2006 - 2017 Mitsubishi Lancer SE
2015 - 2017 Mitsubishi Lancer SE Limited Edition
2011 - 2015 Mitsubishi Lancer SE Sportback, GT Sportback
2016 - 2017 Mitsubishi Lancer SEL
2009 Mitsubishi Lancer Special Edition
2004 Mitsubishi Lancer Sportback Ralliart, Sportback
