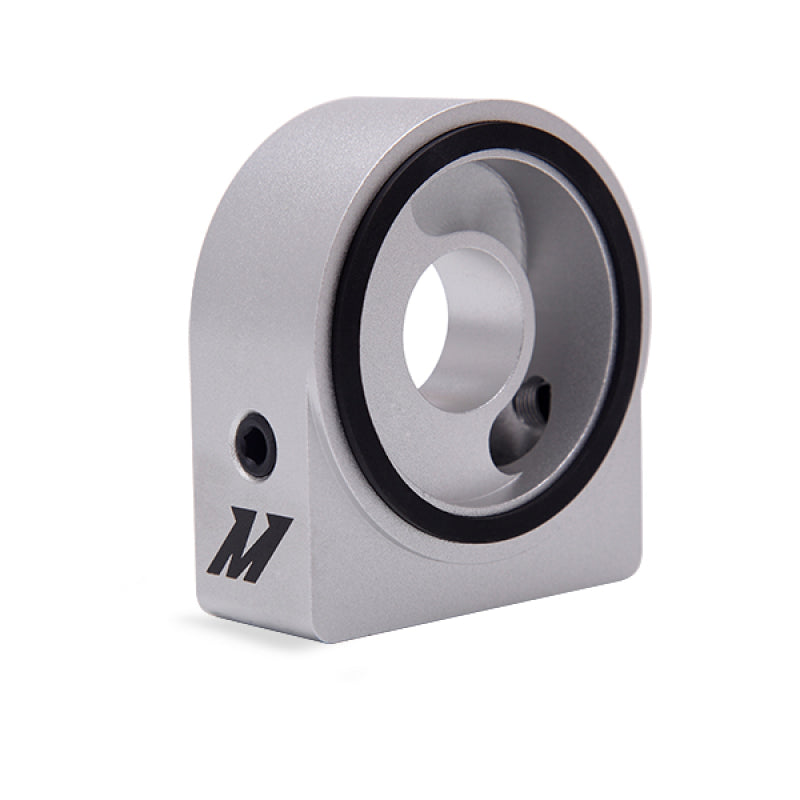

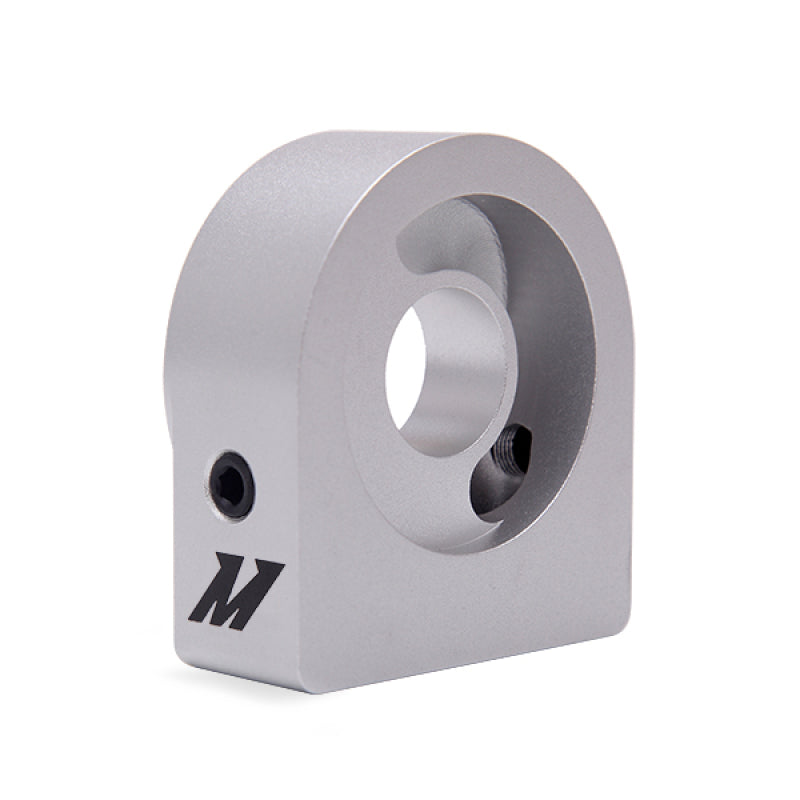

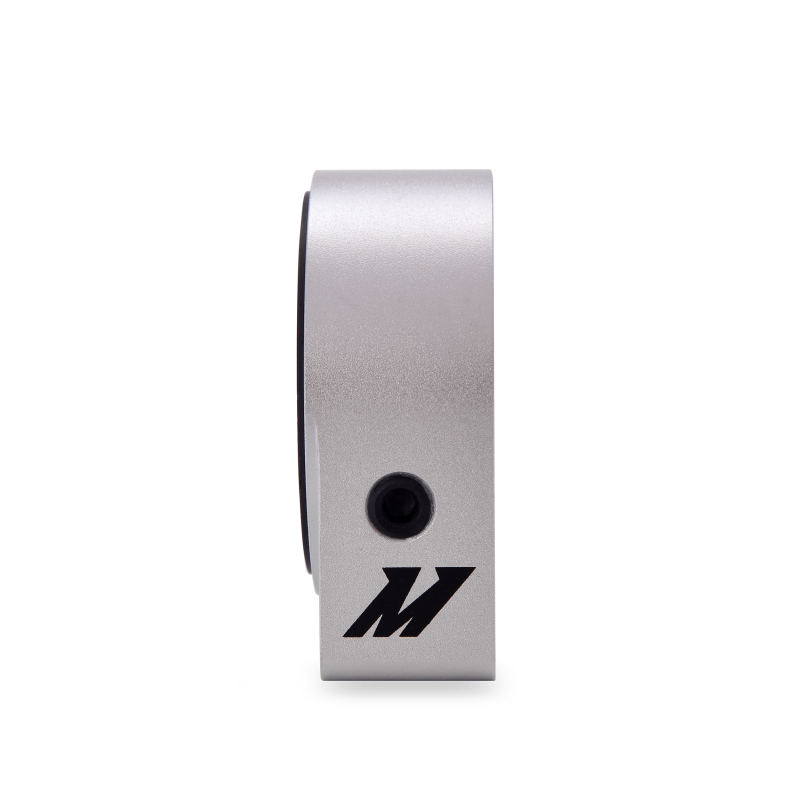

Mishimoto M22 Oil Sandwich Plate

This Mishimoto Oil Sandwich Plate is a lightweight, high-flow sandwich plate that's built from 6061 aluminum. It’s used to add an external cooler to your vehicles oil system. This Oil Sandwich Plate is designed specifically for M22 Stainless Steel Center Bolts and includes two 1/8" NPT plugged ports for optional sensors.

FEATURES

• CNC-Machined 6061 Aluminum
• Two 1/8" NPT Ports (with plug) for sensors/oil feed/etc.
• Square O-ring design

Material 6061 Aluminum

Note This sandwich plate was designed to only be used with an M22 Sandwich Plate Adapter

Caution It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

Overall Height 3.15"

Overall Length 2.83"

Overall Width 1.24"

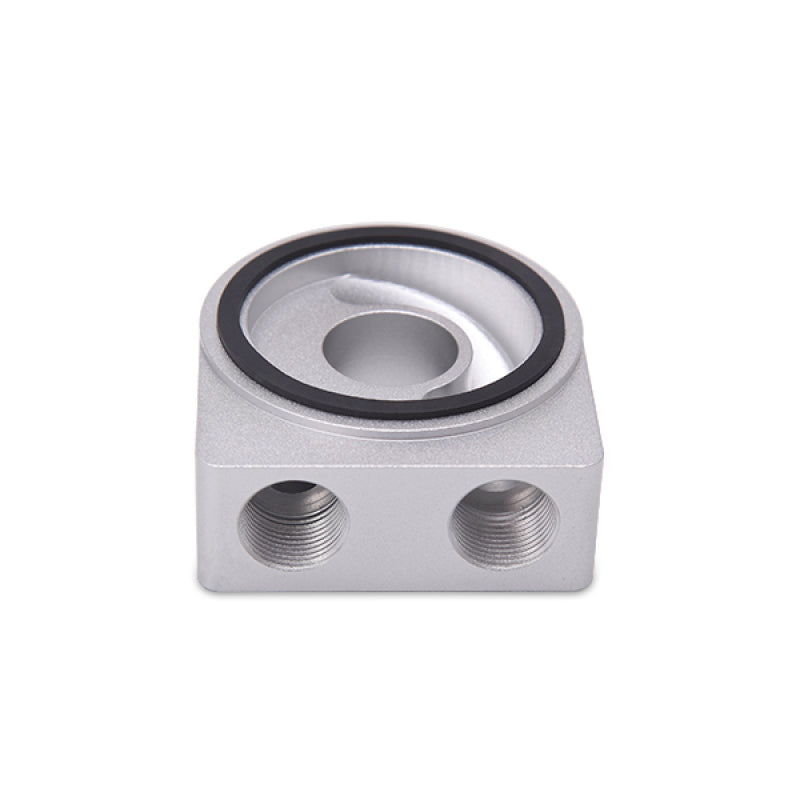

Port Sizes (2) M20 x 1.5 Ports
(2) 1/8" NPT Ports

Purchase Includes (1) Oil Sandwich Plate
(1) Rubber O-ring
(2) Black 1/8" NPT Plugs
