Mishimoto Oil Cooler Kit - 2000-2009 Honda S2000

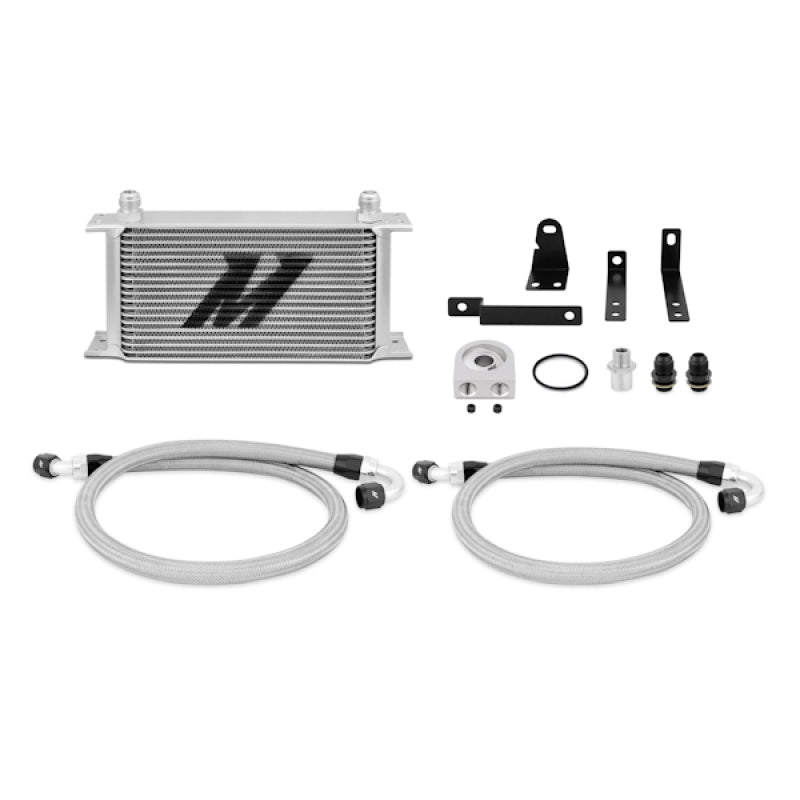

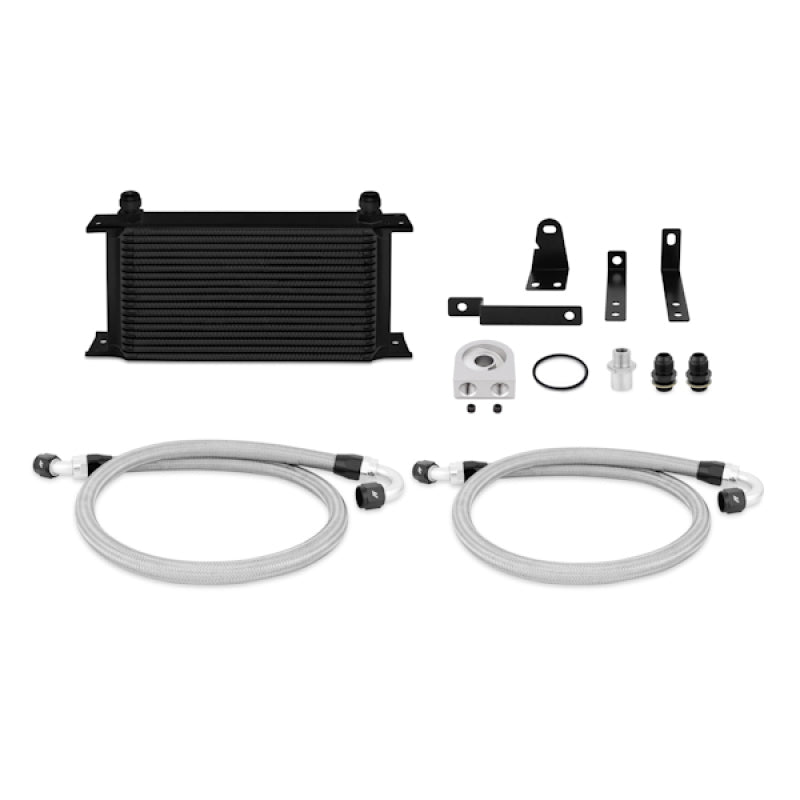

Whether you are carving corners with the top down or blasting down the drag strip, your high-revving S2000 needs a reliable and effective cooling system. Mishimoto is proud to release an all-new, direct-fit oil cooler kit engineered and designed specifically for the AP1 and AP2 Honda S2000. This kit utilizes a large 19-row oil cooler mounted in the front grill for optimum airflow and cooling capability. It includes preassembled stainless steel lines and S2000 specific mounting brackets for a painless and clean installation. The Mishimoto oil cooler kit increases overall oil capacity by .6 qt and significantly reduces temperatures while maintaining minimal pressure drop. This kit is available with a thermostatic sandwich plate for additional oil-temperature control, and your choice of a stealth black or silver cooler.
Features- Dramatic temperature drop
- Minimal pressure loss
- Direct fit for the Honda S2000
- Thermostatic option available
- This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
- Stealth black and sleek silver cooler options
- Lifetime Warranty
- .65 Quarts (0.615L) Increase in oil capacity
- F20C
- F22C
- AP1
- AP2

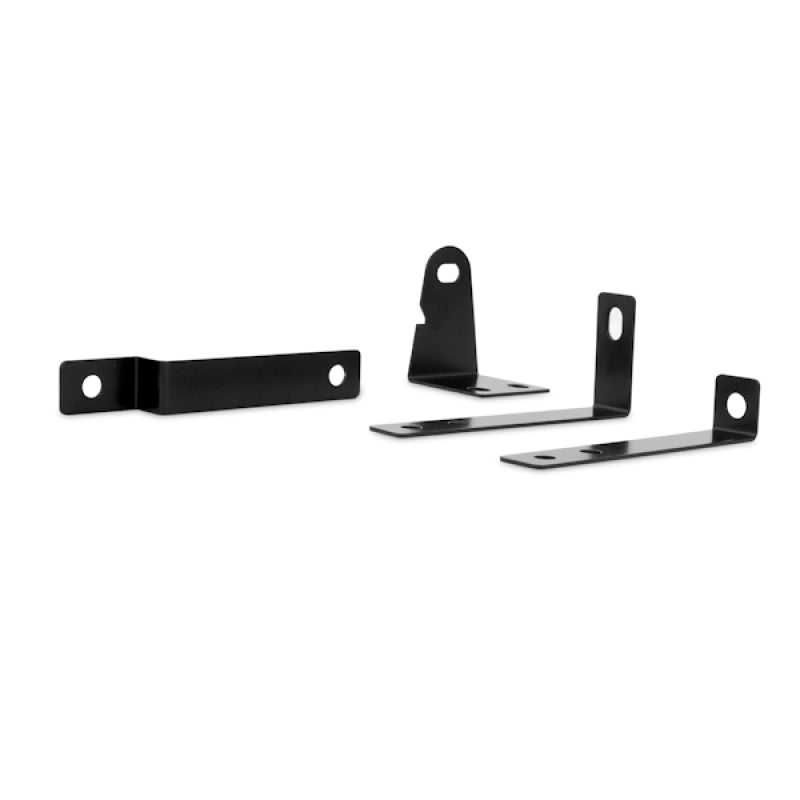

- (4) - Application Specific Mounting Brackets (Including Horn Relocation Bracket)

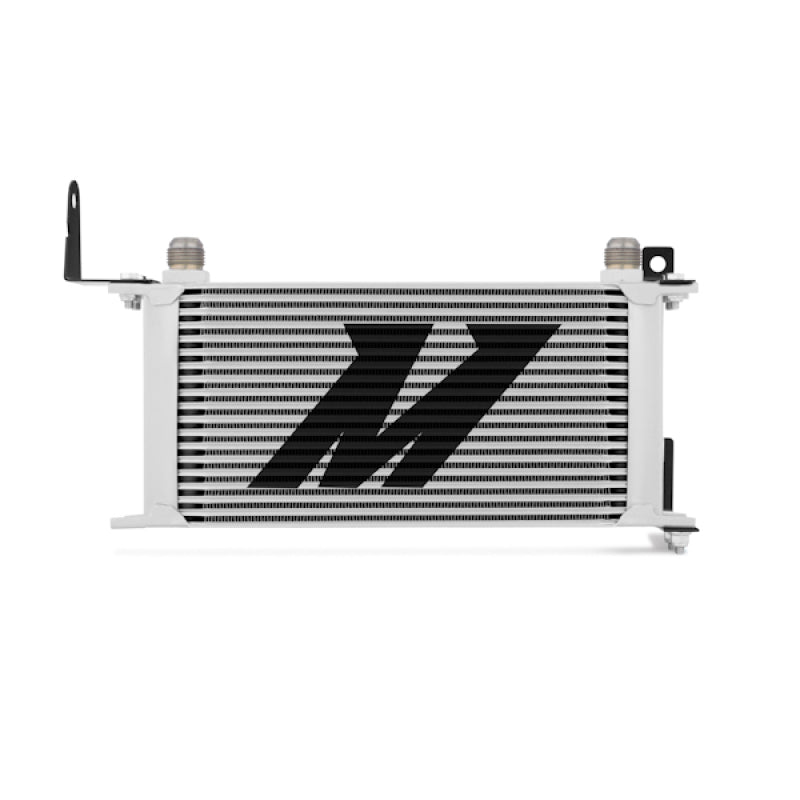

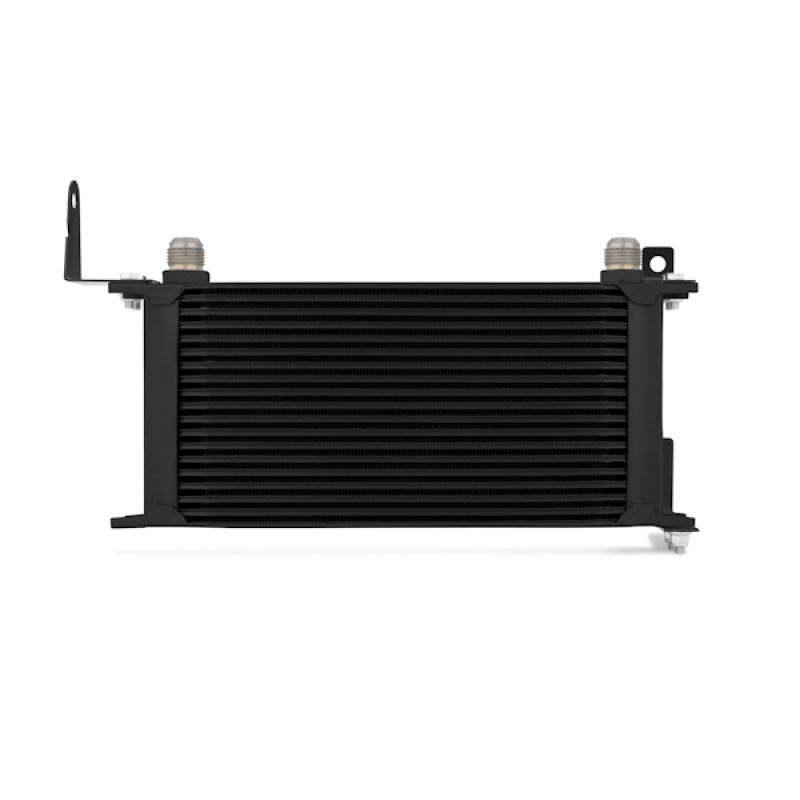

- (1) - 19 Row Oil Cooler (Silver or Black)
- (1) - 2ft, 11in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings
- (1) - 3ft, 8in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings

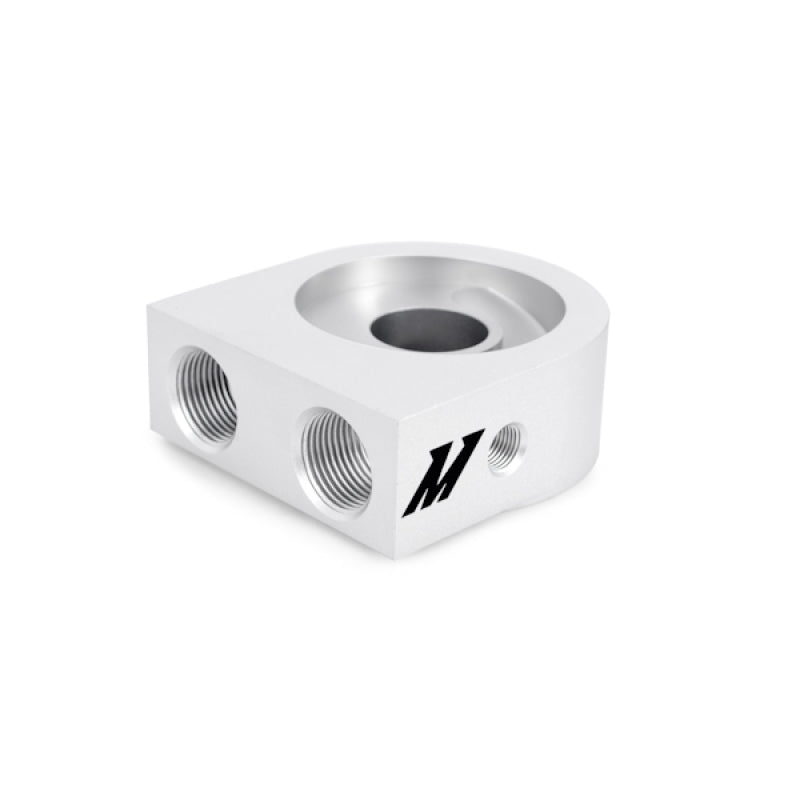

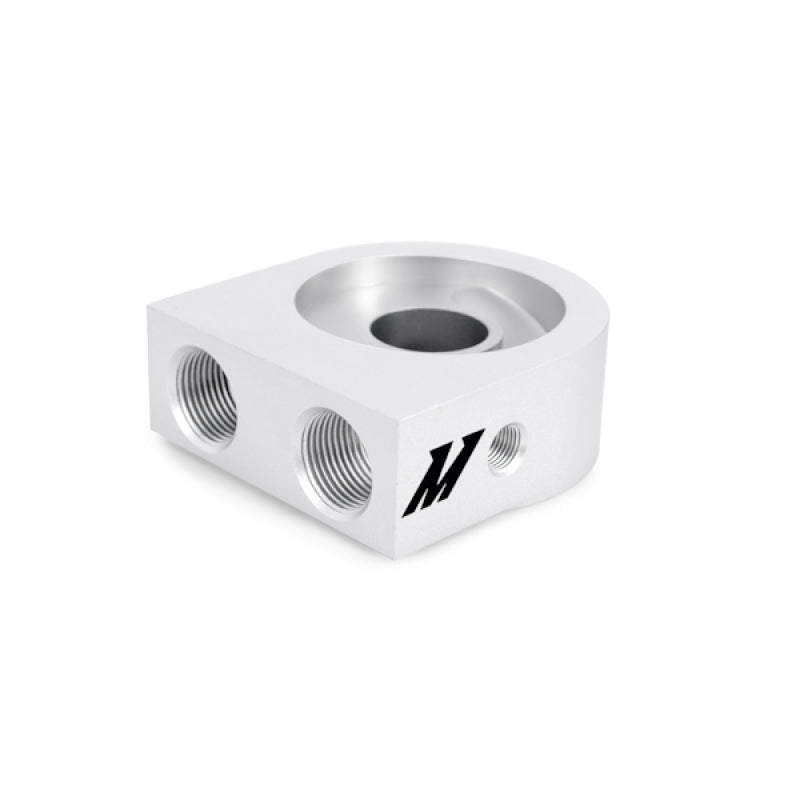

- (1) - M20 Thermostatic Sandwich Plate (Non-Thermostatic Available)

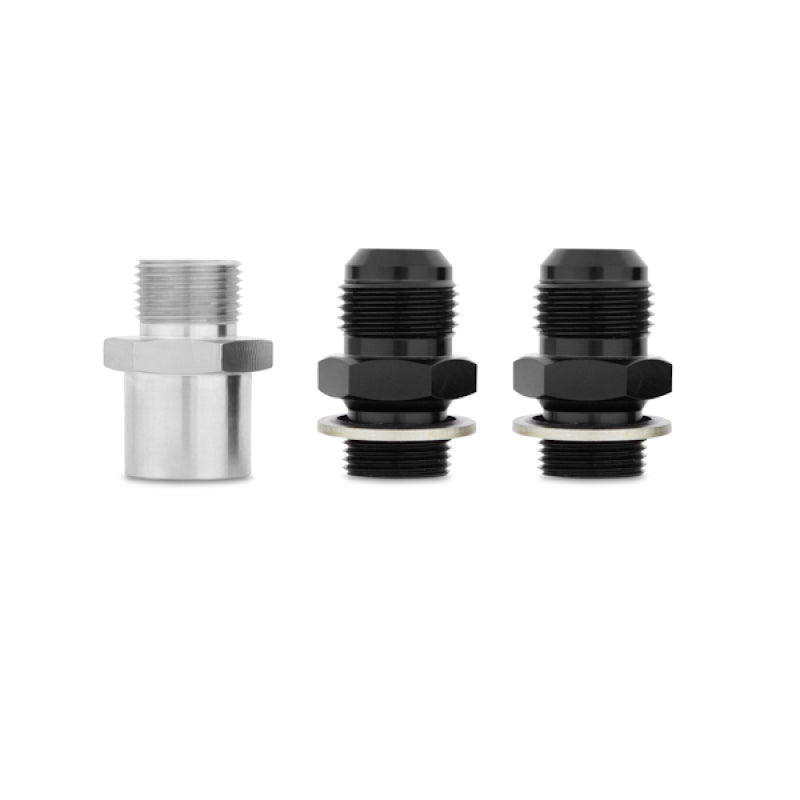

- (1) - M20 Stainless Steel Sandwich Plate Adapter
- (2) - M20 x -10AN Straight Fittings
- (1) - Mounting Hardware Set
INSTALLATION TORQUE SPECS15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019 - 2020 | Ford | Mustang | Bullitt, GT V8 |
| 2018 - 2021 | Ford | Mustang | EcoBoost, GT, GT Premium, EcoBoost Premium |
| 2021 | Ford | Mustang | Mach 1 |
| 2018 - 2020 | Ford | Mustang | Shelby GT350R, Shelby GT350 |
| 2020 - 2021 | Ford | Mustang | Shelby GT500 |
| 2018 | Ford | Mustang | V8 |
| 2000 - 2009 | Honda | S2000 | Base |
| 2008 - 2009 | Honda | S2000 | CR |
