Mishimoto Chevrolet Camaro Ss Oil Cooler Kit, 2010-2015

SKUMMOC-CSS-10

Material6061 Aluminum

Rows25

Fitting Size-10AN

Engine CodesLS3
L99

Install Torque SpecsRecommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.

CautionIt is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

Increase In Oil Capacity0.75 qt

Temp Difference40°F

Overall Height12.95"

Overall Length8.35"

Overall Width1.97"

Core Size11.0" x 7.32" x 1.97"

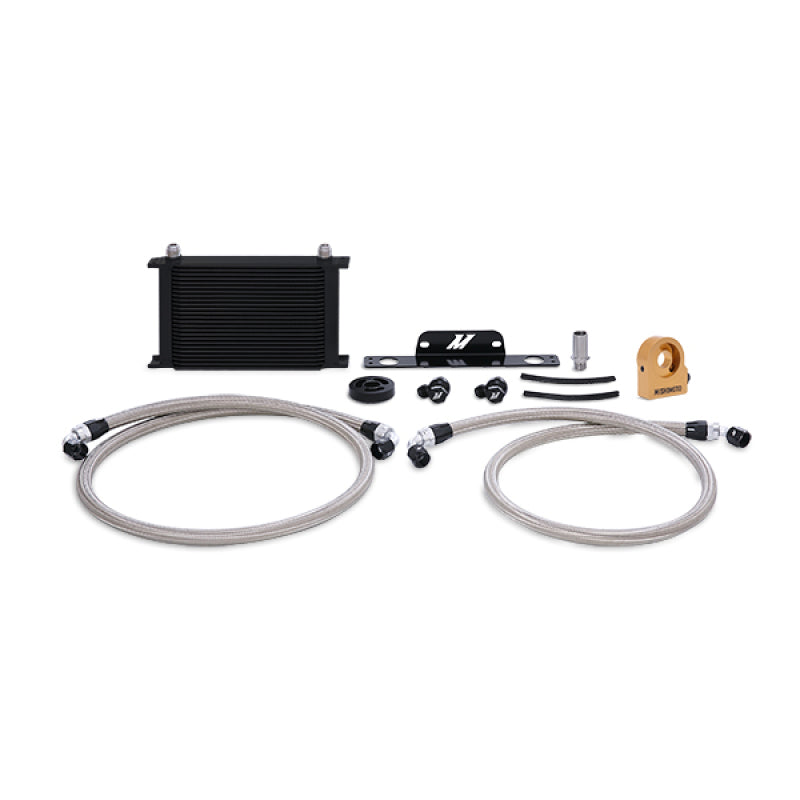

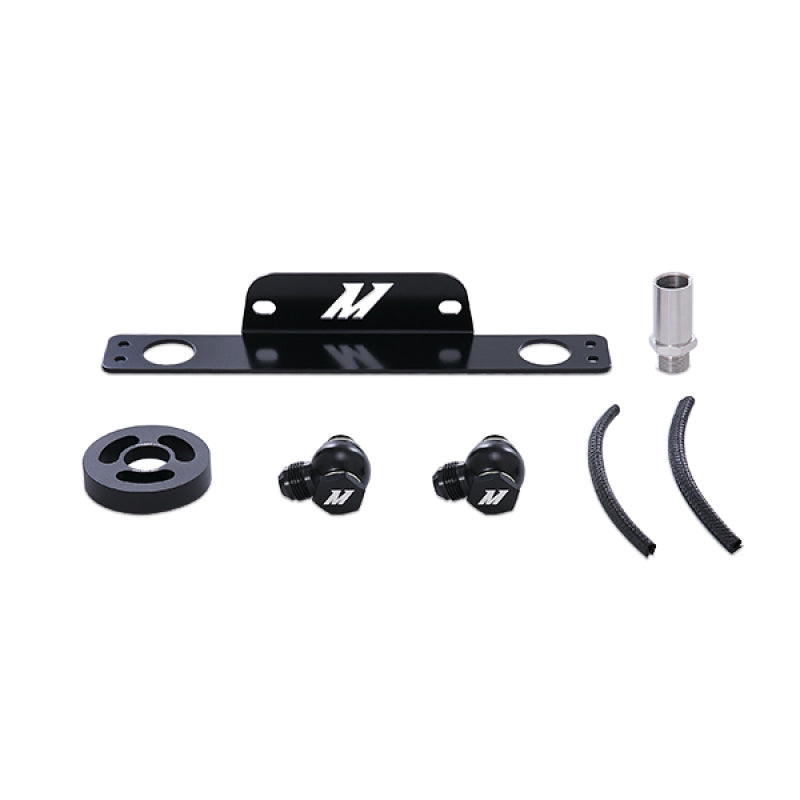

Purchase Includes(1) Application-Specific Mounting Bracket

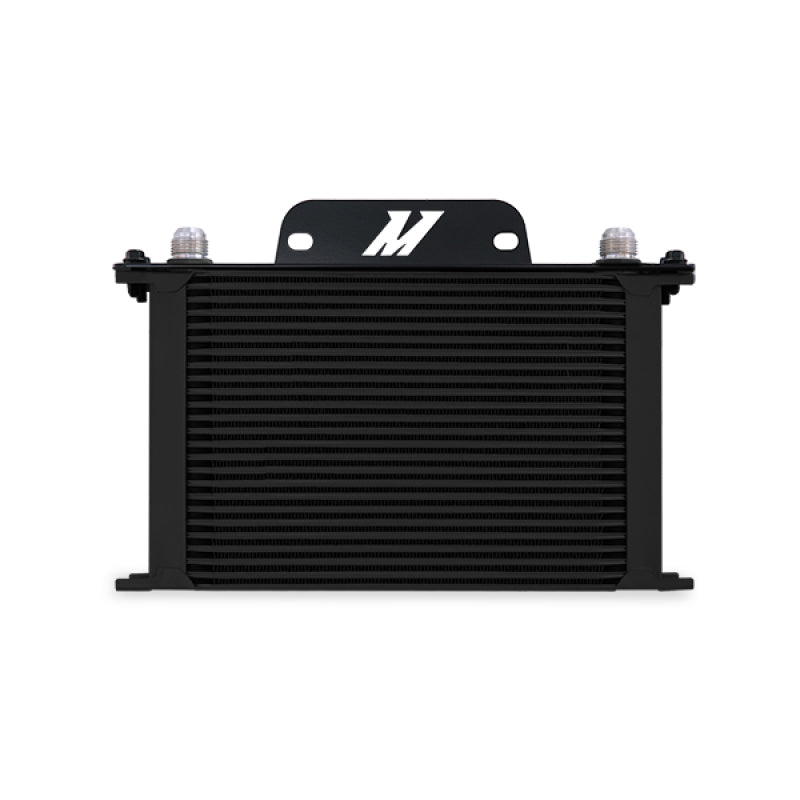

(1) 25-Row Oil Cooler (Sleek Silver or Stealth Black)

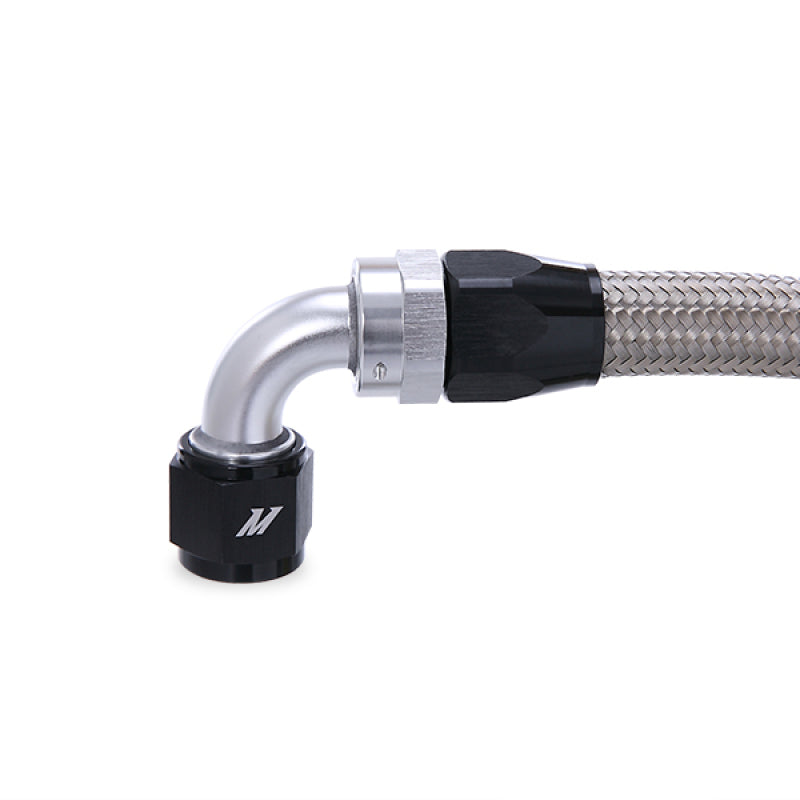

(1) 65" Stainless Steel Braided Hose with 90° -10AN Fittings
(1) 54" Stainless Steel Braided Hose with 90° & 45° -10AN Fittings
(2) Banjo Fittings with Bolt M20 x -10AN + Dowty Seals, Black
(1) M22 Oil Sandwich Plate (Thermostatic or Non-Thermostatic)
(1) CNC Sandwich Plate Spacer, M22, 15mm
(1) Stainless Steel Sandwich Plate Adapter, M22, 15mm
Mishimoto Lifetime Warranty

Braided HosesTrue
