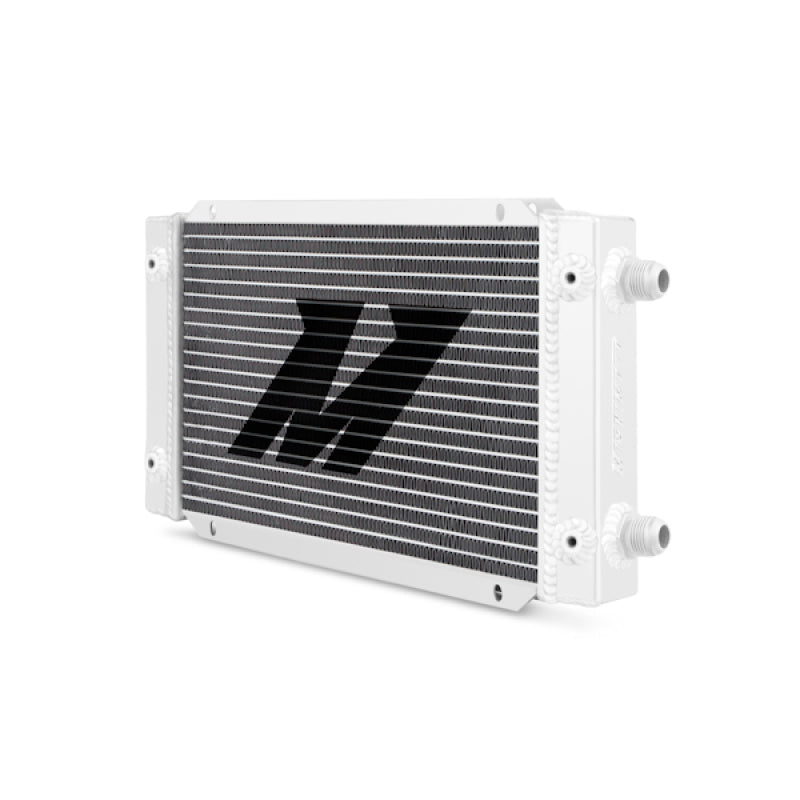

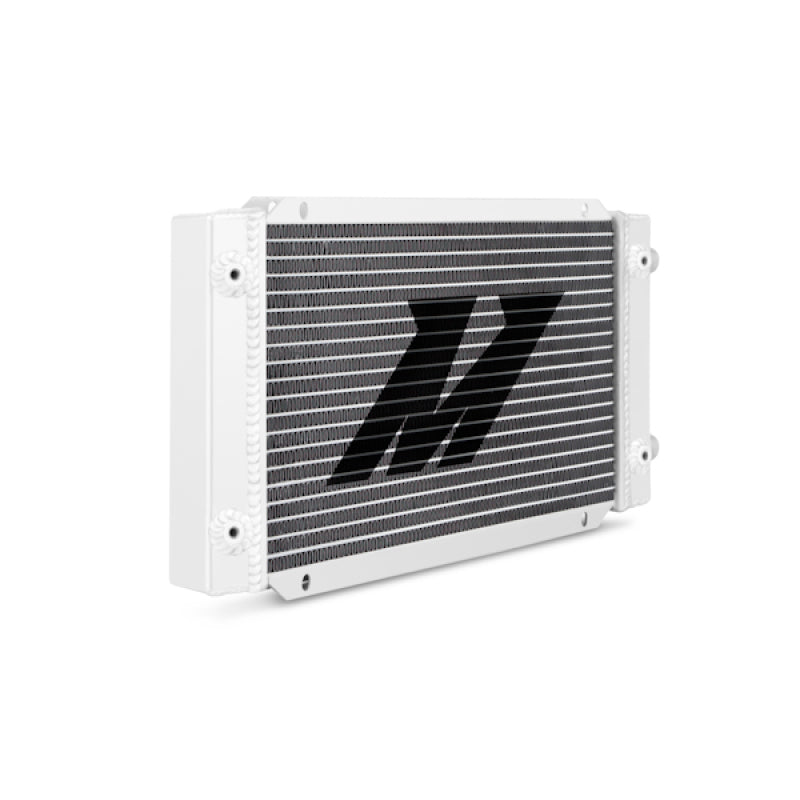

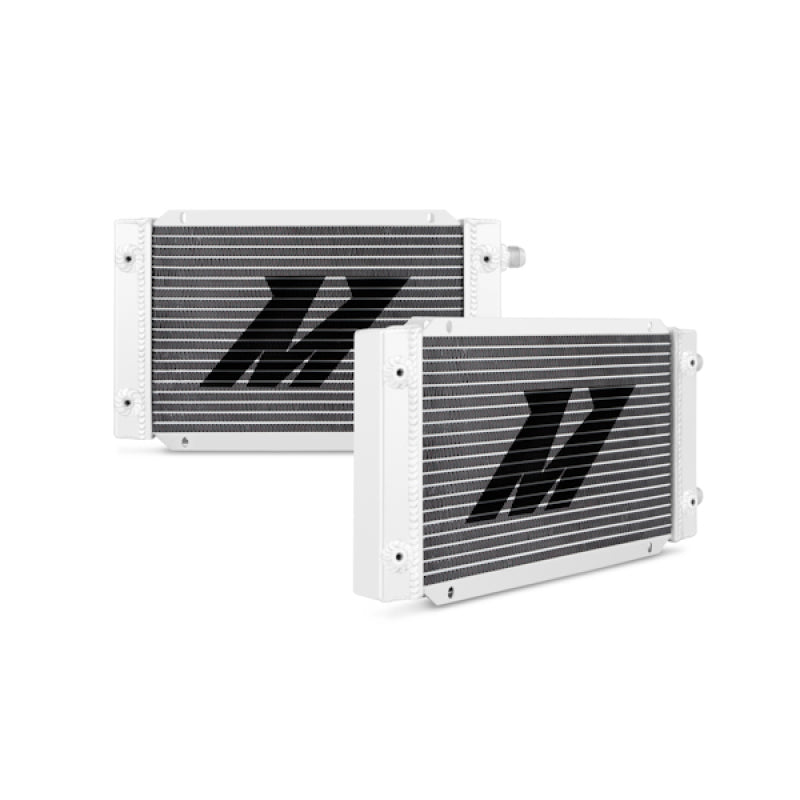

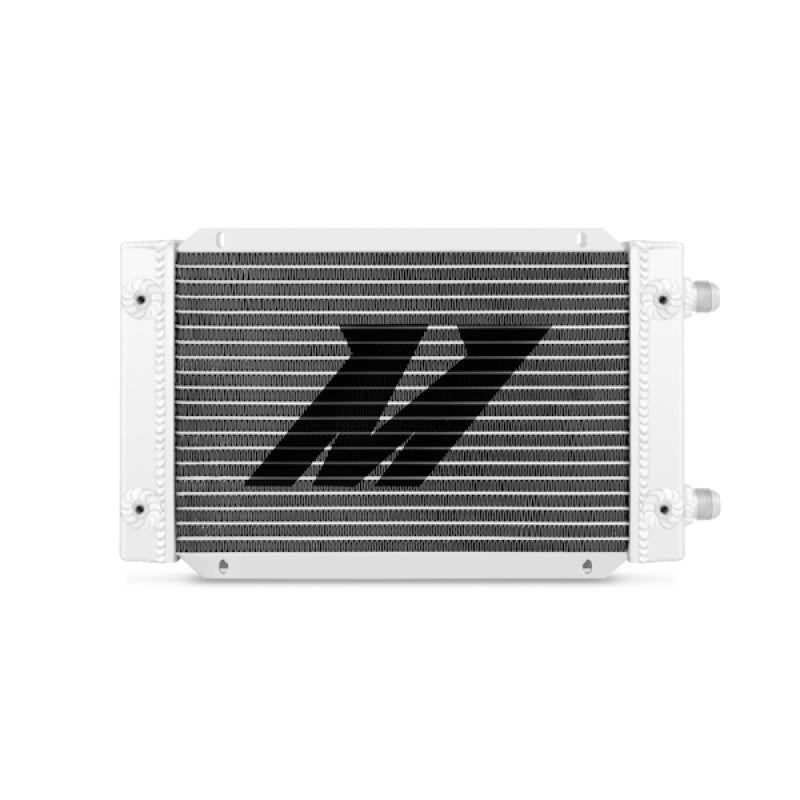

Mishimoto Oil Cooler - Universal 19 Row Dual Pass
Mishimoto has developed a brand new Universal Dual Pass Fluid Cooler for enthusiasts that demand the most from their vehicles. Keeping oil temperatures in control is crucial for a successful day at the track, street or strip. High engine oil temperatures can promote engine wear and lead to serious internal engine damage. The Mishimoto Dual Pass Cooler is constructed from high pressure internal tubes rated to 120psi and is built to handle the most extreme conditions.The Mishimoto Dual Pass Cooler offers an extremely large surface cooling area thanks to 8mm external fins so you can concentrate more on driving and less on temperatures. These coolers also possess the ability to cool all of your automotive fluids such as transmission and power steering fluid.
Features- High pressure internal tubes tested to 120PSI
- Dual pass design provides significant fluid temperature decrease
- Large core surface area and substantial fluid capacity improves cooling efficiency
- -10AN inlet and outlet for robust fluid line connections
- Suitable for all engine and drive-line fluids
- Four threaded mounting points
- TIG-welded end tanks provide superior durability
- 14.80" x 8.27" x 1.77" Overall Size
- 11.81" x 7.80" Core
- 19, dual pass Rows
- -10AN Inlet
- -10AN outlet
- 1.42" Core thickness
- Tube & fin w/ cut & weld end tanks Construction
- 0.79 Quarts (0.75L) Fluid capacity
- Mishimoto Oil Cooler
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018 - 2021 | Ford | Mustang | EcoBoost Premium, EcoBoost, GT, GT Premium |
| 2019 - 2020 | Ford | Mustang | GT V8, Bullitt |
| 2021 | Ford | Mustang | Mach 1 |
| 2018 - 2020 | Ford | Mustang | Shelby GT350R, Shelby GT350 |
| 2020 - 2021 | Ford | Mustang | Shelby GT500 |
| 2018 | Ford | Mustang | V8 |
