Mishimoto Dodge 6.7L Cummins Intercooler, 2013+

The Dodge Cummins straight-six is well known for its smooth power delivery and engine longevity. Mishimoto has released an intercooler for the 20132018 Dodge Ram 6.7L Cummins that is built to last, just like your truck. The Mishimoto Cummins intercooler is manufactured with robust cast aluminum end tanks and a dense bar-and-plate core. Our engineers developed an intercooler with increased core volume that can support substantial boost pressures in your stock or modified truck.

The Mishimoto 20132018 Dodge Ram 6.7L Cummins performance intercooler is manufactured with robust cast aluminum outlets for increased flow. Included with this intercooler are two silicone boots with DuraCore" technology and our signature Constant Tension T-bolt Clamps for consistent and reliable holding power. Mishimoto DuraCore" technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore" provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.

Save time and money by upgrading to the full Mishimoto 20132018 Dodge Ram 6.7L Cummins intercooler and piping kit, which pairs this intercooler with the Mishimoto 20132018 Dodge Ram 6.7L Cummins pipe and boot kit, at a special discounted price. Whether your 2013+ Dodge Ram 6.7L Cummins is stock or modified, trust Mishimoto and our line of Cummins performance parts to keep your Dodge cool.

Features

• Direct fit for the 20132018 Dodge Ram 6.7L Cummins
• Bar-and-plate construction with cast aluminum end tanks
• Lowers AITs by 12.5%
• 76.65% increase in external fin surface area
• 37.8% larger core volume than factory
• Includes new air ducts to divert air into the core & new lower fan shroud section
• End tanks strategically designed for optimal airflow
• Internal fins designed for maximum heat transfer with minimal pressure drop
• Includes transition couplers for use with the stock intercooler pipes
• Sleek Silver or Stealth Black intercooler options available

Installation Torque Specs

27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

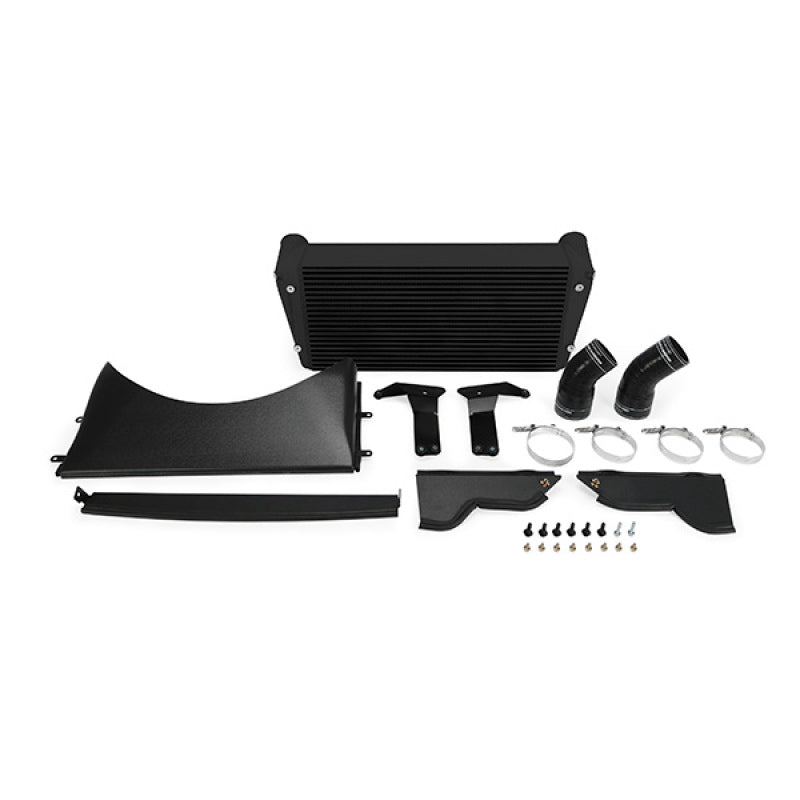

Purchase Includes

(1) Mishimoto Intercooler
(3) Front Air Diversion Panels
(1) Replacement Lower Fan Shroud
(2) Mounting Brackets w/ Rubber Isolators
(2) Silicone Boots with Duracore" Technology
(4) Constant Tension T-Bolt Clamps

Note: Vehicles with snow plow mounts installed may require trimming of the mounts in order to fit this intercooler.

Fits: 20132018 Dodge Ram 6.7L Cummins

Tank Wall Thickness: 4 mm

Outlet: 3.0"

Core Length: 25.7"

Core Height: 12.5"

Core Width: 5.0"

Inlet: 3.0"

Overall Width: 10.0"

Overall Height: 12.5"

Overall Length: 33.0"

Make: Dodge

Vehicle Fitments:
