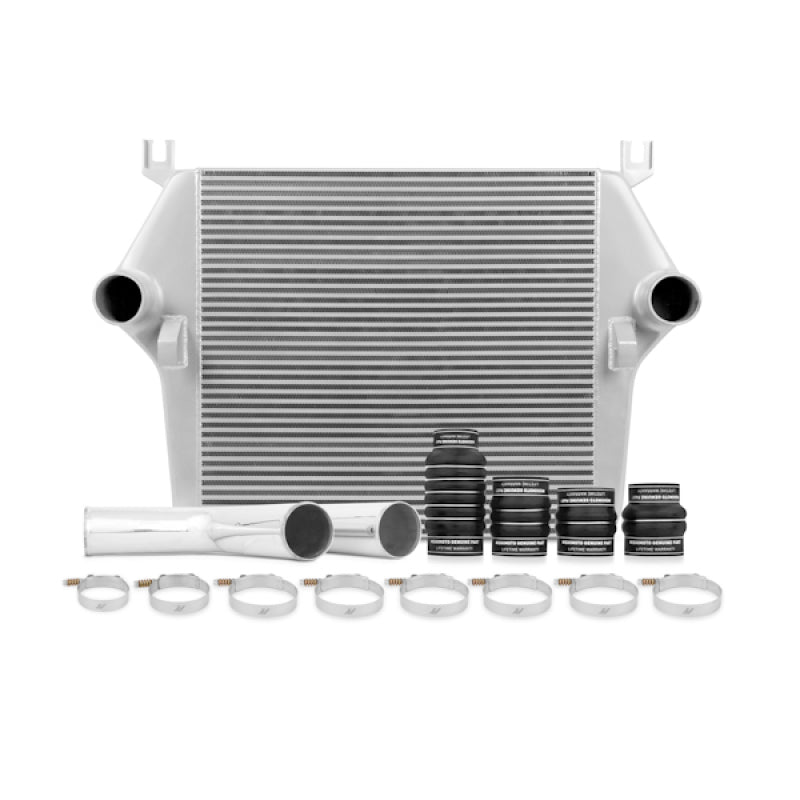

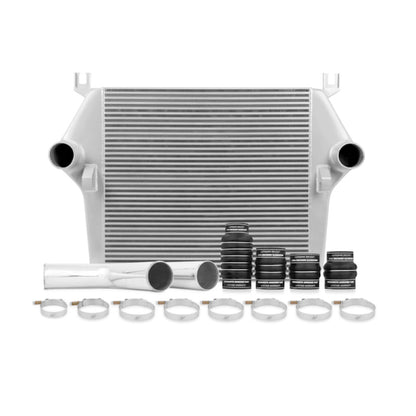

Mishimoto Intercooler Kit - Silver 2003-2007 Dodge 5.9L Cummins
Mishimoto is proud to announce a new Dodge Ram performance intercooler kit for the 2003-2007 Dodge 5.9L Cummins. This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, reduce EGTs, and support your truck at any power level. The first key component is the Mishimoto intercooler piping; our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. These Cummins performance pipes are constructed of-mandrel bent 3.5" aluminum polished to a mirror finish. This kit includes other Cummins performance parts, including Mishimoto silicone boots with DuraCoreT technology and constant-tension T-bolt clamps for accurate and consistent holding force. Mishimoto DuraCoreT technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCoreT provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler featuring extremely durable cast aluminum end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. This Dodge Ram performance intercooler Features an increase in core volume and reduces pressure drop, which results in an overall increase in engine efficiency. All the components in this kit are engineered to last, just like your truck. Offered with either a black or silver core.
Features- Direct fit for the 2003-2007 Dodge 5.9L Cummins

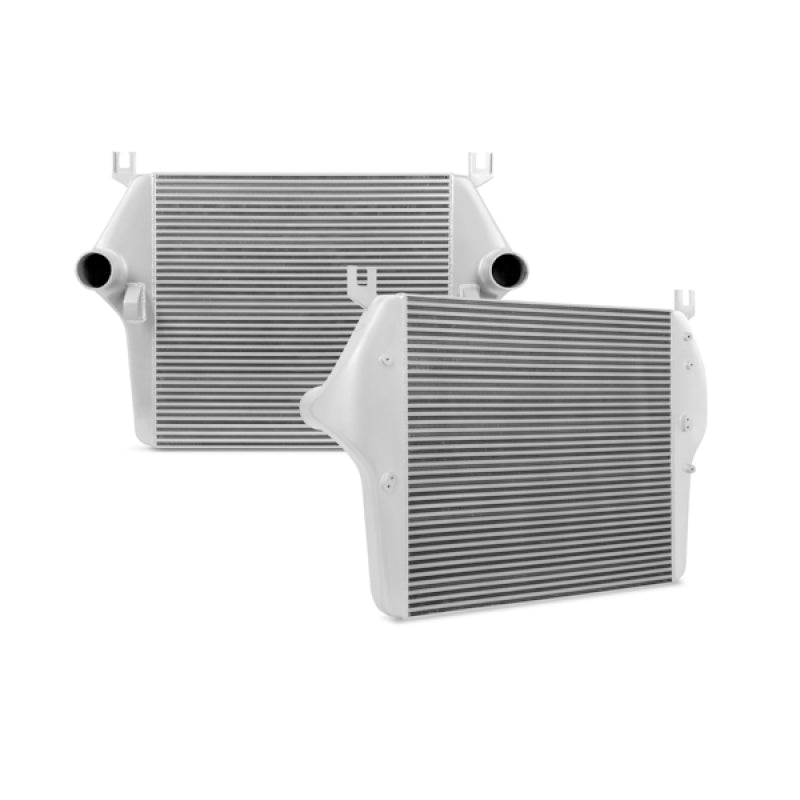

- Bar-and-plate construction with cast aluminum end tanks

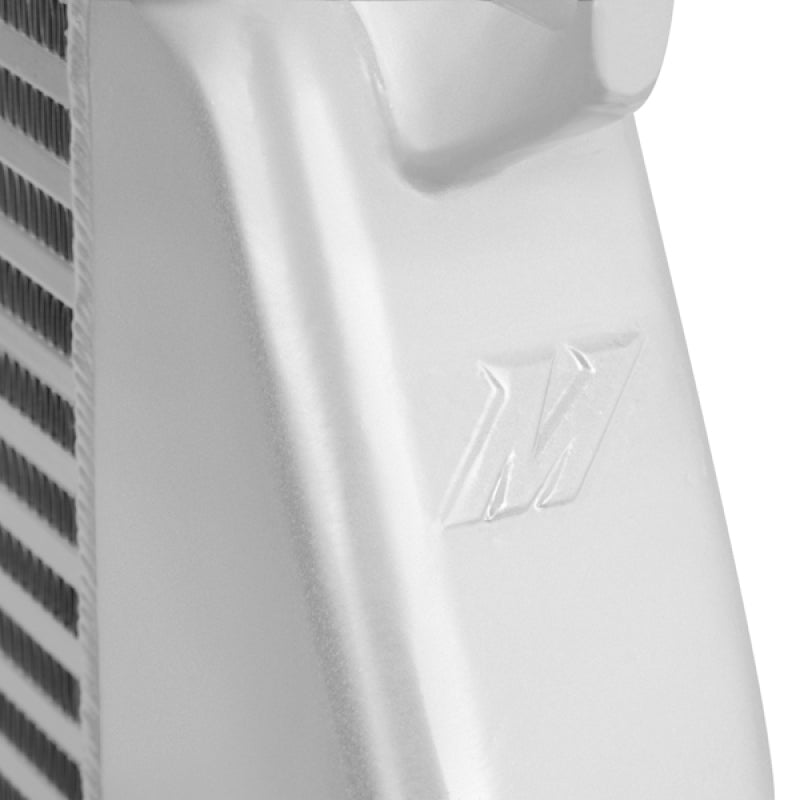

- End tanks strategically designed for optimal airflow
- Mandrel-bent polished aluminum intercooler pipes
- Improves airflow, power, and EGTs
- Mandrel-bent polished aluminum pipe eliminates restrictive bends

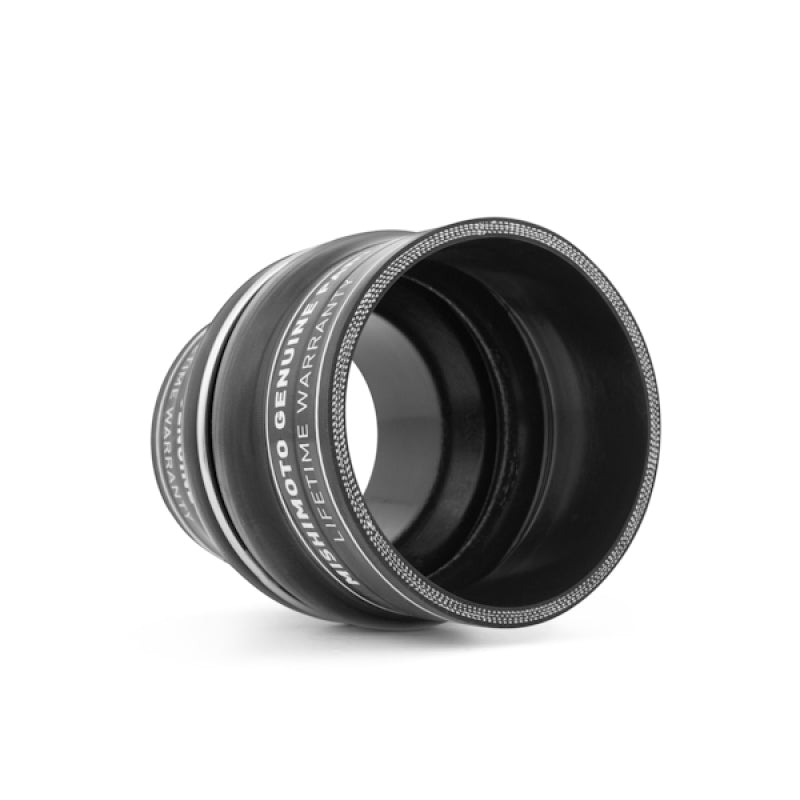

- DuraCoreT technology provides superior resistance to heat, pressure, fuel, and oil
- Mishimoto Constant-Tension T-bolt Clamps
- Sleek Silver or Stealth Black intercooler options available
- Bar/Plate Intercooler Construction
- Aluminum Pipes Construction Polished Aluminum
- 40.3" x 27.6" x 6.2" Overall Size
- 27.36" x 25.57" Core Size
- 3.50" (89mm) Inlet
- 3.50" (89mm) Outlet
- 4mm Tank Wall Thickness
- 3.5" Diameter
- (1) Mishimoto Intercooler
- (2) AC Condenser Brackets
- (7) M6 x 1.0 x 16mm Bolts
- (4) M6 x 1.0 x 10mm Bolts and Washers
- 1994-1998 Ram 2500 (5.9L 12V)
- 1994-1998 Ram 3500 (5.9L 12V)
- 1998-2002 Ram 2500 (5.9L 24V)
- 1998-2002 Ram 3500 (5.9L 24V)
- Boot 1: 2.72", 3.50"
- Boot 2: 3.50"
- Boot 3: 3.50"
- Boot 4: 3.00", 3.50"
- 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
These clamps have an operating range of 18-35 in-lbs (2-4N*M).
Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
- 2 (1) 3.0" Constant Tension T-Bolt Clamp
- (1) 3.25" Constant Tension T-Bolt Clamp
- (6) 4.0" Constant Tension T-Bolt Clamps
- 2003-2007 Dodge Ram 2500 w/ 5.9L Cummins
- 2003-2007 Dodge Ram 3500 w/ 5.9L Cummins
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2003 | Dodge | Ram 1500 | ST, Laramie, SLT |
2009 | Dodge | Ram 2500 | Crew |
2006 - 2010 | Dodge | Ram 2500 | Power Wagon |
2008 | Dodge | Ram 2500 | SLT Big Horn |
2005 | Dodge | Ram 2500 | SLT Daytona |
2006 | Dodge | Ram 2500 | SLT Night Runner Sport |
2006 - 2008 | Dodge | Ram 2500 | SLT Sport |
2003 - 2010 | Dodge | Ram 2500 | ST, Laramie, SLT |
2008 - 2010 | Dodge | Ram 2500 | SXT |
2010 | Dodge | Ram 2500 | TRX |
2006 - 2007 | Dodge | Ram 2500 | TRX4, Sport |
2006 - 2007 | Dodge | Ram 3500 | Sport |
2003 - 2010 | Dodge | Ram 3500 | ST, Laramie, SLT |
2008 - 2010 | Dodge | Ram 3500 | SXT |
2007 | Dodge | Ram 3500 | TRX4 |
