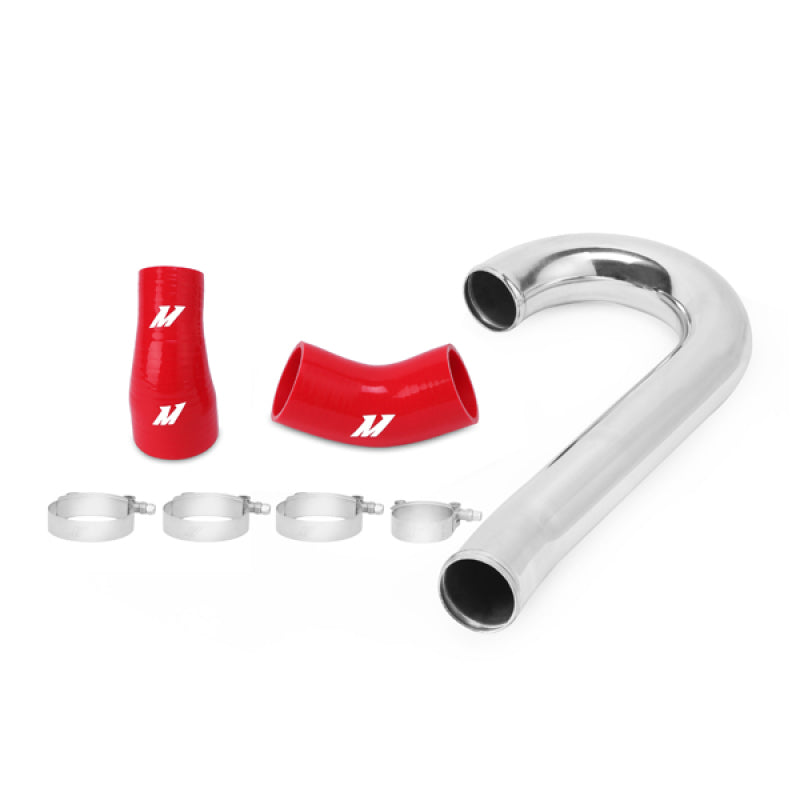

Mishimoto Lower Intercooler Pipe Kit Red 01-07 Mitsubishi Lancer Evo. 7/8/9
Improve airflow and turbo spool with Mishimoto mandrel bent aluminum intercooler pipes for the Mitsubishi Lancer Evolution 7/8/9. These pipe kits are designed with high-horsepower vehicles in mind and feature bead-rolled pipe ends for prevention of leaks and coupler disconnection. This Mishimoto Evo Intercooler Pipe Kit features silicone couplers that provide increased heat and pressure tolerance compared to the stock rubber counterparts. Whether you have a daily driven Evolution or a stripped and caged time attack car, airflow efficiency is key to optimizing your charge air system. These Mishimoto Evo intercooler pipes are available for purchase separately or as a kit.
Features- Direct fit for the Mitsubishi Lancer Evolution 7/8/9
- Lightweight, mandrel bent, polished aluminum pipes
- Eliminates restrictive bends found in the stock piping, providing more efficient airflow
- Improves turbocharger spool and provides support for high-horsepower vehicles
- Bead-rolled ends to prevent boost leaks and coupler disconnection
- Black, blue, or red silicone couplers provide increased heat and pressure tolerance

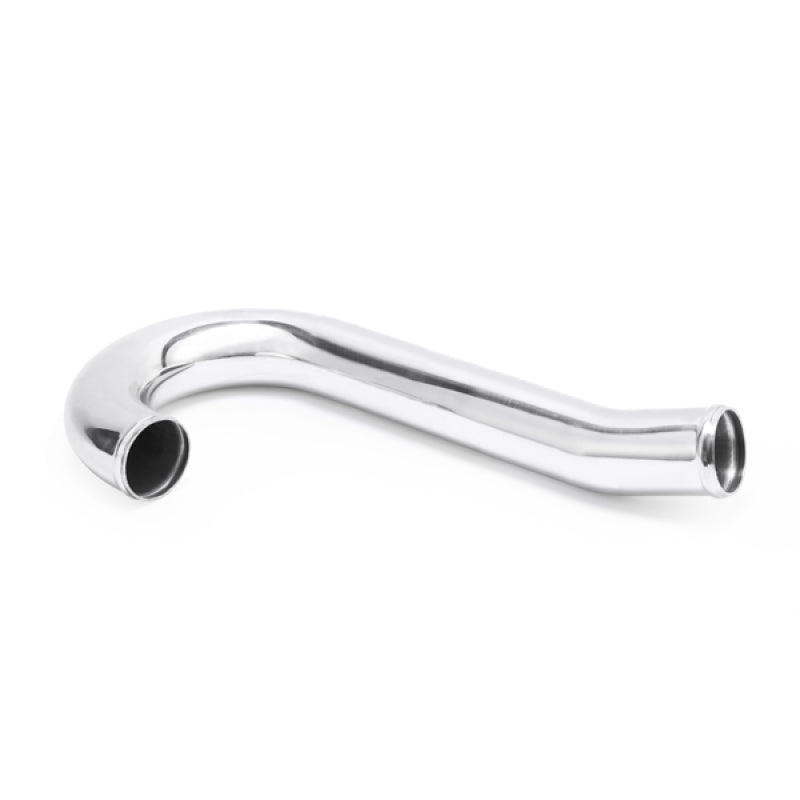

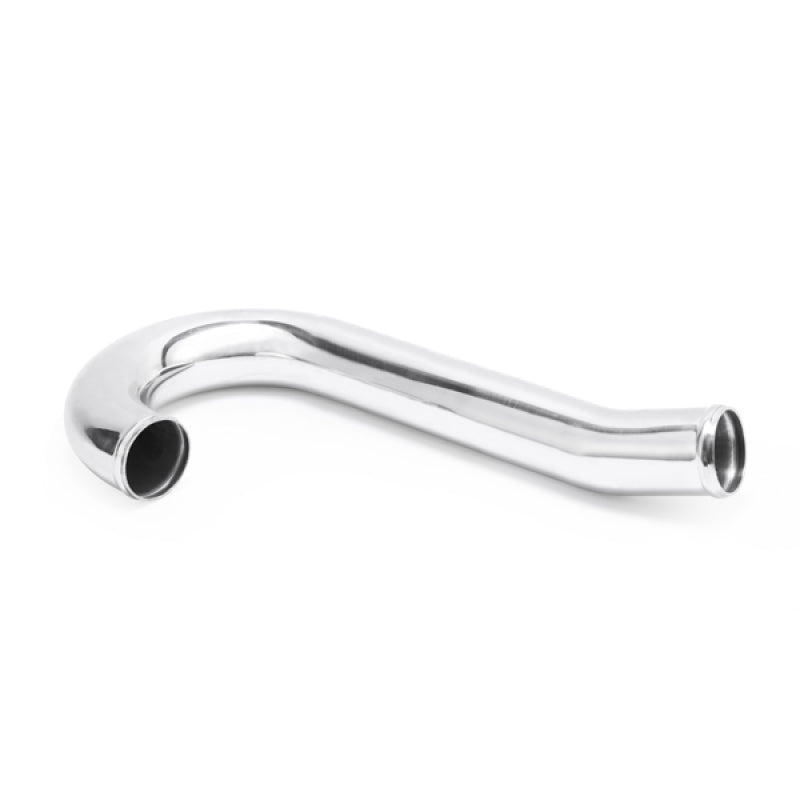

- Polished Aluminum Pipe Construction
- I.D. - 2.375"
- O.D. - 2.50"

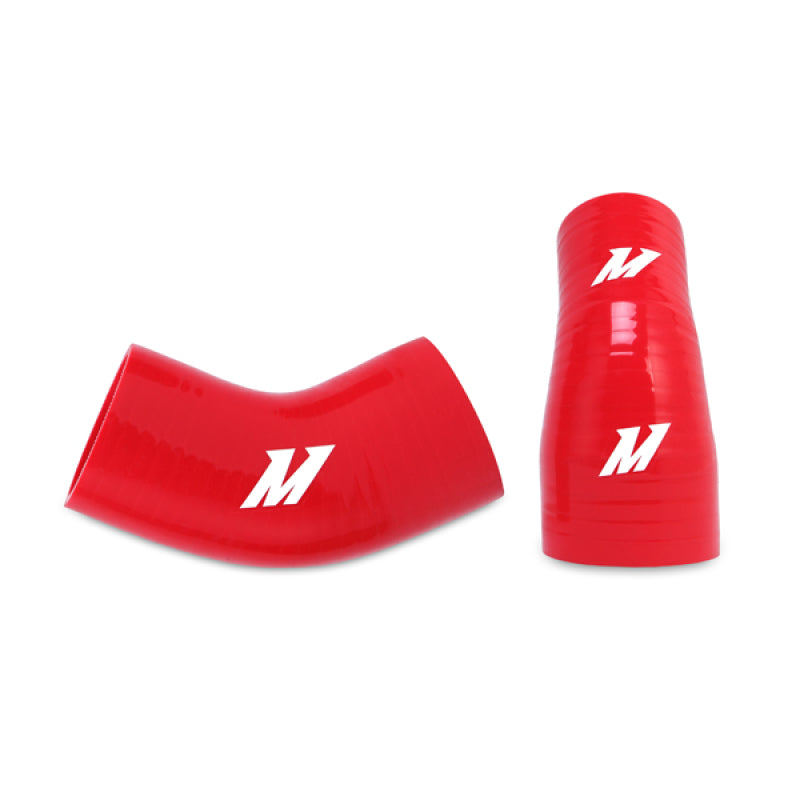

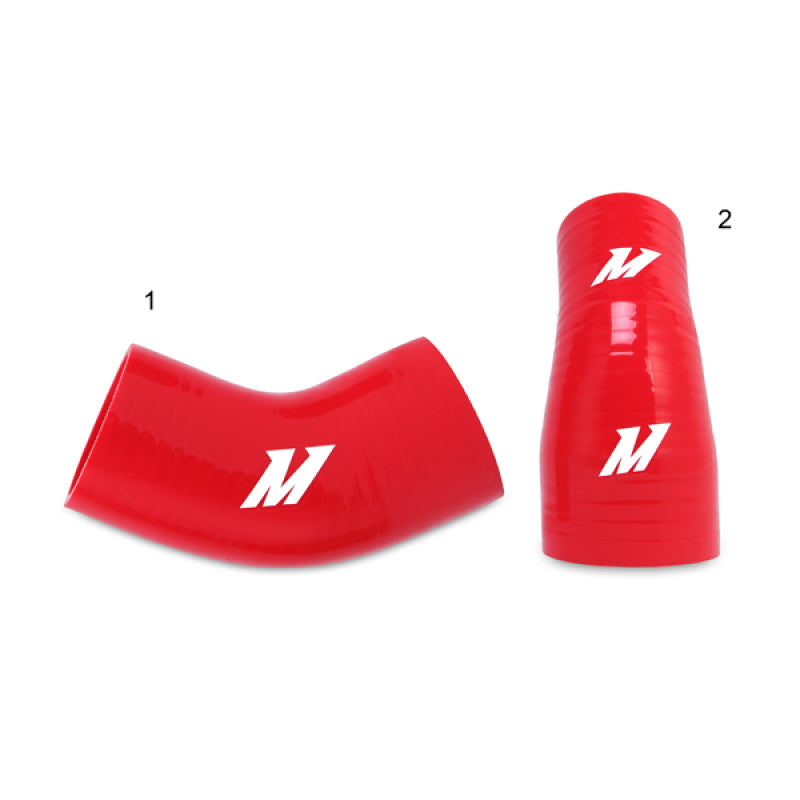

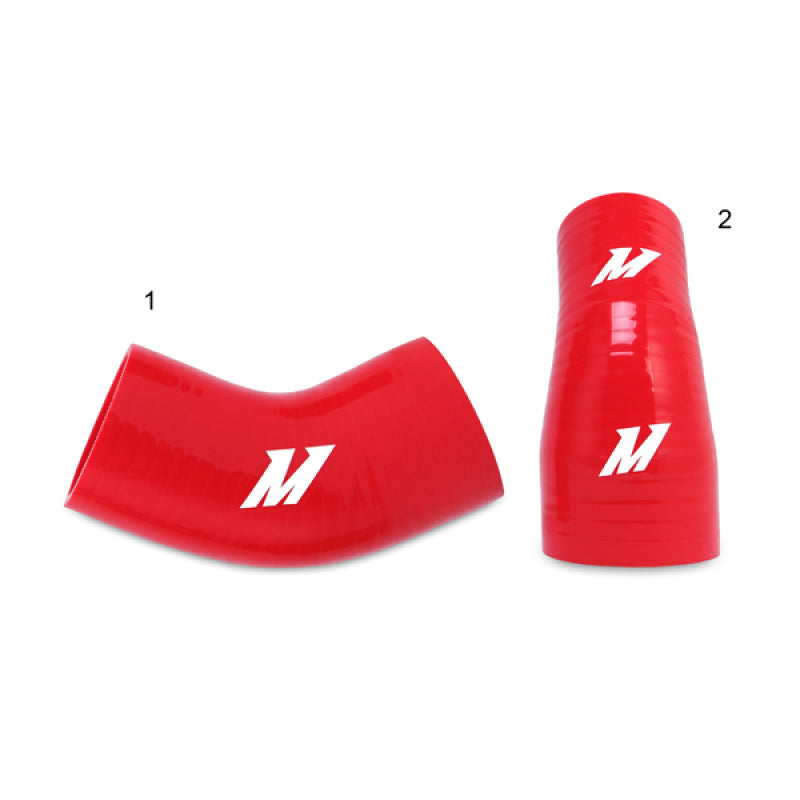

- Coupler 1: I.D. - 2.83" / 2.44" / O.D. - 3.00" / 2.83"
- Coupler 2: I.D. - 2.44" / O.D. - 2.83"
- Coupler 3: I.D. - 2.44" / O.D. - 2.83"
- 5 - 2.75" T-bolt Clamps
- 1 - 3" T-bolt Clamp
- 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
These clamps have an operating range of 18-35 in-lbs (2-4N*M).
Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
- 01-07 Lancer Evolution 7/8/9 GSR
- 05-07 Lancer Evolution 8/9 MR
- I.D. - 2.375"
- O.D. - 2.50"
- Coupler 1: I.D. - 1.73" / 2.44" / O.D. - 2.125" / 2.83"
- Coupler 2: I.D. - 2.44" / O.D. - 2.83"
- 3 - 2.75" T-bolt Clamps
- 1 - 2" T-bolt Clamp
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2016 | Mitsubishi | Lancer | DE |
| 2003 - 2017 | Mitsubishi | Lancer | ES |
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2003 - 2014 | Mitsubishi | Lancer | Evolution |
| 2008 - 2015 | Mitsubishi | Lancer | Evolution GSR |
| 2005 - 2015 | Mitsubishi | Lancer | Evolution MR |
| 2010 - 2011 | Mitsubishi | Lancer | Evolution MR Touring, Ralliart Sportback, GTS Sportback |
| 2005 - 2009 | Mitsubishi | Lancer | Evolution RS |
| 2006 - 2010 | Mitsubishi | Lancer | Evolution SE |
| 2011 - 2016 | Mitsubishi | Lancer | GT |
| 2008 - 2017 | Mitsubishi | Lancer | GTS |
| 2014 | Mitsubishi | Lancer | Limited Edition |
| 2003 - 2007 | Mitsubishi | Lancer | LS |
| 2005 - 2007 | Mitsubishi | Lancer | LS Diamond |
| 2003 - 2006 | Mitsubishi | Lancer | OZ Rally |
| 2004 - 2015 | Mitsubishi | Lancer | Ralliart |
| 2006 - 2017 | Mitsubishi | Lancer | SE |
| 2015 - 2017 | Mitsubishi | Lancer | SE Limited Edition |
| 2015 | Mitsubishi | Lancer | SE Limited Edition Sportback, Evolution Final Edition |
| 2011 - 2015 | Mitsubishi | Lancer | SE Sportback, GT Sportback |
| 2016 - 2017 | Mitsubishi | Lancer | SEL |
| 2009 | Mitsubishi | Lancer | Special Edition |
| 2004 | Mitsubishi | Lancer | Sportback, Sportback Ralliart |
Mishimoto Lower Intercooler Pipe Kit Red 01-07 Mitsubishi Lancer Evo. 7/8/9
Sale price$226.51 USD
Regular price$271.12 USD
