Mishimoto Chevrolet Camaro 2.0T 2016+/Cadillac Ats 2013+ Intercooler Pipe Kit
- Direct fit for the 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS 2.0T
- Dyno-proven maximum gains up to 11 whp and 9 wtq on a stock tune
- 30% greater internal volume than stock
- 10% increase in flow
- Aluminum intercooler pipes replace weak stock plastic and rubber pipes
- Utilizes stock quick-disconnect fittings for easy installation
- Mandrel-bent aluminum piping
- CNC-machined port for stock sensor connection
- Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
- Available in polished and wrinkle black
- Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps
- Available in polished and wrinkle black
- Mishimoto Lifetime Warranty
Installation Torque Specs27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

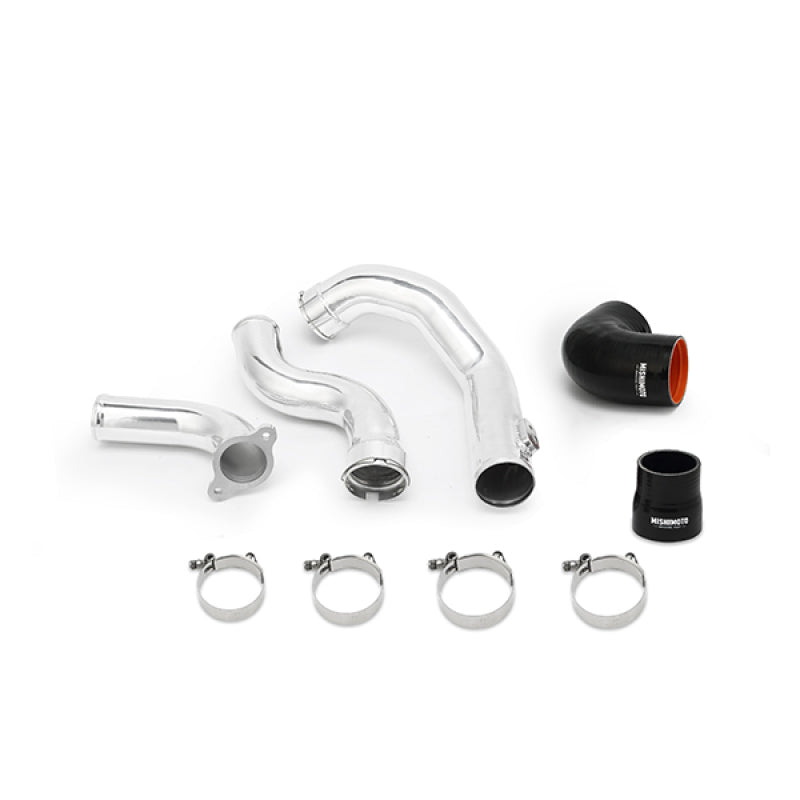

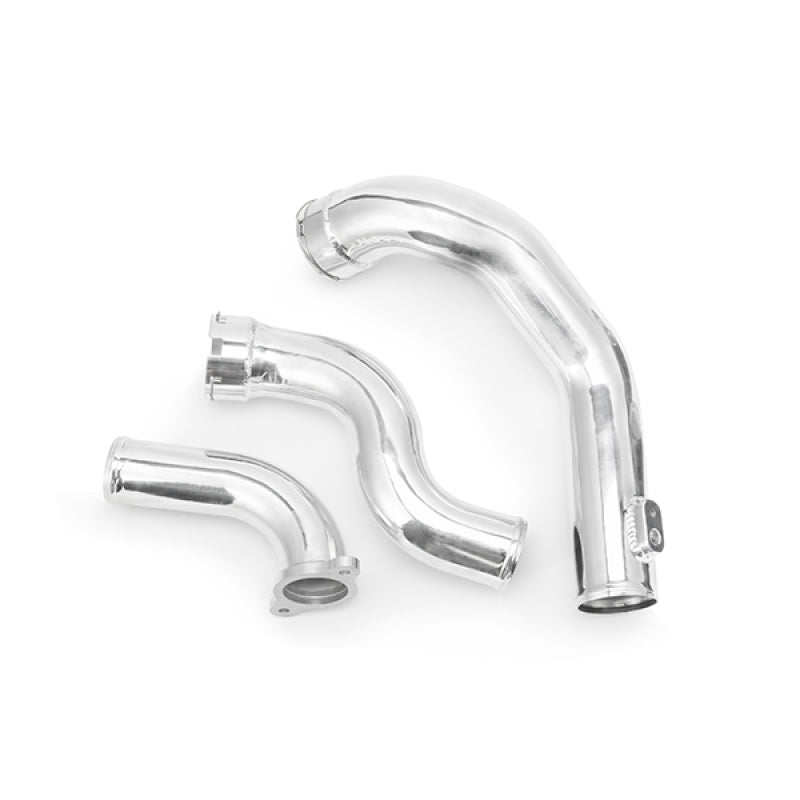

Purchase Includes(2) Aluminum Pipes w/ CNC-machined quick-disconnects
(1) Aluminum Pipe w/ CNC-machined 2-bolt flange
(2) Quick-Disconnect Spring Clips

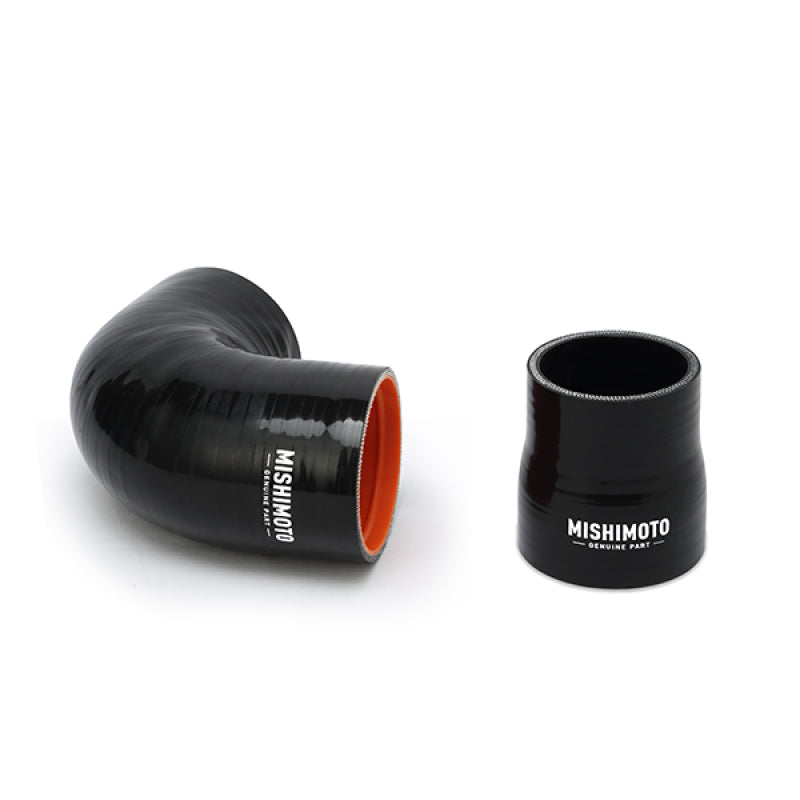

(1) 2.75" 90° Silicone Coupler
(1) 2.25" to 2.5" Silicone Transition Coupler
(1) 2.5" T-Bolt Clamp
(1) 2.75" T-Bolt Clamp
(2) 3" T-Bolt Clamps
Mishimoto Lifetime Warranty
NoteThere is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
Pipe Diameter2.25"/2.5"/2.75"
Constant Tension T-Bolt Clamps Specs(1) 2.5" T-Bolt Clamp
(1) 2.75" T-Bolt Clamp
(2) 3" T-Bolt Clamps
Engine CodesLTG
Chassis CodesAlpha
Fits2016+ Chevrolet Camaro 2.0T
2013+ Cadillac ATS 2.0T
MakeChevrolet/Cadillac
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018 - 2019 | Cadillac | ATS | Coupe, Premium Performance |
| 2013 - 2019 | Cadillac | ATS | Luxury, Base |
| 2017 - 2019 | Cadillac | ATS | Premium Luxury |
| 2013 - 2014 | Cadillac | ATS | Premium Sport |
| 2013 - 2017 | Cadillac | ATS | Premium, Performance |
| 2016 - 2019 | Cadillac | ATS | V |
| 2017 - 2020 | Chevrolet | Camaro | LS, ZL1 |
| 2020 | Chevrolet | Camaro | LT1 |
| 2016 - 2019 | Chevrolet | Camaro | RS |
| 2016 - 2020 | Chevrolet | Camaro | SS, LT |
