Mishimoto Silicone Ancillary Hose Kit Chevrolet C5 Corvette/Z06 1997 2004

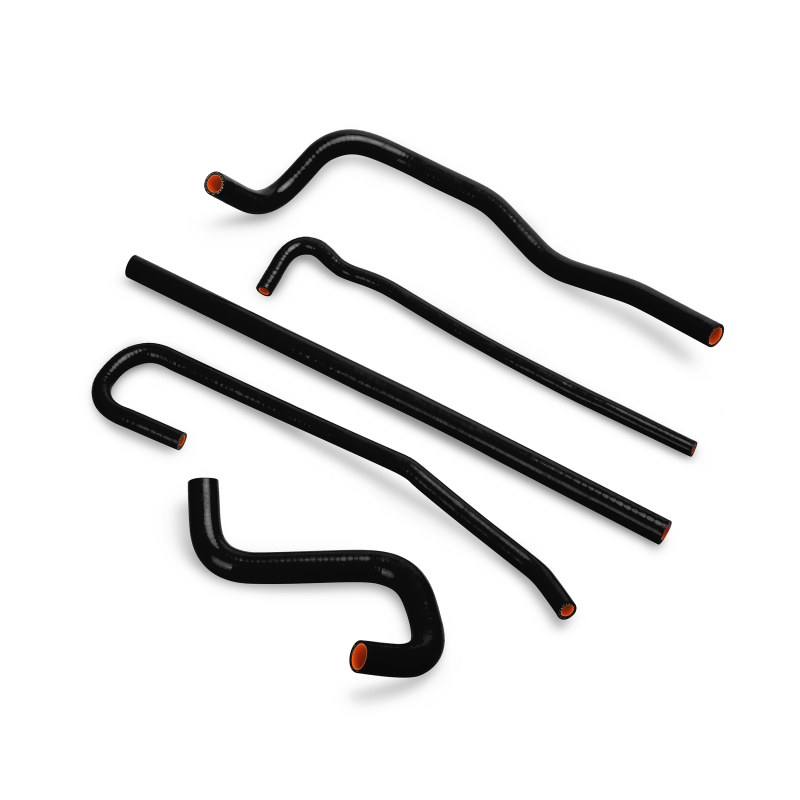

Rubber is out, silicone is in! Upgrade your rubber Corvette engine hoses with the Mishimoto 1997-2004 Chevrolet Corvette ancillary hose kit to provide your Corvette with an advancement in both style and reliability. This Corvette silicone hose kit includes the expansion tank hoses, upper and lower heater hoses, the radiator to engine vent hose, and ten worm-gear clamps for ease of installation.

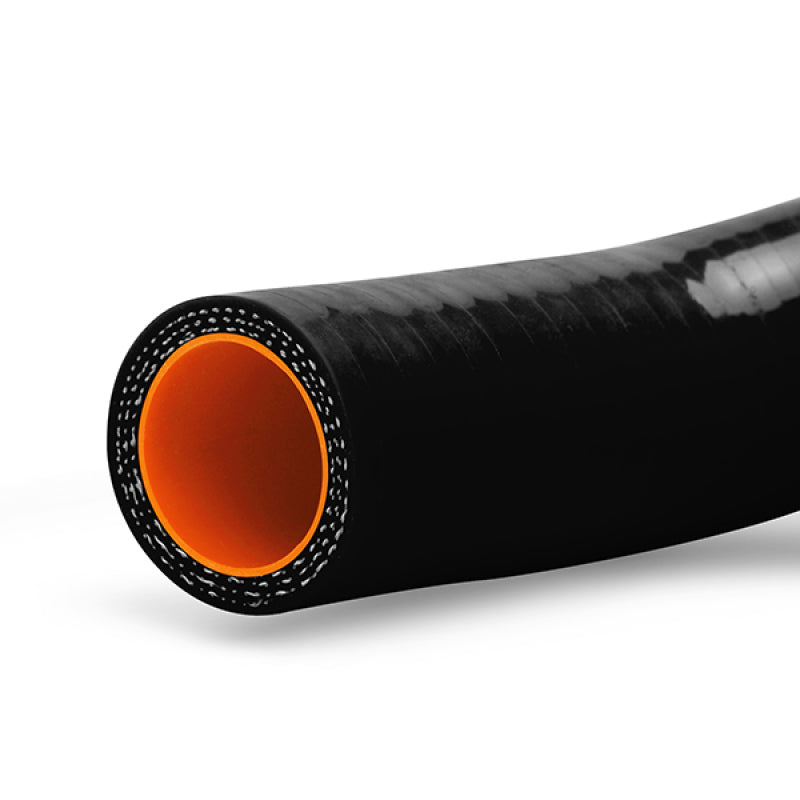

Unlike the degradation-prone rubber hoses your Corvette currently has, every Mishimoto silicone hose is constructed from durable silicone with heat-resistant embedded fibers to provide unmatched durability, heat tolerance, and pressure tolerance. Whether you are taking your C5 Corvette to the drag strip or lapping at your next track day, trust Mishimoto with all your Corvette parts. These C5 Corvette silicone hoses are available in black, blue, or red, and, like all our C5 Corvette parts, includes the Mishimoto Lifetime Warranty.
- Direct fit for the 1997-2004 Chevrolet C5 Corvette/Z06
- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance
- Includes high-quality worm-gear clamps for ease of installation
- Available in black, blue, or red
- Mishimoto Lifetime Warranty
- Tech support for our customers 7 days a week.
- 1997-2004 Chevrolet C5 Corvette/Z06
- Heat-Resistant Embedded Fibers
- Silicone
- 330°F (166°C)
- Hose 1: 0.71" (18mm)
- Hose 2: 0.35" (9mm)
- Hose 3: 0.60" (15mm)
- Hose 4: 0.55" (14mm)
- Hose 5: 0.31", 0.24" (8mm, 6mm)
- Hose 1: 1.10" (28mm)
- Hose 2: 0.75" (19mm)
- Hose 3: 0.98" (25mm)
- Hose 4: 0.94" (24mm)
- Hose 5: 0.71", 0.63" (18mm, 16mm)
- (5) Silicone Hoses
- (10) Worm-Gear Clamps
- Mishimoto Lifetime Warranty
- Hose 5: 0.71", 0.63" (18mm, 16mm)
- 22 in-lbs (2.5N*M) recommended for all worm-gear clamps.
- These clamps have an operating range of 18-27 in-lbs 2-3N*M.
- Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 - 2020 | Chevrolet | Camaro | LS, ZL1 |
| 2016 - 2020 | Chevrolet | Camaro | LT, SS |
| 2020 | Chevrolet | Camaro | LT1 |
| 2016 - 2019 | Chevrolet | Camaro | RS |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car, 50th Anniversary Edition |
| 1997 - 2004 | Chevrolet | Corvette | Base |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001 - 2004 | Chevrolet | Corvette | Z06 |
