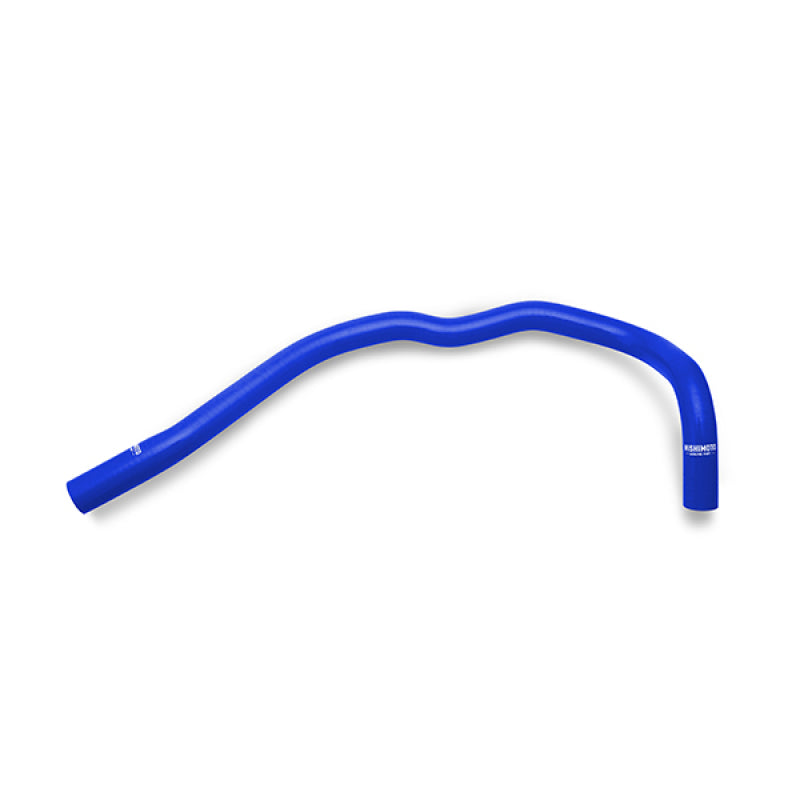

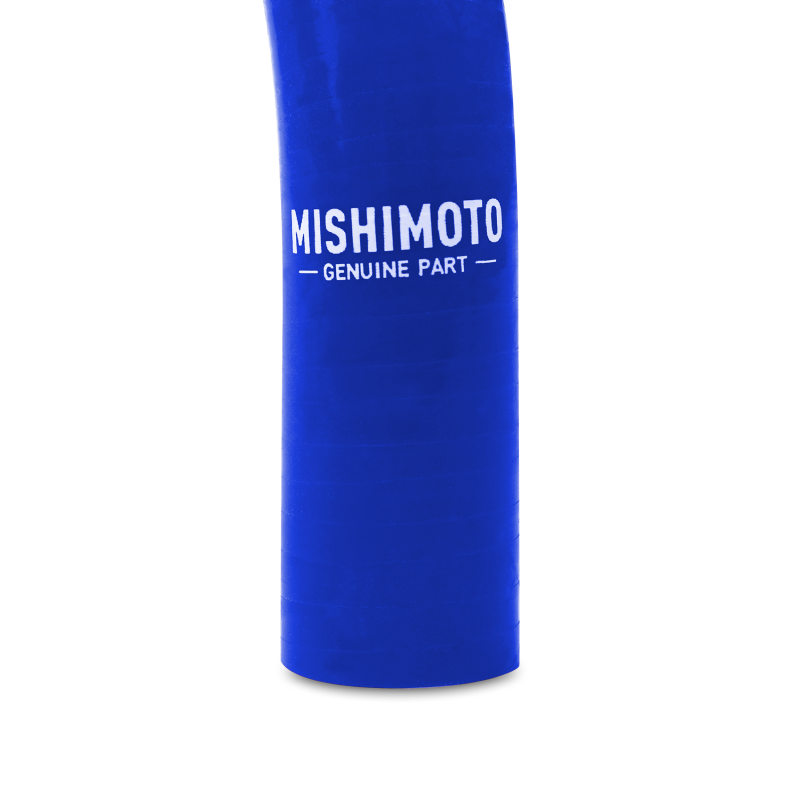

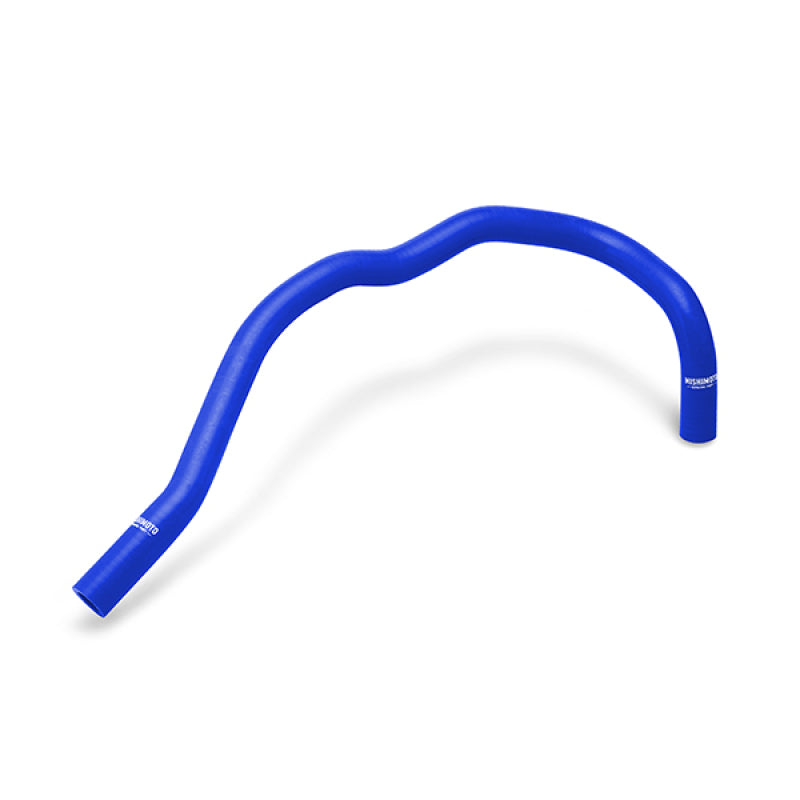

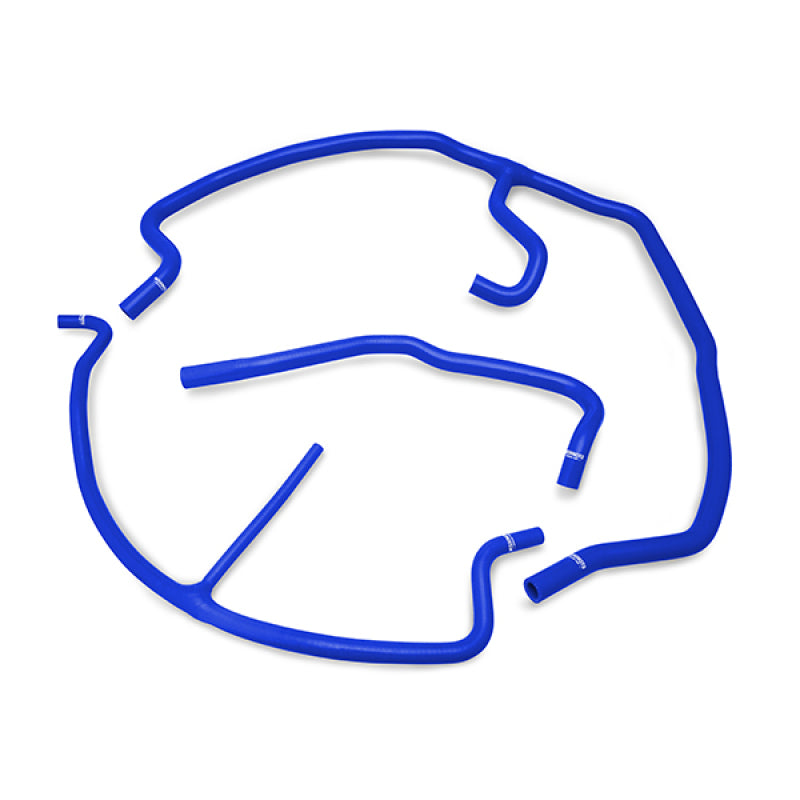

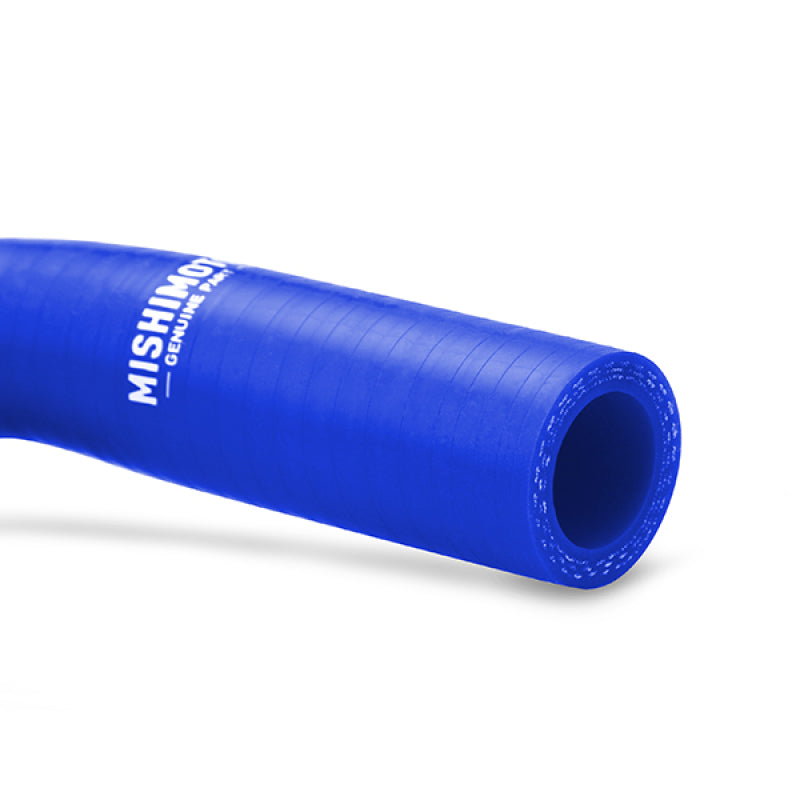

Mishimoto Chevrolet C6 Corvette/Z06 Silicone Ancillary Hose Kit
- Direct fit for the 2009-2014 Chevrolet C6 Corvette/Z06
- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance
- Includes expansion tank hose and both engine coolant recovery hoses
- Includes high-quality worm-gear clamps for ease of installation
- Available in black, blue, or red
- Mishimoto Lifetime Warranty
Rubber is out, silicone is in! Upgrade your rubber Corvette engine hoses with the Mishimoto 2009-2014 Chevrolet Corvette ancillary hose kit to provide your Corvette with an advancement in both style and reliability. This Corvette hose kit includes a silicone expansion tank hose, engine inlet coolant recovery hose, and engine outlet coolant recovery hose, as well as eight worm-gear clamps for ease of installation. Unlike the degradation-prone rubber hoses your Corvette currently has, every Mishimoto silicone hose is constructed from durable silicone with heat-resistant embedded fibers to provide unmatched durability, heat tolerance, and pressure tolerance. Whether you are taking your C6 Corvette to the drag strip or lapping at your next track day, trust Mishimoto with all your Corvette parts. These C6 Corvette silicone hoses are available in black, blue, or red, and, like all our C6 Corvette parts, includes the Mishimoto Lifetime Warranty.
MaterialSilicone
Exterior MaterialSilicone
Purchase Includes(3) Silicone Hoses
(8) Worm-Gear Clamps
Mishimoto Lifetime Warranty
NoteInstallation Torque Specs
22 in-lbs (2.5N*M) recommended for all worm-gear clamps.
These clamps have an operating range of 18-27 in-lbs 2-3N*M.
Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Interior MaterialHeat-Resistant Embedded Fibers
Outer DiameterHose 1: .98" & 1.10" (25mm & 28mm) Hose 2: .67" & .67" & .55" (17mm & 17mm & 14mm) Hose 3: 1.10" & 1.10" & .98" (28mm & 28mm & 25mm)
Max Temp330°F
Inner DiameterHose 1: .59" & .71" (15mm & 18mm) Hose 2: .35" & .35" & .24" (9mm & 9mm & 6mm) Hose 3: .71" & .71" & .59" (18mm & 18mm & 15mm)
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2017 - 2020 | Chevrolet | Camaro | LS, ZL1 |
2016 - 2020 | Chevrolet | Camaro | LT, SS |
2020 | Chevrolet | Camaro | LT1 |
2016 - 2019 | Chevrolet | Camaro | RS |
2009 - 2013 | Chevrolet | Corvette | Base, ZR1, Z06 |
2010 - 2013 | Chevrolet | Corvette | Grand Sport |
2013 | Chevrolet | Corvette | LT, 427 |
2011 | Chevrolet | Corvette | Z06 Carbon |
