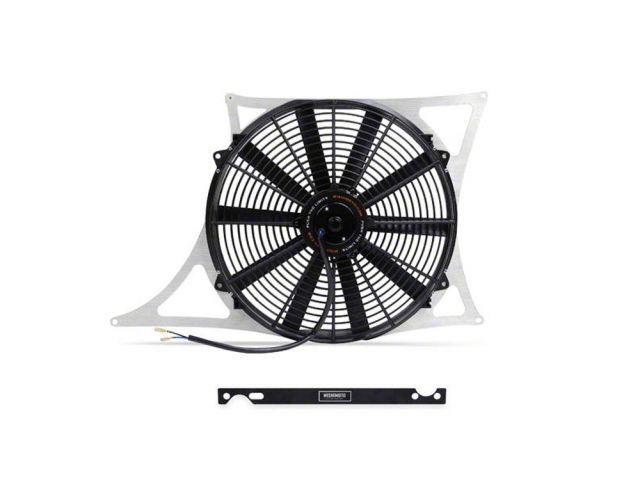

Mishimoto Performance Aluminum Fan Shroud Kit - 2001-2006 BMW E46 M3
Keep your E46 M3 cool with the Mishimoto Performance Aluminum Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts directly to both stock and Mishimoto radiators and includes a 16" high-flow electric fan that produces over 1850 cfm of airflow. Our in-house Dynojet testing has shown a 5 whp gain from 6500-7500 rpm and 1-2 whp gains over a majority of the power band after removing the factory clutch fan. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. The Mishimoto BMW E46 Fan Shroud Kit includes a removal tool for the clutch fan as well as all hardware required for installation.
Features- Direct fit for the 2001-2006 BMW E46 M3
- Dyno-proven gains of up to 5 whp at 6500-7500 rpm
- Includes high-flow 16" electric fan that provides over 1850 cfm of airflow
- Offset fan mounting provides clearance for popular supercharger kits
- Optional fan controller provides complete control of coolant temperatures at idle
- Includes fan tool for removal of stock mechanical fan
- Fits with both stock and Mishimoto radiators
- Replaces failure-prone stock mechanical fan
- Brushed aluminum finish
- Includes all mounting hardware for installation
- CFM: 1850
- 01-06 BMW E46 M3
- S54
- E46
- Aluminum Fan Shroud
- (1) 16" Mishimoto Slim Electric Fan
- Fan Removal Tool
- Optional: Mishimoto Fan Controller (1/8" NPT or Probe)
- Additional Hardware ( If Purchasing Optional Fan Controller ) : (1) Mishimoto Fan Controller
(1) Temperature Sensor (1/8" NPT or Probe)
(1) In-Line Fuse Holder
(2) Butt Splice
(2) 0.25" Wide Quick-Disconnect Terminal
(2) 3/8" Stud Size Ring Terminal
(1) 3/8" Black Wire Cover, 5Í Length
(1) 3/16" Black Shrink Wrap, 6" Length
(1) 1/4" Black Shrink Wrap, 2" Length
(3) 7.5" Black Zip-Tie
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2006 | BMW | M3 | Base |
