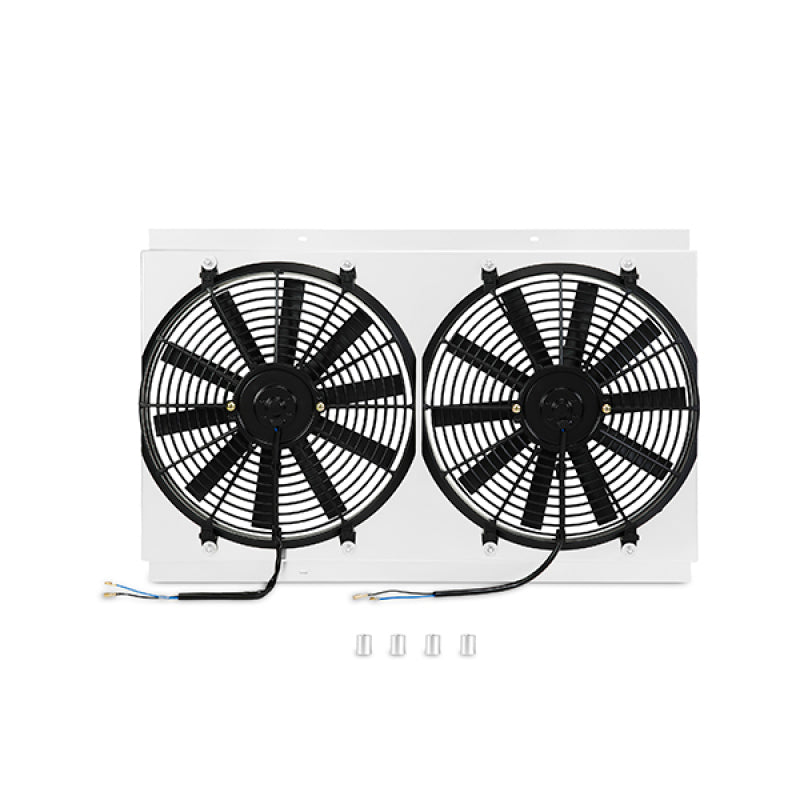

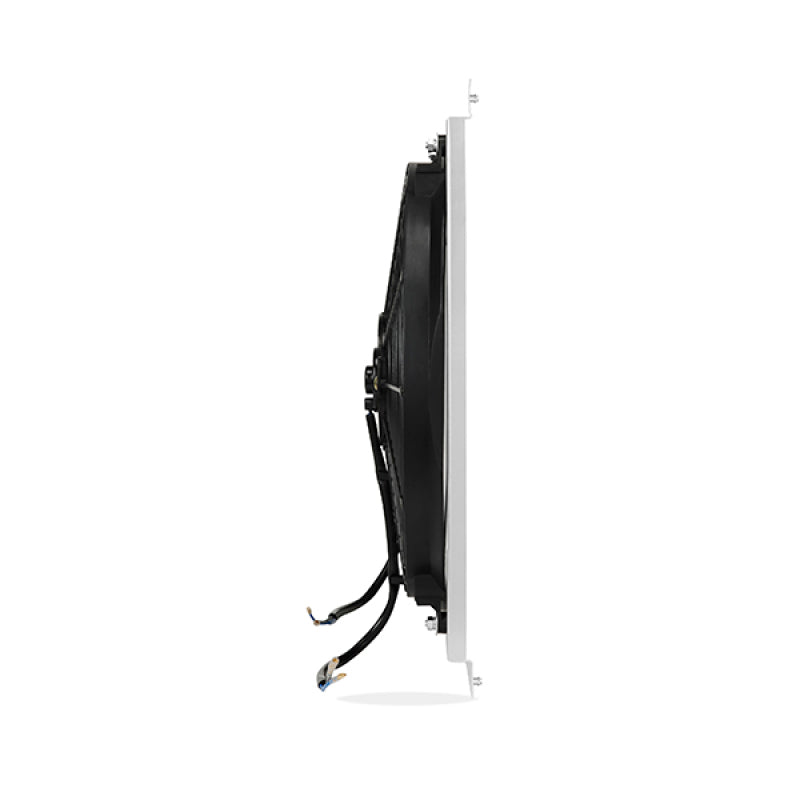

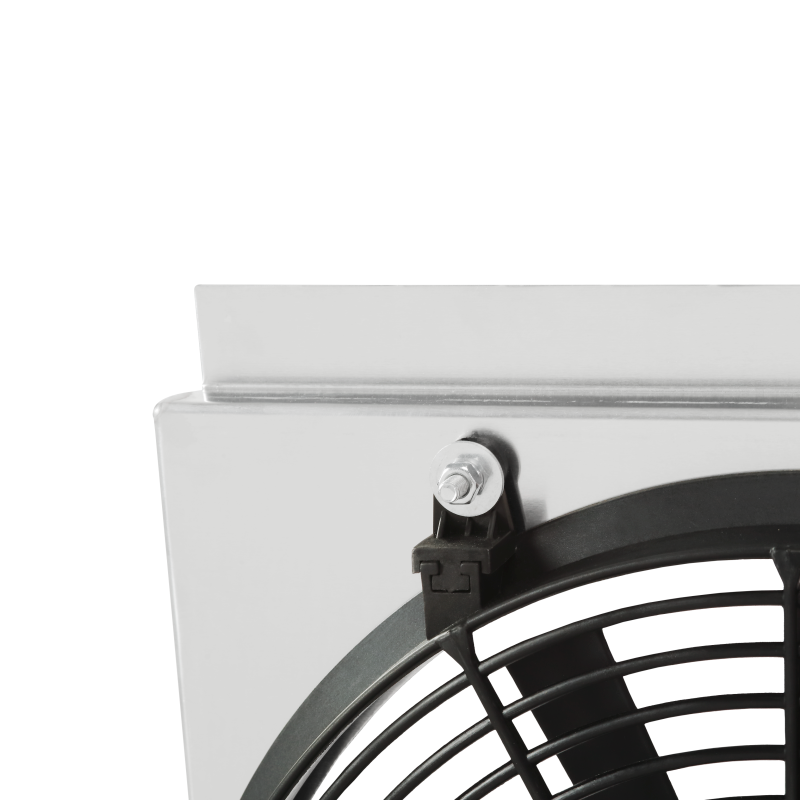

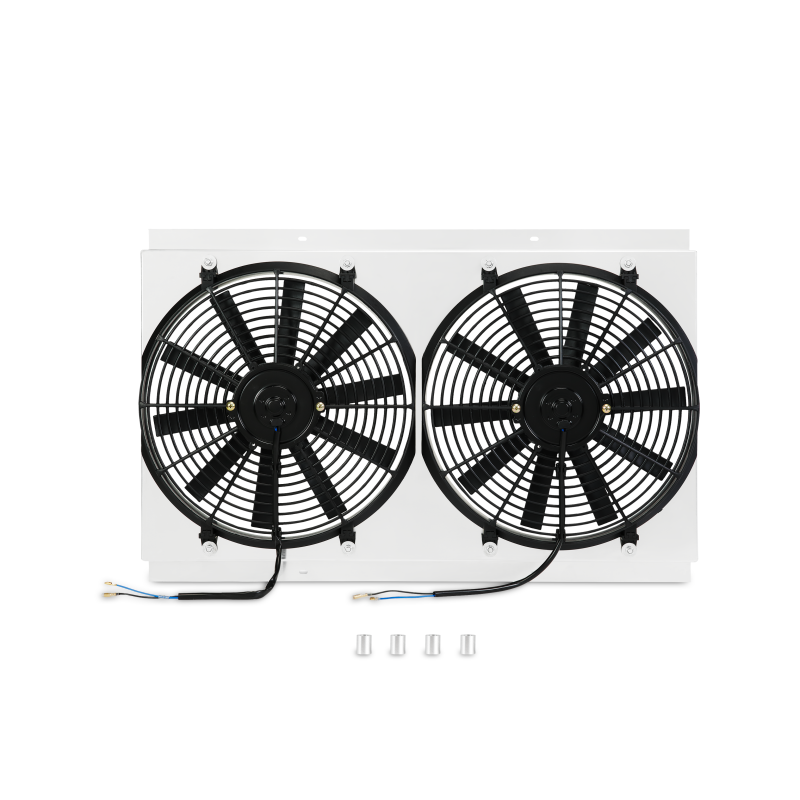

Mishimoto Chevrolet/GM C/K Truck Performance Aluminum Fan Shroud

Keep your 196772 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto's Chevrolet/GM C/K Performance Radiator and includes two 14" high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures.

• Includes two high-flow 14" electric fans, each providing over 1300 cfm of airflow
• All-aluminum construction
• Optional fan controller provides complete control of coolant temperatures at idle
• Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator
• Replaces failure-prone stock mechanical fan
• No cutting or bending of shroud required
• Includes all mounting hardware for installation

SPECIFICATION

• CFM: Each fan puts out 1,300 CFM
• Engine Codes
  • 250ci (4.1L) L6
  • 292ci (4.8L) L6
  • 283ci (4.6L) V8
  • 307ci (5.0L) V8
  • 327ci (5.4L) V8
  • 350ci (5.7L) V8
  • 402ci (6.6L) V8
• Also Fits
  • 19671972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8
    19691972 Chevrolet Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8
    19671971 GM G-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8
    19681979 GM P-Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
• Mounting Hardware
  • (4) Mounting Spacers
  • (4) 1" Self-tapping Screws
  • (4) M6 x 1.00 Bolts
  • (4) M6 x 1.00 Nuts
  • (4) M6 Lock Washers
  • (4) M6 Washers
• Purchase Includes
  • (1) Aluminum Fan Shroud
  • (2) 14" Mishimoto Slim Electric Fans
• Width 3.69"
• Length 29.5"
• Height 19.56"

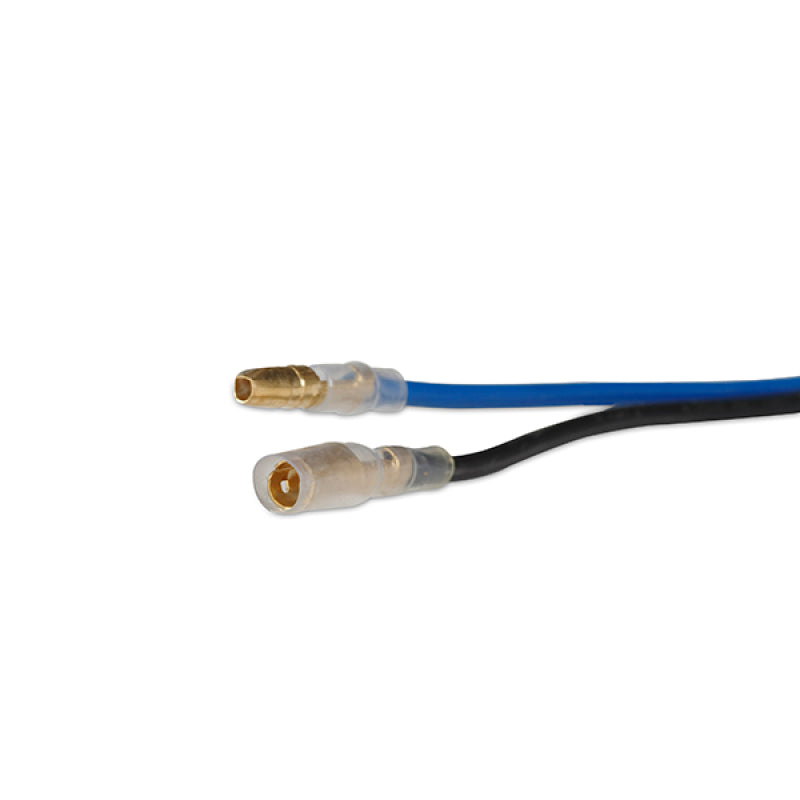

Note Electric fans already come attached to the shroud. Fans may require additional wiring.
