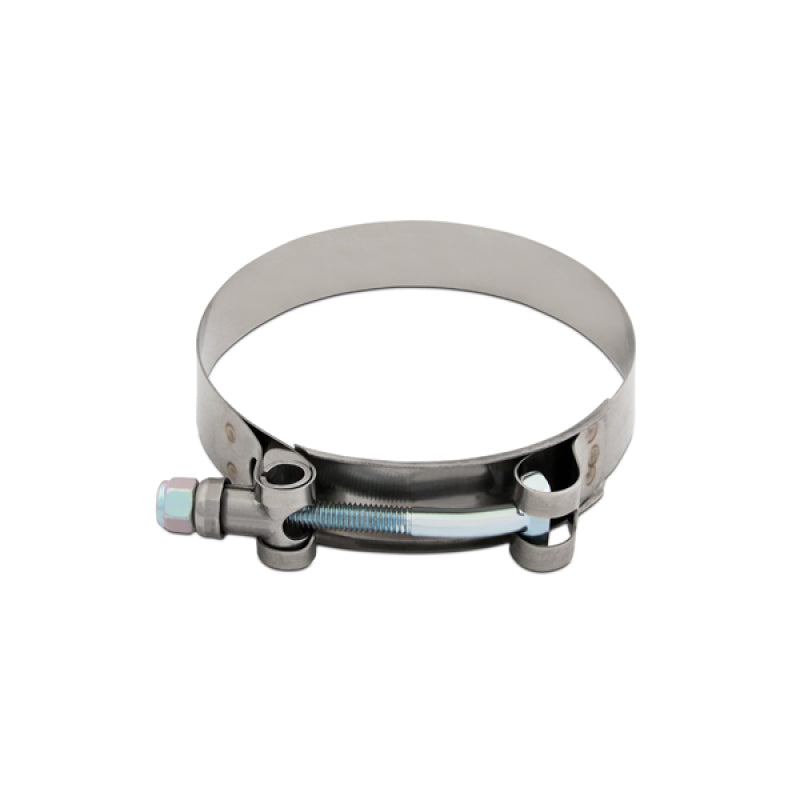

Mishimoto Stainless Steel T-Bolt Clamp, 3.86" - 4.17" (98mm - 106mm)

Mishimoto Stainless Steel T-Bolt Clamp, 3.86" – 4.17" (98mm – 106mm)

Mishimoto T-bolt clamps are a great solution for projects that need more clamping force than a standard worm gear clamp can provide. Built from the same stainless steel as our worm gear clamps, these T-bolt clamps are as durable as they are strong. This 3.86” – 4.17” (98mm – 106mm) T-bolt design provides superior clamping power while the included locking nut keeps the clamp tight against any vibration. Available in a wide range of sizes, these clamps are an excellent choice for a variety of applications.

Like all Mishimoto clamps, this 3.86” – 4.17” (98mm – 106mm)

Features

• Securely clamps pipes, couplers, and hoses with an outer diameter from 3.86" – 4.17" (98mm – 106mm)
• T-bolt design provides a strong and secure grip
• Included self-locking nut prevents loosening with movement and vibration
• Stainless steel construction resists corrosion longer than zinc-plated clamps

Min Clamp Diameter (In) 3.86

Max Clamp Diameter (In) 4.17

Min Clamp Diameter (mm) 98

Max Clamp Diameter (mm) 106

Clamp Style T-Bolt Clamp

Material Stainless Steel

Band Width 19

Finish Natural

SAE Number 100

Purchase Includes (1) Mishimoto Stainless Steel T-Bolt Clamp

Recommended Tightening Torque 27 in-lbs (3 N*M)

Note If using this clamp, we recommend purchasing:

• MMICP-SS-25U
• MMICP-SS-3U
