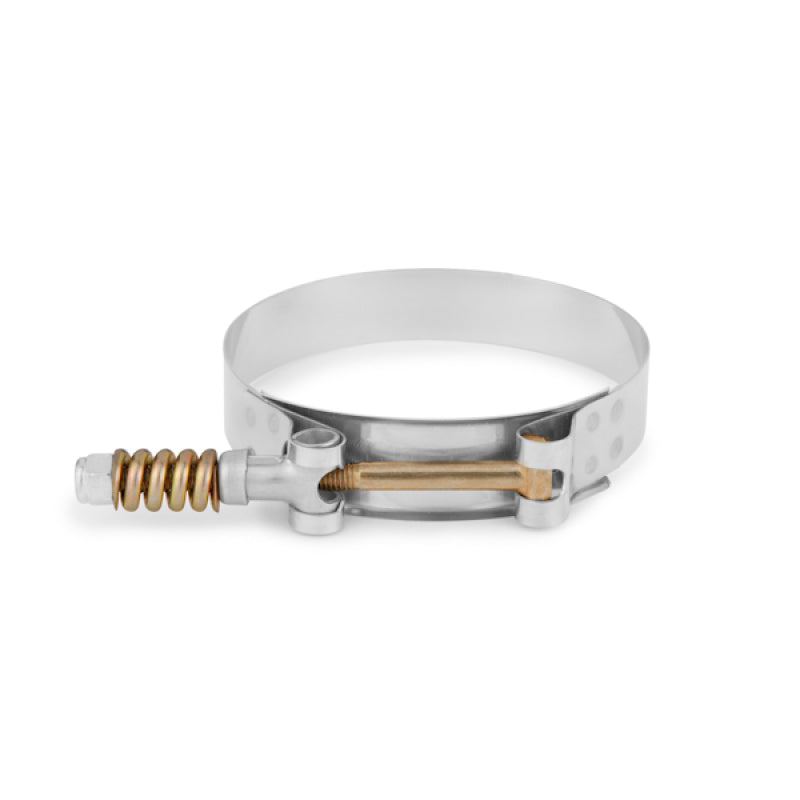

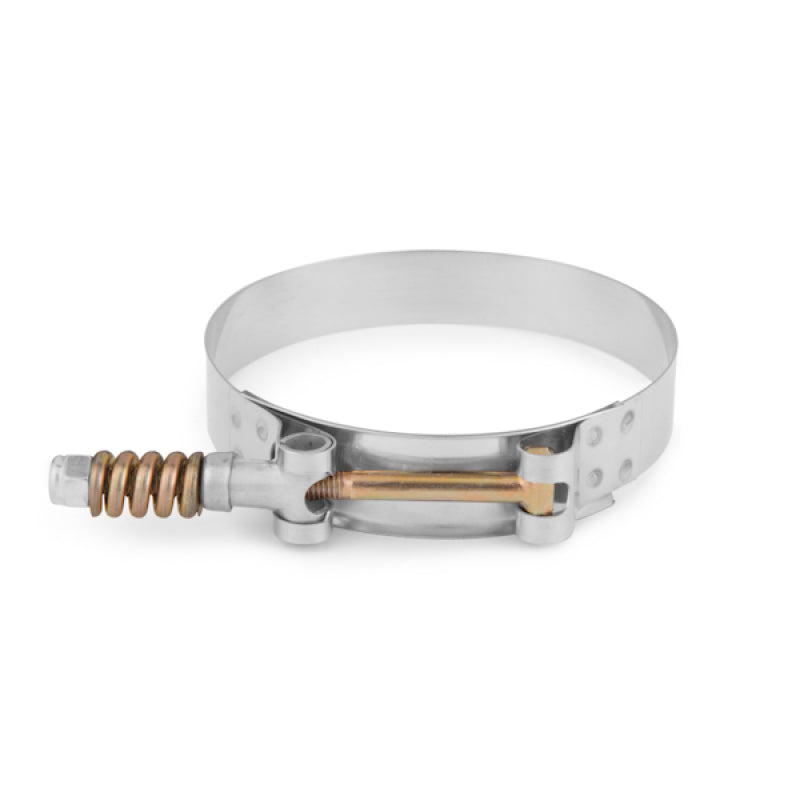

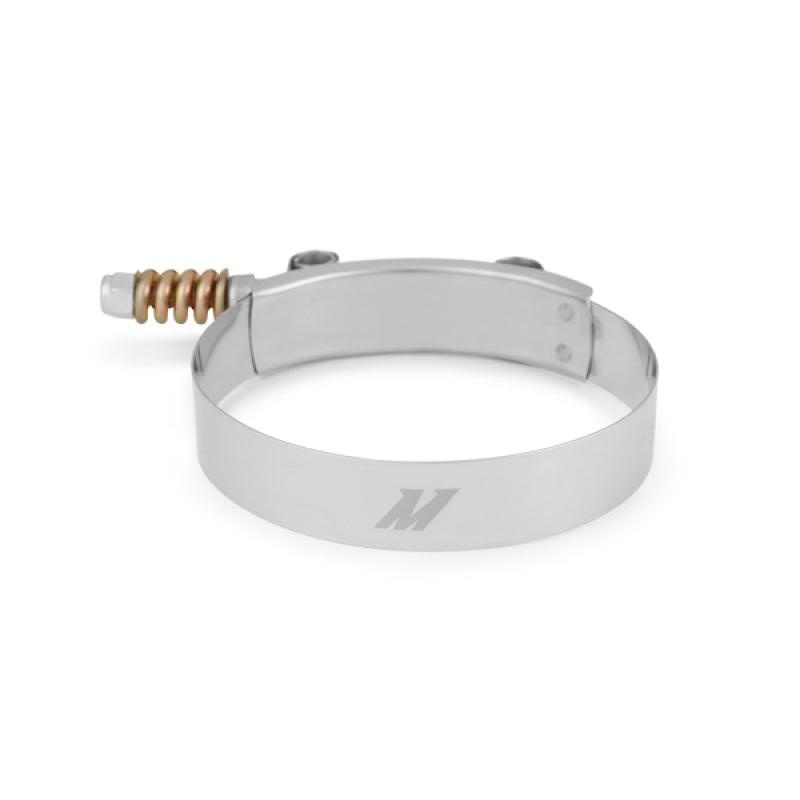

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, 3.39" - 3.70"

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, 3.39" – 3.70" (86mm – 94mm)

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.39” – 3.7” (86mm – 94mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.

Like all Mishimoto clamps, this 3.39” – 3.7” (86mm – 94mm)

Features

• Securely clamps pipes, couplers, and hoses with an outer diameter from 3.39" – 3.7" (86mm – 94mm)
• Constant tension spring maintains clamping pressure through a wide range of temperatures
• Included self-locking nut prevents loosening with movement and vibration
• Stainless steel construction resists corrosion longer than zinc-plated clamps

Min Clamp Diameter (In) 3.39

Max Clamp Diameter (In) 3.70

Min Clamp Diameter (mm) 86

Max Clamp Diameter (mm) 94

Clamp Style Constant Tension T-Bolt Clamp

Material Stainless Steel

Band Width 19

Finish Natural

SAE Number 80

Purchase Includes (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp

Recommended Tightening Torque 27 in-lbs (3 N*M)
